Garrett

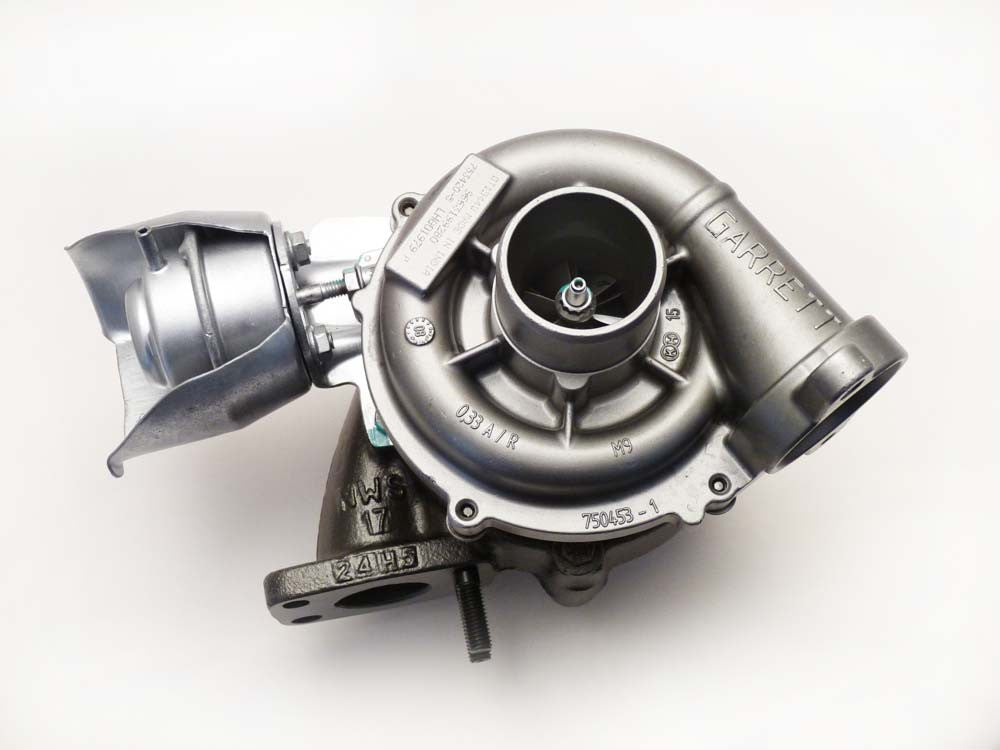

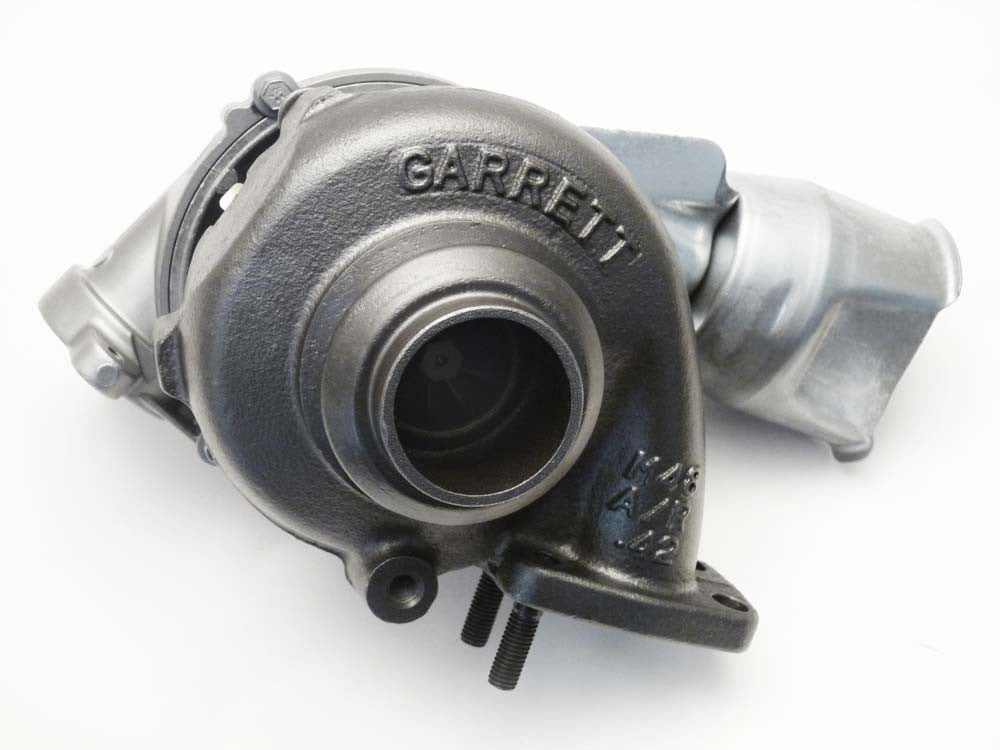

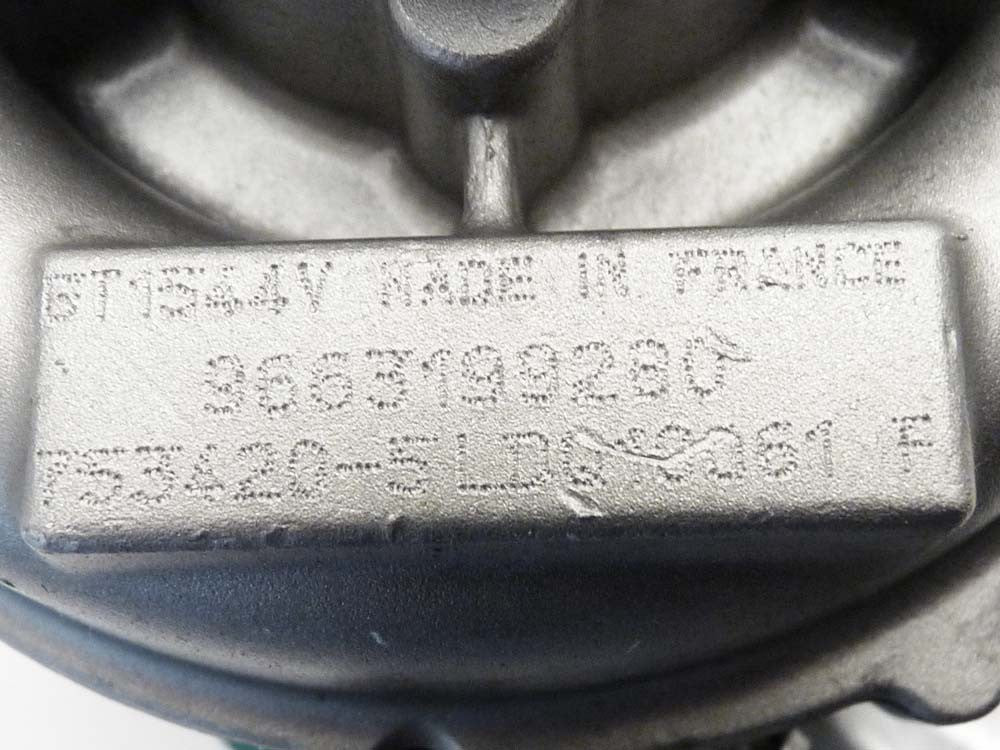

Turbo 753420-0005-R
Turbo 753420-0005-R
Podatka o razpoložljivosti osebnega prevzema ni mogoče naložiti
753420-0005 (0375J6, 1479055, 36002480) - Turbocharger GT1544V
Brand: Garrett
Model: GT15 - GT1544V
Garrett Reference: 753420-0005
OEM Numbers: 0375J6, 1479055, 36002480, 3M5Q6K682AK, 9663199280
753420-0005 - Alternative numbers
GHT (Garrett turbo number): 753420-0005
GHT (Garrett turbo number): 753420-5005S
753420-0005 - Technologies and actuation
Actuation type: Pneumatic (Pneumatic actuator)
Turbocharger technology: VGT (Variable Geometry (VFT, VG, VGS, VGT, VNT, VTG) Turbocharger)
753420-0005 - Turbo replacements
Replaced by: Garrett GT1544V 753420-0006, 0375J6, 1479055, 3M5Q6K682AK, 753420-5006S, 753420-9006S, 9663199280
Replaced by: TurboCentras GT1544V 753420-T, 0375J6, 1479055, 3M5Q6K682AK, 753420-*, 9663199280
753420-0005 - Turbo interchangeability
Interchangeable with: Garrett GT1544V 740821-0001, 0375J6, 0375J8, 9650764480
Interchangeable with: Garrett GT1544V 740821-0002, 0375J6, 0375J8, 9651839880
Interchangeable with: Garrett GT1544V 750030-0002, 750030-5002S, 9654128780
Interchangeable with: Garrett GT1544V 753420-0002, 9656125880
Interchangeable with: Garrett GT1544V 753420-0003, 0375J6, 3M5Q6K682AF, 9657248680
Interchangeable with: Garrett GT1544V 753420-0004, 1373584, 3M5Q6K682AH, 753420-5004S, 8603746, 9660641380
Interchangeable with: Garrett GT1544V 753420-0006, 0375J6, 1479055, 3M5Q6K682AK, 753420-5006S, 753420-9006S, 9663199280
Interchangeable with: TurboCentras GT1544V 753420-T, 0375J6, 1479055, 3M5Q6K682AK, 753420-*, 9663199280
| PART BRAND | PART NAME | PART REFERENCE | QTY | PART OE NUMBER | GARRETT PART NUMBER |
|---|---|---|---|---|---|
| TurboCentras | Bolt | BO-98-0004 | 6 | -- | -- |
| TurboCentras | Bolt | BO-98-0005 | 6 | -- | -- |
| TurboCentras | Cartridge | GA-00-0053 | 1 | -- | -- |
| TurboCentras | Bearing housing | GA-01-0051 | 1 | -- | -- |
| TurboCentras | Shaft and wheel | GA-02-0047 | 1 | -- | -- |
| TurboCentras | Compressor wheel | GA-03-0043 | 1 | 737683-0003, 742678-0001 | -- |
| TurboCentras | Repair kit | GA-04-0014 | 1 | -- | -- |
| TurboCentras | Heat shield | GA-05-0010 | 1 | -- | -- |
| TurboCentras | Nozzle ring assy. | GA-06-0014 | 1 | -- | -- |
| TurboCentras | Back plate | GA-08-0032 | 1 | -- | -- |
| TurboCentras | Turbine housing | GA-09-0004 | 1 | -- | -- |
| TurboCentras | Actuator | GA-10-0015 | 1 | -- | -- |
| TurboCentras | Compressor housing | GA-11-0001 | 1 | -- | -- |
| TurboCentras | Shaft nut | GA-21-0005 | 1 | -- | -- |
| TurboCentras | VNT outer gasket | GA-50-0003 | 1 | -- | -- |
| TurboCentras | Actuator clip | GR.5 | 1 | -- | -- |
| EE Turbo | Cartridge | GT15-028 | 1 | -- | -- |
| TurboCentras | Journal bearing | GT15-100 | 1 | -- | -- |
| TurboCentras | Thrust bearing | GT15-121 | 1 | -- | -- |
| TurboCentras | Thrust flinger | GT15-131 | 1 | -- | -- |
| TurboCentras | Thrust spacer | GT15-136 | 1 | -- | -- |
| TurboCentras | Retaining ring | GT15-143 | 1 | -- | -- |
| TurboCentras | Piston ring | GT15-160 | 1 | -- | -- |
| TurboCentras | Piston ring | GT15-170 | 1 | -- | -- |
| TurboCentras | Anti-rotation pin | GT15-330 | 1 | -- | -- |
| TurboCentras | VNT Ring | GT15-90-1 | 1 | -- | -- |
| TurboCentras | Screw | SC-96-0007 | 4 | -- | -- |
| TurboCentras | Gasket oil outlet | T-1 | 1 | -- | -- |
| TurboCentras | Gasket kit | TC1018 | 1 | -- | -- |
| TurboCentras | Washer | WA-95-0001 | 4 | -- | -- |
0375J6, 1479055, 36002480, 3M5Q6K682AK, 753420-0005, 753420-5005S, 9663199280
Data updated: 2025-04-25 17:25:34
