Turbo 54389700001
Turbo 54389700001
Podatka o razpoložljivosti osebnega prevzema ni mogoče naložiti

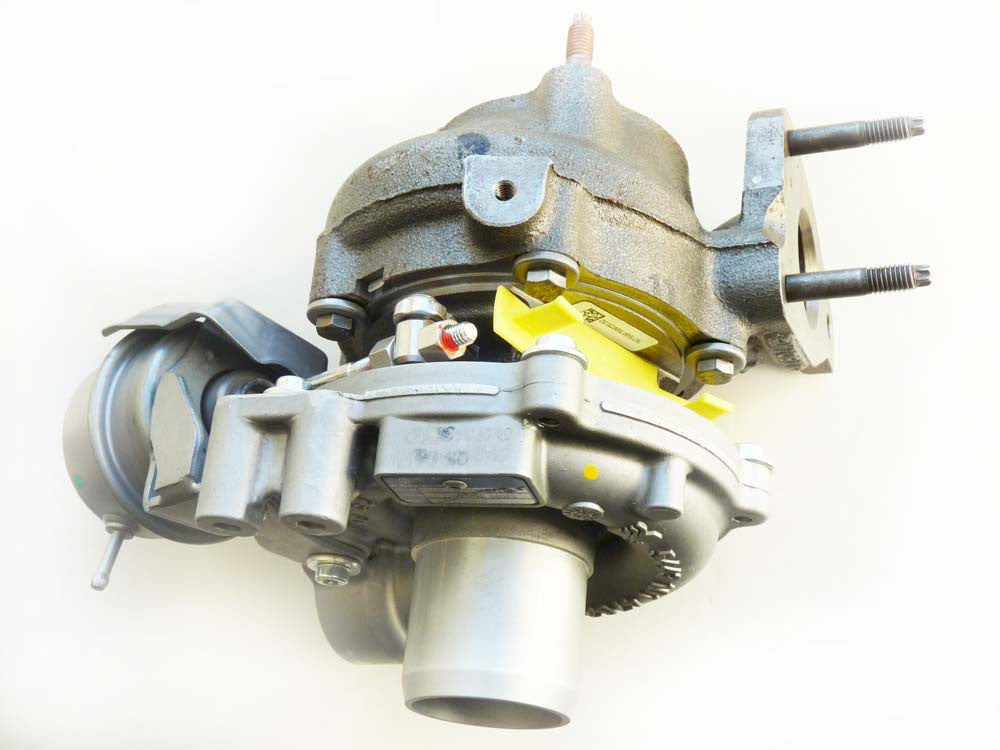

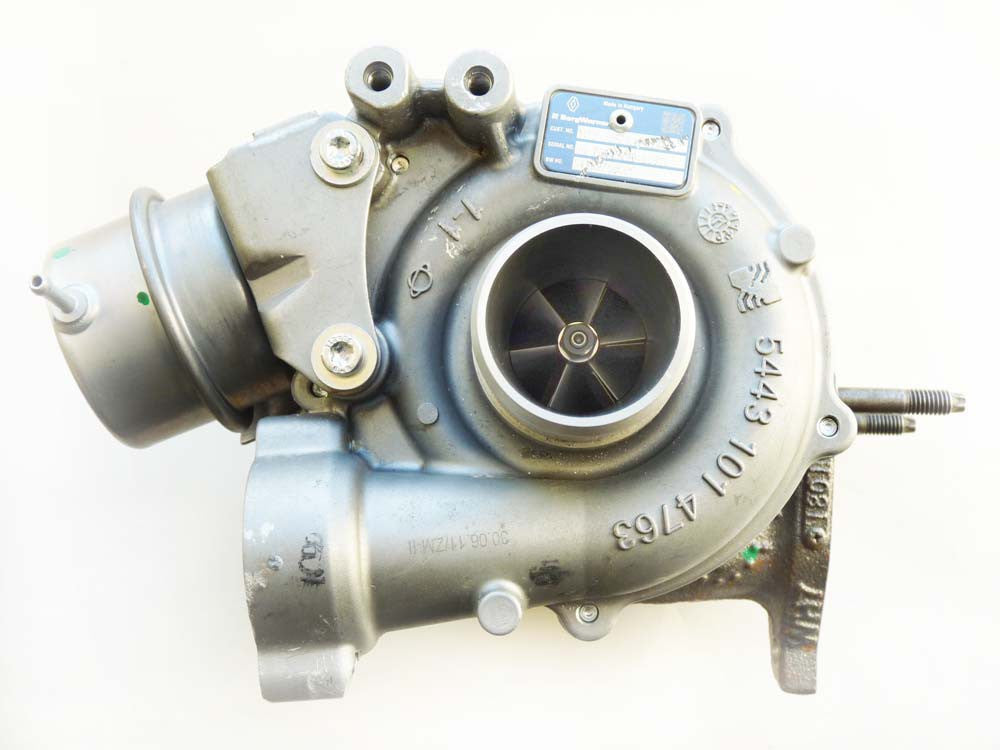

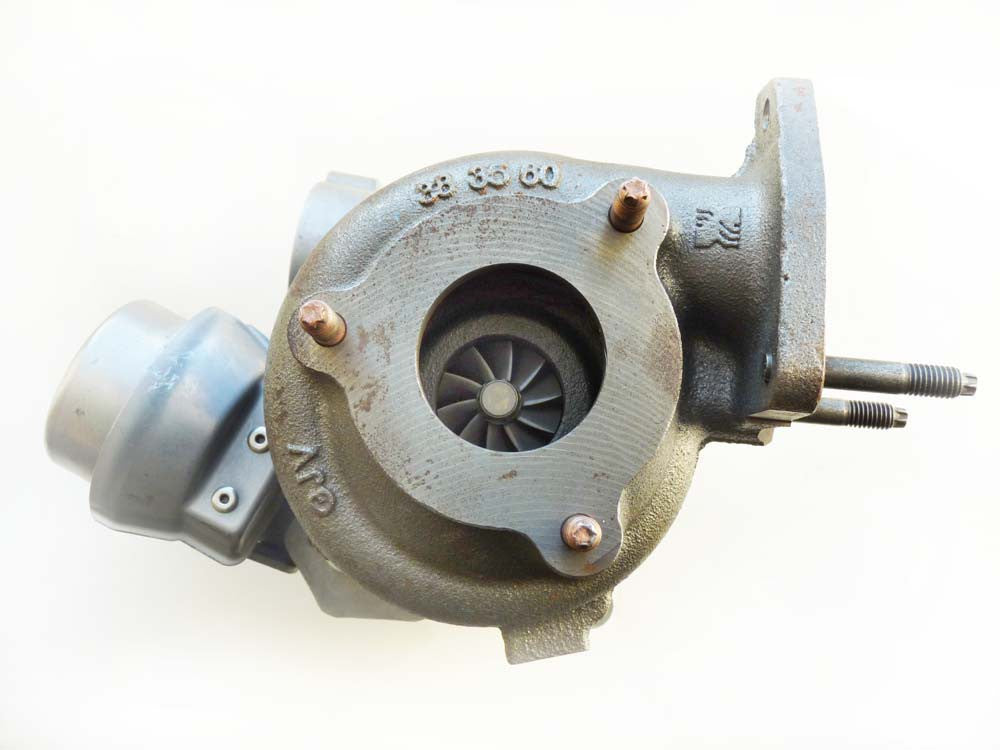

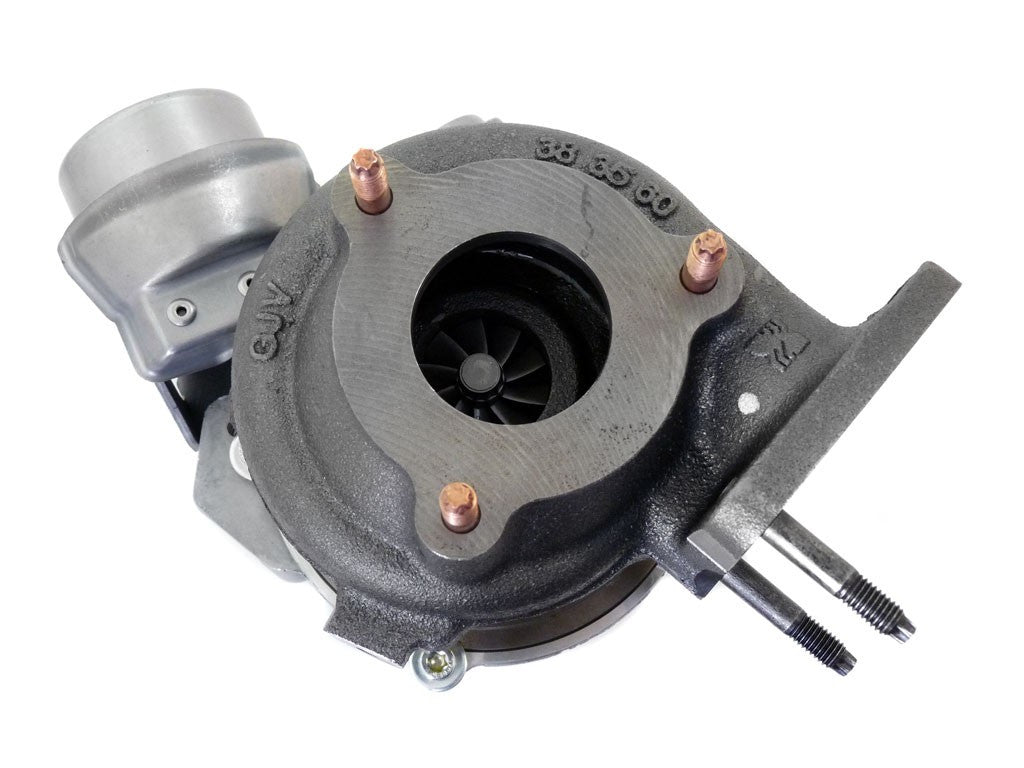

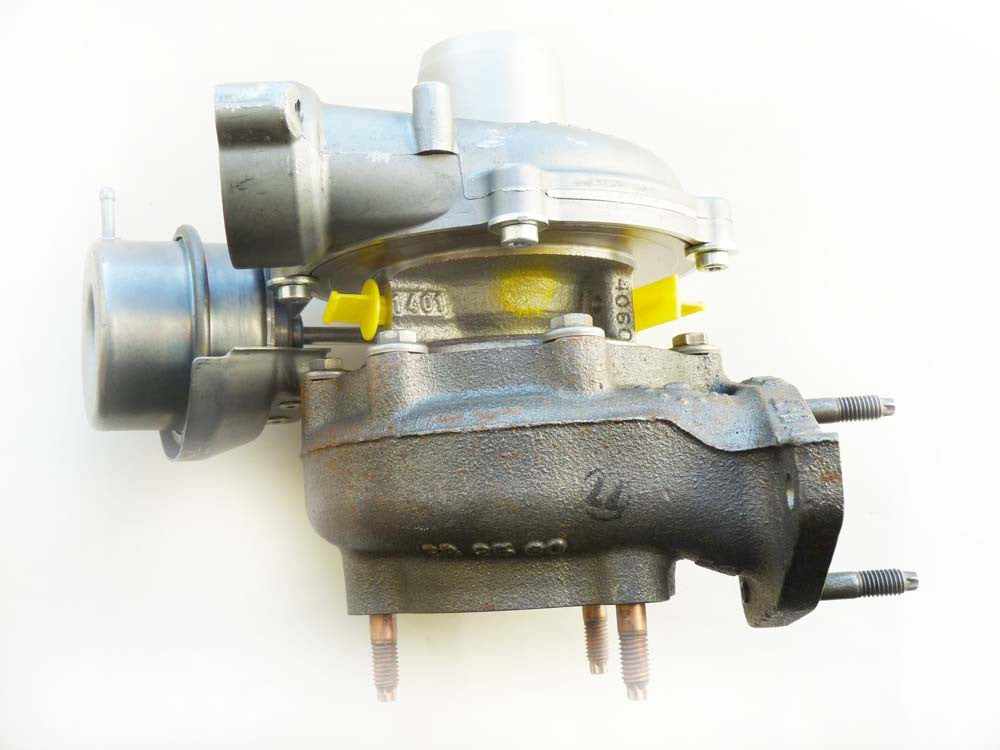

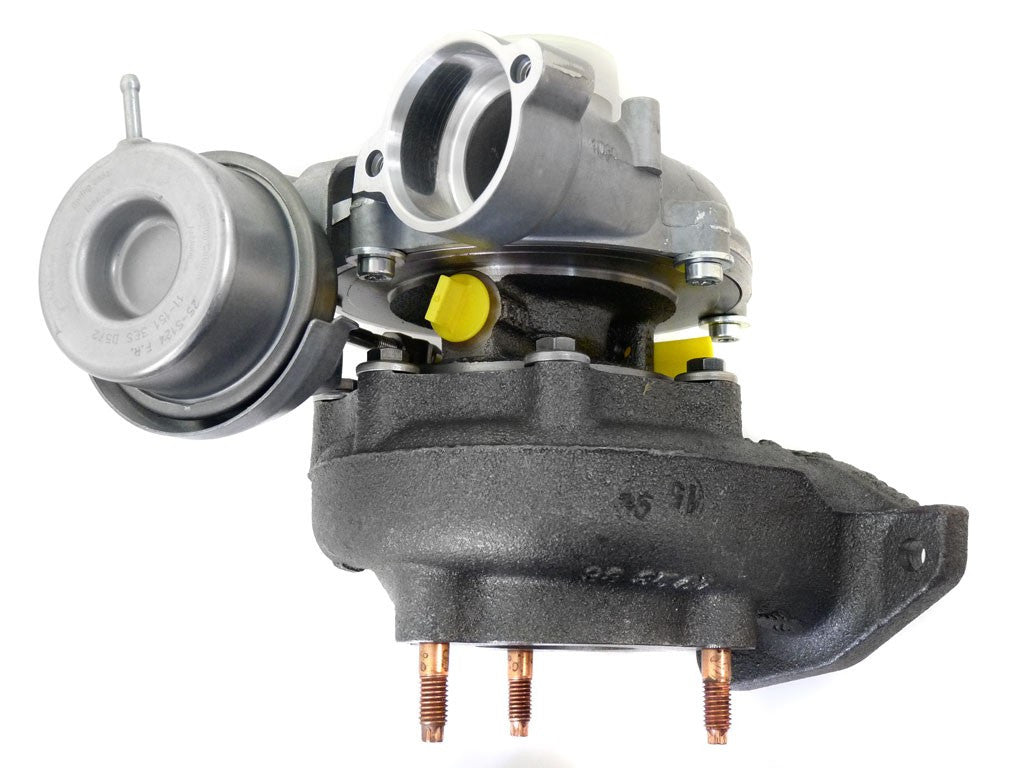

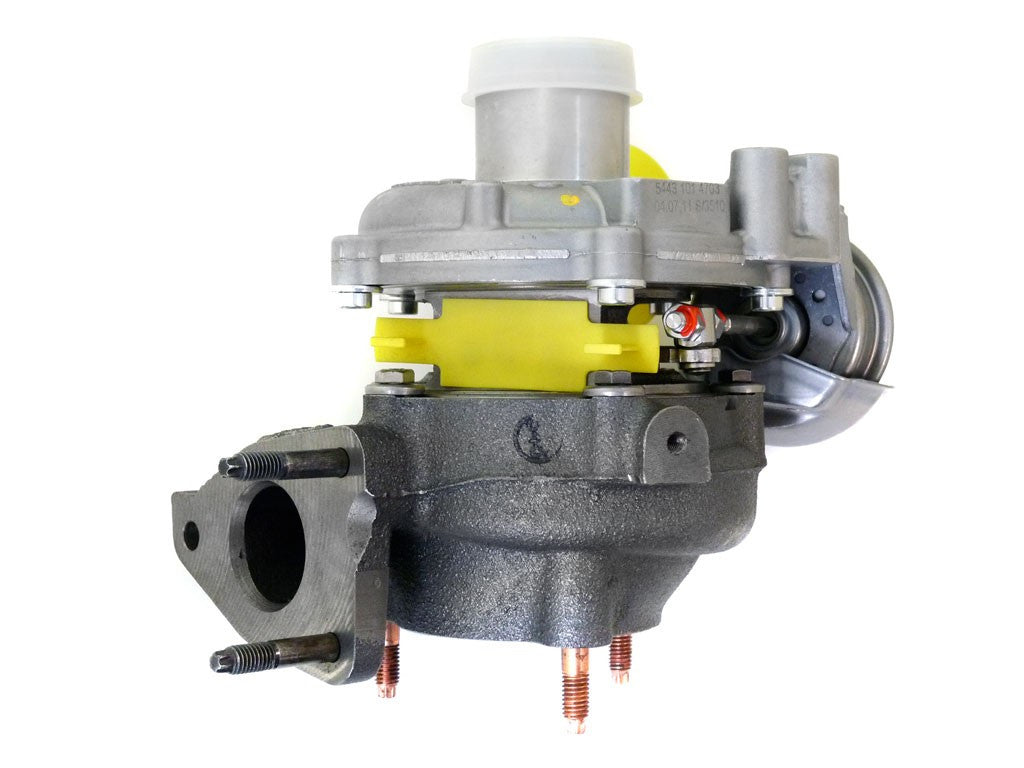

54389700001 (117969H821067824, 144117969R, 144119252R) - Turbocharger BV38_4-1870KYE340.18AVBXC
Brand: BorgWarner
Model: BV38 - BV38_4-1870KYE340.18AVBXC

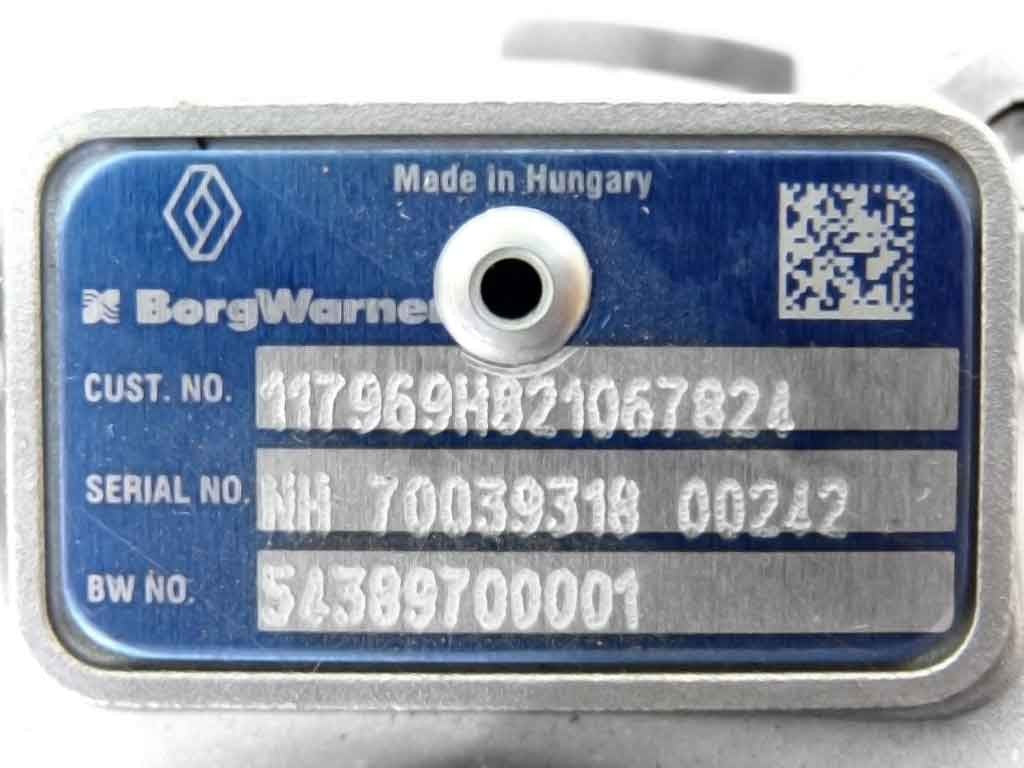

BorgWarner Reference: 54389700001
OEM Numbers: 117969H821067824, 144117969R, 144119252R
54389700001 - Alternative numbers
BWT (BorgWarner turbo number): 5438 970 0001
BWT (BorgWarner turbo number): 5438 988 0001
54389700001 - Technologies and actuation
Actuation type: Pneumatic (Pneumatic actuator)
Turbocharger technology: VGT (Variable Geometry (VFT, VG, VGS, VGT, VNT, VTG) Turbocharger)
54389700001 - Turbo replacements
Replaced by: BorgWarner BV38 54389700007, 144111360R, 144118607R, 5438 970 0007, 5438 988 0007
Replacement for: BorgWarner BV38_4-1870KYE340.18AVBXC 54389700000, 144115874R, 5438 970 0000
54389700001 - Turbo interchangeability
Interchangeable with: BorgWarner BV38_4-1870KYE340.18AVBXC 54389700000, 144115874R, 5438 970 0000
Interchangeable with: BorgWarner BV38_4-1870KYE340.18AVBXC 54389700001-R, 144117969R, 144119252R, 5438 970 0001, 5438 988 0001
Interchangeable with: BorgWarner BV38 54389700007, 144111360R, 144118607R, 5438 970 0007, 5438 988 0007
Interchangeable with: BorgWarner BV38 54389700017, 144114225R, 144114822R, 5438 970 0017, 5438 988 0017, 6260900400
Interchangeable with: BorgWarner BV38_4-1870KYE340.18AVBXC 54389880001, 144117969R, 144119252R, 5438 970 0001, 5438 988 0001
| PART BRAND | PART NAME | PART REFERENCE | QTY | PART OE NUMBER | BORGWARNER PART NUMBER |
|---|---|---|---|---|---|
| TurboCentras | Bolt | BO-98-0001 | 2 | -- | -- |
| EE Turbo | Cartridge | BV38-002B | 1 | -- | -- |
| TurboCentras | Cartridge | BW-00-0133 | 1 | -- | -- |
| TurboCentras | Bearing housing | BW-01-0096 | 1 | -- | -- |
| TurboCentras | Shaft and wheel | BW-02-0027 | 1 | -- | -- |
| TurboCentras | Compressor wheel | BW-03-0049 | 1 | 1646-123-2001, 1646-123-2005, 5443-123-2050, 5443-123-2055 | -- |
| TurboCentras | Repair kit | BW-04-0013 | 1 | -- | -- |
| TurboCentras | Nozzle ring assy. | BW-06-0003 | 1 | -- | -- |
| TurboCentras | Back plate | BW-08-0010 | 1 | -- | -- |
| TurboCentras | Turbine housing | BW-09-0002 | 1 | -- | -- |
| TurboCentras | Compressor housing | BW-11-0002 | 1 | -- | -- |
| TurboCentras | Shaft nut | BW-21-0001 | 1 | -- | -- |
| TurboCentras | VNT outer gasket | BW-50-0002 | 1 | -- | -- |
| TurboCentras | Heat shield | BW-52-0004 | 1 | 1935-165-2000, 1935-165-2004 | -- |
| TurboCentras | Thrust flinger | KP35-133 | 1 | -- | -- |
| TurboCentras | Thrust washer | KP35-155 | 1 | -- | -- |
| TurboCentras | Piston ring | KP35-163 | 4 | -- | -- |
| TurboCentras | Gasket kit | TC1104 | 1 | -- | -- |
| TurboCentras | Gasket kit | TC1104F | 1 | -- | -- |
54389880001, 54389700001, 117969H821067824, 144117969R, 144119252R, 5438 970 0001, 5438 988 0001
