Turbo 785448-0005
Turbo 785448-0005
Podatka o razpoložljivosti osebnega prevzema ni mogoče naložiti

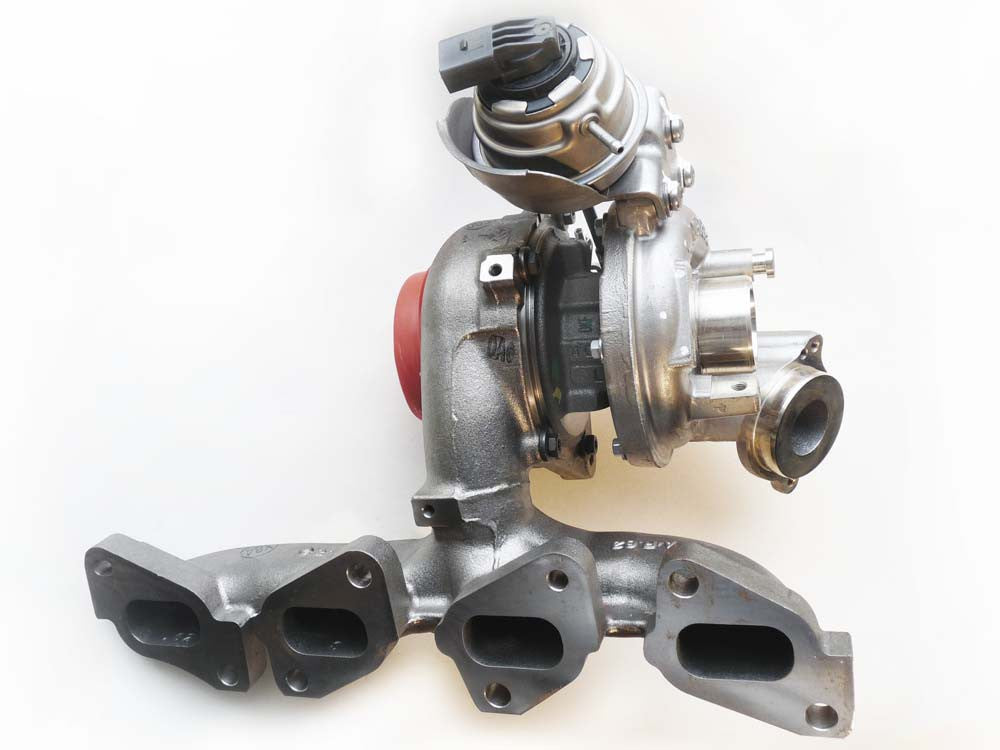

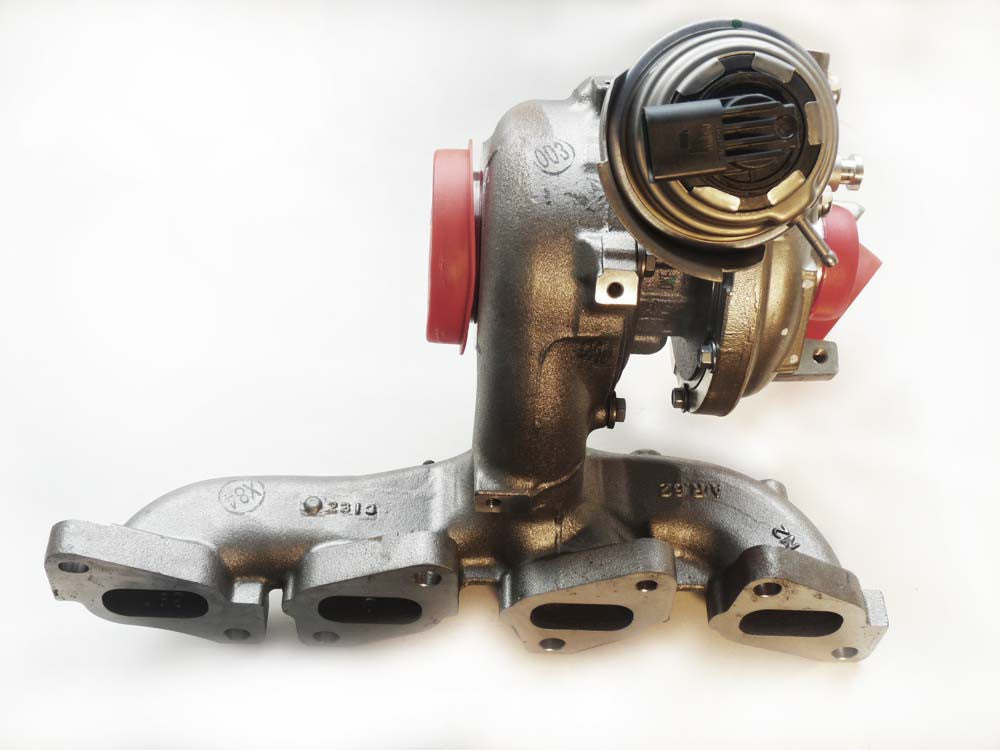

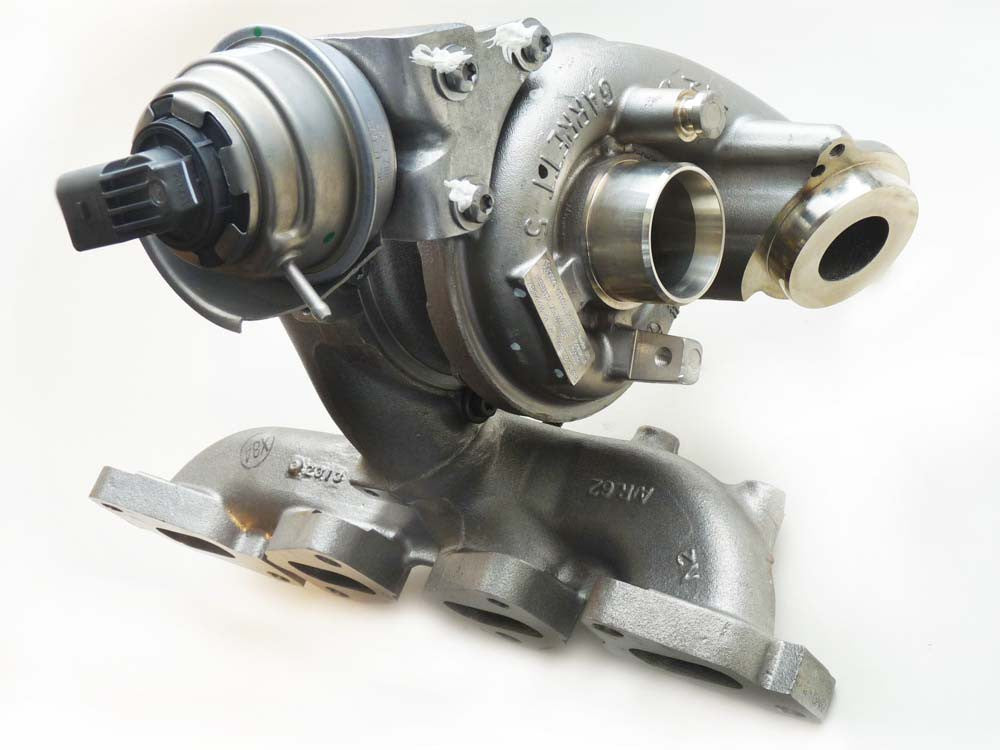

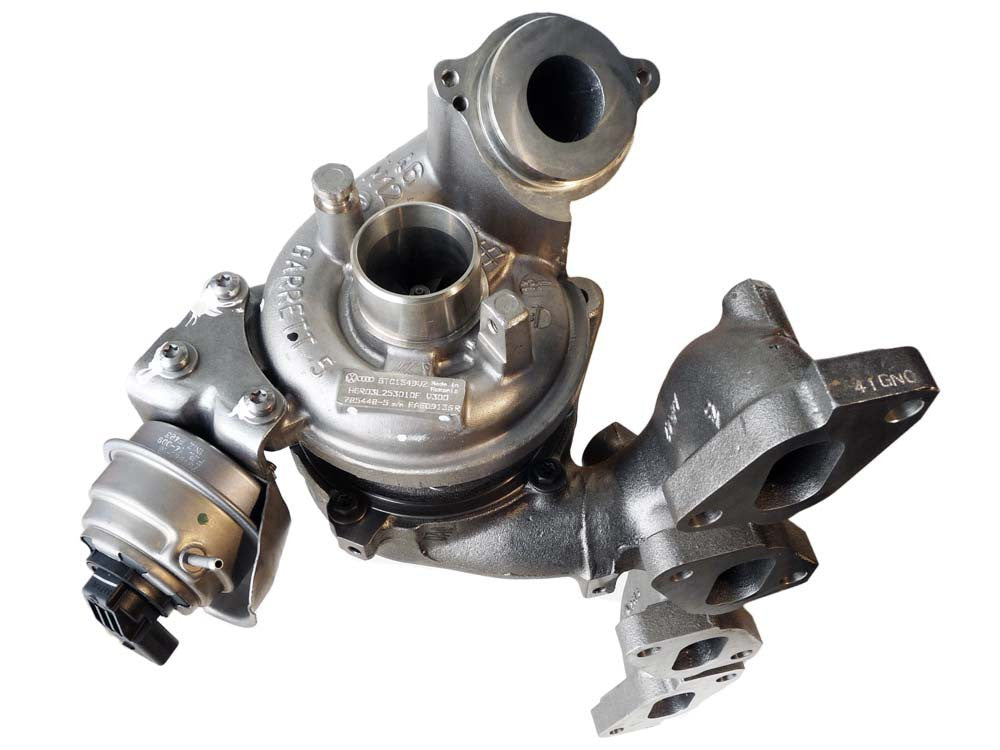

785448-0005 (03L253010F) - Turbocharger GTC1549MVZ
Brand: Garrett
Model: GT15 - GTC1549MVZ
Garrett Reference: 785448-0005
OEM Numbers: 03L253010F
785448-0005 - Alternative numbers
GHT (Garrett turbo number): 785448-0005
GHT (Garrett turbo number): 785448-5005S
GHT (Garrett turbo number): 785448-9005S
785448-0005 - Technologies and actuation
Actuation type: APS (Pneumatic actuator with position sensor)
Turbocharger technology: VGT (Variable Geometry (VFT, VG, VGS, VGT, VNT, VTG) Turbocharger)
785448-0005 - Turbo replacements
Replaced by: Garrett GTC1549VZ 785448-0006, 03L253010E, 03L253010F, 785448-5005S, 785448-9005S
Replacement for: Garrett GTC1549MVZ 785448-0003, 03L253010E, 785448-5003S
785448-0005 - Turbo interchangeability
Interchangeable with: Garrett GTC1549MVZ 785448-0003, 03L253010E, 785448-5003S
Interchangeable with: Garrett GTC1549VZ 785448-0006, 03L253010E, 03L253010F, 785448-5005S, 785448-9005S
Interchangeable with: Garrett GTC1549MVZ 785448-5005S, 03L253010F, 785448-0005
| PART BRAND | PART NAME | PART REFERENCE | QTY | PART OE NUMBER | GARRETT PART NUMBER |
|---|---|---|---|---|---|
| TurboCentras | Cartridge | GA-00-0259 | 1 | -- | -- |
| TurboCentras | Shaft and wheel | GA-02-0031 | 1 | -- | -- |
| TurboCentras | Compressor wheel | GA-03-0013 | 1 | 786556-0002 | -- |
| TurboCentras | Repair kit | GA-04-0010 | 1 | -- | -- |
| TurboCentras | Nozzle ring assy. | GA-06-0013 | 1 | -- | -- |
| TurboCentras | Actuator | GA-10-0002 | 1 | -- | -- |
| EE Turbo | Cartridge | GT14-002 | 1 | -- | -- |
| TurboCentras | Thrust flinger | GT14-130 | 1 | -- | -- |
| TurboCentras | VNT centering ring | GT14-149 | 1 | -- | -- |
| TurboCentras | Piston ring | GT14-160 | 3 | -- | -- |
| TurboCentras | Gasket kit | TC1076 | 1 | -- | -- |
03L253010F, 785448-0005, 785448-5005S, 785448-9005S
Data updated: 2024-10-22 10:54:12
