BorgWarner

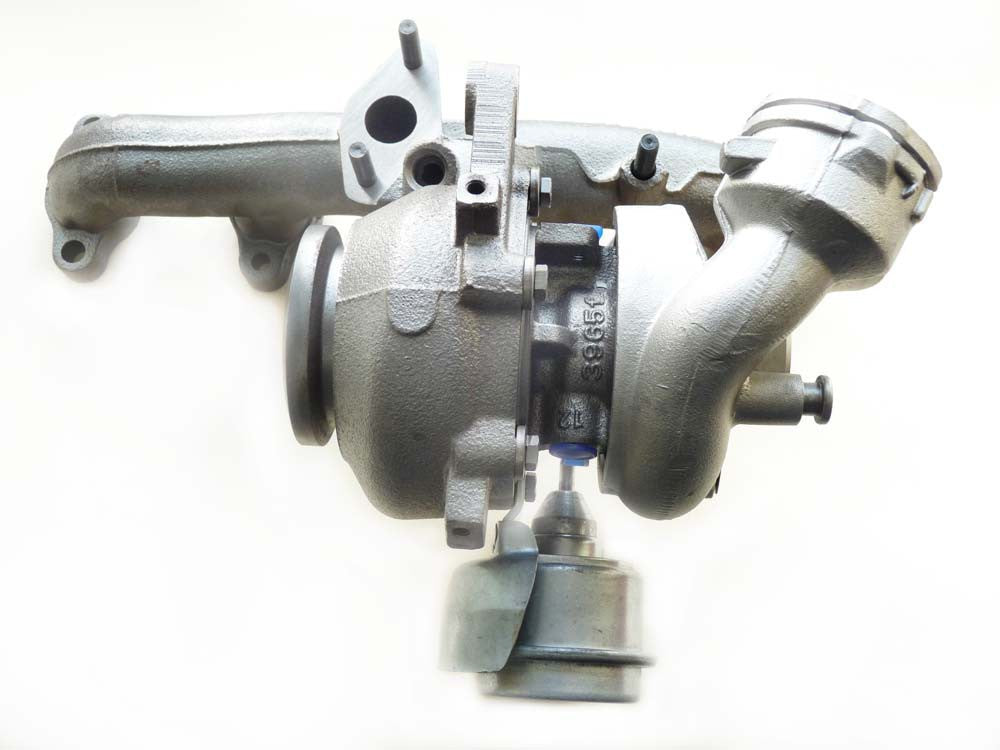

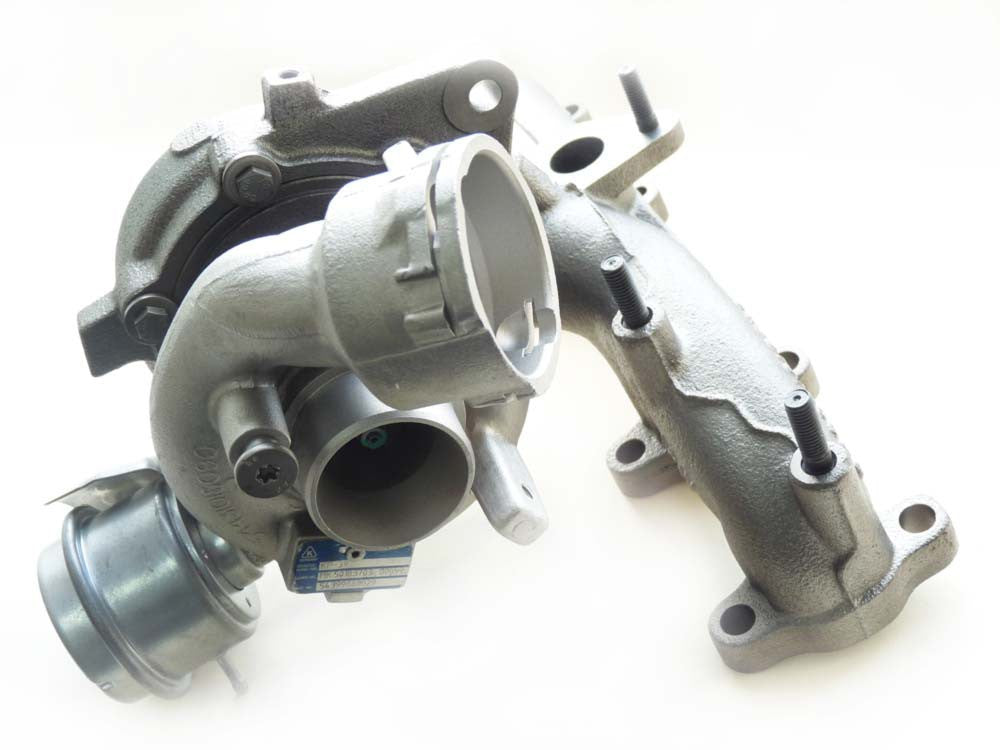

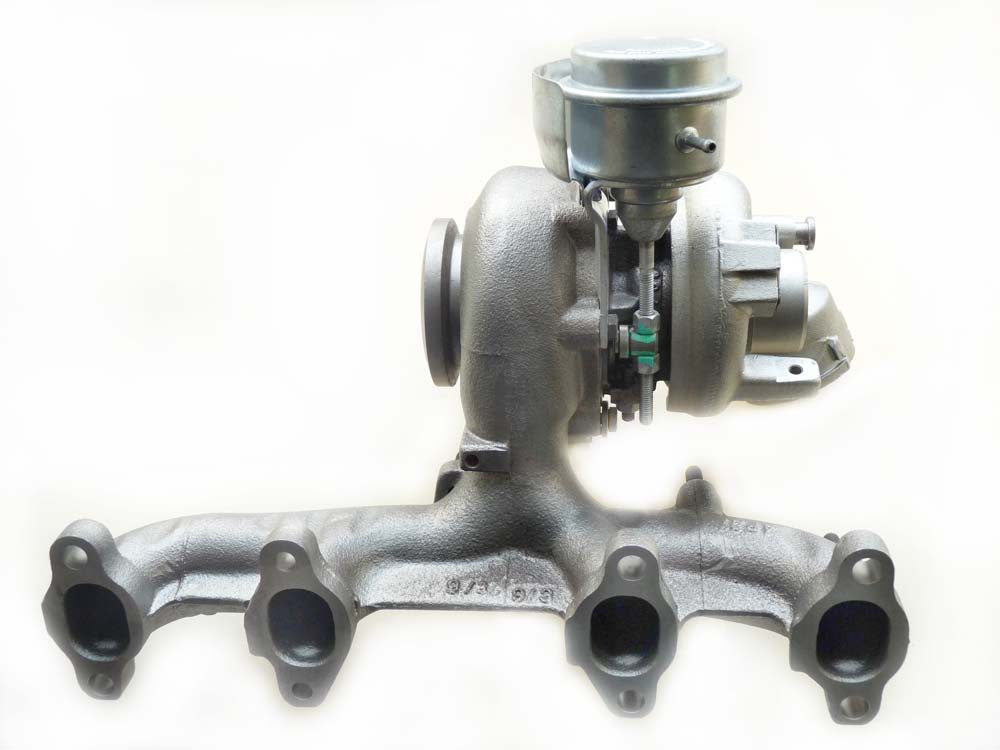

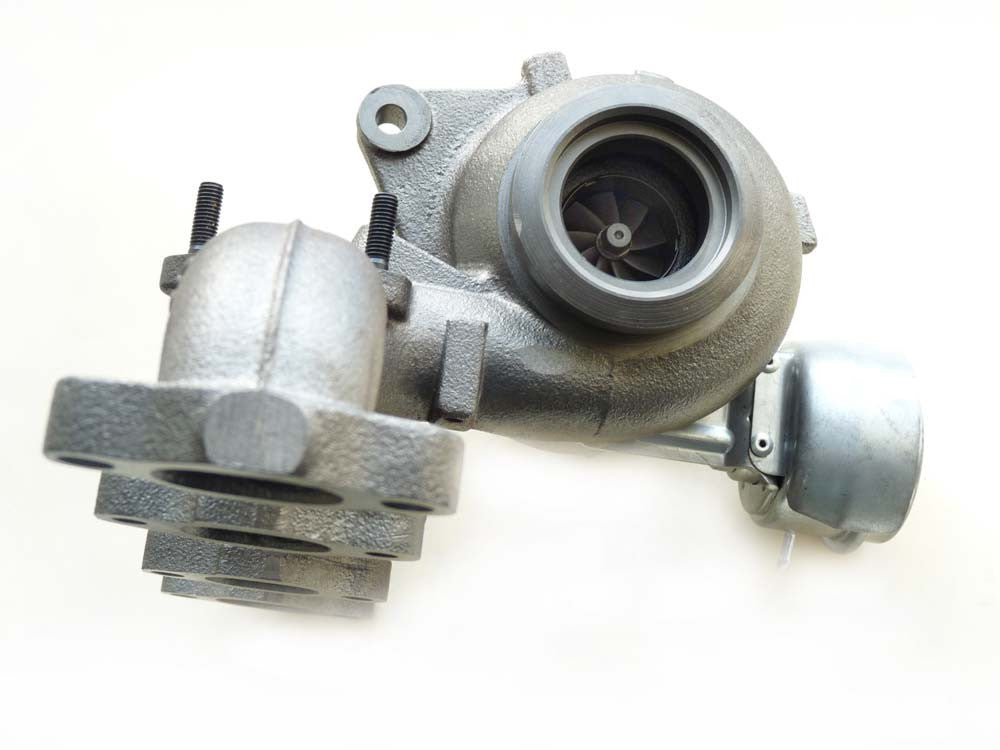

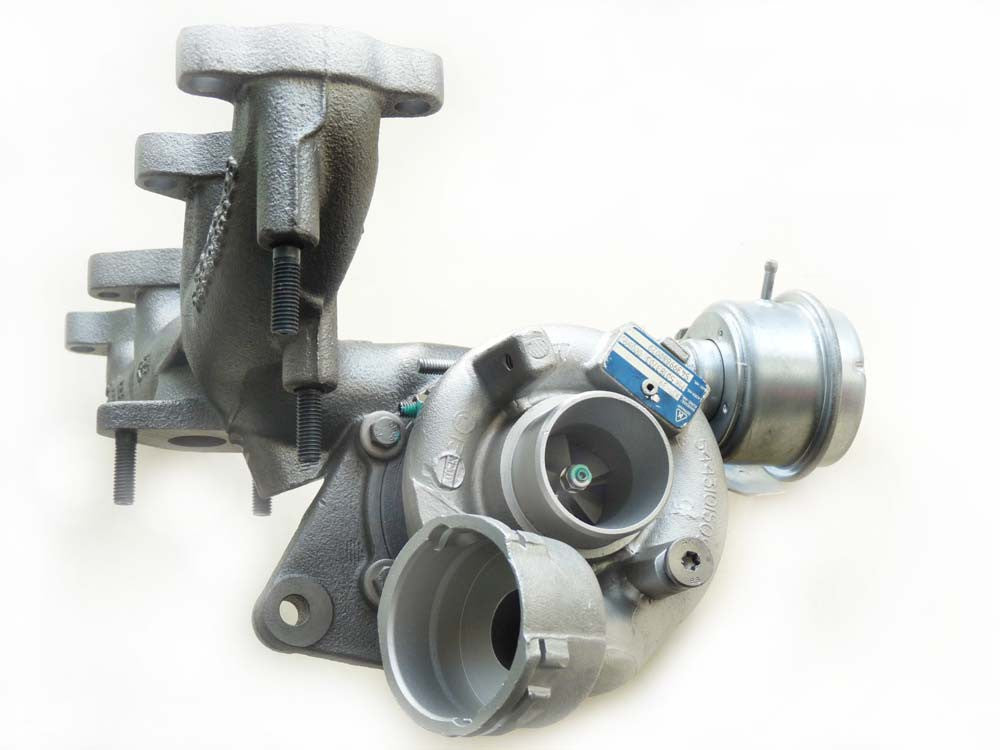

Turbo 54399700029-R 54399700029 (R)
Turbo 54399700029-R 54399700029 (R)
Podatka o razpoložljivosti osebnega prevzema ni mogoče naložiti
54399700029-R (03G253019K) - Turbocharger BV39-1870DCK426.10AVAXC
Brand: BorgWarner
Model: BV39 - BV39-1870DCK426.10AVAXC
BorgWarner Reference: 54399700029-R
OEM Numbers: 03G253019K
54399700029-R - Alternative numbers
BWT (BorgWarner turbo number): 5439 970 0029
BWT (BorgWarner turbo number): 5439 971 0029
BWT (BorgWarner turbo number): 5439 988 0029
BWT (BorgWarner turbo number): 5439 990 0029
54399700029-R - Technologies and actuation
Actuation type: Pneumatic (Pneumatic actuator)
Turbocharger technology: VGT (Variable Geometry (VFT, VG, VGS, VGT, VNT, VTG) Turbocharger), IMF (Integrated Manifold Turbocharger)
54399700029-R - Turbo interchangeability
Interchangeable with: BorgWarner BV39-1870DCK426.10AVAXC 54399700029
Interchangeable with: BorgWarner BV39-1870DCK426.10AVAXC 54399710029
Interchangeable with: BorgWarner BV39-1870DCK426.10AVAXC 54399880029
| PART BRAND | PART NAME | PART REFERENCE | QTY | PART OE NUMBER | BORGWARNER PART NUMBER |
|---|---|---|---|---|---|
| TurboCentras | Bolt | BO-98-0001 | 2 | -- | -- |
| TurboCentras | Bolt | BO-98-0005 | 6 | -- | -- |
| TurboCentras | Bolt | BO-98-0007 | 6 | -- | -- |
| TurboCentras | Cartridge | BW-00-0041 | 1 | -- | -- |
| TurboCentras | Cartridge | BW-00-0050 | 1 | -- | -- |
| TurboCentras | Bearing housing | BW-01-0034 | 1 | -- | -- |
| TurboCentras | Bearing housing | BW-01-0044 | 1 | -- | -- |
| TurboCentras | Shaft and wheel | BW-02-0029 | 1 | 5439-120-5010, 5439-970-5011 | -- |
| TurboCentras | Compressor wheel | BW-03-0053 | 1 | 5443-123-2019 | -- |
| TurboCentras | Repair kit | BW-04-0013 | 1 | -- | -- |
| TurboCentras | Heat shield | BW-05-0010 | 1 | -- | -- |
| TurboCentras | Nozzle ring assy. | BW-06-0018 | 1 | 5439-160-5016 | -- |
| TurboCentras | Nozzle ring assy. | BW-06-0020 | 1 | 5439-160-5010 | -- |
| TurboCentras | Back plate | BW-08-0010 | 1 | -- | -- |
| TurboCentras | Actuator | BW-10-0005 | 1 | -- | -- |
| TurboCentras | Shaft nut | BW-21-0001 | 1 | -- | -- |
| TurboCentras | Piston ring | GT15-170 | 2 | -- | -- |
| TurboCentras | Piston ring | K03/04-170 | 2 | -- | -- |
| TurboCentras | Thrust bearing | KP35-120 | 1 | -- | -- |
| TurboCentras | Thrust flinger | KP35-130 | 1 | -- | -- |
| TurboCentras | Thrust flinger | KP35-131 | 1 | -- | -- |
| TurboCentras | Bearing spacer | KP35-149 | 1 | -- | -- |
| TurboCentras | Thrust washer | KP35-155 | 1 | -- | -- |
| TurboCentras | O-ring | KP35-201 | 1 | -- | -- |
| EE Turbo | Cartridge | KP39-007 | 1 | -- | -- |
| EE Turbo | Cartridge | KP39-013 | 1 | -- | -- |
| TurboCentras | VNT outer gasket | KP39-149 | 1 | -- | -- |
| TurboCentras | Gasket oil outlet | T-1 | 1 | -- | -- |
| TurboCentras | Gasket kit | TC1023 | 1 | -- | -- |
| TurboCentras | Gasket kit | TC1023F | 1 | -- | -- |
54399900029, 54399880029, 54399710029, 54399700029, 03G253019K, 5439 970 0029, 5439 971 0029, 5439 988 0029, 5439 990 0029
Data updated: 2024-05-15 13:12:43
