BorgWarner

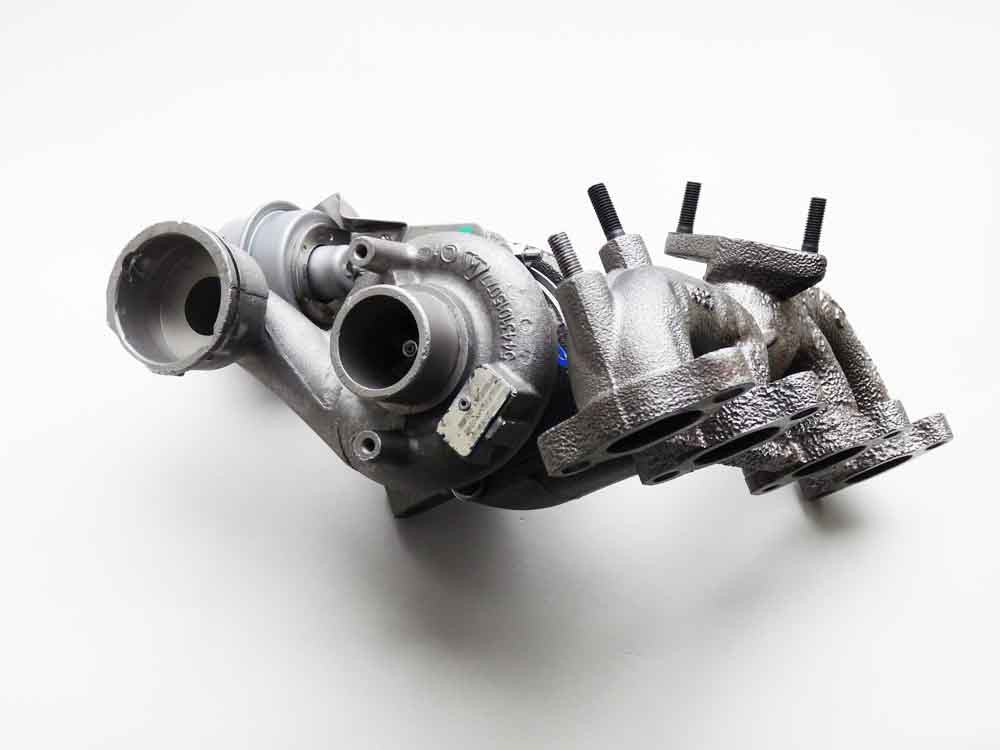

Turbo 54399700020-R
Turbo 54399700020-R
Podatka o razpoložljivosti osebnega prevzema ni mogoče naložiti
54399700020-R (038253010C, 038253014H) - Turbocharger BV39-1873CCB426.10AVAXC
Brand: BorgWarner
Model: BV39 - BV39-1873CCB426.10AVAXC
BorgWarner Reference: 54399700020-R
OEM Numbers: 038253010C, 038253014H
54399700020-R - Alternative numbers
BWT (BorgWarner turbo number): 5439 970 0020
BWT (BorgWarner turbo number): 5439 988 0020
BWT (BorgWarner turbo number): 5439 990 0020
BWT (BorgWarner turbo number): 54399700020-R
54399700020-R - Technologies and actuation
Actuation type: Pneumatic (Pneumatic actuator)
Turbocharger technology: VGT (Variable Geometry (VFT, VG, VGS, VGT, VNT, VTG) Turbocharger)
54399700020-R - Turbo replacements
Replaced by: BorgWarner BV39-1873CCB426.10AVAXC 54399700097, 038253056M, 5439 970 0097, 5439 988 0097, 5439 990 0097
Replacement for: BorgWarner KP39-1873CCB426.10AVAXC 54399700009, 038253010N, 038253019J, 5439 970 0009
54399700020-R - Turbo interchangeability
Interchangeable with: BorgWarner KP39-1873CCB426.10AVAXC 54399700009, 038253010N, 038253019J, 5439 970 0009
Interchangeable with: BorgWarner BV39-1873CCB426.10AVAXC 54399700020, 038253010C, 038253014H, 5439 970 0020, 5439 988 0020, 5439 990 0020
Interchangeable with: BorgWarner BV39-1873CCB426.10AVAXC 54399700097, 038253056M, 5439 970 0097, 5439 988 0097, 5439 990 0097
Interchangeable with: BorgWarner BV39-1873CCB426.10AVAXC 54399880020, 038253010C, 038253014H, 5439 970 0020, 5439 988 0020, 5439 990 0020
| PART BRAND | PART NAME | PART REFERENCE | QTY | PART OE NUMBER | BORGWARNER PART NUMBER |
|---|---|---|---|---|---|
| TurboCentras | Bolt | BO-98-0001 | 2 | -- | -- |
| TurboCentras | Bolt | BO-98-0005 | 6 | -- | -- |
| TurboCentras | Bolt | BO-98-0007 | 6 | -- | -- |
| TurboCentras | Bearing housing | BW-01-0039 | 1 | 5439-150-4005, 5439-150-4007 | -- |
| TurboCentras | Shaft and wheel | BW-02-0029 | 1 | 5439-120-5010, 5439-970-5011 | -- |
| TurboCentras | Compressor wheel | BW-03-0050 | 1 | 5443-123-2008, 5443-123-2012 | -- |
| TurboCentras | Heat shield | BW-05-0010 | 1 | -- | -- |
| TurboCentras | Nozzle ring assy. | BW-06-0015 | 1 | 5439-160-5002 | -- |
| TurboCentras | Back plate | BW-08-0009 | 1 | -- | -- |
| TurboCentras | Turbine housing | BW-09-0029 | 1 | -- | -- |
| TurboCentras | Actuator | BW-10-0004 | 1 | -- | -- |
| TurboCentras | Compressor housing | BW-11-0001 | 1 | -- | -- |
| TurboCentras | Shaft nut | BW-21-0001 | 1 | -- | -- |
| TurboCentras | Piston ring | GT15-170 | 2 | -- | -- |
| TurboCentras | Piston ring | K03/04-170 | 2 | -- | -- |
| TurboCentras | Thrust bearing | KP35-120 | 1 | -- | -- |
| TurboCentras | Thrust flinger | KP35-130 | 1 | -- | -- |
| TurboCentras | Thrust flinger | KP35-131 | 1 | -- | -- |
| TurboCentras | Bearing spacer | KP35-149 | 1 | -- | -- |
| TurboCentras | Thrust washer | KP35-155 | 1 | -- | -- |
| TurboCentras | O-ring | KP35-201 | 1 | -- | -- |
| TurboCentras | Gasket oil outlet | T-1 | 1 | -- | -- |
| TurboCentras | Gasket kit | TC1003 | 1 | -- | -- |
54399900020, 54399880020, 54399700020, 038253010C, 038253014H, 5439 970 0020, 5439 988 0020, 5439 990 0020, 54399700020-R
Data updated: 2025-09-08 09:41:03
