Garrett
Turbo 713672-0007-R
Turbo 713672-0007-R
Podatka o razpoložljivosti osebnega prevzema ni mogoče naložiti

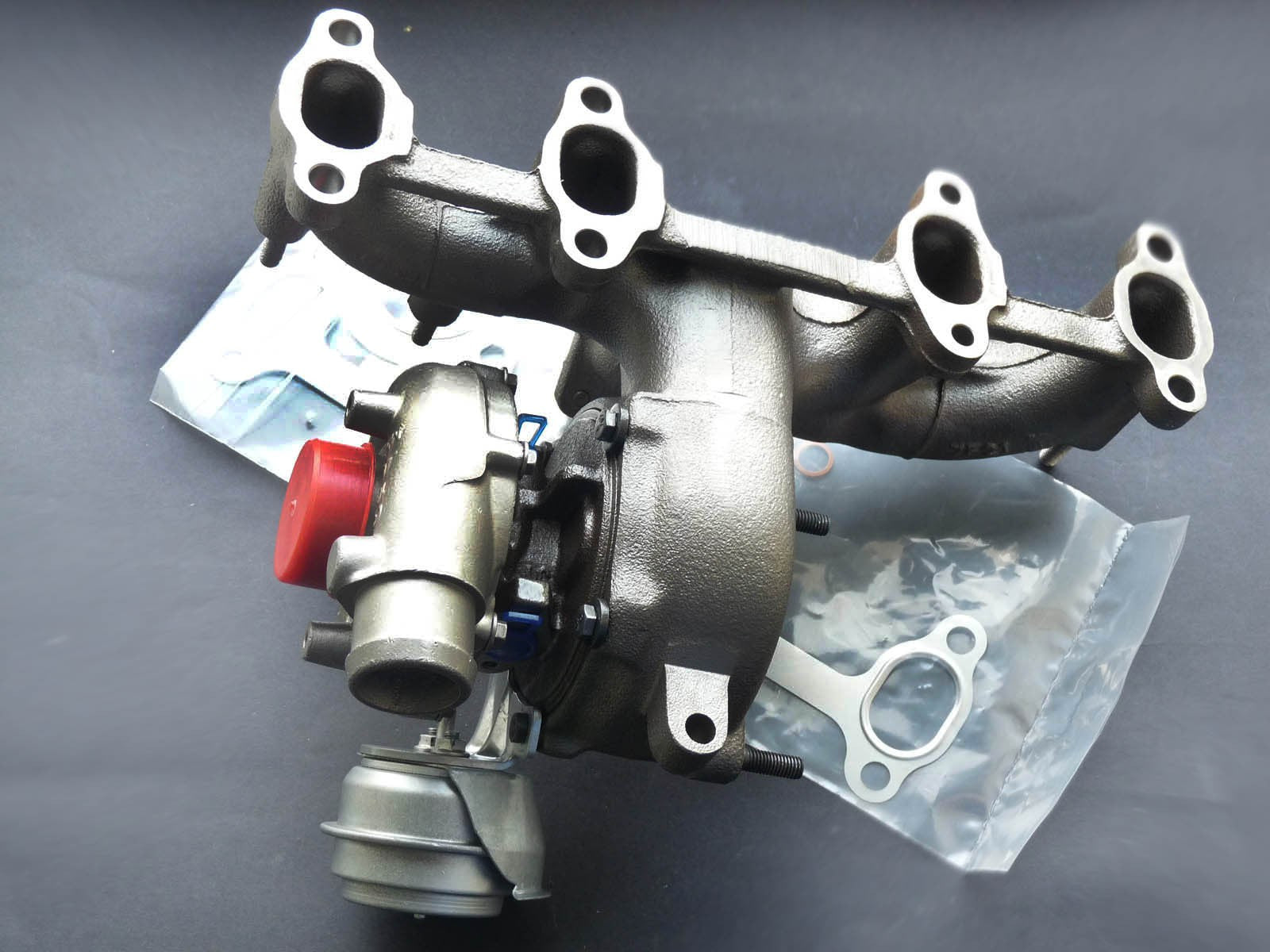

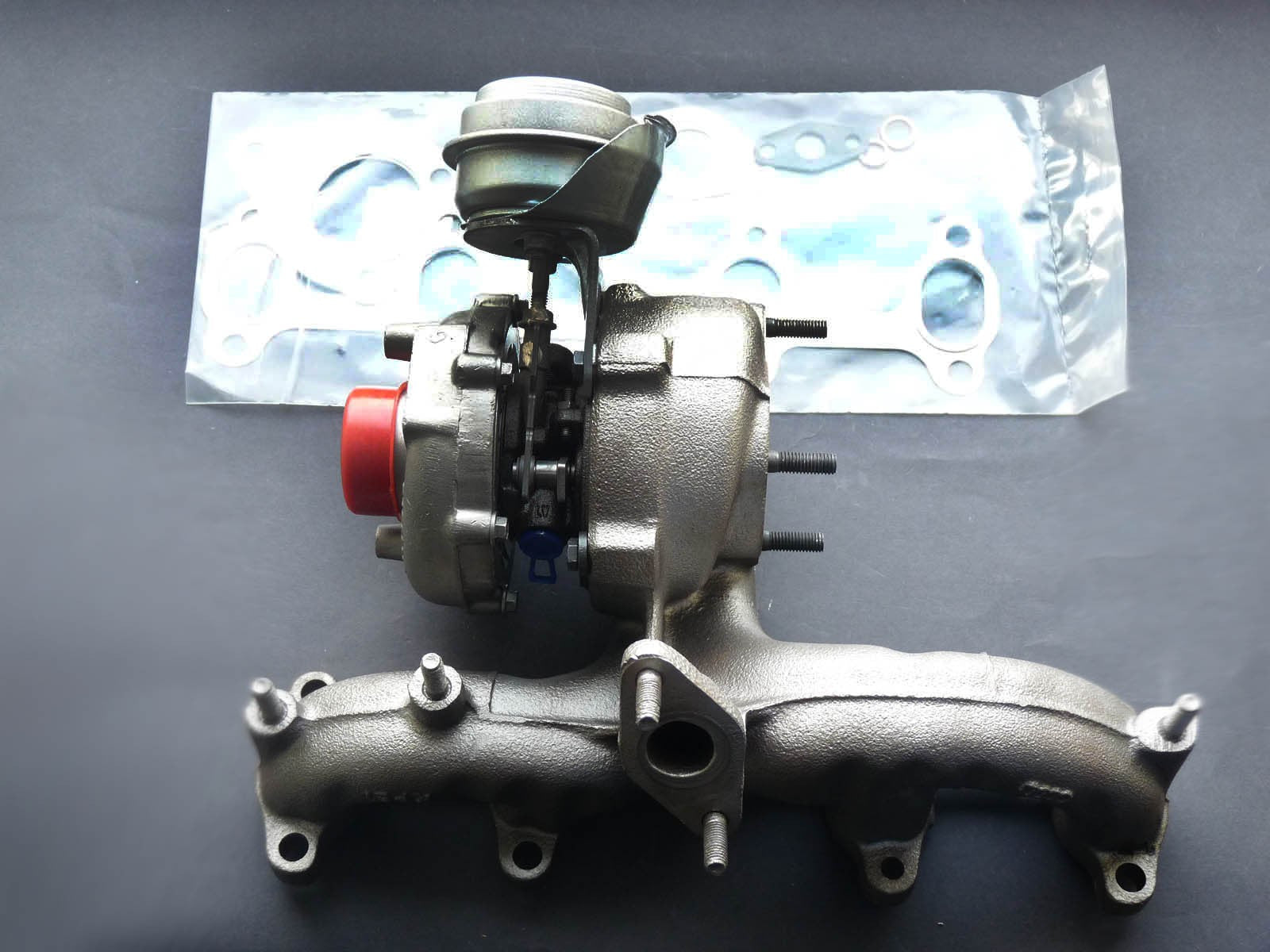

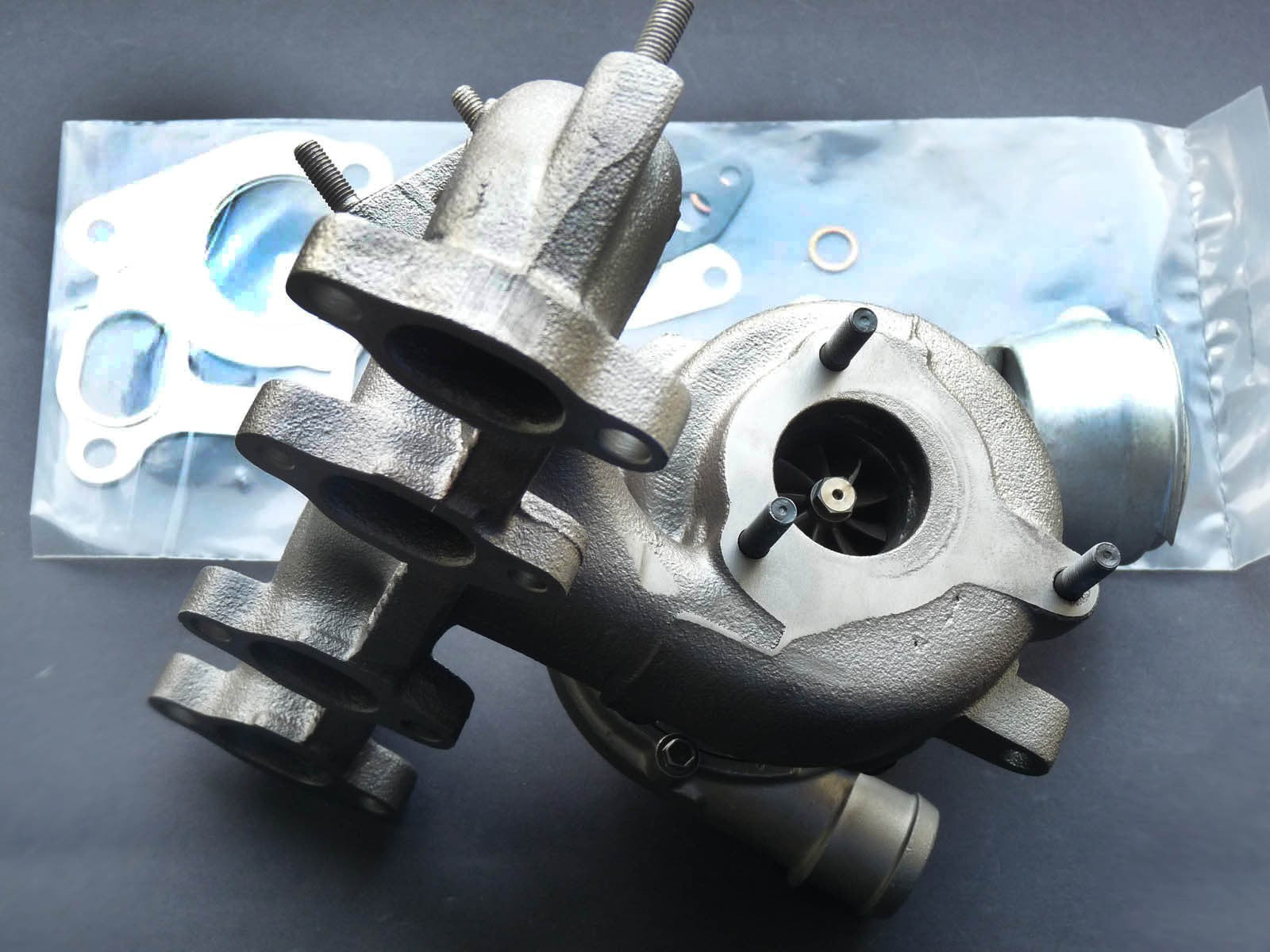

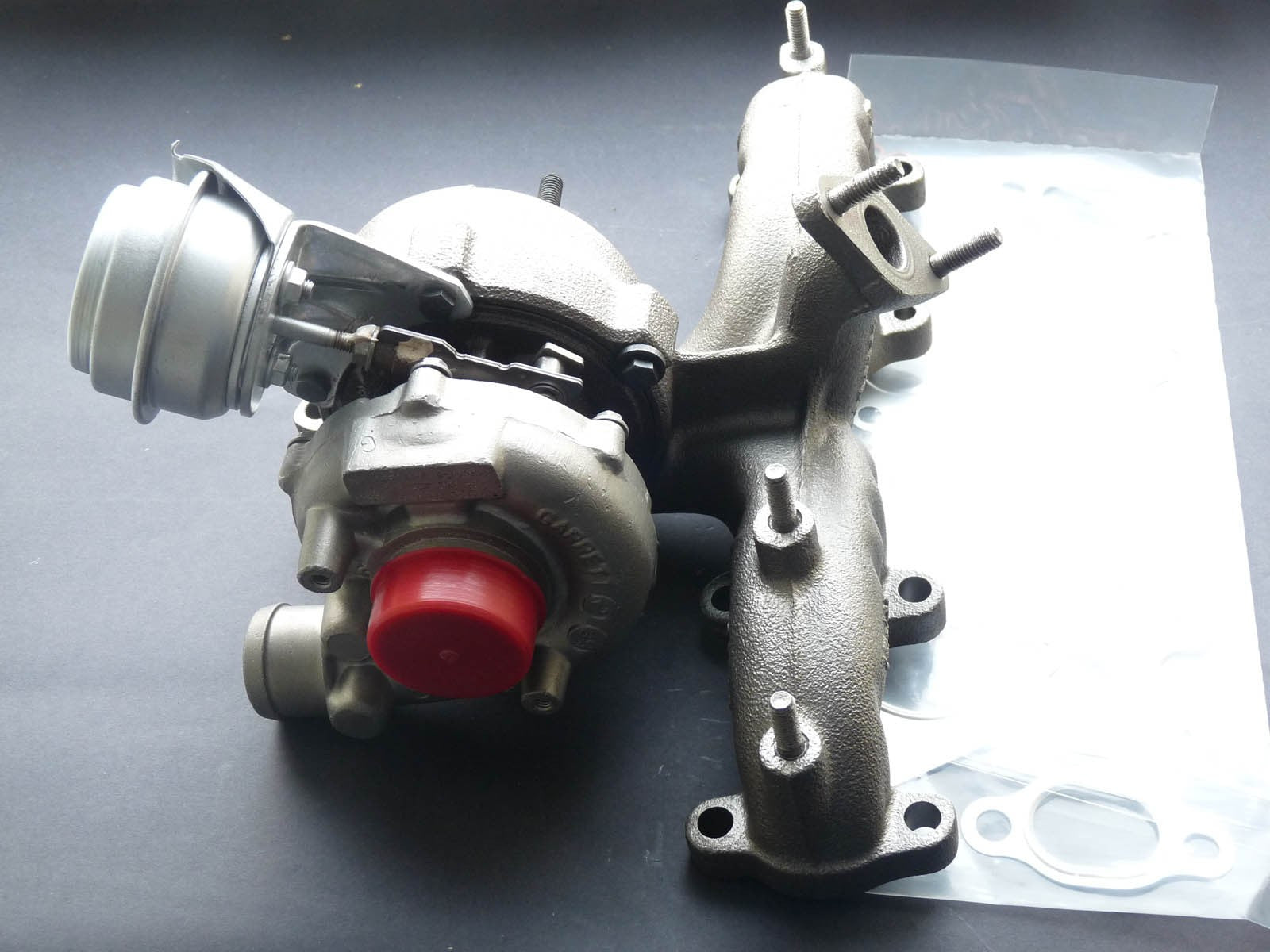

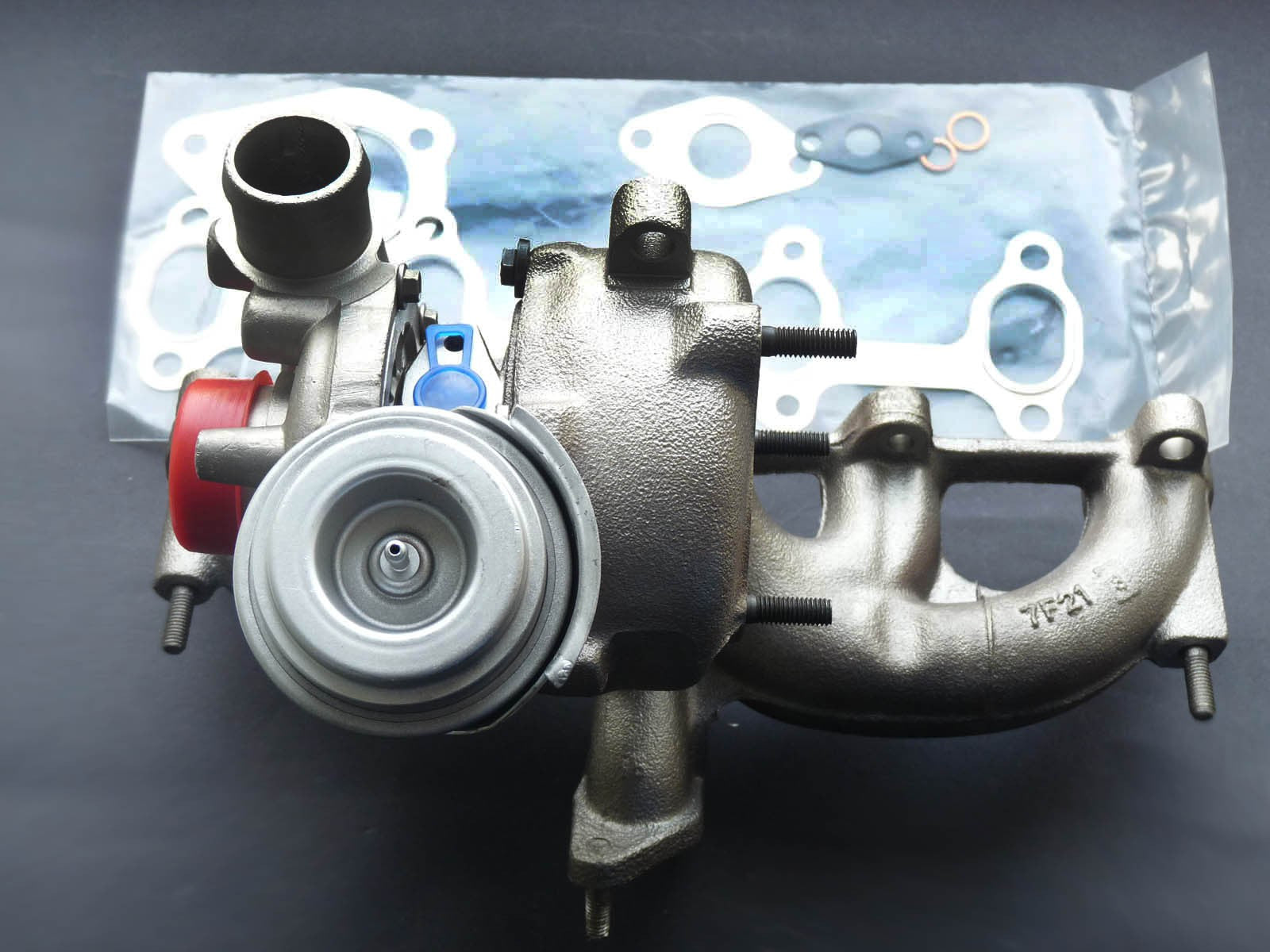

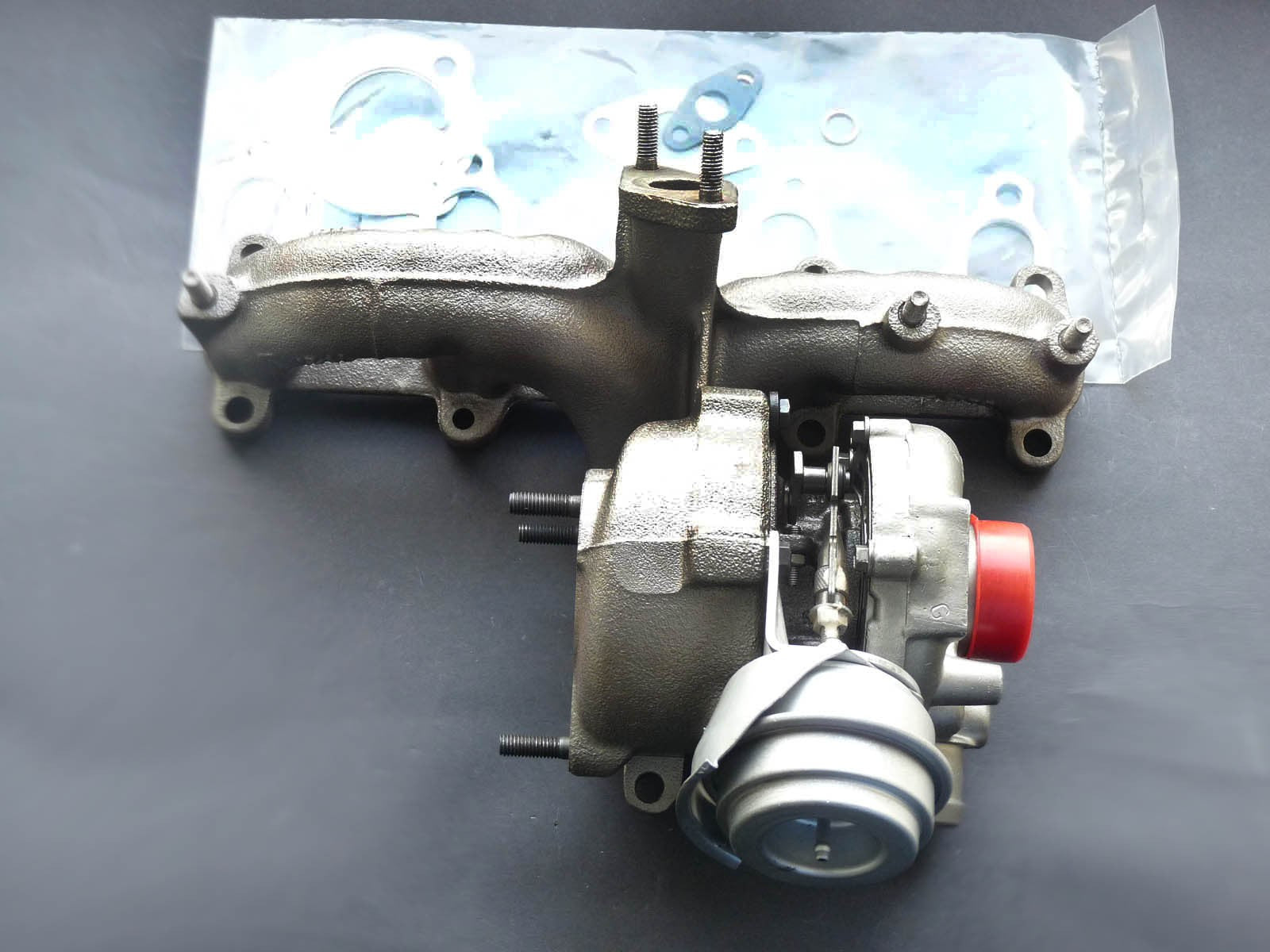

713672-0007 (038253019C, 03G253014R, 03G253016L) - Turbocharger GT1749V
Brand: Garrett
Model: GT17 - GT1749V
Garrett Reference: 713672-0007
OEM Numbers: 038253019C, 03G253014R, 03G253016L, 03G253016N
713672-0007 - Alternative numbers
GHT (Garrett turbo number): 713672-0007
GHT (Garrett turbo number): 713672-5007S
GHT (Garrett turbo number): 713672-9007S
713672-0007 - Technologies and actuation
Actuation type: Pneumatic (Pneumatic actuator)
Turbocharger technology: VGT (Variable Geometry (VFT, VG, VGS, VGT, VNT, VTG) Turbocharger)
713672-0007 - Turbo replacements
Replacement for: Garrett GT1749V 713672-0001, 038253019C, 03G253016L
Replacement for: Garrett GT1749V 713672-0002, 038253019C, 03G253014R, 03G253016L, 713672-5002S
Replacement for: Garrett GT1749V 713672-0003, 038253019C, 038253019CV225, 03G253014R, 03G253016L, 713672-5003S
Replacement for: Garrett GT1749V 713672-0004, 038253019C, 038253019CV500, 03G253014R, 03G253016L, 713672-5004S
Replacement for: Garrett GT1749V 713672-0005, 038253019CV500, 03G253014R, 03G253016L, 713672-5005S
Replacement for: Garrett GT1749V 713672-0006, 038253019C, 03G253014R, 03G253016L, 03G253016N, 713672-5006S
713672-0007 - Turbo interchangeability
Interchangeable with: BMTS BM 40007033, 038253010A, 038253010AV, 038253010AX, 038253010G, 038253010GV, 038253010GX, 038253010S, 038253010SV, 038253010SX, 038253014A, 038253014AV, 038253014AX, 038253016B, 038253016BV, 038253016BX, 038253016L, 038253016LV, 038253016LX, 038253056A, 038253056AV, 038253056AX, 038253056V, 038253056X, 1253768, 38253056, 3M219G438AA, 401TN100731
Interchangeable with: BorgWarner KP39-1873CCB426.10AVAXC 54399700006, 038253010G, 038253016L, 038253056A, 5439 970 0006
Interchangeable with: BorgWarner BV39-1873CCB426.10AVAXC 54399700017, 038253010A, 038253010S, 038253014A, 5439 970 0017, 5439 988 0017, 5439 990 0017
Interchangeable with: BorgWarner BV39-1873CCB426.10AVAXC 54399700017-R, 038253010A, 038253010S, 038253014A, 5439 970 0017, 5439 988 0017, 5439 990 0017
Interchangeable with: BorgWarner BV39-1873CCB426.10AVAXC 54399880017, 038253010A, 038253010S, 038253014A, 038253019C, 03G253014R, 03G253016L, 03G253016N, 5439 970 0017, 5439 988 0017, 5439 990 0017, 713672-0005, 713672-0006, 768331-0001, 768331-0002
Interchangeable with: Garrett GT1749V 713672-0001, 038253019C, 03G253016L
Interchangeable with: Garrett GT1749V 713672-0002, 038253019C, 03G253014R, 03G253016L, 713672-5002S
Interchangeable with: Garrett GT1749V 713672-0003, 038253019C, 038253019CV225, 03G253014R, 03G253016L, 713672-5003S
Interchangeable with: Garrett GT1749V 713672-0004, 038253019C, 038253019CV500, 03G253014R, 03G253016L, 713672-5004S
Interchangeable with: Garrett GT1749V 713672-0005, 038253019CV500, 03G253014R, 03G253016L, 713672-5005S
Interchangeable with: Garrett GT1749V 713672-0006, 038253019C, 03G253014R, 03G253016L, 03G253016N, 713672-5006S
Interchangeable with: Garrett GT1749V 768331-0001, 038253019C, 03G253014R, 03G253016L, 768331-5001S
Interchangeable with: Garrett GT1749V 768331-0002, 038253019C, 03G253014R, 03G253016L, 768331-5002S
Interchangeable with: Garrett GT1749MV 768331-0003, 03G253014R, 768331-5003S, 768331-9003S
| PART BRAND | PART NAME | PART REFERENCE | QTY | PART OE NUMBER | GARRETT PART NUMBER |
|---|---|---|---|---|---|
| TurboCentras | Bolt | BO-98-0004 | 6 | -- | -- |
| TurboCentras | Bolt | BO-98-0005 | 6 | -- | -- |
| TurboCentras | Cartridge | GA-00-0047 | 1 | -- | 703890-0002 |
| TurboCentras | Bearing housing | GA-01-0089 | 1 | 433145-0005 | -- |
| TurboCentras | Shaft and wheel | GA-02-0071 | 1 | 434533-0002, 434533-0039 | -- |
| TurboCentras | Compressor wheel | GA-03-0028 | 1 | 434812-0001, 434812-0002 | -- |
| TurboCentras | Repair kit | GA-04-0015 | 1 | -- | -- |
| TurboCentras | Heat shield | GA-05-0013 | 1 | -- | -- |
| TurboCentras | Back plate | GA-08-0005 | 1 | 700593-0006 | -- |
| TurboCentras | Shaft nut | GA-21-0005 | 1 | -- | -- |
| TurboCentras | Actuator clip | GR.5 | 1 | -- | -- |
| TurboCentras | Thrust bearing | GT15-120 | 1 | -- | -- |
| TurboCentras | Thrust flinger | GT15-130 | 1 | -- | -- |
| TurboCentras | Thrust Collar | GT15-135 | 1 | -- | -- |
| TurboCentras | Retaining ring | GT15-143 | 1 | -- | -- |
| TurboCentras | Piston ring | GT15-160 | 1 | -- | -- |
| TurboCentras | Piston ring | GT15-170 | 1 | -- | -- |
| TurboCentras | Anti-rotation pin | GT15-330 | 1 | -- | -- |
| TurboCentras | Screw | SC-96-0007 | 4 | -- | -- |
| TurboCentras | Gasket oil outlet | T-1 | 1 | -- | -- |

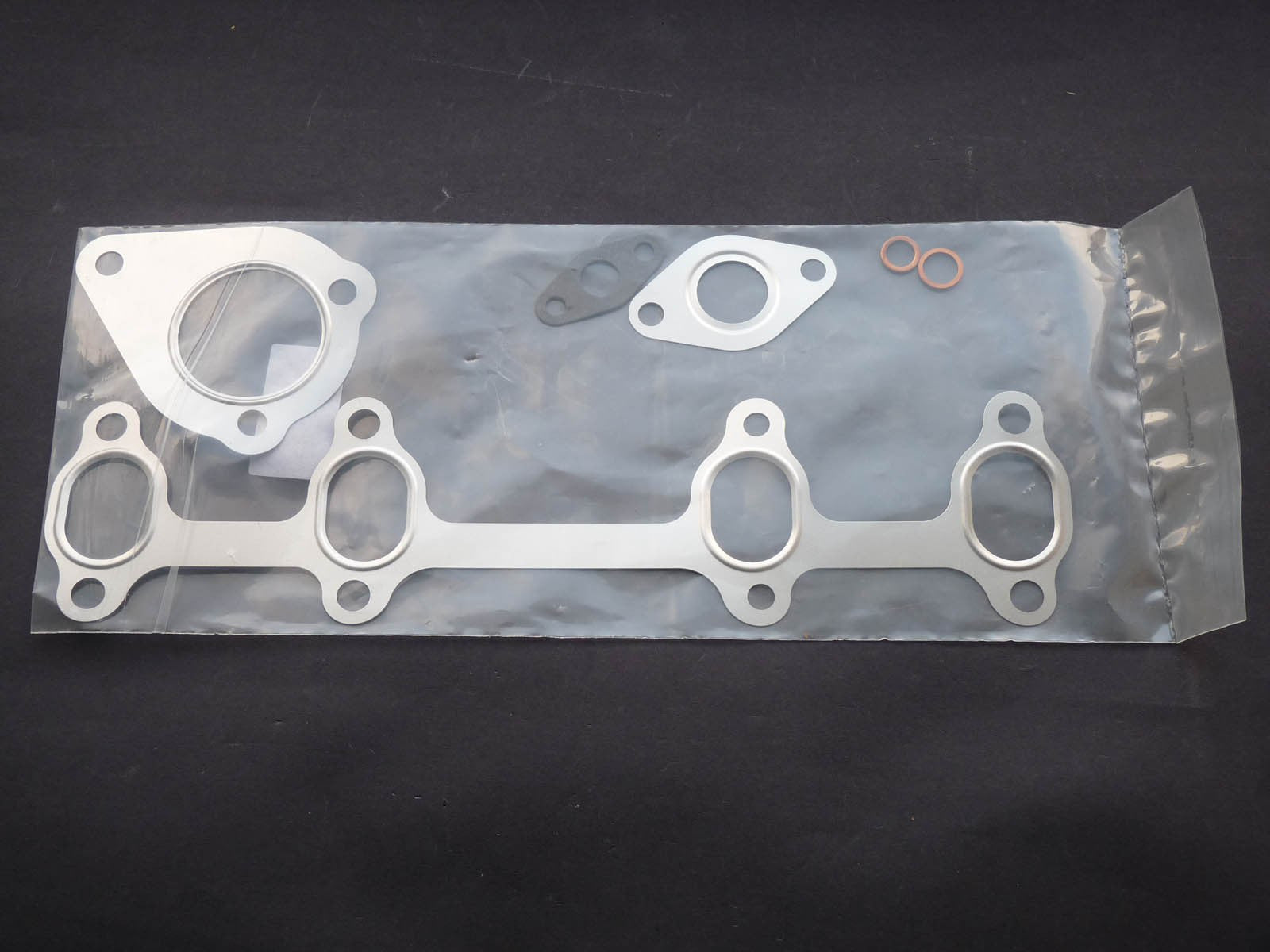

| TurboCentras | Gasket kit | TC1007 | 1 | -- | -- |
| TurboCentras | Gasket kit | TC1007F | 1 | -- | -- |
| TurboCentras | Washer | WA-95-0001 | 4 | -- | -- |
038253019C, 03G253014R, 03G253016L, 03G253016N, 713672-0007, 713672-5007S, 713672-9007S
