Turbo 53039700189
Turbo 53039700189
Podatka o razpoložljivosti osebnega prevzema ni mogoče naložiti

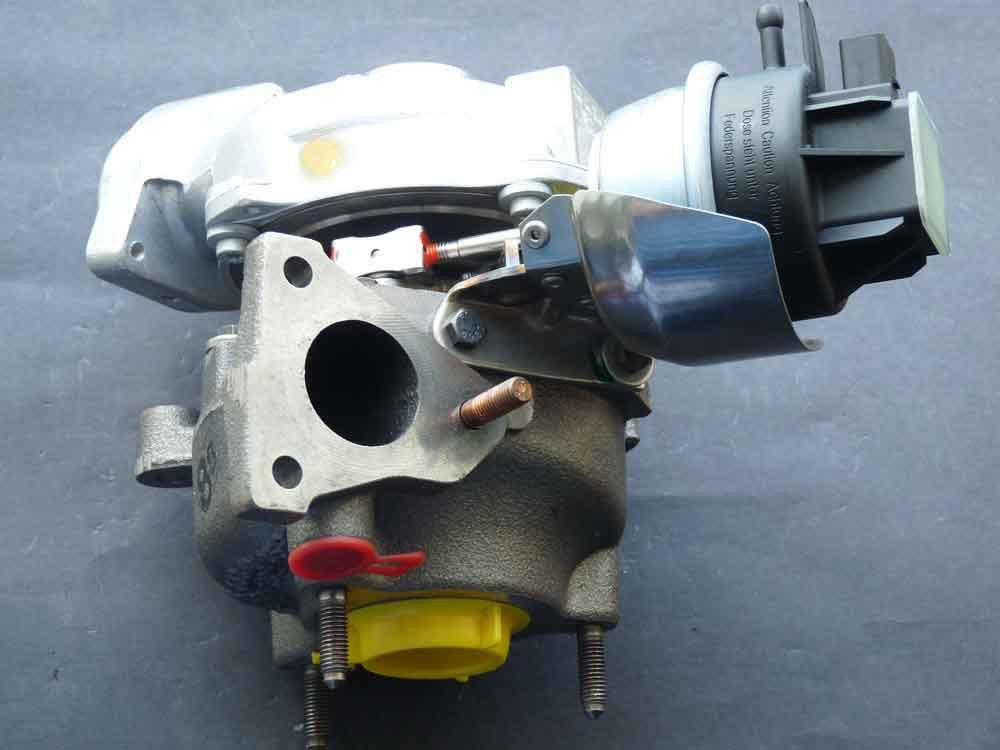

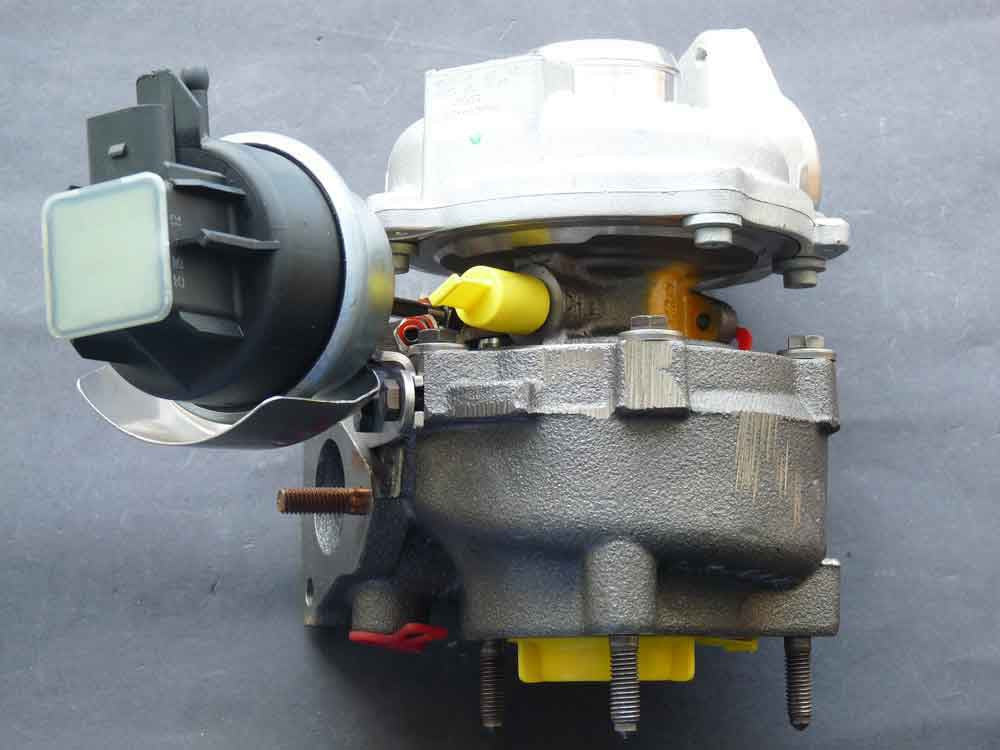

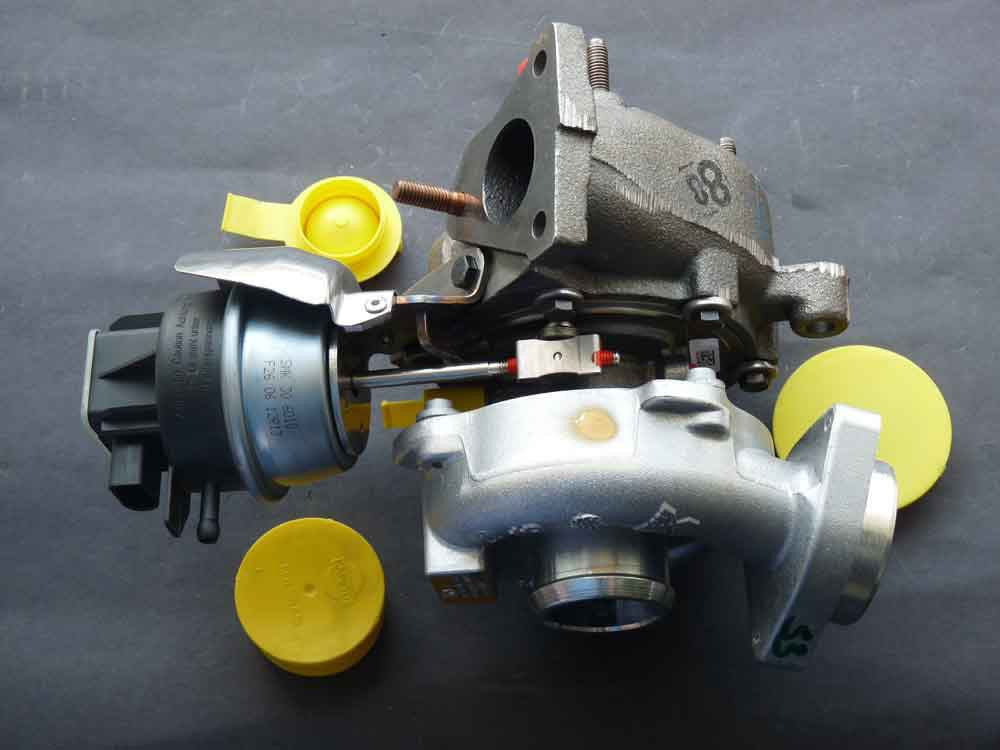

53039700189 (03L145701E) - Turbocharger BV43-1880KCF419.18BVAXC
Brand: BorgWarner
Model: BV43 - BV43-1880KCF419.18BVAXC
BorgWarner Reference: 53039700189

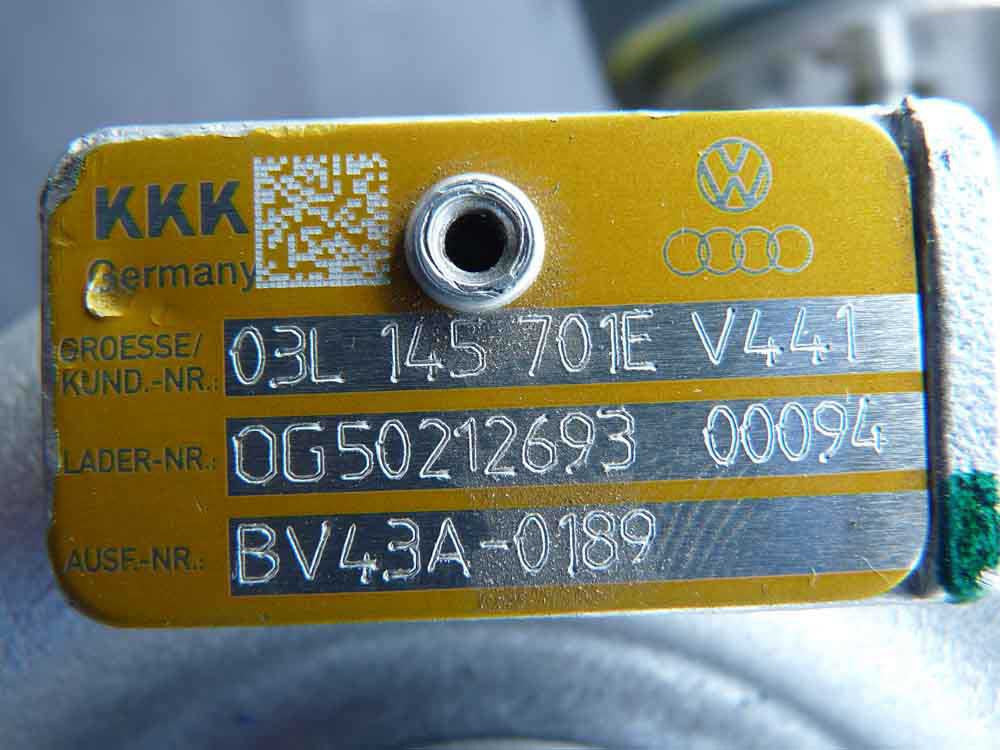

OEM Numbers: 03L145701E
53039700189 - Alternative numbers
BWT (BorgWarner turbo number): 5303 970 0189
BWT (BorgWarner turbo number): 5303 988 0189
BWT (BorgWarner turbo number): 5303 990 0189
53039700189 - Technologies and actuation
Actuation type: APS (Pneumatic actuator with position sensor)
Turbocharger technology: VGT (Variable Geometry (VFT, VG, VGS, VGT, VNT, VTG) Turbocharger)
53039700189 - Turbo replacements
Replacement for: BorgWarner BV43-1880KCF419.18BVAXC 53039700131, 03L145702, 03L145702J, 5303 970 0131
Replacement for: BorgWarner BV43-1880KCF419.18BVAXC 53039700138, 03L145701A, 03L145701C, 03L145702E, 03L145702N, 5303 970 0138, 5303 971 0138, 5303 988 0138
53039700189 - Turbo interchangeability
Interchangeable with: BorgWarner BV43-1880KCF419.18BVAXC 53039700131, 03L145702, 03L145702J, 5303 970 0131
Interchangeable with: BorgWarner BV43-1880KCF419.18BVAXC 53039700138, 03L145701A, 03L145701C, 03L145702E, 03L145702N, 5303 970 0138, 5303 971 0138, 5303 988 0138
Interchangeable with: BorgWarner BV43-1880KCF419.18BVAXC 53039700189-R, 03L145701E, 5303 970 0189, 5303 988 0189, 5303 990 0189
| PART BRAND | PART NAME | PART REFERENCE | QTY | PART OE NUMBER | BORGWARNER PART NUMBER |
|---|---|---|---|---|---|
| TurboCentras | Bolt | BO-98-0005 | 6 | -- | -- |
| TurboCentras | Bolt | BO-98-0007 | 4 | -- | -- |
| TurboCentras | Cartridge | BW-00-0007 | 1 | -- | -- |
| TurboCentras | Bearing housing | BW-01-0056 | 1 | -- | -- |
| TurboCentras | Shaft and wheel | BW-02-0004 | 1 | 5303-120-5030, 5303-120-5034, 5303-120-8505 | -- |
| TurboCentras | Compressor wheel | BW-03-0022 | 1 | 5303-123-2210 | -- |
| TurboCentras | Repair kit | BW-04-0005 | 1 | -- | -- |
| TurboCentras | Heat shield | BW-05-0002 | 1 | -- | -- |
| TurboCentras | Nozzle ring assy. | BW-06-0010 | 1 | 5303-160-5010 | -- |
| TurboCentras | Back plate | BW-08-0058 | 1 | -- | -- |
| TurboCentras | Turbine housing | BW-09-0037 | 1 | -- | -- |
| TurboCentras | Actuator | BW-10-0029 | 1 | -- | -- |
| TurboCentras | Shaft nut | BW-21-0004 | 1 | -- | -- |
| TurboCentras | Piston ring | GT15-170 | 1 | -- | -- |
| EE Turbo | Cartridge | K03-054B | 1 | -- | -- |
| TurboCentras | Journal bearing | K03/04-110 | 1 | -- | -- |
| TurboCentras | Thrust bearing | K03/04-120 | 1 | -- | -- |
| TurboCentras | Thrust flinger | K03/04-130 | 1 | -- | -- |
| TurboCentras | Retaining ring | K03/04-143 | 1 | -- | -- |
| TurboCentras | Retaining ring | K03/04-144 | 1 | -- | -- |
| TurboCentras | Retaining ring | K03/04-145 | 1 | -- | -- |
| TurboCentras | Oil deflector | K03/04-146 | 1 | -- | -- |
| TurboCentras | Thrust washer | K03/04-155 | 1 | -- | -- |
| TurboCentras | Piston ring | K03/04-160 | 1 | -- | -- |
| TurboCentras | Piston ring | K03/04-170 | 1 | -- | -- |
| TurboCentras | Gasket oil outlet | T-1 | 1 | -- | -- |
| TurboCentras | Gasket kit | TC-62-0007 | 1 | -- | -- |
53039900189, 53039880189, 53039700189, 03L145701E, 5303 970 0189, 5303 988 0189, 5303 990 0189
Data updated: 2024-11-22 10:26:25
