Garrett
Turbo 752990-5007S
Turbo 752990-5007S
Podatka o razpoložljivosti osebnega prevzema ni mogoče naložiti

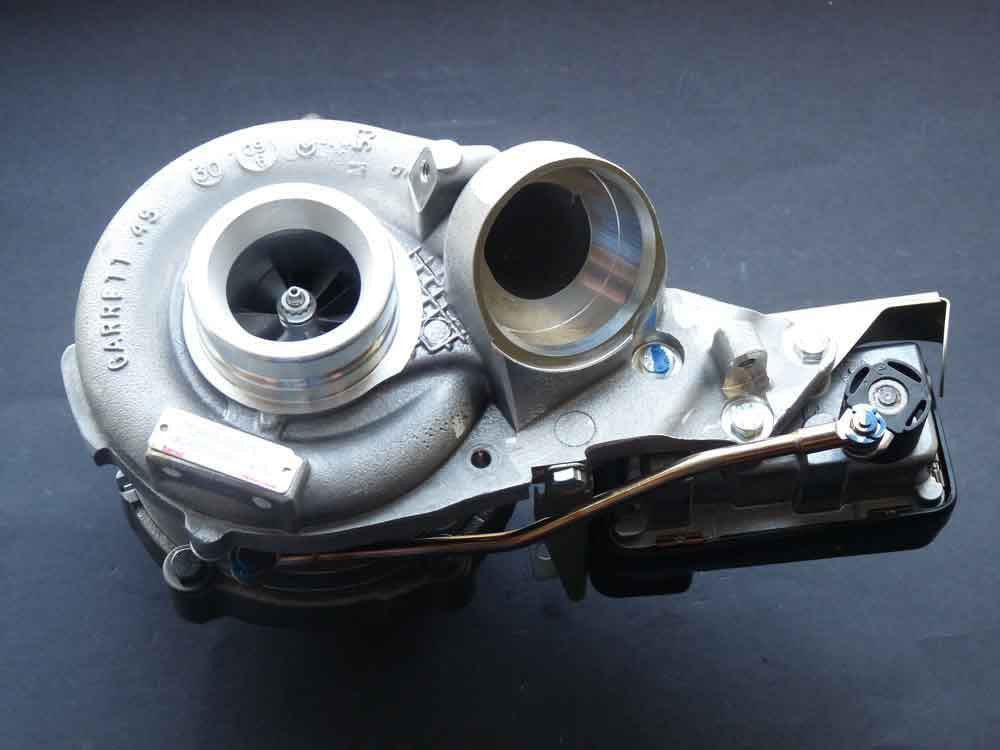

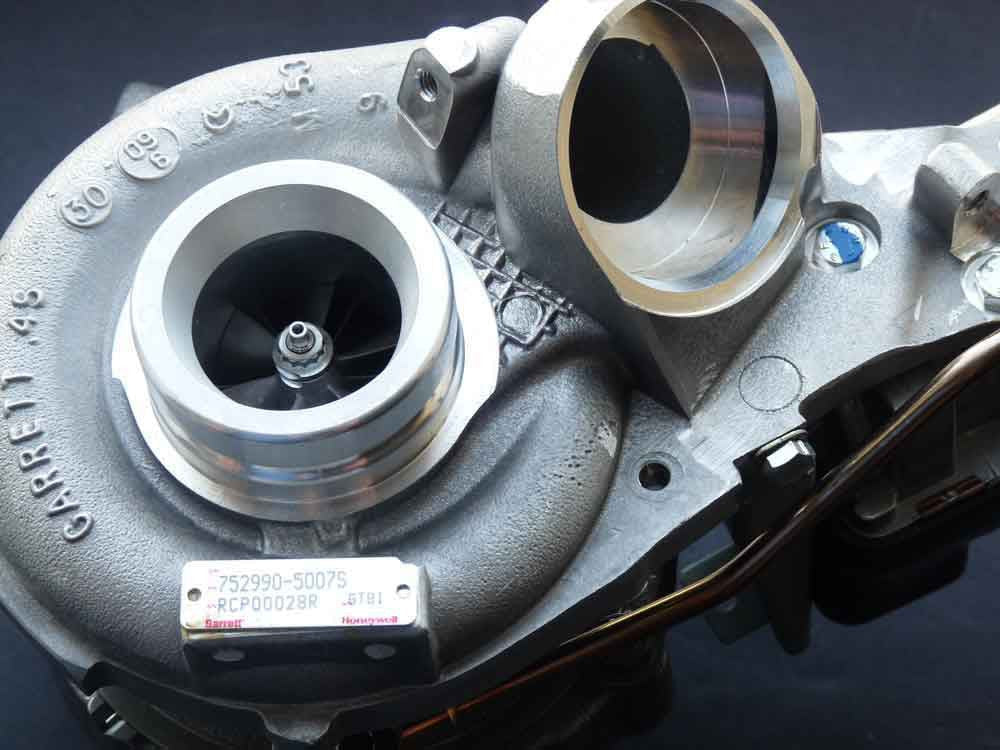

752990-5007S (A6460901080) - Turbocharger GTB1752VK
Brand: Garrett
Model: GT17 - GTB1752VK
Garrett Reference: 752990-5007S
OEM Numbers: A6460901080
752990-5007S - Alternative numbers
GHT (Garrett turbo number): 752990-0007
GHT (Garrett turbo number): 752990-5007S
GHT (Garrett turbo number): 752990-9007S
752990-5007S - Technologies and actuation
Actuation type: Electric (Electric actuator)
Turbocharger technology: VGT (Variable Geometry (VFT, VG, VGS, VGT, VNT, VTG) Turbocharger)
752990-5007S - Turbo replacements
Replacement for: Garrett GTB1752VK 752990-0004
Replacement for: Garrett GTB1752VK 752990-0006
752990-5007S - Turbo interchangeability
Interchangeable with: Garrett GTB1752VK 752990-0004
Interchangeable with: Garrett GTB1752VK 752990-0006
Interchangeable with: Garrett GTB1752VK 752990-0007
Interchangeable with: Garrett GTB1752VK 752990-0007-R
Interchangeable with: Garrett GTB1752VK 752990-9007S
| PART BRAND | PART NAME | PART REFERENCE | QTY | PART OE NUMBER | GARRETT PART NUMBER |
|---|---|---|---|---|---|
| Hella | Actuator | 6NW009228-291 | 1 | -- | 730314-0066 |
| TurboCentras | Bolt | BO-98-0004 | 6 | -- | -- |
| TurboCentras | Bolt | BO-98-0005 | 6 | -- | -- |
| TurboCentras | Cartridge | GA-00-0118 | 1 | -- | -- |
| TurboCentras | Bearing housing | GA-01-0011 | 1 | -- | -- |
| TurboCentras | Compressor wheel | GA-03-0055 | 1 | 735475-0002, 784363-0002 | -- |
| TurboCentras | Repair kit | GA-04-0016 | 1 | -- | -- |
| TurboCentras | Heat shield | GA-05-0015 | 1 | -- | -- |
| TurboCentras | Nozzle ring assy. | GA-06-0027 | 1 | -- | -- |
| TurboCentras | Back plate | GA-08-0044 | 1 | 730078-0003 | -- |
| TurboCentras | Shaft nut | GA-21-0005 | 1 | -- | -- |
| TurboCentras | Actuator clip | GR.5 | 1 | -- | -- |
| TurboCentras | Thrust bearing | GT15-120 | 1 | -- | -- |
| TurboCentras | Thrust flinger | GT15-130 | 1 | -- | -- |
| TurboCentras | Thrust Collar | GT15-135 | 1 | -- | -- |
| TurboCentras | Retaining ring | GT15-143 | 1 | -- | -- |
| TurboCentras | Piston ring | GT15-160 | 2 | -- | -- |
| TurboCentras | Piston ring | GT15-160-1 | 2 | -- | -- |
| TurboCentras | Piston ring | GT15-170 | 1 | -- | -- |
| TurboCentras | Anti-rotation pin | GT15-330 | 1 | -- | -- |
| TurboCentras | VNT outer gasket | GT17-149-2 | 1 | -- | -- |
| TurboCentras | VNT nozzle cage | GT17-700 | 1 | -- | -- |
| TurboCentras | Screw | SC-96-0007 | 4 | -- | -- |
| TurboCentras | Gasket oil outlet | T-1 | 1 | -- | -- |
| TurboCentras | Washer | WA-95-0001 | 4 | -- | -- |
752990-0007, 752990-5007S, 752990-9007S, A6460901080
Data updated: 2024-05-15 12:57:15
