Garrett

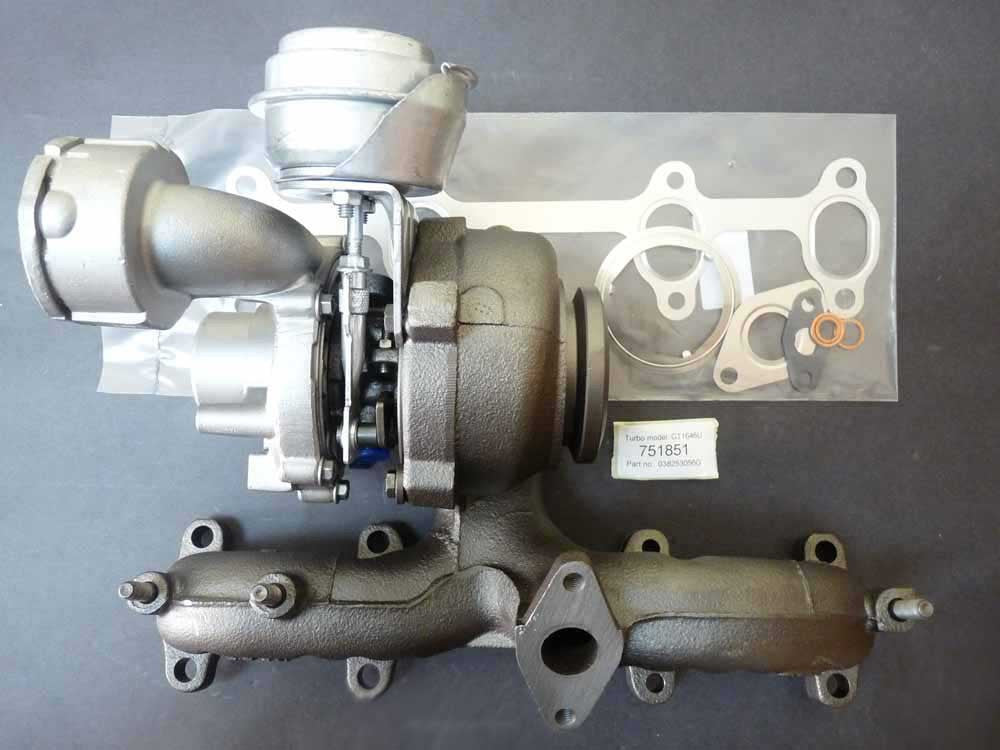

Turbo 751851-0001 (R)
Turbo 751851-0001 (R)
Redna cena
€231,40 EUR
Redna cena
Znižana cena
€231,40 EUR
Cena na enoto
/
na
Podatka o razpoložljivosti osebnega prevzema ni mogoče naložiti
751851-0001 (038253016K) - Turbocharger GT1646MV
Brand: Garrett
Model: GT16 - GT1646MV
Garrett Reference: 751851-0001
OEM Numbers: 038253016K
751851-0001 - Alternative numbers
GHT (Garrett turbo number): 751851-0001
GHT (Garrett turbo number): 751851-5001S
751851-0001 - Technologies and actuation
Actuation type: Pneumatic (Pneumatic actuator)
Turbocharger technology: VGT (Variable Geometry (VFT, VG, VGS, VGT, VNT, VTG) Turbocharger)
751851-0001 - Turbo replacements
Replaced by: Garrett GT1646MV 751851-0004
751851-0001 - Turbo interchangeability
Interchangeable with: BMTS BM 40006263
Interchangeable with: Garrett GT1646MV 751851-0002
Interchangeable with: Garrett GT1646MV 751851-0003
Interchangeable with: Garrett GT1646MV 751851-0004
| PART BRAND | PART NAME | PART REFERENCE | QTY | PART OE NUMBER | GARRETT PART NUMBER |
|---|---|---|---|---|---|
| TurboCentras | Bolt | BO-98-0004 | 6 | -- | -- |
| TurboCentras | Bolt | BO-98-0005 | 6 | -- | -- |
| TurboCentras | Cartridge | GA-00-0091 | 1 | -- | -- |
| TurboCentras | Bearing housing | GA-01-0006 | 1 | 722282-0040 | -- |
| TurboCentras | Shaft and wheel | GA-02-0058 | 1 | -- | -- |
| TurboCentras | Compressor wheel | GA-03-0053 | 1 | 704768-0005 | -- |
| TurboCentras | Repair kit | GA-04-0015 | 1 | -- | -- |
| TurboCentras | Heat shield | GA-05-0013 | 1 | -- | -- |
| TurboCentras | Nozzle ring assy. | GA-06-0022 | 1 | -- | -- |
| TurboCentras | Back plate | GA-08-0035 | 1 | -- | -- |
| TurboCentras | Compressor housing | GA-11-0002 | 1 | -- | -- |
| TurboCentras | Shaft nut | GA-21-0005 | 1 | -- | -- |
| TurboCentras | Actuator clip | GR.5 | 1 | -- | -- |
| TurboCentras | Thrust bearing | GT15-120 | 1 | -- | -- |
| TurboCentras | Thrust flinger | GT15-130 | 1 | -- | -- |
| TurboCentras | Thrust Collar | GT15-135 | 1 | -- | -- |
| TurboCentras | Retaining ring | GT15-143 | 1 | -- | -- |
| TurboCentras | Piston ring | GT15-160 | 1 | -- | -- |
| TurboCentras | Piston ring | GT15-170 | 1 | -- | -- |
| TurboCentras | Anti-rotation pin | GT15-330 | 1 | -- | -- |
| EE Turbo | Cartridge | GT16-000 | 1 | -- | -- |
| TurboCentras | VNT Ring | GT17-90-1 | 1 | -- | -- |
| TurboCentras | Screw | SC-96-0007 | 4 | -- | -- |
| TurboCentras | Gasket oil outlet | T-1 | 1 | -- | -- |
| TurboCentras | Gasket kit | TC1003 | 1 | -- | -- |
| TurboCentras | Washer | WA-95-0001 | 4 | -- | -- |
038253016K, 751851-0001, 751851-5001S
Data updated: 2024-06-14 09:52:18
