Garrett

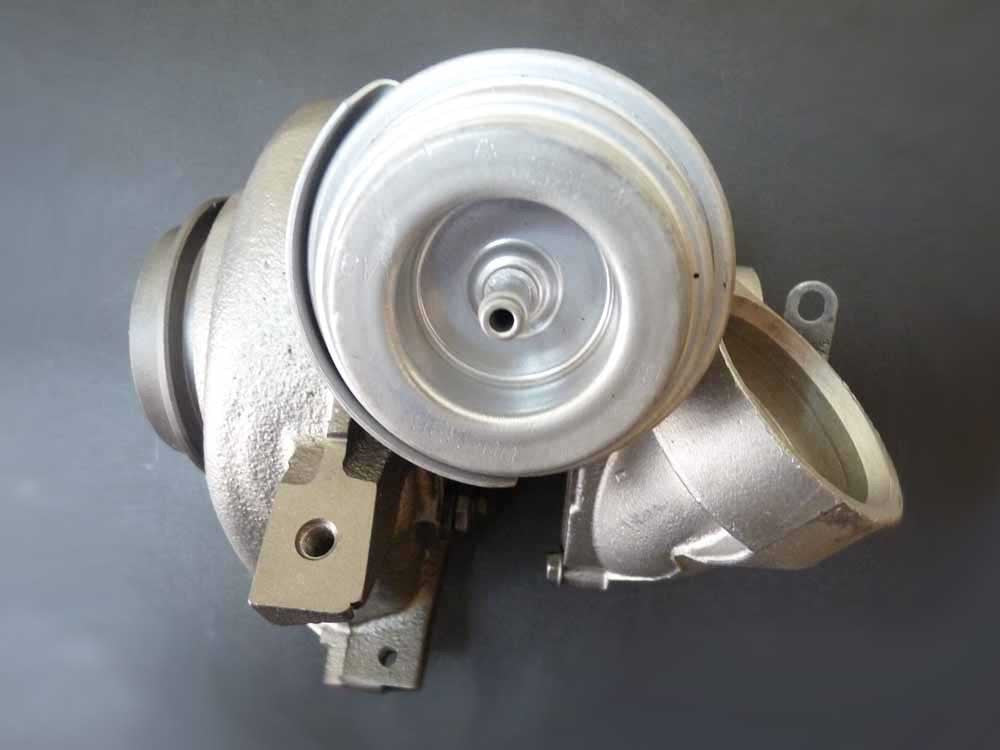

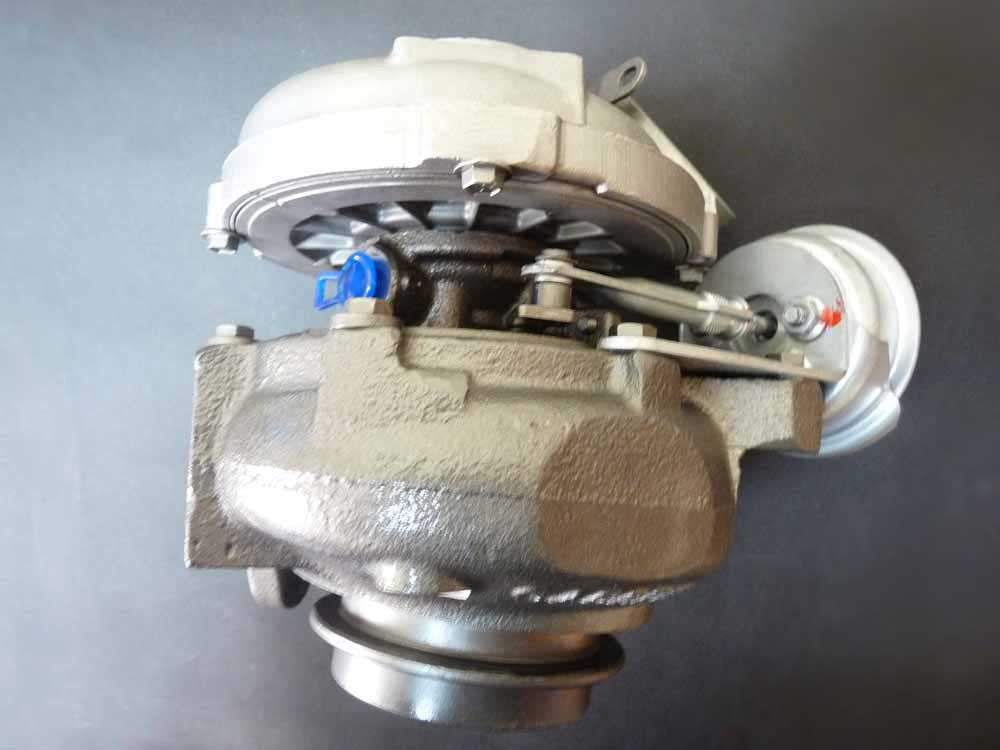

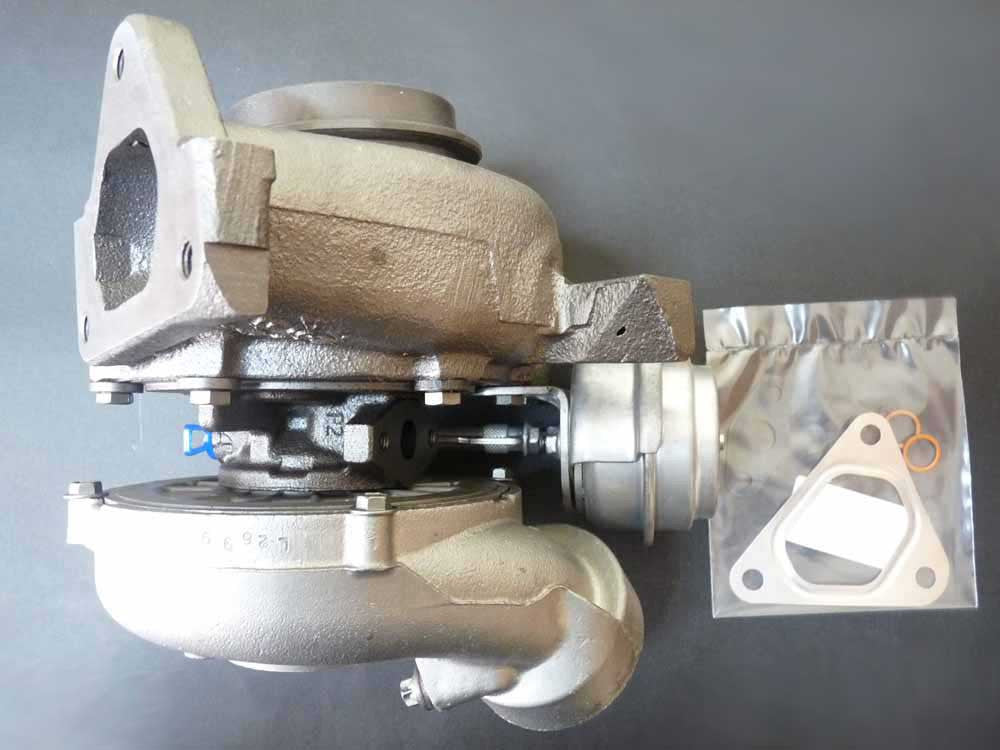

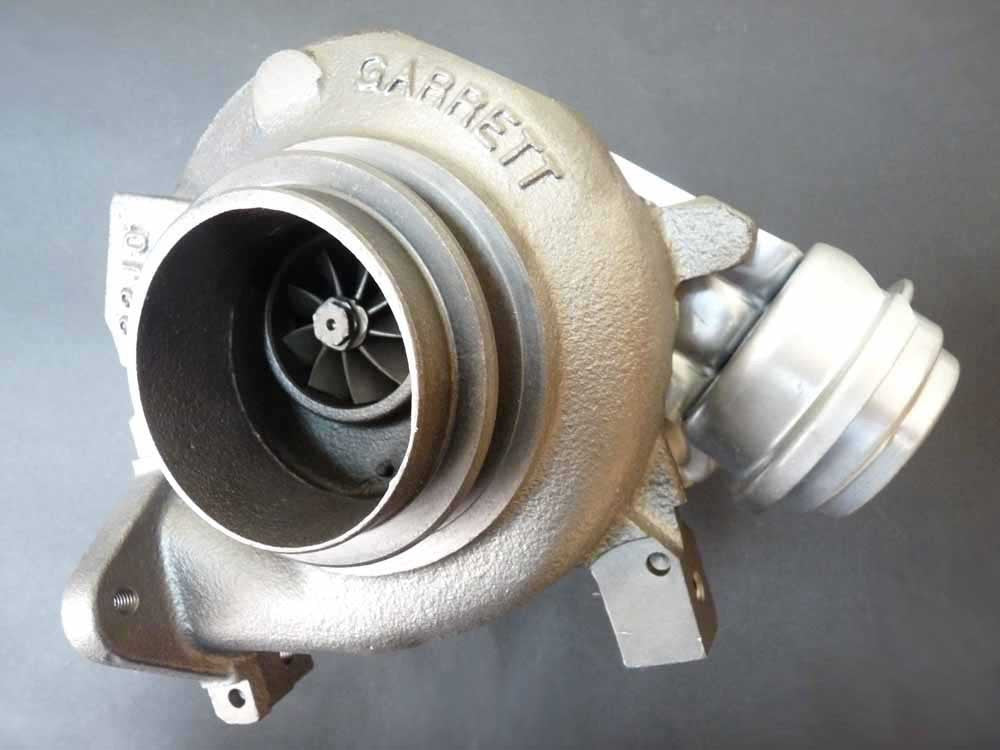

Turbo 715910-0001 (R)
Turbo 715910-0001 (R)
Redna cena
€278,35 EUR
Redna cena
Znižana cena
€278,35 EUR
Cena na enoto
/
na
Podatka o razpoložljivosti osebnega prevzema ni mogoče naložiti
715910-0001 (612096059980, A6120960599) - Turbocharger
Brand: Garrett
Garrett Reference: 715910-0001

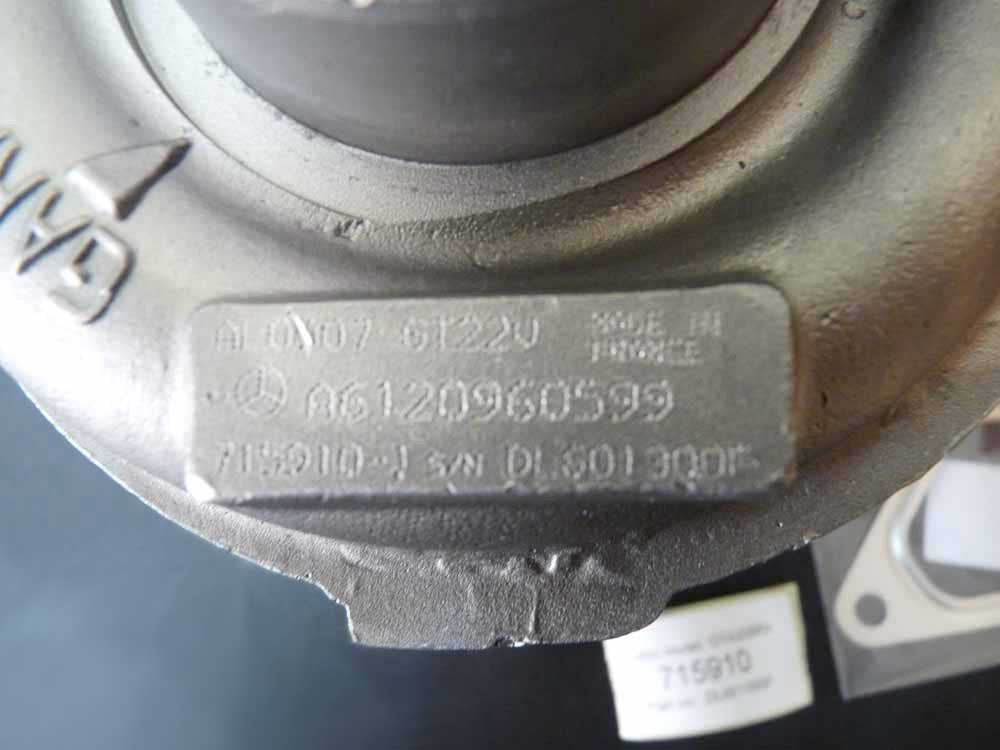

OEM Numbers: 612096059980, A6120960599
715910-0001 - Alternative numbers
GHO (Garrett original part number): 715910-0001
GHA (Garrett aftermarket part number): 715910-5001S
715910-0001 - Technologies and actuation
Actuation type: Pneumatic (Pneumatic actuation)
Turbocharger technology: VNT (Variable Nozzle Turbine)
715910-0001 - Turbo replacements
Replaced by: Garrett GTA2256V 715910-0003
715910-0001 - Turbo interchangeability
Interchangeable with: Garrett GTA2256V 715910-0002
Interchangeable with: Garrett GTA2256V 715910-0003
| Turbo 715910-0001 - Compatible parts | |||||
|---|---|---|---|---|---|
| PART BRAND | PART NAME | PART REFERENCE | QTY | PART OE NUMBER | GARRETT PART NUMBER |
| TurboCentras | Actuator clip | GR.5 | 1 | -- | -- |
| TurboCentras | Journal bearing | GT15-101 | 1 | -- | -- |
| TurboCentras | Thrust bearing | GT15-120 | 1 | -- | -- |
| TurboCentras | Thrust flinger | GT15-130 | 1 | -- | -- |
| TurboCentras | Thrust Collar | GT15-135 | 1 | -- | -- |
| TurboCentras | Retaining ring (B) | GT15-143 | 1 | -- | -- |
| TurboCentras | Piston ring (turbine) | GT15-160 | 1 | -- | -- |
| TurboCentras | Piston ring (compr.) | GT15-170 | 1 | -- | -- |
| TurboCentras | Shaft nut | GT15-180 | 1 | -- | -- |
| TurboCentras | O-ring (compr.) | GT15-201 | 1 | -- | -- |
| TurboCentras | O-ring (compr.) | GT15-202 | 1 | -- | -- |
| TurboCentras | O-ring (compr.) | GT15-203 | 1 | -- | -- |
| TurboCentras | O-ring (compr.) | GT15-204 | 1 | -- | -- |
| TurboCentras | O-ring (compr.) | GT15-205 | 1 | -- | -- |
| TurboCentras | O-ring (backplate) | GT15-206 | 1 | -- | -- |
| TurboCentras | Heat shield | GT15-323 | 1 | -- | 443768-0003 |
| TurboCentras | Anti-rotation pin | GT15-330 | 1 | -- | -- |
| TurboCentras | Repair kit | GT15-50 | 1 | -- | -- |
| TurboCentras | Cartridge | GT20-228 | 1 | -- | 703891-0024 |
| TurboCentras | Nozzle ring assy. | GT20-92 | 1 | -- | -- |
| TurboCentras | Compressor wheel | GT22-04 | 1 | -- | 436339-0019 |
| TurboCentras | Bearing housing | GT22-300 | 1 | -- | 722282-0020 |
| TurboCentras | Shaft and wheel | GT22-35 | 1 | -- | 434882-0005, 434882-0010 |
| TurboCentras | Back plate | GT22-61 | 1 | -- | 434820-0003 |
| TurboCentras | Bolt | M5X18 | 4 | -- | -- |
| TurboCentras | Bolt | M5X8 | 6 | -- | -- |
| TurboCentras | Bolt | M6 | 4 | -- | -- |
| TurboCentras | Bolt | M6X10 | 6 | -- | -- |
| TurboCentras | Gasket oil outlet | T-1 | 1 | -- | -- |
| TurboCentras | Gaskets kit | TC1005 | 1 | -- | -- |
| TurboCentras | Gaskets kit | TC1005F | 1 | -- | -- |
| TurboCentras | Gaskets kit | TC1057 | 1 | -- | -- |
612096059980, 715910-0001, 715910-5001S, A6120960599
Data updated: 2022-08-30 17:36:58
