Turbo 721164-0003
Turbo 721164-0003
Podatka o razpoložljivosti osebnega prevzema ni mogoče naložiti

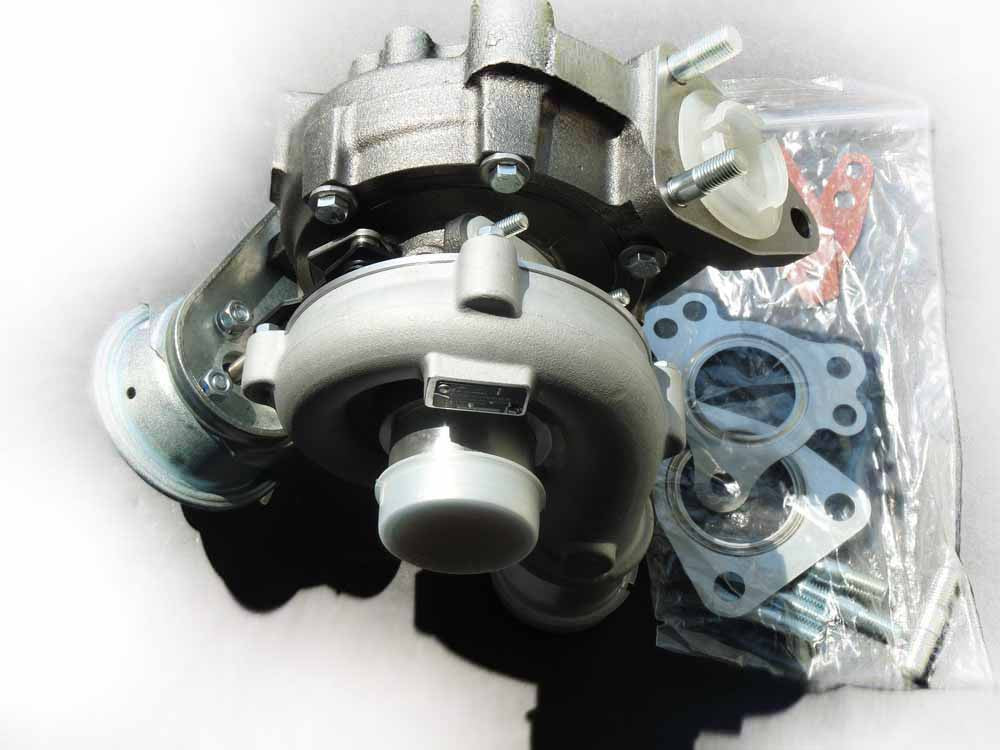

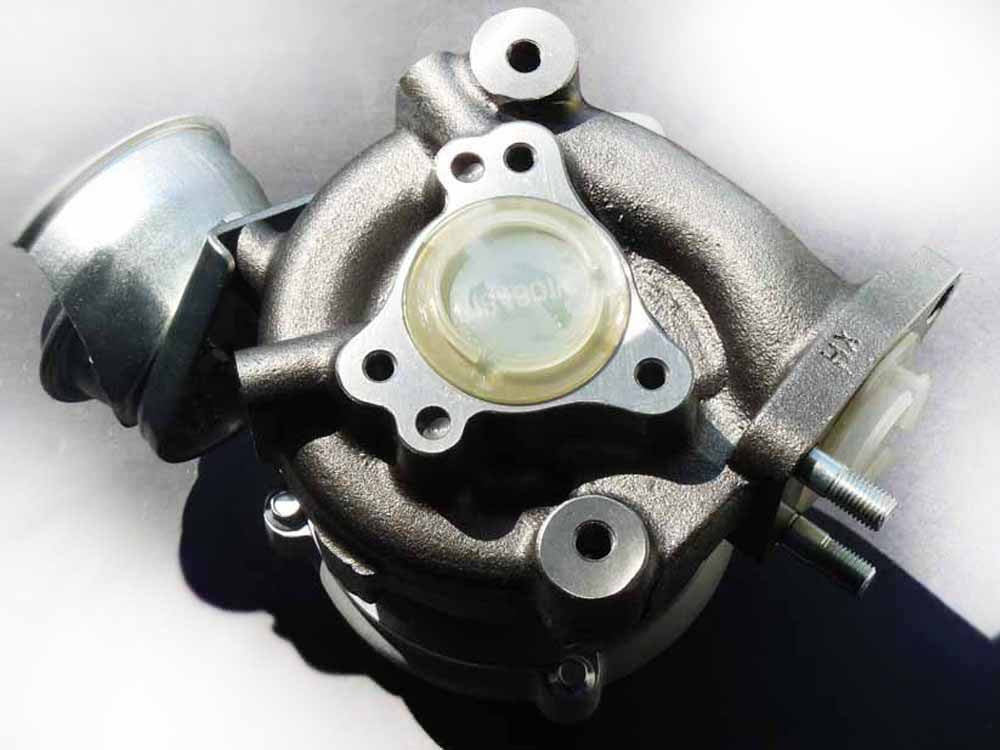

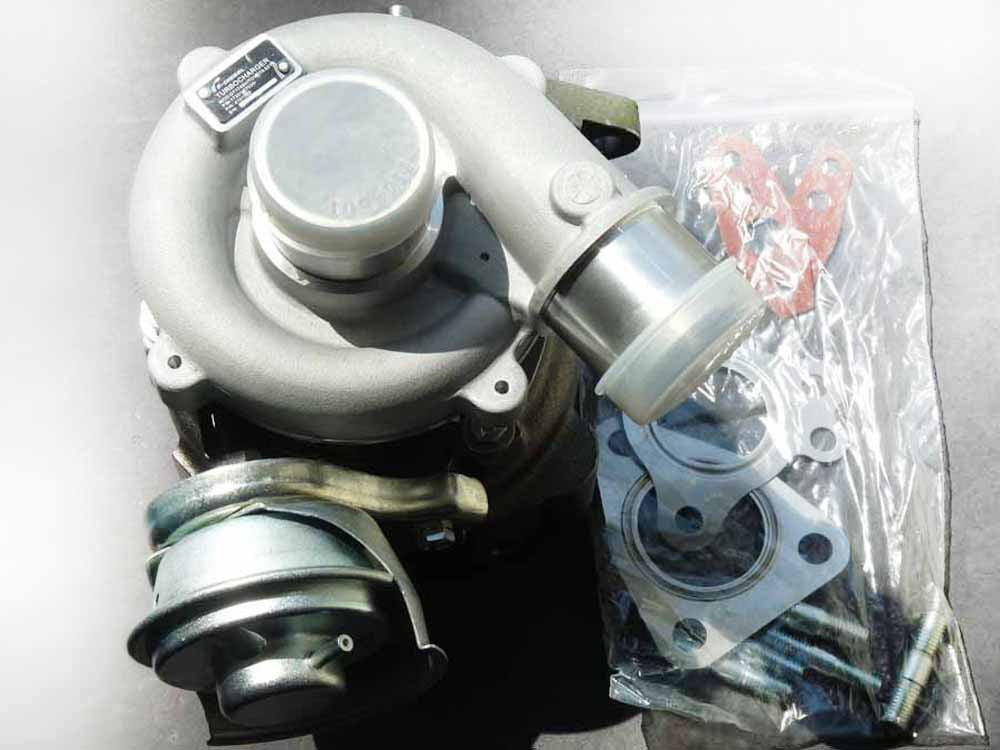

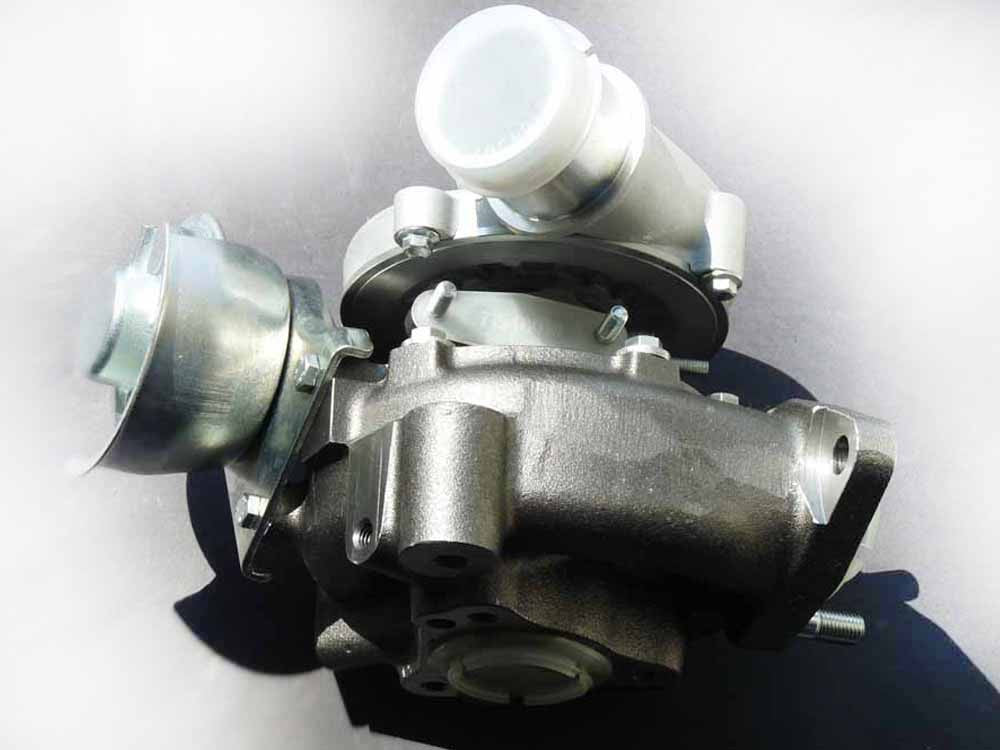

721164-0003 (1720127030, 1720127030A) - Turbocharger GT1749V
Brand: Garrett
Model: GT17 - GT1749V
Garrett Reference: 721164-0003
OEM Numbers: 1720127030, 1720127030A
721164-0003 - Alternative numbers
GHT (Garrett turbo number): 721164-0003
721164-0003 - Technologies and actuation
Actuation type: Pneumatic (Pneumatic actuator)
Turbocharger technology: VGT (Variable Geometry (VFT, VG, VGS, VGT, VNT, VTG) Turbocharger)
721164-0003 - Turbo replacements
Replaced by: Garrett GT1749V 721164-0011, 1720127030, 1720127030E
Replaced by: Garrett GT1749V 721164-0013, 1720127040D, 721164-5013S
Replaced by: Garrett GT1749V 801891-0001, 1720127030, 801891-5001S
Replaced by: Garrett GT1749V 801891-0004, 1720127030F, 801891-5004S
721164-0003 - Turbo interchangeability
Interchangeable with: BorgWarner BW-GTA1749V 57439880009, 1720127030A, 1720127030E, 1720127030F, 5743 988 0009, 721164-0011, 721164-0013, 801891-0001, 801891-0004
Interchangeable with: Garrett GT1749V 721164-0011, 1720127030, 1720127030E
Interchangeable with: Garrett GT1749V 721164-0013, 1720127040D, 721164-5013S
Interchangeable with: Garrett GT1749V 801891-0001, 1720127030, 801891-5001S
Interchangeable with: Garrett GT1749V 801891-0004, 1720127030F, 801891-5004S
| PART BRAND | PART NAME | PART REFERENCE | QTY | PART OE NUMBER | GARRETT PART NUMBER |
|---|---|---|---|---|---|
| TurboCentras | Bolt | BO-98-0004 | 6 | -- | -- |
| TurboCentras | Bolt | BO-98-0005 | 6 | -- | -- |
| TurboCentras | Cartridge | GA-00-0095 | 1 | -- | 701864-0020 |
| TurboCentras | Bearing housing | GA-01-0095 | 1 | -- | -- |
| TurboCentras | Shaft and wheel | GA-02-0068 | 1 | 433257-0010, 434533-0007, 434533-0009, 434533-0015, 434533-0035, 434533-0037, 434533-0058, 434533-0059 | -- |
| TurboCentras | Compressor wheel | GA-03-0030 | 1 | 436132-0003, 436132-0014, 436334-0003, 701300-0007, 703925-0003, 703925-0011, 706164-0003 | -- |
| TurboCentras | Repair kit | GA-04-0015 | 1 | -- | -- |
| TurboCentras | Heat shield | GA-05-0013 | 1 | -- | -- |
| TurboCentras | Nozzle ring assy. | GA-06-0022 | 1 | -- | -- |
| TurboCentras | Back plate | GA-08-0017 | 1 | -- | -- |
| TurboCentras | Actuator | GA-10-0027 | 1 | -- | -- |
| TurboCentras | Shaft nut | GA-21-0005 | 1 | -- | -- |
| TurboCentras | Actuator clip | GR.5 | 1 | -- | -- |
| TurboCentras | Thrust bearing | GT15-120 | 1 | -- | -- |
| TurboCentras | Thrust flinger | GT15-130 | 1 | -- | -- |
| TurboCentras | Thrust Collar | GT15-135 | 1 | -- | -- |
| TurboCentras | Retaining ring | GT15-143 | 1 | -- | -- |
| TurboCentras | Piston ring | GT15-160 | 1 | -- | -- |
| TurboCentras | Piston ring | GT15-170 | 1 | -- | -- |
| TurboCentras | Anti-rotation pin | GT15-330 | 1 | -- | -- |
| EE Turbo | Cartridge | GT17-001 | 1 | -- | 701864-0020 |
| TurboCentras | VNT Ring | GT17-90-1 | 1 | -- | -- |
| TurboCentras | Screw | SC-96-0007 | 4 | -- | -- |
| TurboCentras | Gasket oil outlet | T-1 | 1 | -- | -- |
| TurboCentras | Gasket oil outlet | T-2 | 1 | -- | -- |
| TurboCentras | Gasket oil outlet | T-2-2 | 1 | -- | -- |
| TurboCentras | Gasket kit | TC1020 | 1 | -- | -- |
| TurboCentras | Washer | WA-95-0001 | 4 | -- | -- |
1720127030, 1720127030A, 721164-0003
Data updated: 2024-11-08 08:44:39
