Garrett
Turbo 727463-0004-R
Turbo 727463-0004-R
Podatka o razpoložljivosti osebnega prevzema ni mogoče naložiti

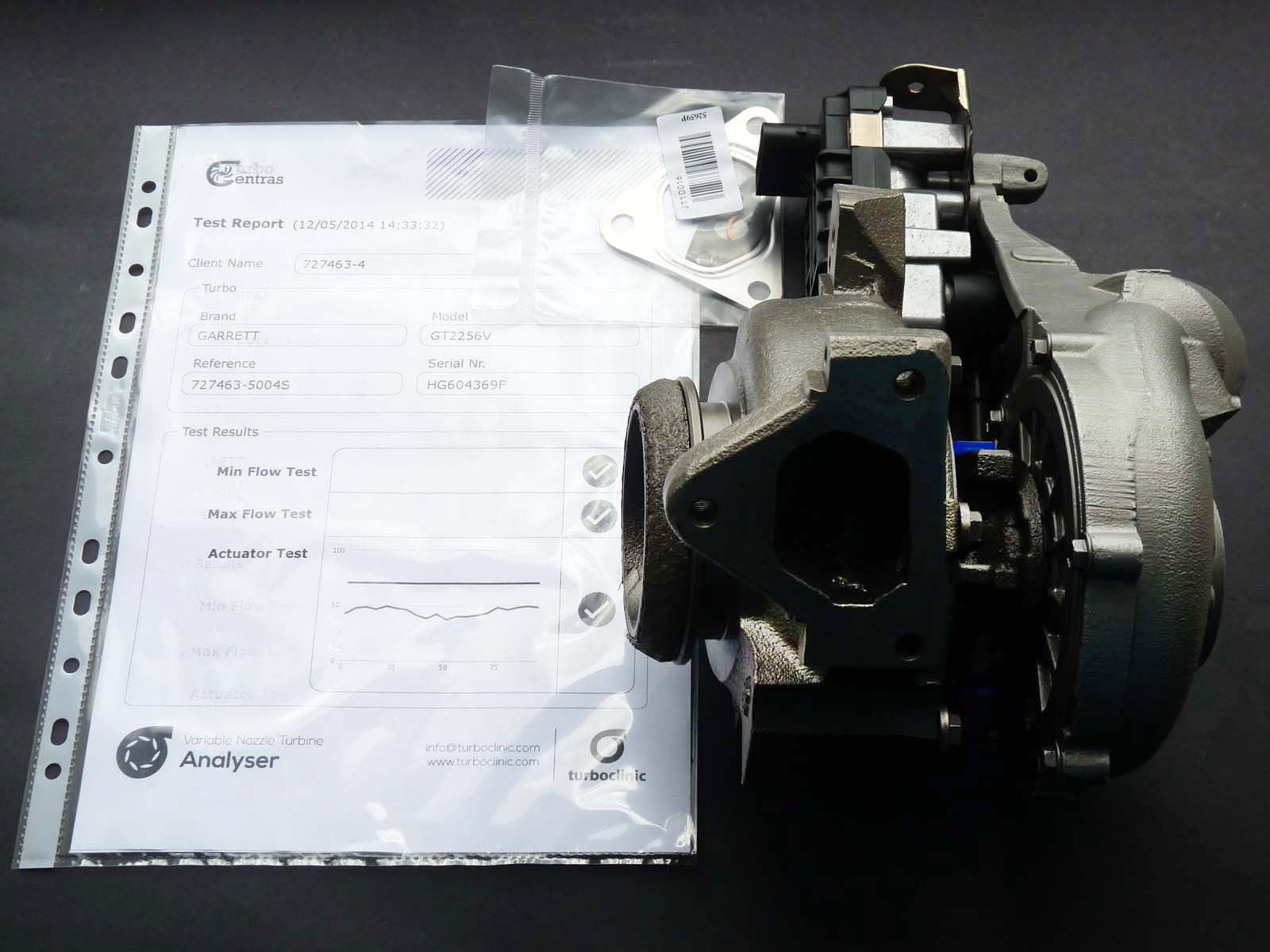

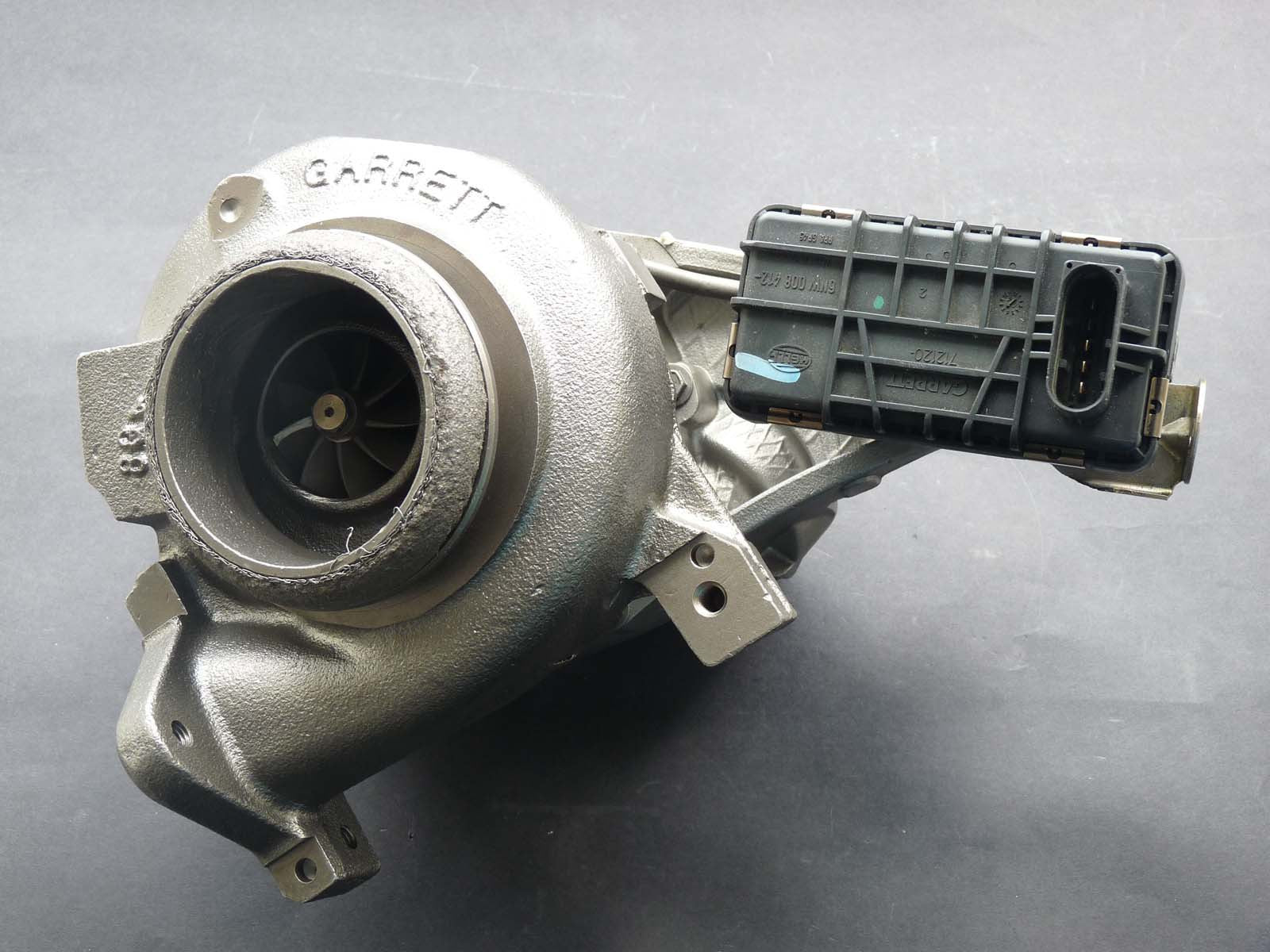

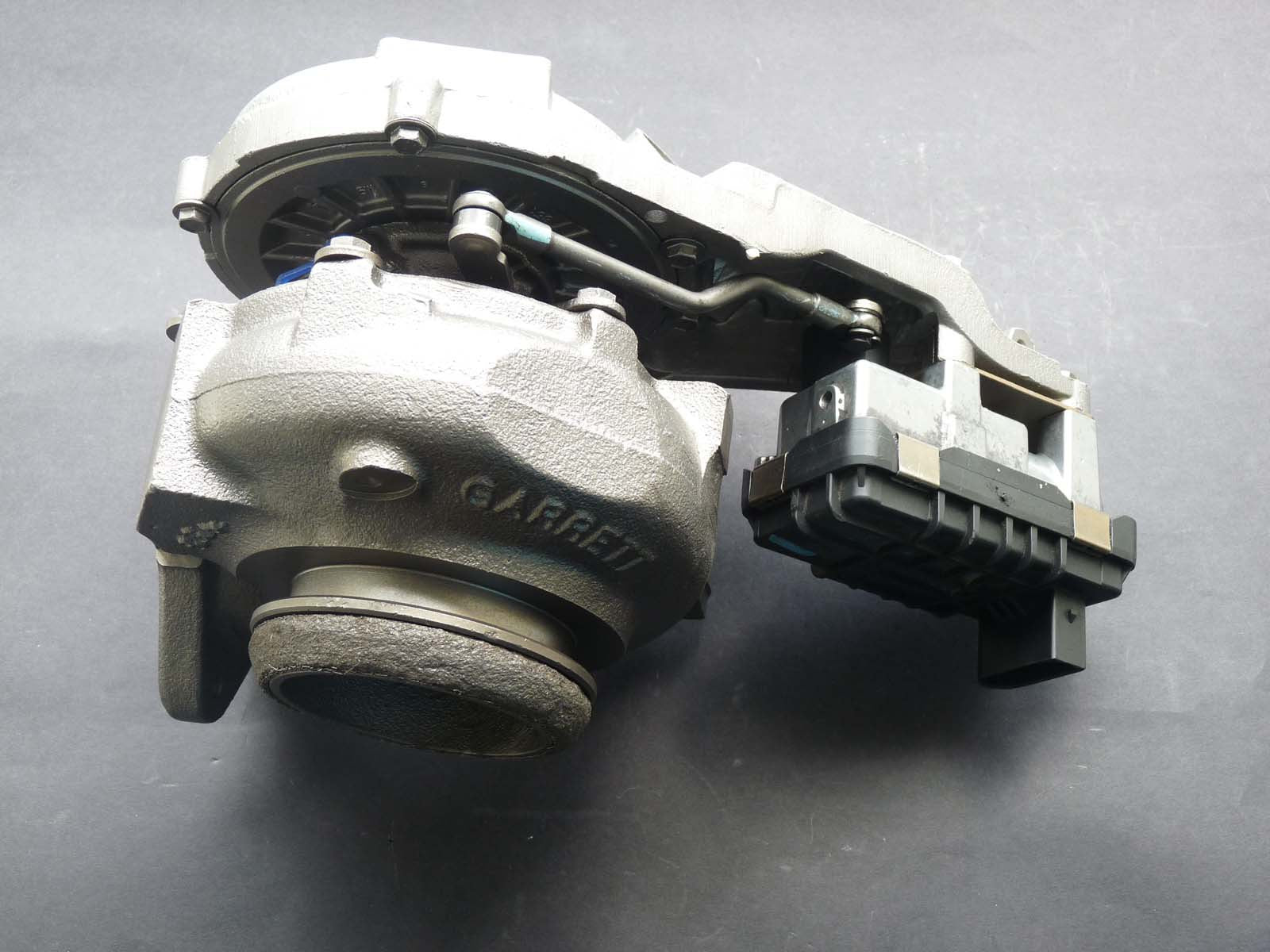

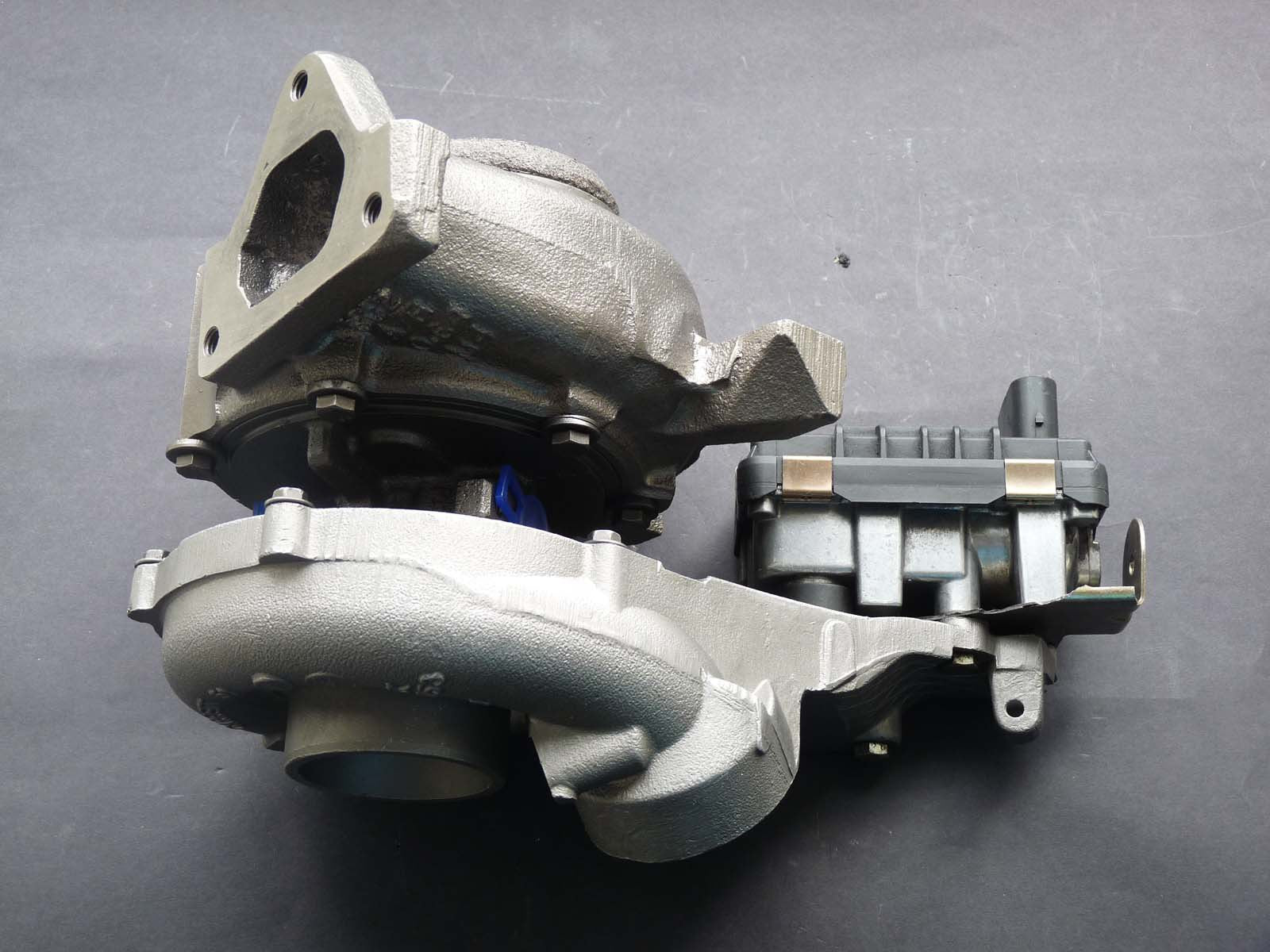

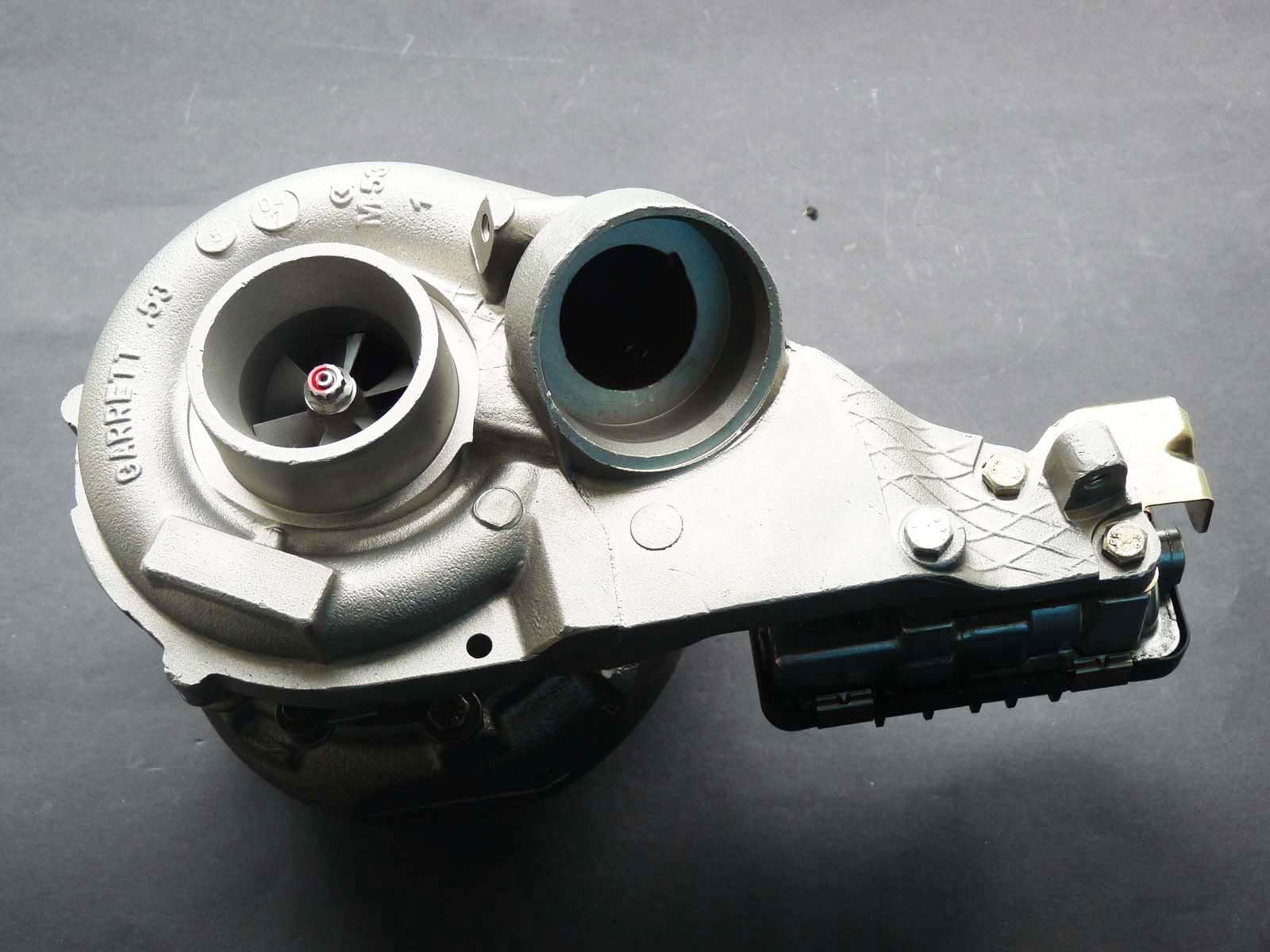

727463-0004 (6470900180, A6470900180) - Turbocharger GTA1856VK
Brand: Garrett
Model: GT18 - GTA1856VK
Garrett Reference: 727463-0004
OEM Numbers: 6470900180, A6470900180
727463-0004 - Alternative numbers
GHT (Garrett turbo number): 727463-0004
GHT (Garrett turbo number): 727463-5004S
727463-0004 - Technologies and actuation
Actuation type: Electric (Electric actuator)
Turbocharger technology: VGT (Variable Geometry (VFT, VG, VGS, VGT, VNT, VTG) Turbocharger)
727463-0004 - Turbo replacements
Replaced by: Garrett GT1852V 727463-0006, 727463-5006S, 727463-9006S, A6470900180
727463-0004 - Turbo interchangeability
Interchangeable with: Garrett GTA1852VK 727463-0001, 6470960099, 727463-5001S, A6470960099
Interchangeable with: Garrett GTA1856VK 727463-0002, 6470960099, 727463-5002S, A6470960099
Interchangeable with: Garrett GTA2256VK 727463-0003, 6470960099, 727463-5003S, A6470960099
Interchangeable with: Garrett GT1852V 727463-0006, 727463-5006S, 727463-9006S, A6470900180
| PART BRAND | PART NAME | PART REFERENCE | QTY | PART OE NUMBER | GARRETT PART NUMBER |
|---|---|---|---|---|---|
| TurboCentras | Bolt | BO-98-0004 | 6 | -- | -- |
| TurboCentras | Bolt | BO-98-0005 | 6 | -- | -- |
| TurboCentras | Cartridge | GA-00-0166 | 1 | -- | 703891-0066 |
| TurboCentras | Bearing housing | GA-01-0111 | 1 | -- | -- |
| TurboCentras | Shaft and wheel | GA-02-0103 | 1 | 434882-0005, 434882-0008, 434882-0010, 434882-0014 | -- |
| TurboCentras | Compressor wheel | GA-03-0080 | 1 | 436563-0001, 436563-0009, 703361-0010 | -- |
| TurboCentras | Repair kit | GA-04-0015 | 1 | -- | -- |
| TurboCentras | Heat shield | GA-05-0012 | 1 | -- | -- |
| TurboCentras | Nozzle ring assy. | GA-06-0036 | 1 | -- | -- |
| TurboCentras | Back plate | GA-08-0050 | 1 | 434820-0003 | -- |
| TurboCentras | Shaft nut | GA-21-0005 | 1 | -- | -- |
| TurboCentras | Actuator clip | GR.5 | 1 | -- | -- |
| TurboCentras | Thrust bearing | GT15-120 | 1 | -- | -- |
| TurboCentras | Thrust flinger | GT15-130 | 1 | -- | -- |
| TurboCentras | Thrust Collar | GT15-135 | 1 | -- | -- |
| TurboCentras | Retaining ring | GT15-143 | 1 | -- | -- |
| TurboCentras | Piston ring | GT15-160 | 1 | -- | -- |
| TurboCentras | Piston ring | GT15-170 | 1 | -- | -- |
| TurboCentras | Anti-rotation pin | GT15-330 | 1 | -- | -- |
| TurboCentras | Screw | SC-96-0007 | 4 | -- | -- |
| TurboCentras | Gasket oil outlet | T-1 | 1 | -- | -- |
| TurboCentras | Gasket kit | TC1005 | 1 | -- | -- |
| TurboCentras | Gasket kit | TC1005F | 1 | -- | -- |
| TurboCentras | Washer | WA-95-0001 | 4 | -- | -- |
6470900180, 727463-0004, 727463-5004S, A6470900180
