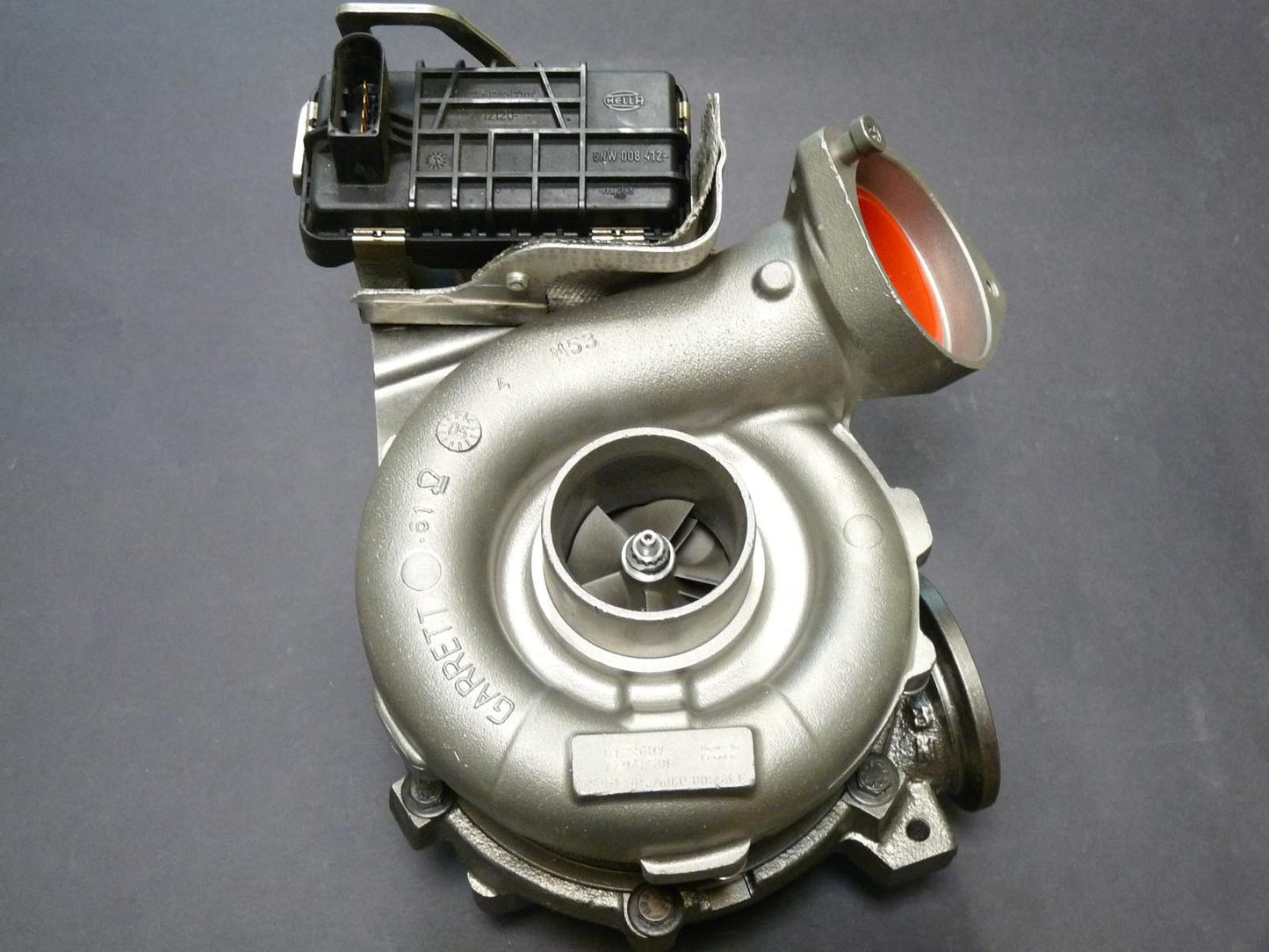

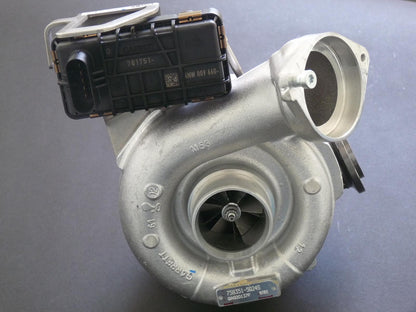

Turbo 758351-0024 758351-5024S
Turbo 758351-0024 758351-5024S
Podatka o razpoložljivosti osebnega prevzema ni mogoče naložiti

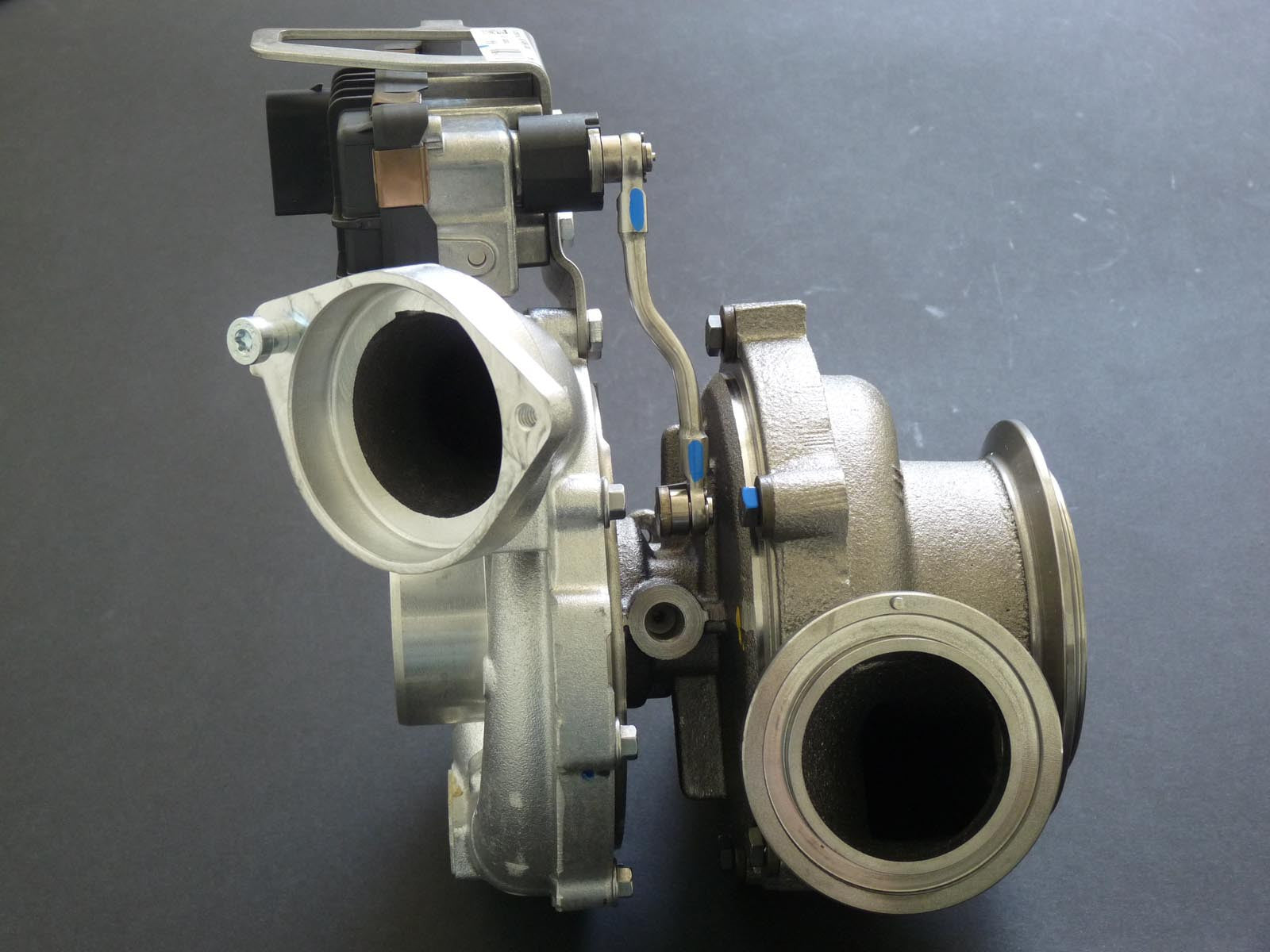

758351-0024 (7794260R17) - Turbocharger
Brand: Garrett
Garrett Reference: 758351-0024
OEM Numbers: 7794260R17
758351-0024 - Alternative numbers
GHO (Garrett original part number): 758351-0024
GHA (Garrett aftermarket part number): 758351-5024S
GHA (Garrett aftermarket part number): 758351-5024W
GHR (Garrett remanufactured part number): 758351-9024W
758351-0024 - Technologies and actuation
Actuation type: Electric (Electric actuation)
Turbocharger technology: VNT (Variable Nozzle Turbine)
758351-0024 - Turbo replacements
Replacement for: Garrett GTB2260VK 758351-0002
Replacement for: Garrett GTB2260VK 758351-0003
Replacement for: Garrett GTB2260VK 758351-0005
Replacement for: Garrett GTB2260VK 758351-0009
Replacement for: Garrett GTB2260VK 758351-0013
Replacement for: Garrett GTB2260VK 758351-0015
Replacement for: Garrett GTB2260VK 758351-0017
Replacement for: Garrett GTB2260VK 758351-0019
Replacement for: Garrett GTB2260VK 758351-0020
Replacement for: Garrett GTB2260VK 758351-0022
758351-0024 - Turbo interchangeability
Interchangeable with: Garrett GTB2260VK 758351-0002
Interchangeable with: Garrett GTB2260VK 758351-0003
Interchangeable with: Garrett GTB2260VK 758351-0005
Interchangeable with: Garrett GTB2260VK 758351-0009
Interchangeable with: Garrett GTB2260VK 758351-0013
Interchangeable with: Garrett GTB2260VK 758351-0015
Interchangeable with: Garrett GTB2260VK 758351-0017
Interchangeable with: Garrett GTB2260VK 758351-0019
Interchangeable with: Garrett GTB2260VK 758351-0020
Interchangeable with: Garrett GTB2260VK 758351-0022
| Turbo 758351-0024 - Compatible parts | |||||
|---|---|---|---|---|---|
| PART BRAND | PART NAME | PART REFERENCE | QTY | PART OE NUMBER | GARRETT PART NUMBER |
| TurboCentras | Actuator clip | GR.5 | 1 | -- | -- |
| TurboCentras | Journal bearing | GT15-101 | 1 | -- | -- |
| TurboCentras | Thrust bearing | GT15-120 | 1 | -- | -- |
| TurboCentras | Thrust flinger | GT15-130 | 1 | -- | -- |
| TurboCentras | Thrust Collar | GT15-135 | 1 | -- | -- |
| TurboCentras | Retaining ring (B) | GT15-143 | 1 | -- | -- |
| TurboCentras | Piston ring (turbine) | GT15-160 | 2 | -- | -- |
| TurboCentras | Piston ring (compr.) | GT15-170 | 1 | -- | -- |
| TurboCentras | Shaft nut | GT15-180 | 1 | -- | -- |
| TurboCentras | O-ring (compr.) | GT15-201 | 1 | -- | -- |
| TurboCentras | O-ring (compr.) | GT15-202 | 1 | -- | -- |
| TurboCentras | O-ring (compr.) | GT15-203 | 1 | -- | -- |
| TurboCentras | O-ring (compr.) | GT15-204 | 1 | -- | -- |
| TurboCentras | O-ring (compr.) | GT15-205 | 1 | -- | -- |
| TurboCentras | O-ring (backplate) | GT15-206 | 1 | -- | -- |
| TurboCentras | O-ring (compr.) | GT15-207 | 1 | -- | -- |
| TurboCentras | Anti-rotation pin | GT15-330 | 1 | -- | -- |
| TurboCentras | Repair kit | GT15-53 | 1 | -- | -- |
| TurboCentras | Back plate | GT20-62 | 1 | -- | 730078-0001 |
| TurboCentras | Compressor wheel | GT22-07 | 1 | -- | 787571-0001 |
| TurboCentras | VNT gasket (turbine) | GT22-149-2 | 1 | -- | -- |
| TurboCentras | Cartridge | GT22-238 | 1 | -- | -- |
| TurboCentras | Bearing housing | GT22-308 | 1 | -- | -- |
| TurboCentras | Heat shield | GT22-321 | 1 | -- | -- |
| TurboCentras | Shaft and wheel | GT22-38 | 1 | -- | -- |
| TurboCentras | Nozzle ring assy. | GT22-90 | 1 | -- | -- |
| TurboCentras | Bolt | M5X18 | 4 | -- | -- |
| TurboCentras | Bolt | M5X8 | 6 | -- | -- |
| TurboCentras | Bolt | M6 | 4 | -- | -- |
| TurboCentras | Bolt | M6X10 | 6 | -- | -- |
| TurboCentras | Gasket oil outlet | T-1 | 1 | -- | -- |
| TurboCentras | Gaskets kit | TC1059 | 1 | -- | -- |
| TurboCentras | Gaskets kit | TC1059F | 1 | -- | -- |
758351-0024, 758351-5024S, 758351-5024W, 758351-9024W, 7794260R17
Data updated: 2022-02-25 11:25:31
