TurboCentras

Shaft and wheel GA-02-0143

Shaft and wheel GA-02-0143

€61,72 EUR
€61,72 EUR
Znižanje Razprodano

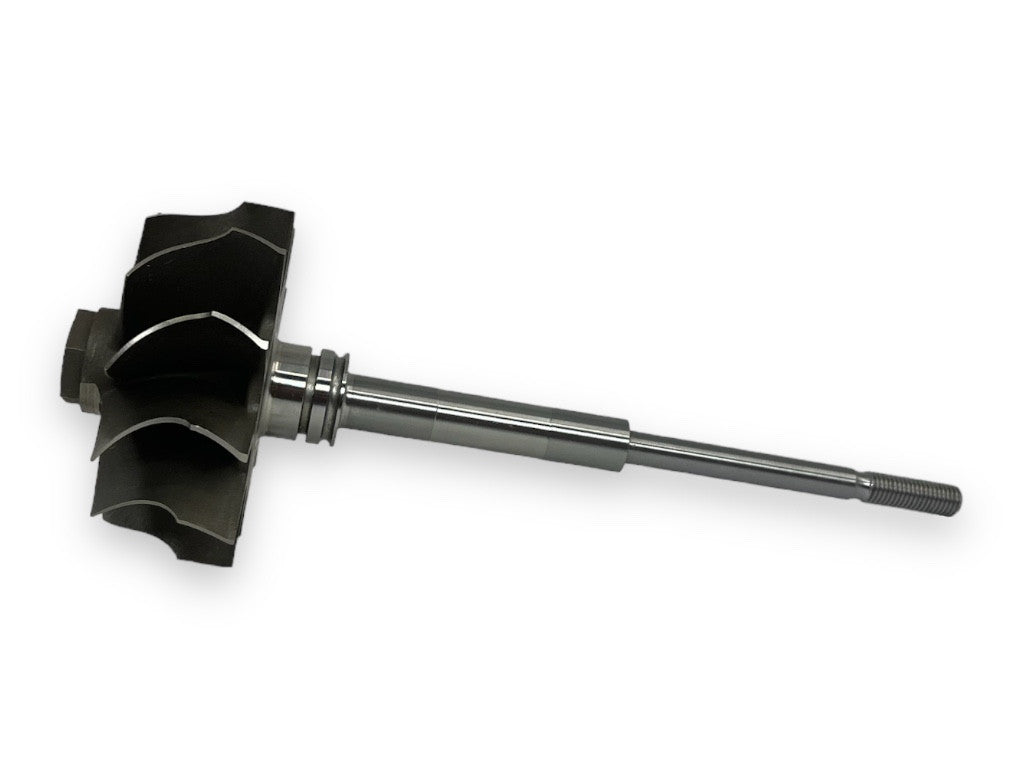

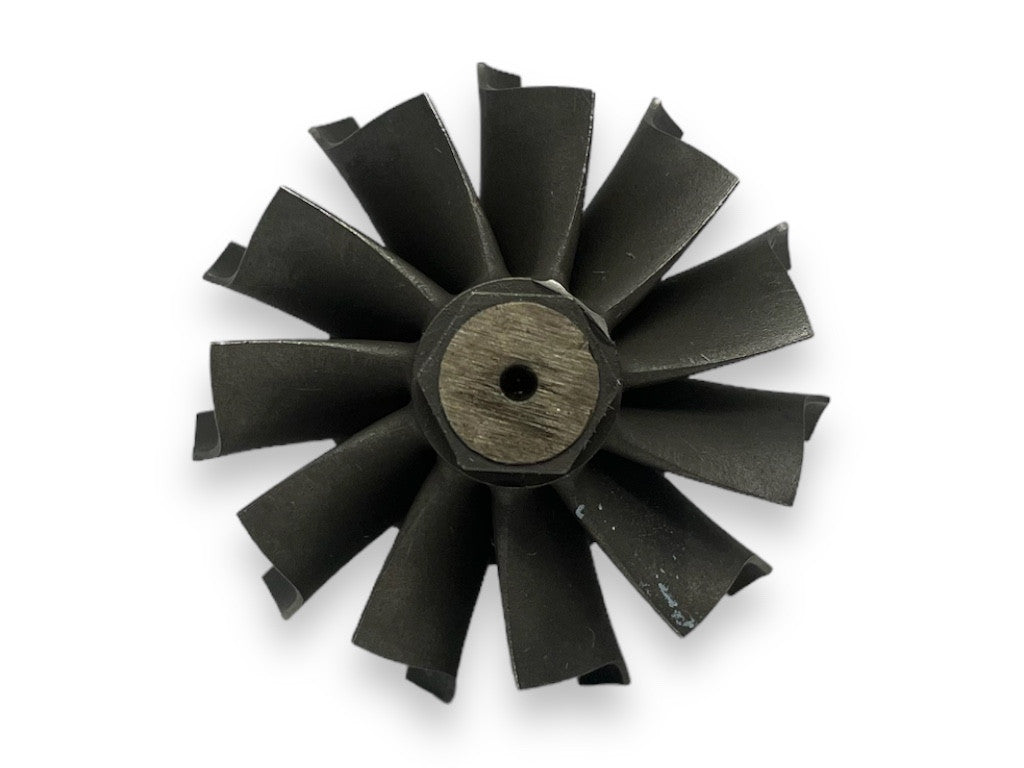

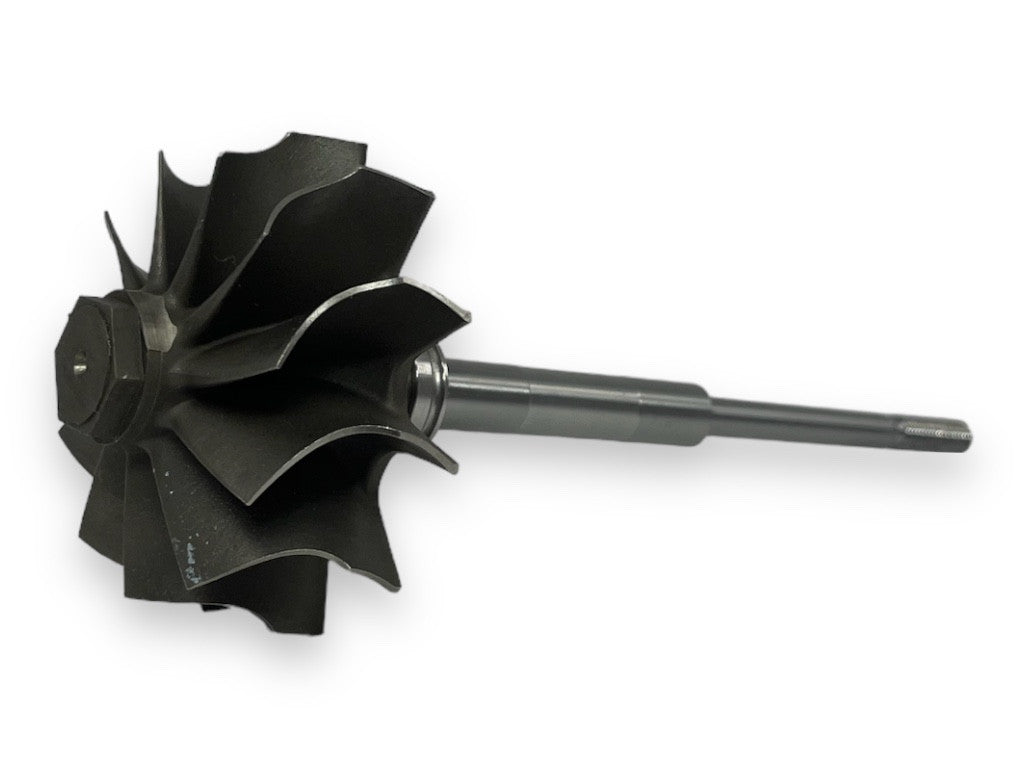

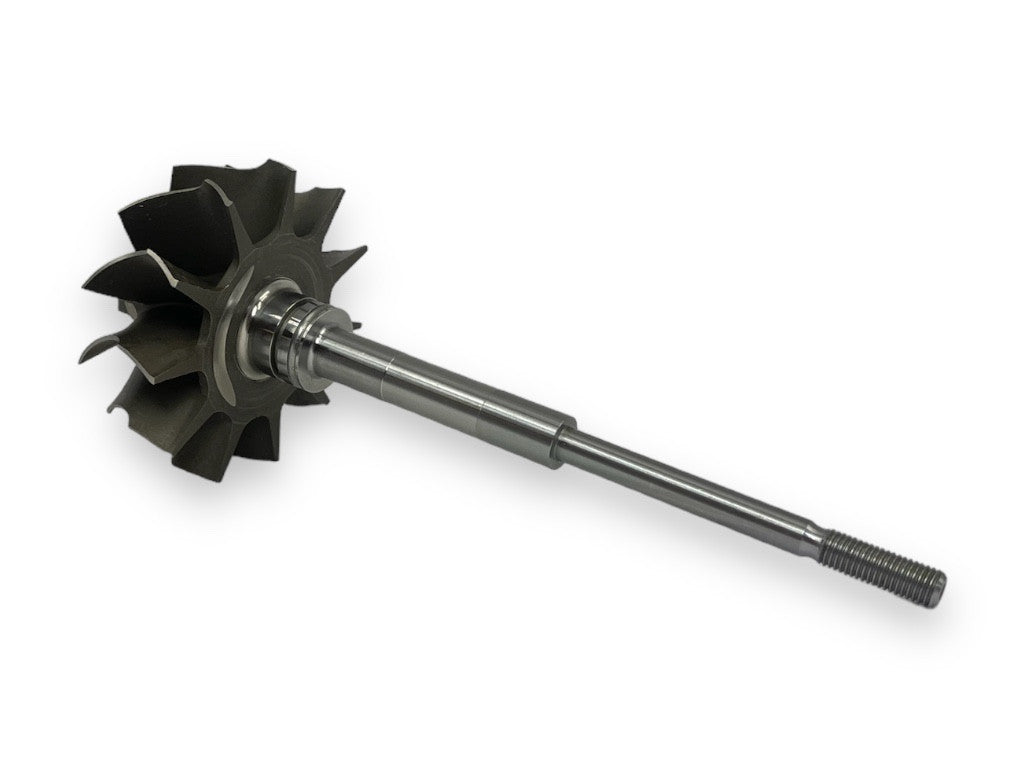

GA-02-0143 (451314-0003) - Shaft and wheel

Brand: TurboCentras

TurboCentras Reference: GA-02-0143

OEM Numbers: 451314-0003

GA-02-0143 - Alternative numbers

TCP (TurboCentras part number): GA-02-0143

TCO (TurboCentras old part number): T3-38

GA-02-0143 - Compatibility table

Shaft and wheel GA-02-0143 - Compatible turbochargers
TURBO MAKER TURBO MODEL TURBO REFERENCE TURBO PART NUMBER TURBO OE NUMBER
Garrett TA3401 444836-0001 444836-0001 --
Garrett TA3406 451567-0001 451567-0001 --
Garrett TA3406 451567-0005 451567-0005, 451567-5005S --
Garrett TA3406 451567-0006 451567-0006, 451567-5006S --
Garrett TA3124 465245-0001 465245-0001, 465245-5001S 403095325
Garrett TA3124 465245-0002 465245-0002 403095327
Garrett TA3404 465593-0001 465593-0001 RE29883
Garrett TA3404 465593-0002 465593-0002 RE26391
Garrett TA3404 465593-0003 465593-0003 RE38406
Garrett TA3404 465593-0005 465593-0005 RE26341
Garrett TA3404 465593-0006 465593-0006 RE26342
Garrett TA3404 465593-0007 465593-0007 RE299883
Garrett TA3404 465593-0009 465593-0009 --
Garrett TA3404 465593-0010 465593-0010 RE39100
Garrett TA3404 465593-0012 465593-0012 RE16618
Garrett TA3404 465593-0013 465593-0013 --
Garrett TA3405 466159-0001 466159-0001 --
Garrett TA3405 466159-0002 466159-0002 --
Garrett TA3404 466334-0001 466334-0001 RE16611
Garrett TA3401 466334-0005 466334-0005 RE26342
Garrett TA3401 466334-0006 466334-0006 RE26289
Garrett TA3401 466334-0007 466334-0007 RE26289
Garrett TA3401 466334-0008 466334-0008, 466334-5008S RE26119, RE26291
Garrett TA3401 466334-0009 466334-0009 RE26120
Garrett TA3401 466334-0010 466334-0010 RE26121
Garrett TA3401 466334-0011 466334-0011 RE26291
Garrett TA3401 466334-0012 466334-0012 RE62772
Garrett TA3401 466334-0013 466334-0013 --
Garrett TA3401 466334-0015 466334-0015 RE58898
Garrett TA3401 466334-0017 466334-0017 RE58898
Garrett TA3401 466334-0018 466334-0018 --
Garrett TA3401 466334-0019 466334-0019 --
Garrett TA3401 466334-0021 466334-0021 --
Garrett TC4303 466457-0001 466457-0001 --
Garrett TC4305 466457-0002 466457-0002 1821328C91
Garrett TC4305 466457-0003 466457-0003 1821329C91
Garrett TC4304 466495-0001 466495-0001 --
Garrett TC4304 466495-0002 466495-0002 --
Garrett TC4304 466495-0003 466495-0003 --
Garrett TC4305 466533-0001 466533-0001 --
Garrett TA3406 466563-0001 466563-0001 3522777
Garrett TA3407 466565-0001 466565-0001 --
Garrett TA3407 466565-0002 466565-0002 --
Garrett TA3408 466575-0002 466575-0002 --
Garrett TA3408 466575-0003 466575-0003 --
Garrett TA3403 466980-0001 466980-0001 --

GA-02-0143 - Part Properties

Blades (Shaft & Wheel blades count): 11

Rotation (Shaft & Wheel rotation direction): Standard

Type (Shaft & Wheel type): Straight

Back (Shaft & Wheel back type): Open

P.R. (Shaft & Wheel piston rings count): Single

A (Size A): 65.00

A1 (Size A1): 65.00

B (Size B): 56.50

C (Size C): 9.30

D (Size D): 10.16

E (Size E): 6.35

H (Size H): 25.00

L (Size L): 134.00

T (Size T): 1/4X28UNF-LH

GA-02-0143
451314-0003, GA-02-0143, T3-38
444836-0001, 451567-0001, 451567-0005, 451567-5005S, 451567-0006, 451567-5006S, 403095325, 465245-0001, 465245-5001S, 403095327, 465245-0002, 465593-0001, RE29883, 465593-0002, RE26391, 465593-0003, RE38406, 465593-0005, RE26341, 465593-0006, RE26342, 465593-0007, RE299883, 465593-0009, 465593-0010, RE39100, 465593-0012, RE16618, 465593-0013, 466159-0001, 466159-0002, 466334-0001, RE16611, 466334-0005, RE26342, 466334-0006, RE26289, 466334-0007, RE26289, 466334-0008, 466334-5008S, RE26119, RE26291, 466334-0009, RE26120, 466334-0010, RE26121, 466334-0011, RE26291, 466334-0012, RE62772, 466334-0013, 466334-0015, RE58898, 466334-0017, RE58898, 466334-0018, 466334-0019, 466334-0021, 466457-0001, 1821328C91, 466457-0002, 1821329C91, 466457-0003, 466495-0001, 466495-0002, 466495-0003, 466533-0001, 3522777, 466563-0001, 466565-0001, 466565-0002, 466575-0002, 466575-0003, 466980-0001

Data updated: 2024-07-19 11:26:06
