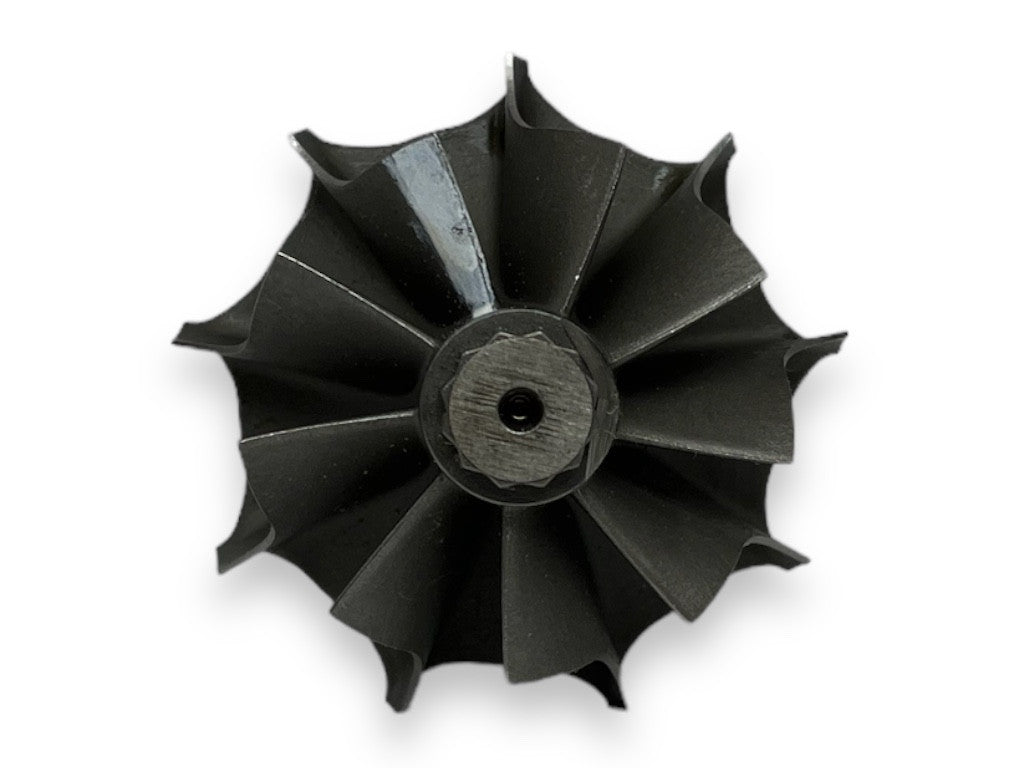

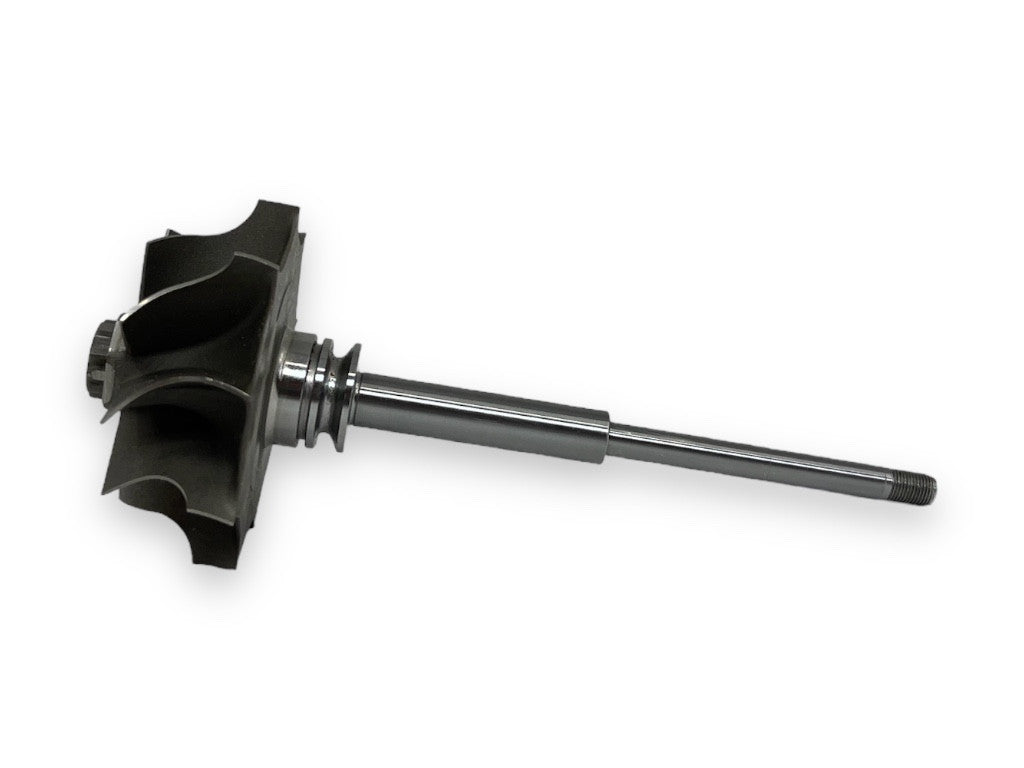

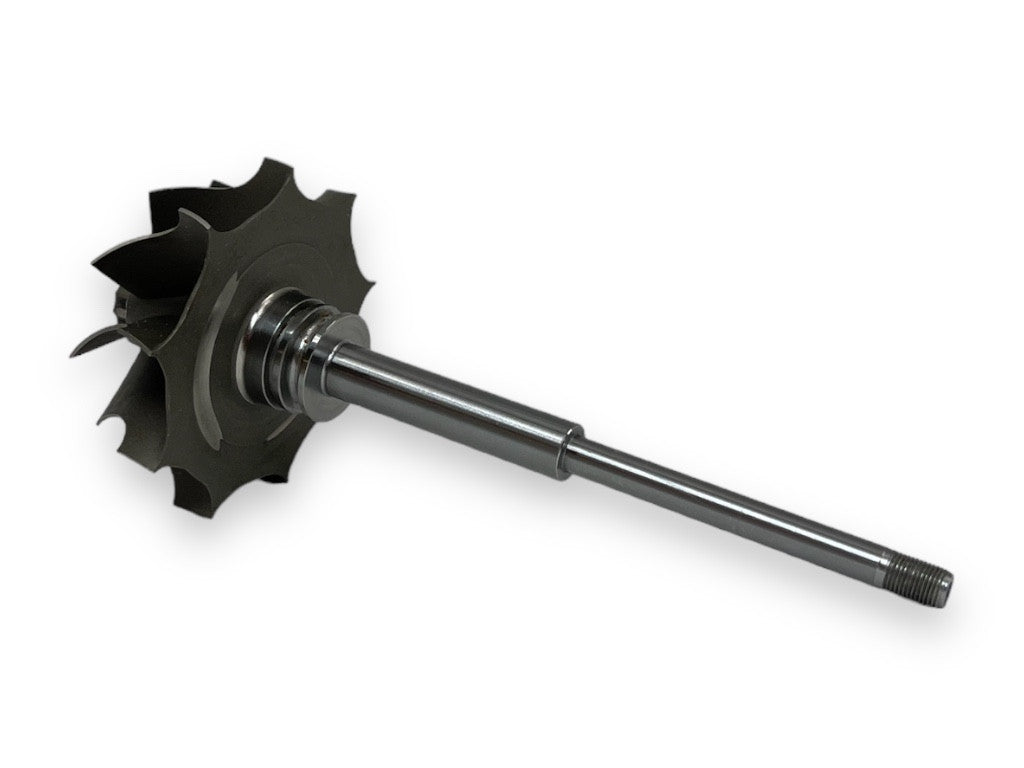

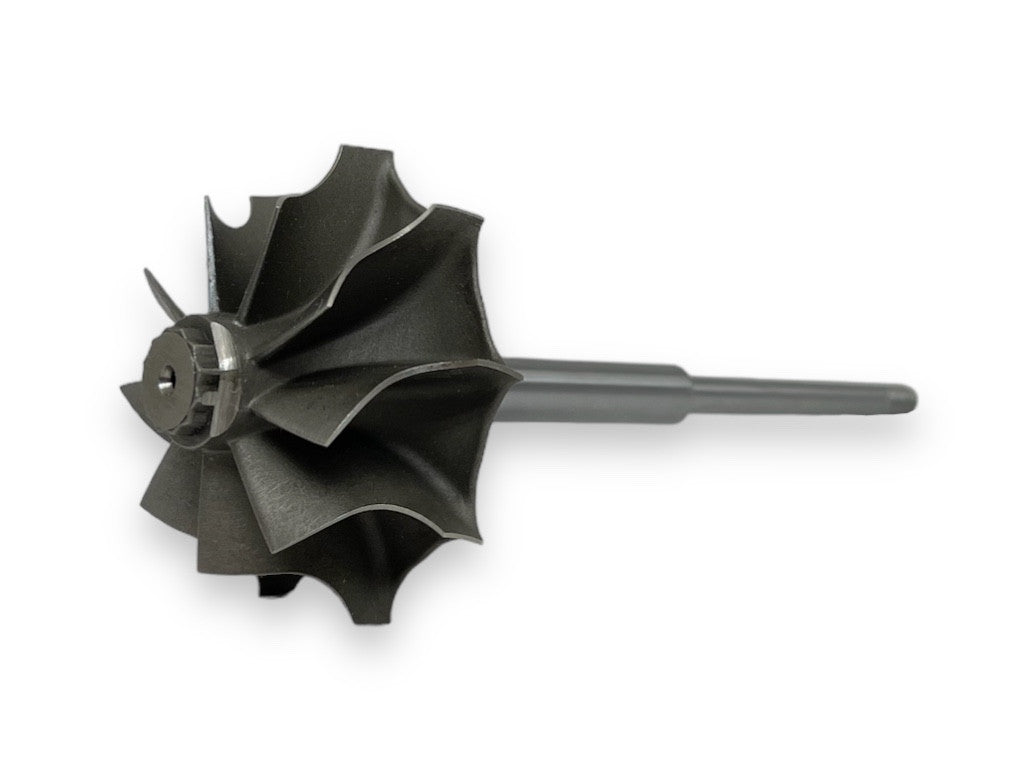

Shaft and wheel IH-02-0030
Shaft and wheel IH-02-0030
Redna cena
€29,60 EUR
Redna cena
Znižana cena
€29,60 EUR
Cena na enoto
na
Podatka o razpoložljivosti osebnega prevzema ni mogoče naložiti
IH-02-0030 - Shaft and wheel
Brand: TurboCentras
TurboCentras Reference: IH-02-0030
IH-02-0030 - Alternative numbers
TCP (TurboCentras part number): IH-02-0030
TCO (TurboCentras old part number): RHF5-37
IH-02-0030 - Compatibility table
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO PART NUMBER | TURBO OE NUMBER |
|---|---|---|---|---|
| IHI | RHF5V | VB13 | VB13 | 17201-0R020, 17201-0R021, 17201-0R022, 17201-440FP, 172010R020, 172010R021, 172010R022, 17201440FP |
| IHI | RHF5 | VB15 | VB15 | 17201-26090, 1720126090 |
| IHI | RHF5 | VB16 | VB16 | 17201-0R010, 17201-0R011, 17201-26031, 172010R010, 172010R011, 1720126031 |
| IHI | RHF5V | VIHJ | F54VAD-S0049B, F54VAD-S0049G, VIHJ | 8981654481 |
IH-02-0030 - Part Properties
Blades (Shaft & Wheel blades count): 9
Rotation (Shaft & Wheel rotation direction): Standard
Type (Shaft & Wheel type): Straight
Back (Shaft & Wheel back type): Open
P.R. (Shaft & Wheel piston rings count): Single
A (Size A): 52.50
A1 (Size A1): 52.50
B (Size B): 40.10
C (Size C): 6.28
D (Size D): 8.00
E (Size E): 5.10
H (Size H): 20.00
L (Size L): 99.00
T (Size T): M5.0X0.5LH
IH-02-0030, RHF5-37
17201-0R020, 17201-0R021, 17201-0R022, 17201-440FP, 172010R020, 172010R021, 172010R022, 17201440FP, VB13, 17201-26090, 1720126090, VB15, 17201-0R010, 17201-0R011, 17201-26031, 172010R010, 172010R011, 1720126031, VB16, 8981654481, F54VAD-S0049B, F54VAD-S0049G, VIHJ
Data updated: 2025-02-13 11:15:03
