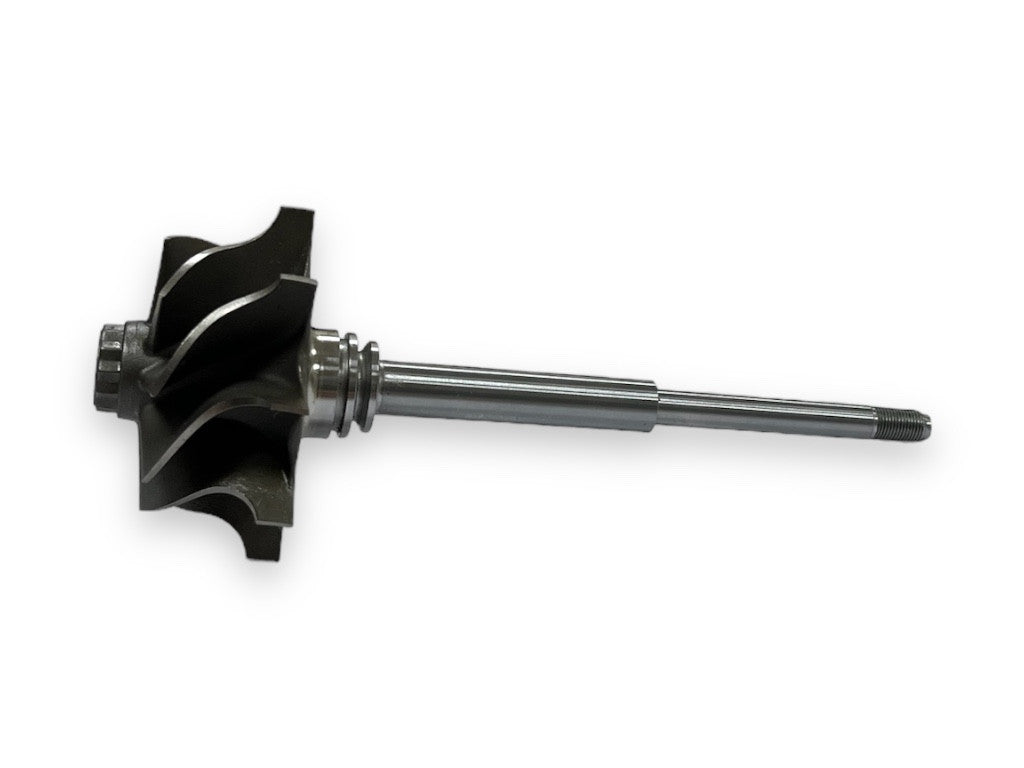

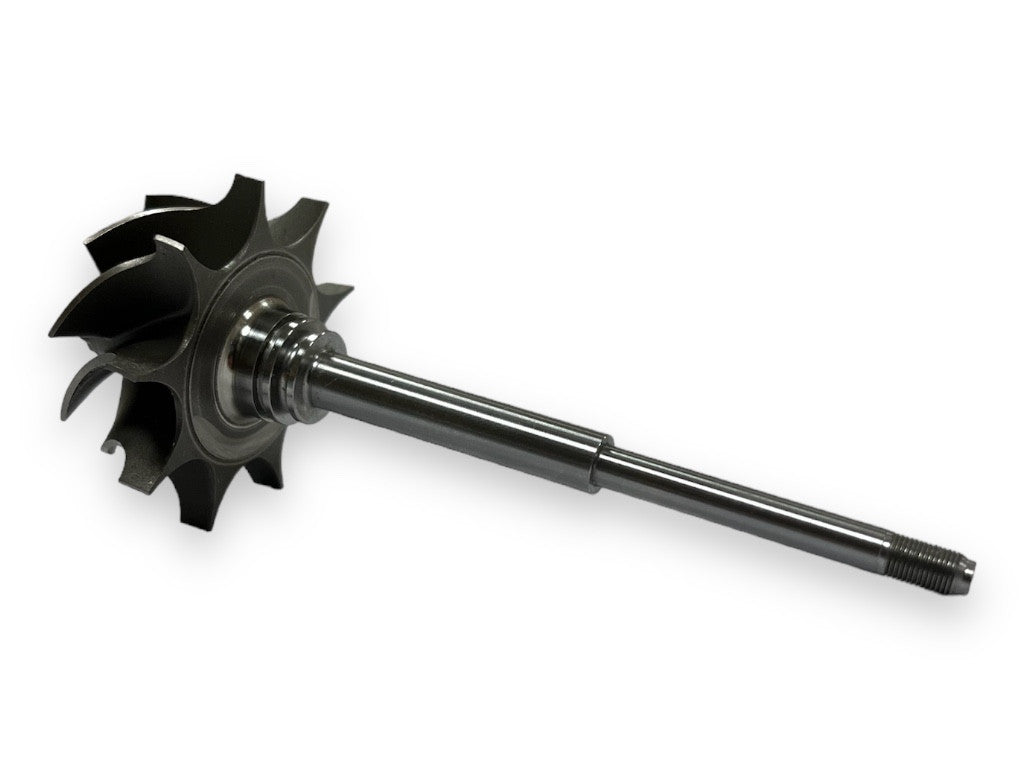

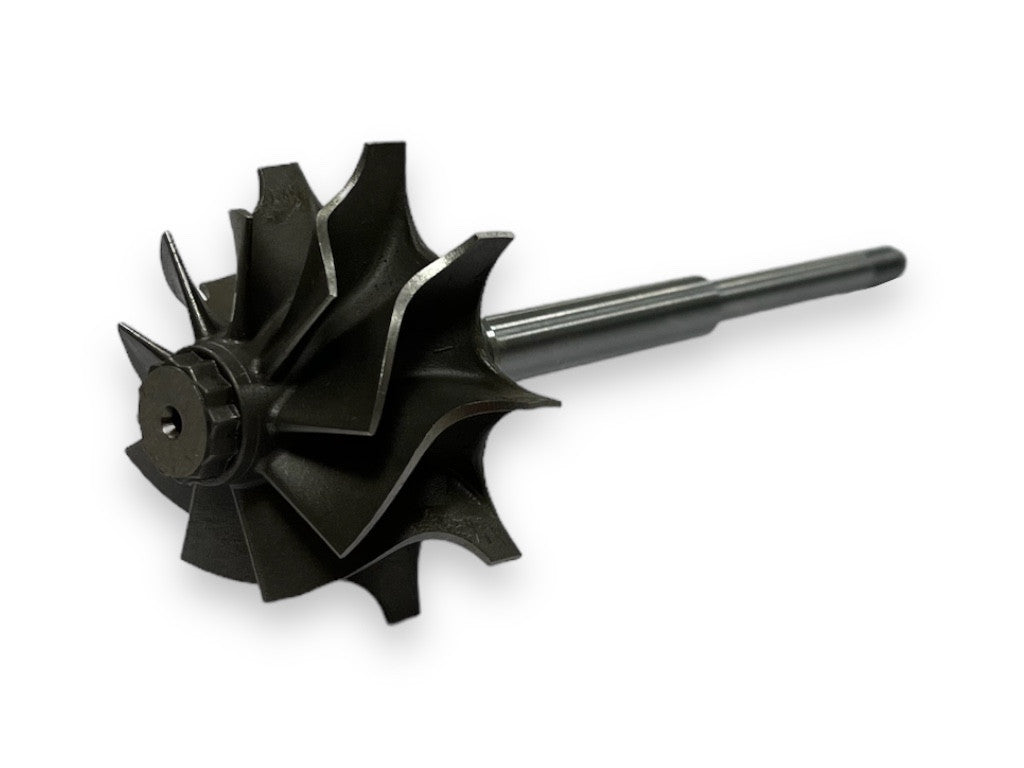

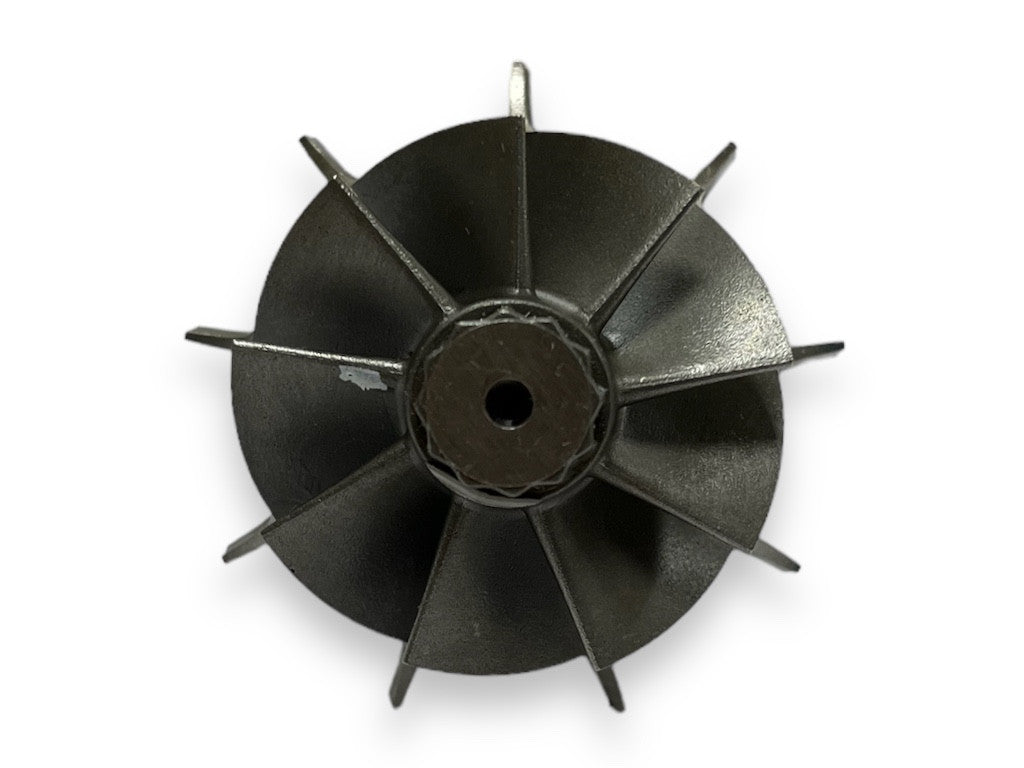

Shaft and wheel IH-02-0014
Shaft and wheel IH-02-0014
Redna cena
€28,62 EUR
Redna cena
Znižana cena
€28,62 EUR
Cena na enoto
na
Podatka o razpoložljivosti osebnega prevzema ni mogoče naložiti
IH-02-0014 - Shaft and wheel
Brand: TurboCentras
TurboCentras Reference: IH-02-0014
IH-02-0014 - Alternative numbers
TCP (TurboCentras part number): IH-02-0014
TCO (TurboCentras old part number): RHF4-35
IH-02-0014 - Compatibility table
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO PART NUMBER | TURBO OE NUMBER |
|---|---|---|---|---|
| IHI | RHF4-46001P8.5NHBRL323CAZ | AS11 | 4T-507, AS11, F41CAD-S0057B, F41CAD-S0057G, VA420057, VB420057, VC420057 | 135756170, 135756171 |
| IHI | RHF4-46001P8.5NHBRL323CAZ | AS12 | AS12, VA420081, VB420081, VC420081 | 135756180 |
| IHI | RHF4-46001P10.5NRBRL342CCZ | AS13 | 4T-511, AS13, F41CAD-S0083B, F41CAD-S0083G, V*420083, VA420083, VB420083 | 135756190 |
IH-02-0014 - Part Properties
Blades (Shaft & Wheel blades count): 9
Rotation (Shaft & Wheel rotation direction): Standard
Type (Shaft & Wheel type): Straight
Back (Shaft & Wheel back type): Open
P.R. (Shaft & Wheel piston rings count): Single
A (Size A): 46.60
A1 (Size A1): 46.60
B (Size B): 35.40
C (Size C): 4.68
D (Size D): 7.40
E (Size E): 5.10
H (Size H): 19.50
L (Size L): 90.00
T (Size T): M5.0X0.5LH
IH-02-0014, RHF4-35
135756170, 135756171, 4T-507, AS11, F41CAD-S0057B, F41CAD-S0057G, VA420057, VB420057, VC420057, 135756180, AS12, VA420081, VB420081, VC420081, 135756190, 4T-511, AS13, F41CAD-S0083B, F41CAD-S0083G, V*420083, VA420083, VB420083
Data updated: 2025-02-12 17:53:34
