Shaft and wheel IH-02-0003
Shaft and wheel IH-02-0003
Redna cena
€29,84 EUR
Redna cena
Znižana cena
€29,84 EUR
Cena na enoto
na
Podatka o razpoložljivosti osebnega prevzema ni mogoče naložiti

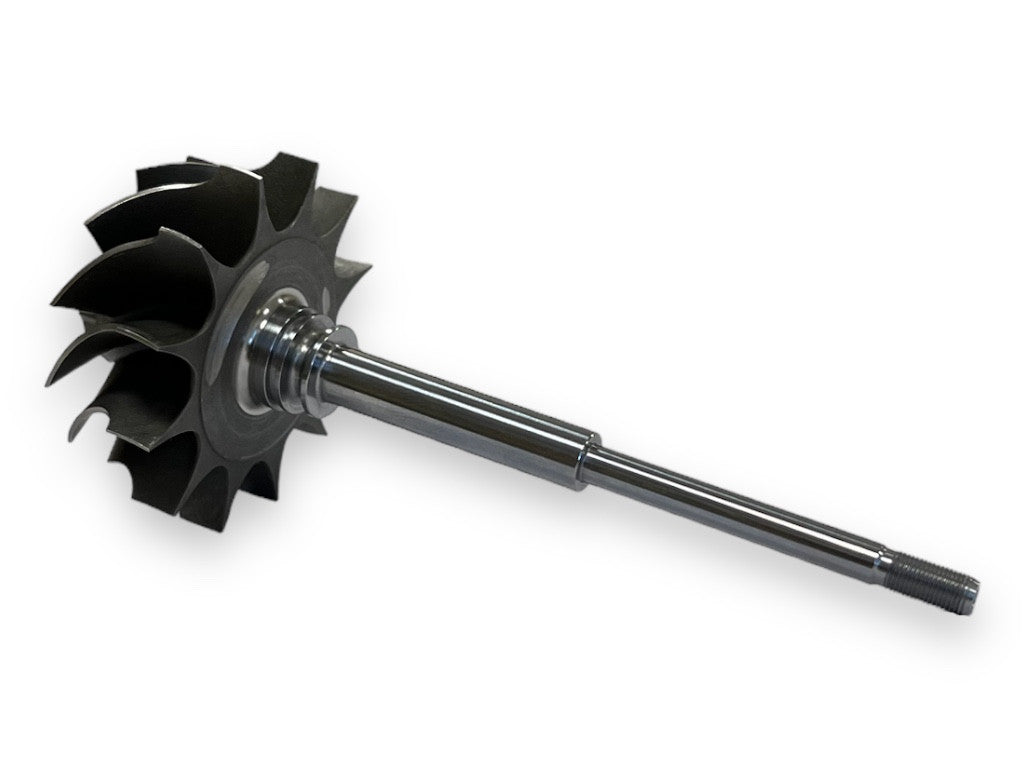

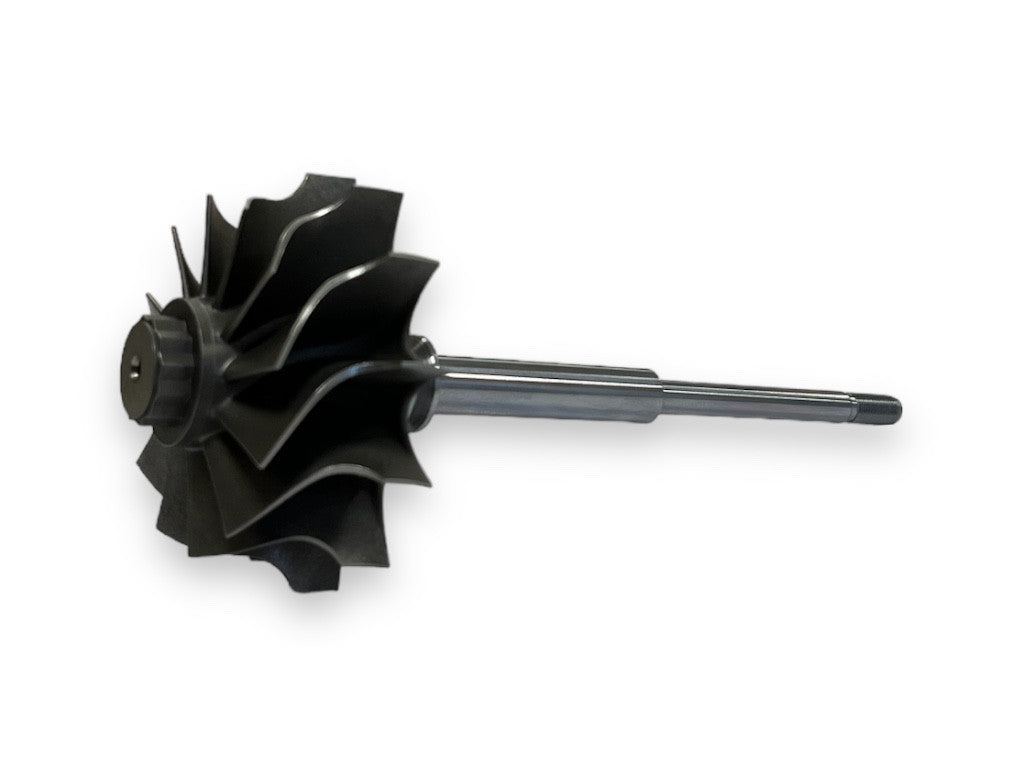

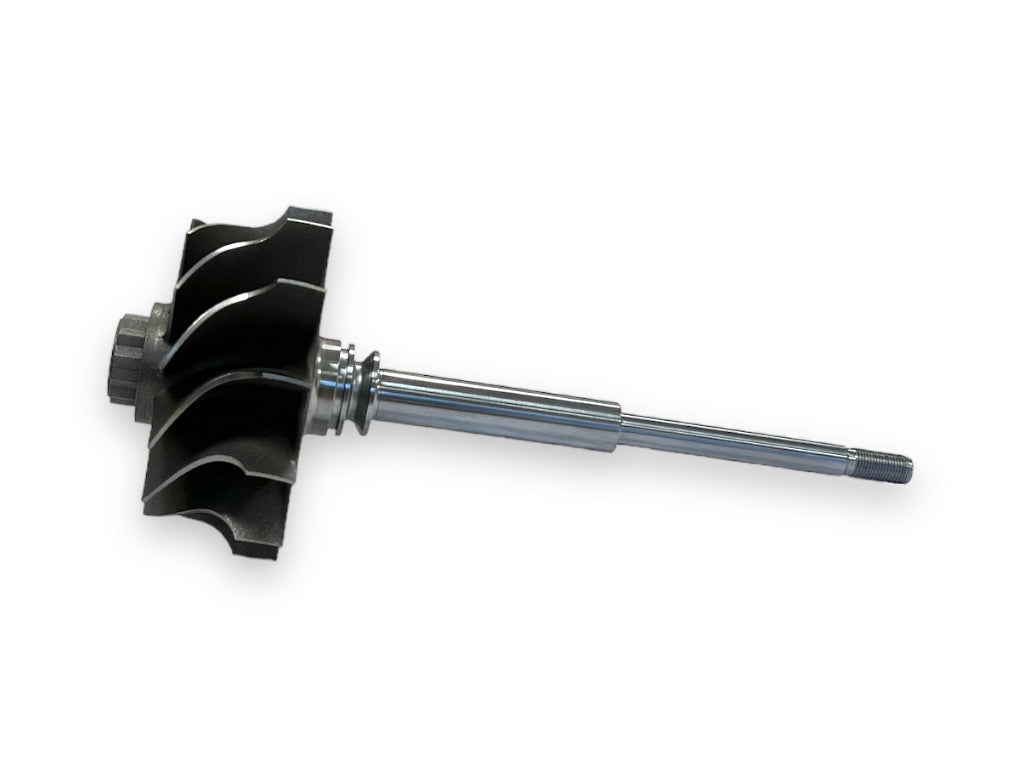

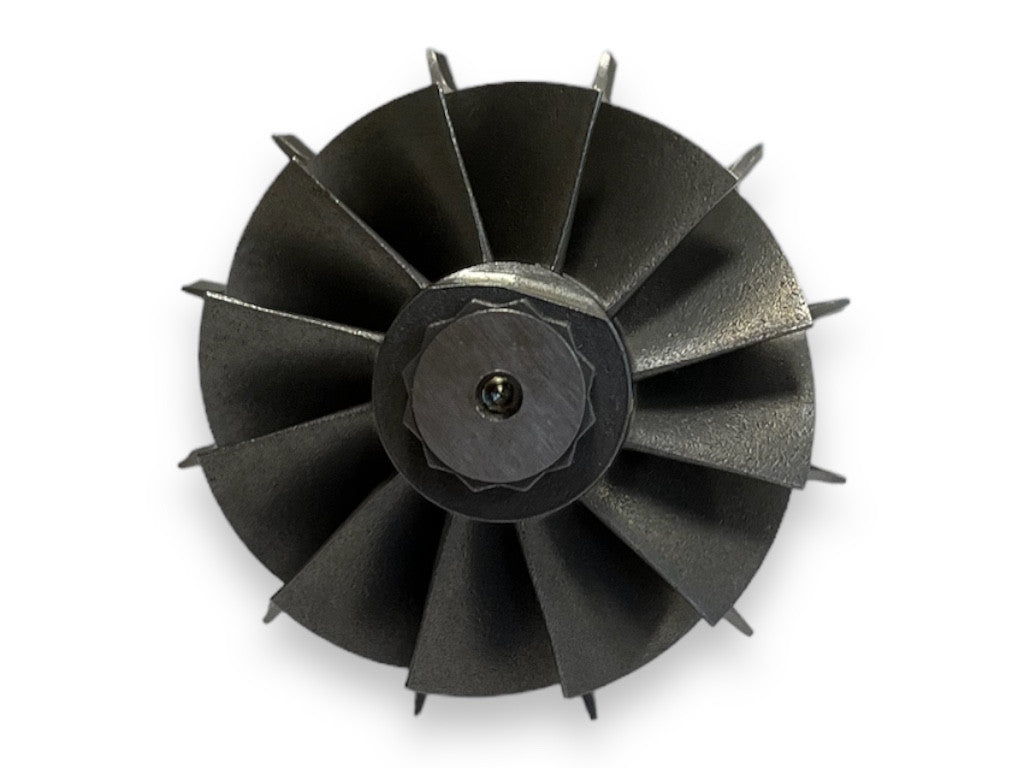

IH-02-0003 (NN131614) - Shaft and wheel
Brand: TurboCentras
TurboCentras Reference: IH-02-0003
OEM Numbers: NN131614
IH-02-0003 - Alternative numbers
TCP (TurboCentras part number): IH-02-0003
TCO (TurboCentras old part number): RHB5-37
IH-02-0003 - Compatibility table
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO PART NUMBER | TURBO OE NUMBER |
|---|---|---|---|---|
| IHI | RHB51 | VA56A | VA56A | -- |
| IHI | RHB51P-7000VPP12NHBRL3629CEZ | VA58A | B52CAY-S0071B, VA180056, VA58A, VB180056, VC180056 | 35242050F, 35242050G |
| IHI | RHB51P-7000VPP12NHBRL3629CEZ | VA58B | VA190011, VA58B | 35242065F |
| IHI | RHB51 | VA59A | VA59A | -- |
| IHI | RHB51P-7000VPP12NHBRL3629CEZ | VA63A | VA180071, VA63A, VC180071, VD180071 | 35242056F |
| IHI | RHB51P-7000VPP12NHBRL3629CEZ | VA63B | VA190014, VA63B, VB190014, VC190014 | 35242068F |
| IHI | RHB52 | VI74 | VI74 | -- |
| IHI | RHB52 | VI83 | VI83 | -- |
| IHI | RHB52W-5200IIP10.5NRBRL3711EZ | VI87 | VA180018, VB180018, VC180018, VI87 | 8970223170 |
| IHI | RHB5 | VI95 | VI95 | -- |
| IHI | RHB52W-70005P15NHBRL3911CEZ | VIAH | VA180051, VC180051, VD180051, VIAH | -- |
| IHI | RHB52-70005P12NHBRL3711CEZ | VICB | B55CAD-S0013B, B55CAD-S0013G, V*190013, VA190013, VB190013, VICB | 8971760801 |
| IHI | RHB52 | VL15 | VL15 | -- |
| IHI | RHB52 | VL6 | VL6 | -- |
IH-02-0003 - Part Properties
Blades (Shaft & Wheel blades count): 12
Rotation (Shaft & Wheel rotation direction): Standard
Type (Shaft & Wheel type): Straight
Back (Shaft & Wheel back type): Open
P.R. (Shaft & Wheel piston rings count): Single
A (Size A): 52.50
A1 (Size A1): 52.50
B (Size B): 44.00
C (Size C): 7.18
D (Size D): 8.00
E (Size E): 5.10
H (Size H): 21.00
L (Size L): 95.00
T (Size T): M5.0X0.5LH
IH-02-0003, NN131614, RHB5-37
VA56A, 35242050F, 35242050G, B52CAY-S0071B, VA180056, VA58A, VB180056, VC180056, 35242065F, VA190011, VA58B, VA59A, 35242056F, VA180071, VA63A, VC180071, VD180071, 35242068F, VA190014, VA63B, VB190014, VC190014, VI74, VI83, 8970223170, VA180018, VB180018, VC180018, VI87, VI95, VA180051, VC180051, VD180051, VIAH, 8971760801, B55CAD-S0013B, B55CAD-S0013G, V*190013, VA190013, VB190013, VICB, VL15, VL6
Data updated: 2024-07-09 09:34:17
