TurboCentras

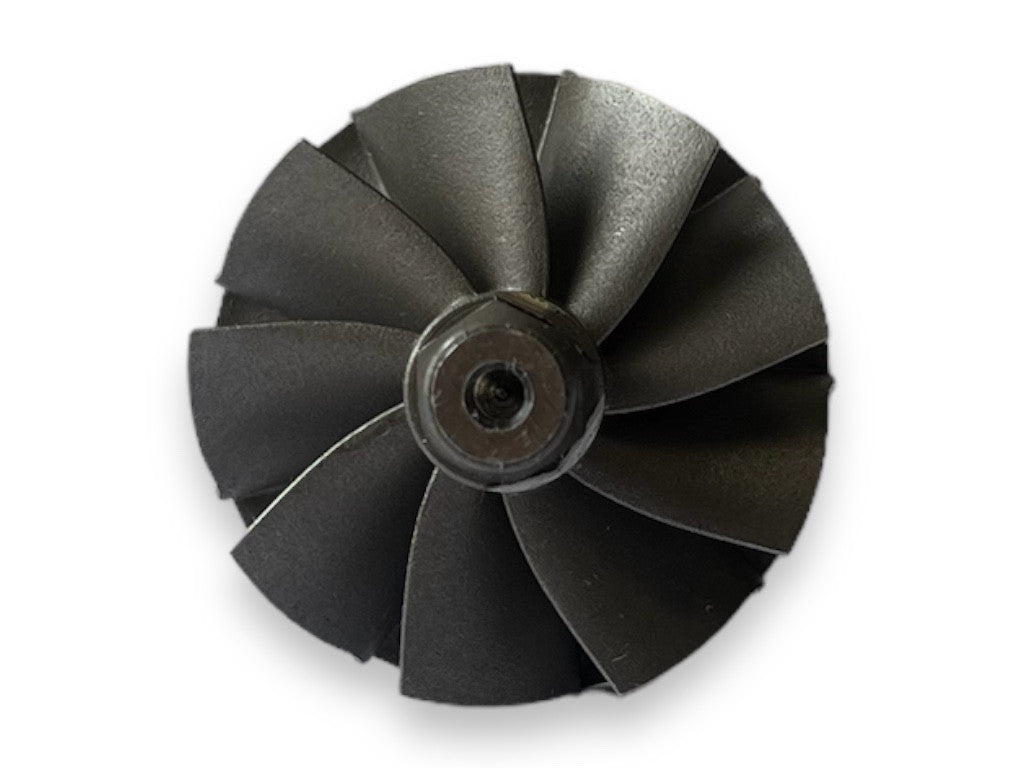

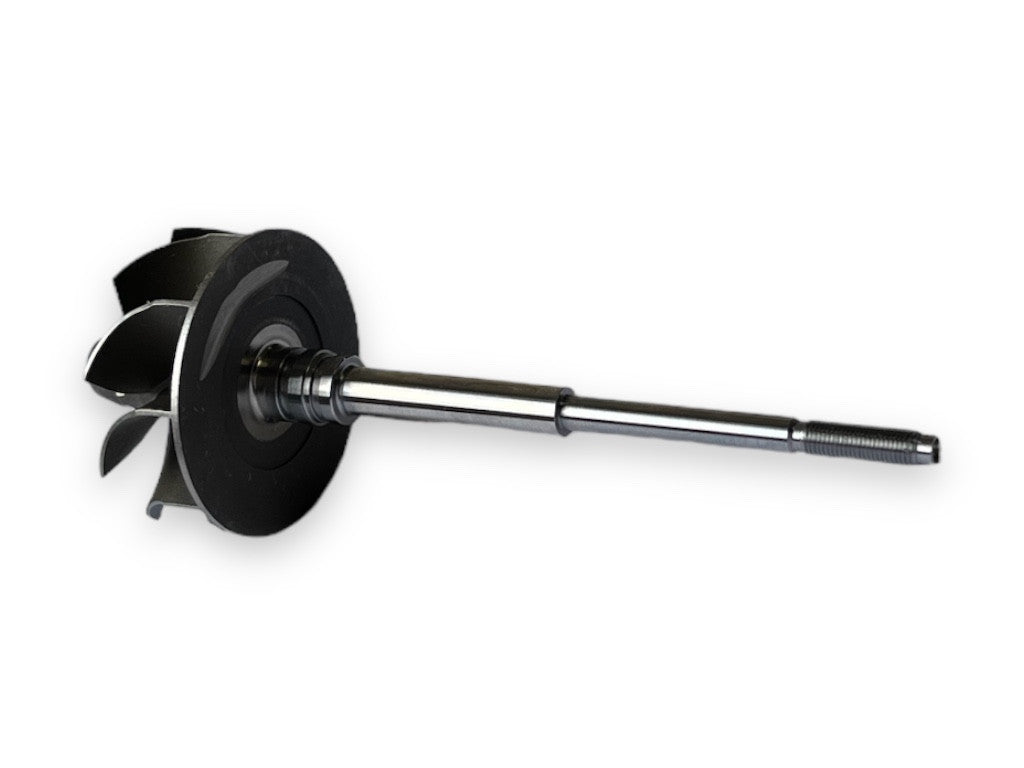

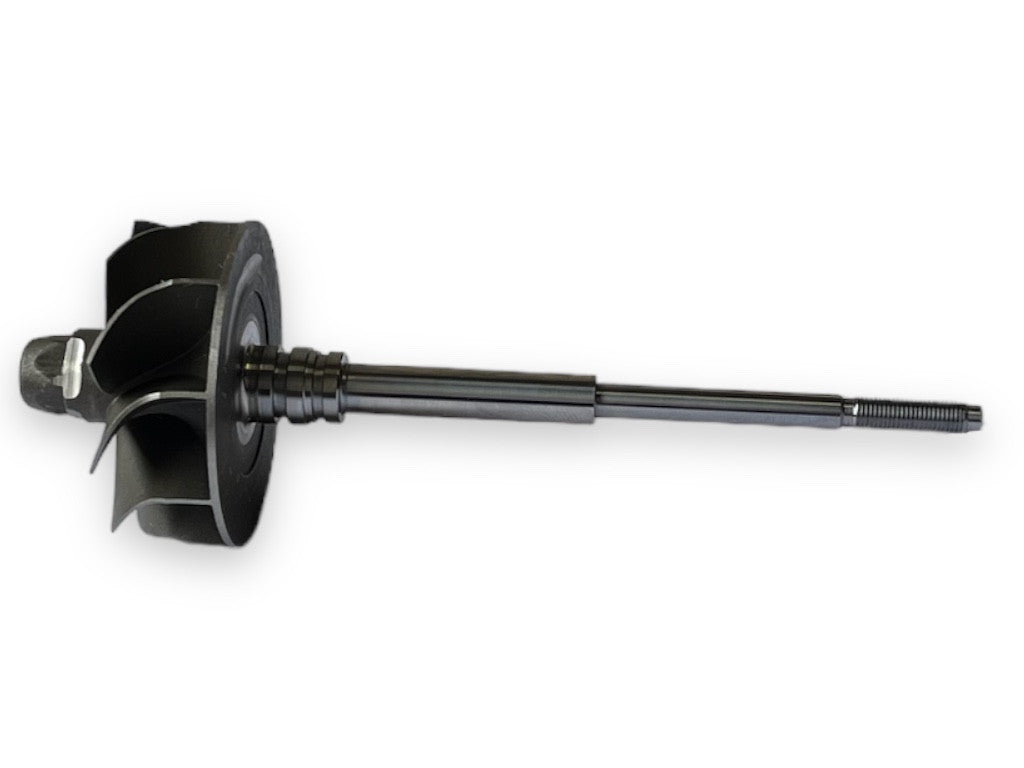

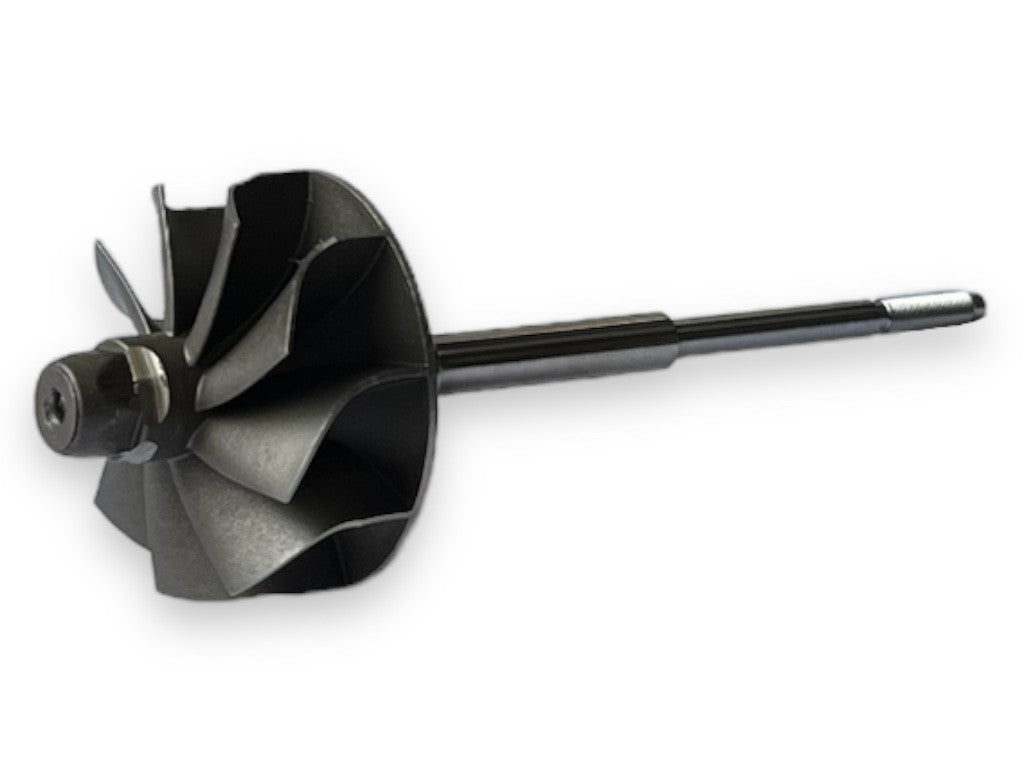

Shaft and wheel BW-02-0029

Shaft and wheel BW-02-0029

€18,26 EUR
€18,26 EUR
Znižanje Razprodano

BW-02-0029 (5439-120-5010, 5439-970-5011) - Shaft and wheel

Brand: TurboCentras

TurboCentras Reference: BW-02-0029

OEM Numbers: 5439-120-5010, 5439-970-5011

BW-02-0029 - Alternative numbers

TCP (TurboCentras part number): BW-02-0029

TCO (TurboCentras old part number): KP39-35

BW-02-0029 - Compatibility table

Shaft and wheel BW-02-0029 - Compatible turbochargers
TURBO MAKER TURBO MODEL TURBO REFERENCE TURBO PART NUMBER TURBO OE NUMBER
BorgWarner KP39-1873CCB426.10AVAXC 54399700006 5439 970 0006 038253010G, 038253016L, 038253056A
BorgWarner KP39-1873CCB426.10AVAXC 54399700007 5439 970 0007 038253010H, 038253016N
BorgWarner KP39-1873CCB426.10AVAXC 54399700008 5439 970 0008 038253010M, 038253016J
BorgWarner KP39-1873CCB426.10AVAXC 54399700009 5439 970 0009 038253010N, 038253019J
BorgWarner KP39-1873CCB426.10AVAXC 54399700010 5439 970 0010 038253010J, 038253016M, 038253056B
BorgWarner KP39-1873CCB426.10AVAXC 54399700011 5439 970 0011 038253010P, 038253016R, 038253056G
BorgWarner KP39-1873CCB426.10AVAXC 54399700013 5439 970 0013 038253016P
BorgWarner BV39-1873CCB426.10AVAXC 54399700017 5439 970 0017, 5439 988 0017, 5439 990 0017 038253010A, 038253010S, 038253014A
BorgWarner BV39-1873CCB426.10AVAXC 54399700017-R 5439 970 0017, 5439 988 0017, 5439 990 0017, 54399700017-R 038253010A, 038253010S, 038253014A
BorgWarner BV39-1873CCB426.10AVAXC 54399700018 5439 970 0018, 5439 988 0018 038253014D
BorgWarner BV39-1873CCB426.10AVAXC 54399700019 5439 970 0019, 5439 988 0019, 5439 990 0019 038253010B, 038253014B
BorgWarner BV39-1873CCB426.10AVAXC 54399700020 5439 970 0020, 5439 988 0020, 5439 990 0020 038253010C, 038253014H
BorgWarner BV39-1873CCB426.10AVAXC 54399700020-R 5439 970 0020, 5439 988 0020, 5439 990 0020 038253010C, 038253014H
BorgWarner BV39-1873CCB426.10AVAXC 54399700021 5439 970 0021, 5439 988 0021 038253014F
BorgWarner BV39-1873CCB426.10AVAXC 54399700022 5439 970 0022, 5439 971 0022, 5439 988 0022, 5439 990 0022 038253010D, 038253014G, 038253056E
BorgWarner BV39-1873CCB426.10AVAXC 54399700024 5439 970 0024, 5439 988 0024 038253014E
BorgWarner KP39-1873CCB426.10AVAXC 54399700026 5439 970 0026 038253019S
BorgWarner BV39-1870DCK426.10AVAXC 54399700029 5439 970 0029, 5439 971 0029, 5439 988 0029, 5439 990 0029 03G253019K
BorgWarner BV39-1870DCK426.10AVAXC 54399700029-R 5439 970 0029, 5439 971 0029, 5439 988 0029, 5439 990 0029 03G253019K
BorgWarner BV39-1870DCK426.10AVAXC 54399700057 5439 970 0057, 5439 988 0057, 5439 990 0057 03G253010C, 03G253016F
BorgWarner BV39-1870DCK426.10AVAXC 54399700057-R 5439 970 0057, 5439 971 0057, 5439 988 0057, 5439 990 0057 03G253010C, 03G253016F
BorgWarner BV39-1870KCB426.10AVAXC 54399700084 5439 970 0084, 5439 988 0084 2X0253019A
BorgWarner BV39-1870KCB426.10AVAXC 54399700085 5439 970 0085, 5439 988 0085 2X0253019B
BorgWarner BV39-1870DCK426.10AVAXC 54399710029 5439 970 0029, 5439 971 0029, 5439 988 0029, 5439 990 0029 03G253019K
BorgWarner BV39-1870DCK426.10AVAXC 54399710057 5439 971 0057, 5439 988 0057 03G253016F
BorgWarner BV39-1870KCB426.10AVAXC 54399720058 5439 972 0058 2X0253019A
BorgWarner BV39-1870KCB426.10AVAXC 54399730058 5439 973 0058 2X0253019
BorgWarner BV39-1873CCB426.10AVAXC 54399880017 5439 970 0017, 5439 988 0017, 5439 990 0017, 713672-0005, 713672-0006, 768331-0001, 768331-0002 038253010A, 038253010S, 038253014A, 038253019C, 03G253014R, 03G253016L, 03G253016N
BorgWarner BV39-1873CCB426.10AVAXC 54399880020 5439 970 0020, 5439 988 0020, 5439 990 0020 038253010C, 038253014H
BorgWarner BV39-1870DCK426.10AVAXC 54399880029 5439 970 0029, 5439 971 0029, 5439 988 0029, 5439 990 0029 03G253019K
BorgWarner BV39-1870DCK426.10AVAXC 54399880031 5439 970 0031, 5439 971 0031, 5439 988 0031 038253014Q
BorgWarner BV39-1870DCK426.10AVAXC 54399880048 5439 970 0048, 5439 971 0048, 5439 988 0048, 5439 990 0048 03G253019J
BorgWarner BV39-1870DCB426.10AVAXC 54399880056 5439 970 0056, 5439 988 0056 038253016
BorgWarner BV39-1870DCK426.10AVAXC 54399880057 5439 970 0057, 5439 971 0057, 5439 988 0057 03G253010C, 03G253016F
BorgWarner BV39-1870DCB426.10AVAXC 54399880058 5439 970 0058, 5439 971 0058, 5439 988 0058, 5439 990 0058 03G253010D, 03G253016G
BorgWarner BV39-1870DCK426.10AVAXC 54399880067 5439 970 0067, 5439 988 0067 03G253016J

BW-02-0029 - Part Properties

Blades (Shaft & Wheel blades count): 9

Rotation (Shaft & Wheel rotation direction): Standard

Type (Shaft & Wheel type): Straight

Back (Shaft & Wheel back type): Full

P.R. (Shaft & Wheel piston rings count): Single

A (Size A): 38.50

A1 (Size A1): 38.50

B (Size B): 37.50

C (Size C): 6.45

D (Size D): 6.00

E (Size E): 4.10

H (Size H): 15.80

L (Size L): 83.00

T (Size T): M4.0X0.5LH

BW-02-0029
5439-120-5010, 5439-970-5011, BW-02-0029, KP39-35
54399880067, 54399700067, 54399900058, 54399880058, 54399710058, 54399700058, 54399880057, 54399710057, 54399700057, 54399880056, 54399700056, 54399900048, 54399880048, 54399710048, 54399700048, 54399880031, 54399710031, 54399700031, 54399900029, 54399880029, 54399710029, 54399700029, 54399900020, 54399880020, 54399700020, 54399900017, 54399880017, 54399700017, 54399730058, 54399720058, 54399880057, 54399710057, 54399900029, 54399880029, 54399710029, 54399700029, 54399880085, 54399700085, 54399880084, 54399700084, 54399900057, 54399880057, 54399710057, 54399700057, 54399900057, 54399880057, 54399700057, 54399900029, 54399880029, 54399710029, 54399700029, 54399900029, 54399880029, 54399710029, 54399700029, 54399700026, 54399880024, 54399700024, 54399900022, 54399880022, 54399710022, 54399700022, 54399880021, 54399700021, 54399900020, 54399880020, 54399700020, 54399900020, 54399880020, 54399700020, 54399900019, 54399880019, 54399700019, 54399880018, 54399700018, 54399900017, 54399880017, 54399700017, 54399900017, 54399880017, 54399700017, 54399700013, 54399700011, 54399700010, 54399700009, 54399700008, 54399700007, 54399700006, 038253010G, 038253016L, 038253056A, 5439 970 0006, 038253010H, 038253016N, 5439 970 0007, 038253010M, 038253016J, 5439 970 0008, 038253010N, 038253019J, 5439 970 0009, 038253010J, 038253016M, 038253056B, 5439 970 0010, 038253010P, 038253016R, 038253056G, 5439 970 0011, 038253016P, 5439 970 0013, 038253010A, 038253010S, 038253014A, 5439 970 0017, 5439 988 0017, 5439 990 0017, 038253010A, 038253010S, 038253014A, 5439 970 0017, 5439 988 0017, 5439 990 0017, 54399700017-R, 038253014D, 5439 970 0018, 5439 988 0018, 038253010B, 038253014B, 5439 970 0019, 5439 988 0019, 5439 990 0019, 038253010C, 038253014H, 5439 970 0020, 5439 988 0020, 5439 990 0020, 038253010C, 038253014H, 5439 970 0020, 5439 988 0020, 5439 990 0020, 038253014F, 5439 970 0021, 5439 988 0021, 038253010D, 038253014G, 038253056E, 5439 970 0022, 5439 971 0022, 5439 988 0022, 5439 990 0022, 038253014E, 5439 970 0024, 5439 988 0024, 038253019S, 5439 970 0026, 03G253019K, 5439 970 0029, 5439 971 0029, 5439 988 0029, 5439 990 0029, 03G253019K, 5439 970 0029, 5439 971 0029, 5439 988 0029, 5439 990 0029, 03G253010C, 03G253016F, 5439 970 0057, 5439 988 0057, 5439 990 0057, 03G253010C, 03G253016F, 5439 970 0057, 5439 971 0057, 5439 988 0057, 5439 990 0057, 2X0253019A, 5439 970 0084, 5439 988 0084, 2X0253019B, 5439 970 0085, 5439 988 0085, 03G253019K, 5439 970 0029, 5439 971 0029, 5439 988 0029, 5439 990 0029, 03G253016F, 5439 971 0057, 5439 988 0057, 2X0253019A, 5439 972 0058, 2X0253019, 5439 973 0058, 038253010A, 038253010S, 038253014A, 038253019C, 03G253014R, 03G253016L, 03G253016N, 5439 970 0017, 5439 988 0017, 5439 990 0017, 713672-0005, 713672-0006, 768331-0001, 768331-0002, 038253010C, 038253014H, 5439 970 0020, 5439 988 0020, 5439 990 0020, 03G253019K, 5439 970 0029, 5439 971 0029, 5439 988 0029, 5439 990 0029, 038253014Q, 5439 970 0031, 5439 971 0031, 5439 988 0031, 03G253019J, 5439 970 0048, 5439 971 0048, 5439 988 0048, 5439 990 0048, 038253016, 5439 970 0056, 5439 988 0056, 03G253010C, 03G253016F, 5439 970 0057, 5439 971 0057, 5439 988 0057, 03G253010D, 03G253016G, 5439 970 0058, 5439 971 0058, 5439 988 0058, 5439 990 0058, 03G253016J, 5439 970 0067, 5439 988 0067

Data updated: 2025-02-12 17:46:26
