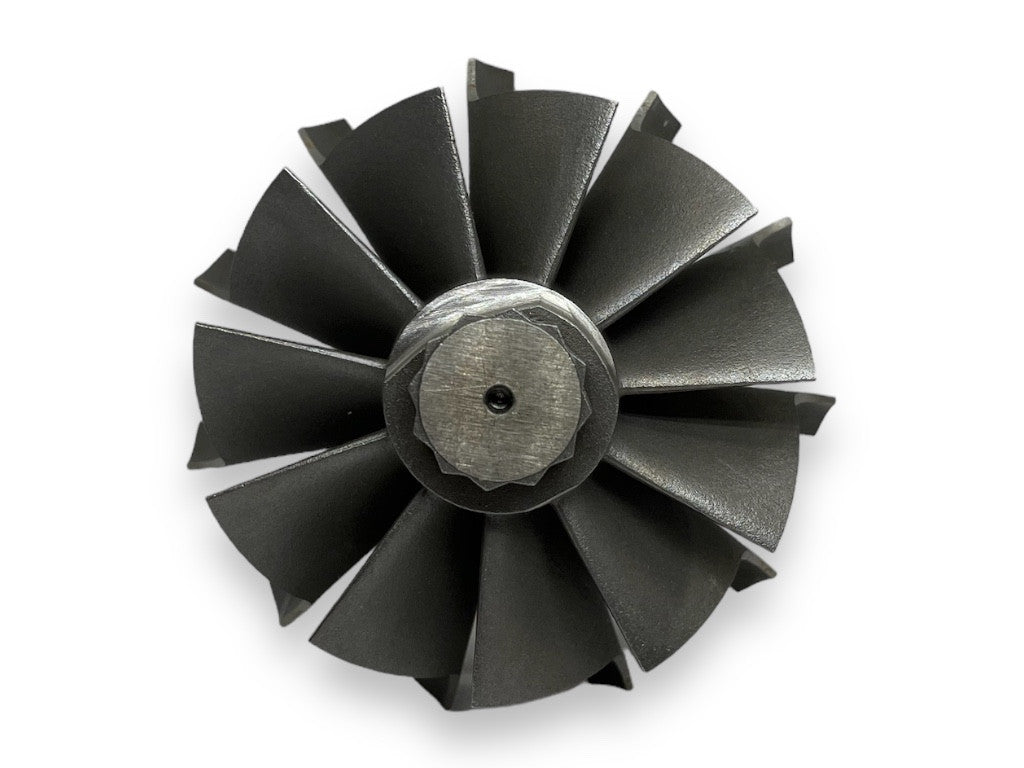

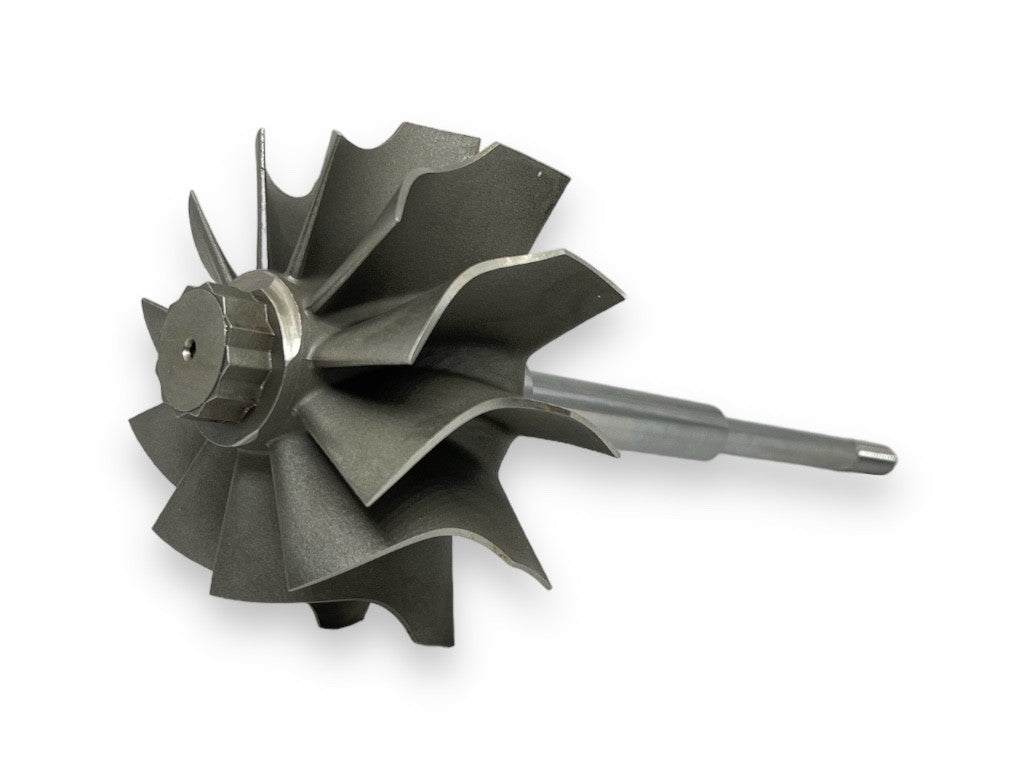

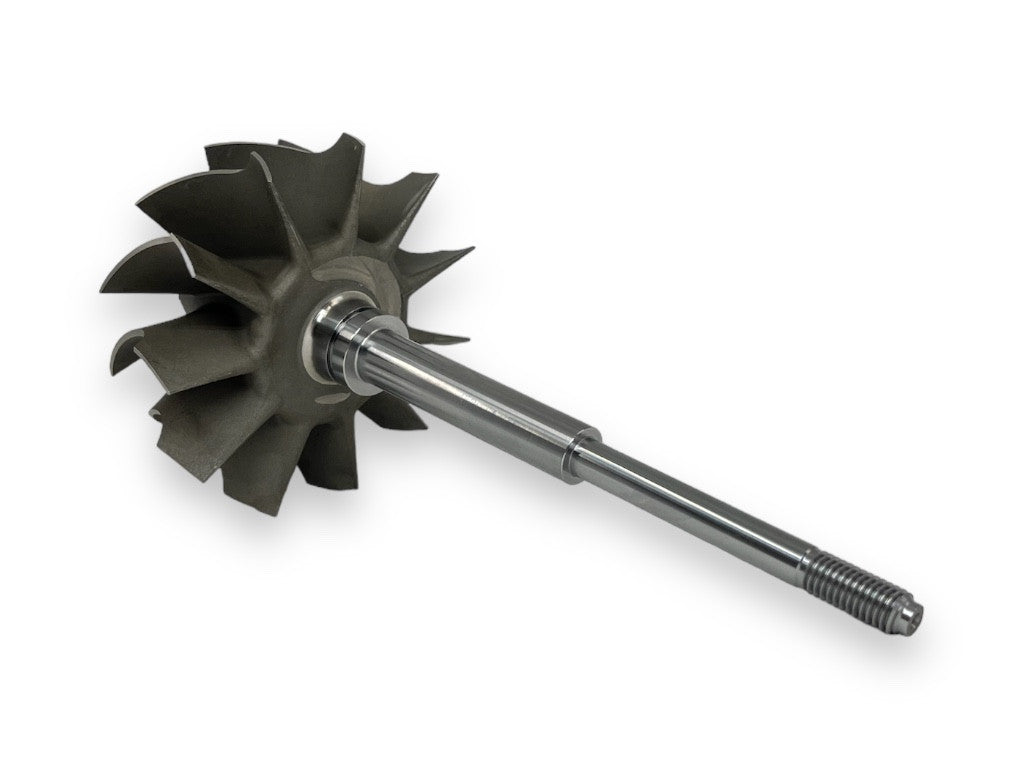

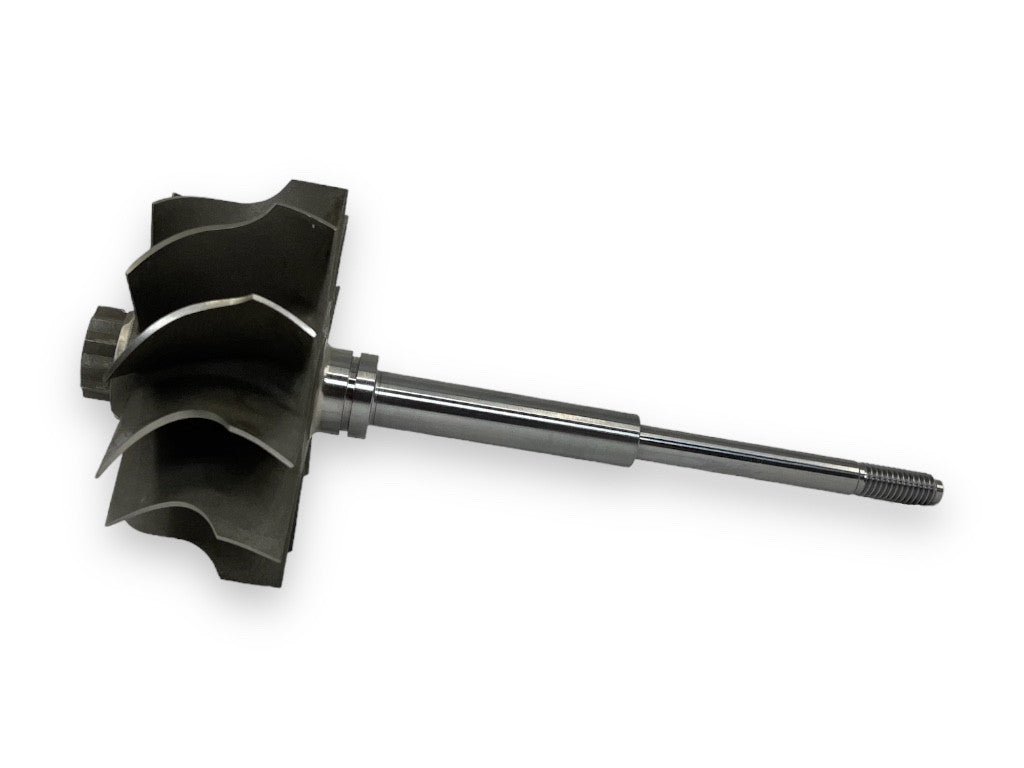

Shaft and wheel HO-02-0014

Shaft and wheel HO-02-0014

€96,52 EUR
€96,52 EUR
Znižanje Razprodano

HO-02-0014 (3522232) - Shaft and wheel

Brand: TurboCentras

TurboCentras Reference: HO-02-0014

OEM Numbers: 3522232

HO-02-0014 - Alternative numbers

TCO (TurboCentras old part number): H2C-35

TCP (TurboCentras part number): HO-02-0014

HO-02-0014 - Compatibility table

Shaft and wheel HO-02-0014 - Compatible turbochargers
TURBO MAKER TURBO MODEL TURBO REFERENCE TURBO PART NUMBER TURBO OE NUMBER
Holset H2C 3504696 3504696 --
Holset H2C 3518613 3518613, 3521810, 3591971, 4033228, 4033228H, 4034103, 465922-0001, 465922-0002, 465922-0003, 465922-0011, 465922-0012, 465922-0013, 5553185, 5609391 1545073, 1545097, 1545098, 470509, 6886157, 8103605, 846652, VOE1545097
Holset H2C 3518816 3518816, 3521804 --
Holset H2C 3518911 312682, 3518911, 4033690H, 4033806, 466818-0001, 466818-0002 1545281, 1545820, 1558204, 422809
Holset H2C 3519092 168823, 3034326, 3519092, 3521802, 3521802H 3801489
Holset H2C 3519095 169417, 3034332, 3519095, 3521803, 3521803H --
Holset H2C 3519209 310653, 310705, 311103, 311758, 3519209, 4033694H, 465878-0001, 465878-0003 ESHAJ 5718, HAJ 3308Y01, HAJ 3308Y02, HAJ 5718, HAJ 5718Y01, HAJ 6346, HAJ 8717, HAJ 8717 Y01, HAJ 8717 Y02, T5718Y01R
Holset H2C 3519697 3519697 --
Holset H2C 3519909 3034327, 3034336, 3034338, 3519909, 3521342 --
Holset H2C 3519910 3034325, 3034334, 3519910, 3521343 --
Holset H2C 3521018 3521018 --
Holset H2C 3522548 3522548 72500
Holset H2C 3522549 3522549 --
Holset H2C 3523022 3523022, 3523115, 3591964, 4033181H 61315684EZ, 61315685EZ
Holset H2C 3523282 3523282, 3523283, 3523283H 3803110
Holset H2C 3523284 3523284, 3523285, 3523285H 3803111
Holset H2C 3524443 3524443, 3524444, 3524444H --
Holset H2C 3525132 3525132, 3525133, 4033258, 4033258H A17048
Holset H2C 3525169 3525169, 3525172 2674A028
Holset H2D 3525745 3525745, 3525746 --
Holset H2D 3525994 3525994, 3525995, 4033917H, 466818-0003 3-7500031, 422856, 422934, 422935
Holset H2D 3526059 3526059, 3526060, 4033235H 422923, 422938, 479023, 479116, 5003388
Holset H2C 3526360 3526360, 3526361, 4033610H 1604016OG
Holset H2C 3526435 3526435 3526435
Holset H2D 3526967 3526967 5003439
Holset H2C 3527457 3527457, 3591610, 3591611 61316428, 61319421, 92901054
Holset H2D 3527609 3527609, 3527610, 4033632H CV17846
Holset H2E 3528124 3528124, 3529256 3803388
Holset H2E 3528639 3528639, 3529257, 3529257H 3803389
Holset H2D 3529186 3529186 --
Holset H2E 3529436 3529436, 3529437 --
Holset H2D 3529761 3529761, 3529762, 3529762H 3802359
Holset H2E 3529841 3529841, 3529842, 3529869 CV18828-1, CV18828-2
Holset H2D 3530536 3530536, 3538836, 3538839, 3539436, 3591612, 3591613, 4033323H, 5329 988 7005 61318802EZ, 61318804, 61318805, 61320526, 61321344EZ, 61321514EZ
Holset H2E 3530630 3530630, 3530631 --
Holset H2E 3530767 3530767 --
Holset H2E 3530768 3530768 --
Holset WH2D 3531566 3530961, 3531566 3803558
Holset WH2D 3531567 3531567 3803558
Holset H2D 3531772 3531772, 3531773, 3531773H 3803570
Holset WH2D 3531822 3531822, 3531823 --
Holset H2E 3531861 3531861, 3531862, 3531862H 3803578
Holset H2E 3532053 168825, 3532053, 3532054, 3532054H 3803586
Holset H2D 3532474 3532474, 3532475, 3532475H 3803639, 5452262
Holset H2D 3532716 3532716, 3532717 51.09100-7320
Holset H2E 3533090 3533090, 3533091, 3533091H 3803660
Holset WH2D 3533261 3533261, 3533262 24100-2920B
Holset WH2D 3533263 3533263, 3533264, 4033016H 24100-2910C
Holset H2C 3533526 3533526, 3533527, 3533527H 3803691
Holset WH2D 3533687 3533687, 3533688 --
Holset WH2D 3534034 3534034, 3534035, 3534035H --
Holset WH2D 3534036 3534036, 3534037 3803878
Holset WH2D 3534038 3534038, 3534039 3803879
Holset WH2D 3534100 3534100, 3534101 1341286, 571606
Holset H2E 3534301 3534301, 3534302, 3534302H 3803797
Holset H2D 3535043 3535043, 3535044, 3535044H 3802639
Holset WH2D 3535403 3535403, 3535404, 4033279, 4033279H 24100-3080C
Holset H2D 3536273 3536273, 3536274 --
Holset HX50W 3537446 3537446, 3537447, 3537823 3804748
Holset H2D 3537939 3537939, 3537940, 3537940H --
Holset H2D 3538623 3538623, 3538624, 3538624H 3802886
Holset HX50W 3539234 3539234, 3539332, 3539333 3804831
Holset H2C 3580228 3580228, 4032910H, 465942-0003, 465942-0005, 465942-0006, 465942-0011, 465942-0012, 465942-0013, 465942-0014, 465942-0015, 465942-0016 370870, 370871, 656331, 674022, 679024
Holset H2D 3580707 3580707 3-7500041
Holset HX50W 3580995 3580995, 4027007, 4033744, 4033744H 486512014
Holset H2D 3590060 3590060, 3590061, 4033631 65.09100-7188
Holset H2D 3590063 3590063 --
Holset WH2D 3594533 3594533, 3594534 24100-3880A
Holset H2E 3595135 3595135, 3595136 --
Holset H2C 4027523 4027523 --

HO-02-0014 - Part Properties

Blades (Shaft & Wheel blades count): 11

Rotation (Shaft & Wheel rotation direction): Standard

Type (Shaft & Wheel type): Straight

Back (Shaft & Wheel back type): Open

P.R. (Shaft & Wheel piston rings count): Single

A (Size A): 86.00

A1 (Size A1): 86.00

B (Size B): 72.00

C (Size C): 12.55

D (Size D): 12.20

E (Size E): 8.00

H (Size H): 35.00

L (Size L): 142.00

T (Size T): M8.0X1.25LH

HO-02-0014
3522232, H2C-35, HO-02-0014
53299887005, HAJ8717Y02, HAJ8717Y01, HAJ8717, HAJ6346, HAJ5718Y01, HAJ5718, HAJ3308Y02, HAJ3308Y01, ESHAJ5718, 3504696, 1545073, 1545097, 1545098, 3518613, 3521810, 3591971, 4033228, 4033228H, 4034103, 465922-0001, 465922-0002, 465922-0003, 465922-0011, 465922-0012, 465922-0013, 470509, 5553185, 5609391, 6886157, 8103605, 846652, VOE1545097, 3518816, 3521804, 1545281, 1545820, 1558204, 312682, 3518911, 4033690H, 4033806, 422809, 466818-0001, 466818-0002, 168823, 3034326, 3519092, 3521802, 3521802H, 3801489, 169417, 3034332, 3519095, 3521803, 3521803H, 310653, 310705, 311103, 311758, 3519209, 4033694H, 465878-0001, 465878-0003, ESHAJ 5718, HAJ 3308Y01, HAJ 3308Y02, HAJ 5718, HAJ 5718Y01, HAJ 6346, HAJ 8717, HAJ 8717 Y01, HAJ 8717 Y02, T5718Y01R, 3519697, 3034327, 3034336, 3034338, 3519909, 3521342, 3034325, 3034334, 3519910, 3521343, 3521018, 3522548, 72500, 3522549, 3523022, 3523115, 3591964, 4033181H, 61315684EZ, 61315685EZ, 3523282, 3523283, 3523283H, 3803110, 3523284, 3523285, 3523285H, 3803111, 3524443, 3524444, 3524444H, 3525132, 3525133, 4033258, 4033258H, A17048, 2674A028, 3525169, 3525172, 3525745, 3525746, 3-7500031, 3525994, 3525995, 4033917H, 422856, 422934, 422935, 466818-0003, 3526059, 3526060, 4033235H, 422923, 422938, 479023, 479116, 5003388, 1604016OG, 3526360, 3526361, 4033610H, 3526435, 3526435, 3526967, 5003439, 3527457, 3591610, 3591611, 61316428, 61319421, 92901054, 3527609, 3527610, 4033632H, CV17846, 3528124, 3529256, 3803388, 3528639, 3529257, 3529257H, 3803389, 3529186, 3529436, 3529437, 3529761, 3529762, 3529762H, 3802359, 3529841, 3529842, 3529869, CV18828-1, CV18828-2, 3530536, 3538836, 3538839, 3539436, 3591612, 3591613, 4033323H, 5329 988 7005, 61318802EZ, 61318804, 61318805, 61320526, 61321344EZ, 61321514EZ, 3530630, 3530631, 3530767, 3530768, 3530961, 3531566, 3803558, 3531567, 3803558, 3531772, 3531773, 3531773H, 3803570, 3531822, 3531823, 3531861, 3531862, 3531862H, 3803578, 168825, 3532053, 3532054, 3532054H, 3803586, 3532474, 3532475, 3532475H, 3803639, 5452262, 3532716, 3532717, 51.09100-7320, 3533090, 3533091, 3533091H, 3803660, 24100-2920B, 3533261, 3533262, 24100-2910C, 3533263, 3533264, 4033016H, 3533526, 3533527, 3533527H, 3803691, 3533687, 3533688, 3534034, 3534035, 3534035H, 3534036, 3534037, 3803878, 3534038, 3534039, 3803879, 1341286, 3534100, 3534101, 571606, 3534301, 3534302, 3534302H, 3803797, 3535043, 3535044, 3535044H, 3802639, 24100-3080C, 3535403, 3535404, 4033279, 4033279H, 3536273, 3536274, 3537446, 3537447, 3537823, 3804748, 3537939, 3537940, 3537940H, 3538623, 3538624, 3538624H, 3802886, 3539234, 3539332, 3539333, 3804831, 3580228, 370870, 370871, 4032910H, 465942-0003, 465942-0005, 465942-0006, 465942-0011, 465942-0012, 465942-0013, 465942-0014, 465942-0015, 465942-0016, 656331, 674022, 679024, 3-7500041, 3580707, 3580995, 4027007, 4033744, 4033744H, 486512014, 3590060, 3590061, 4033631, 65.09100-7188, 3590063, 24100-3880A, 3594533, 3594534, 3595135, 3595136, 4027523
