Shaft and wheel GA-02-0125

Shaft and wheel GA-02-0125

€71,32 EUR
€71,32 EUR
Znižanje Razprodano

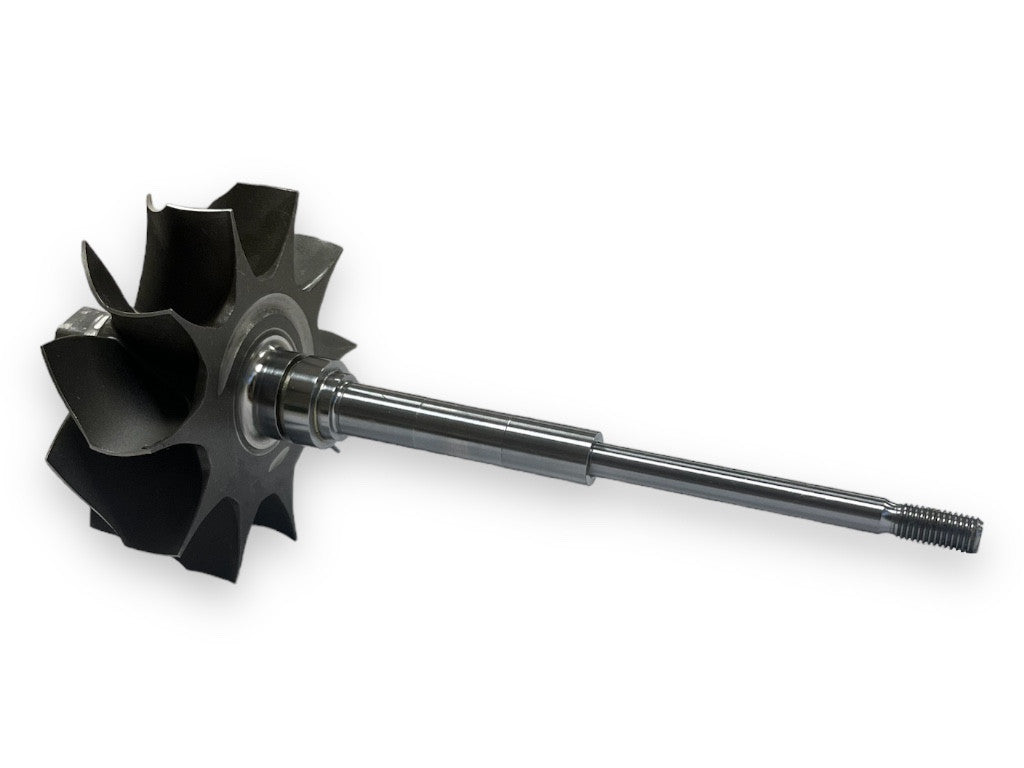

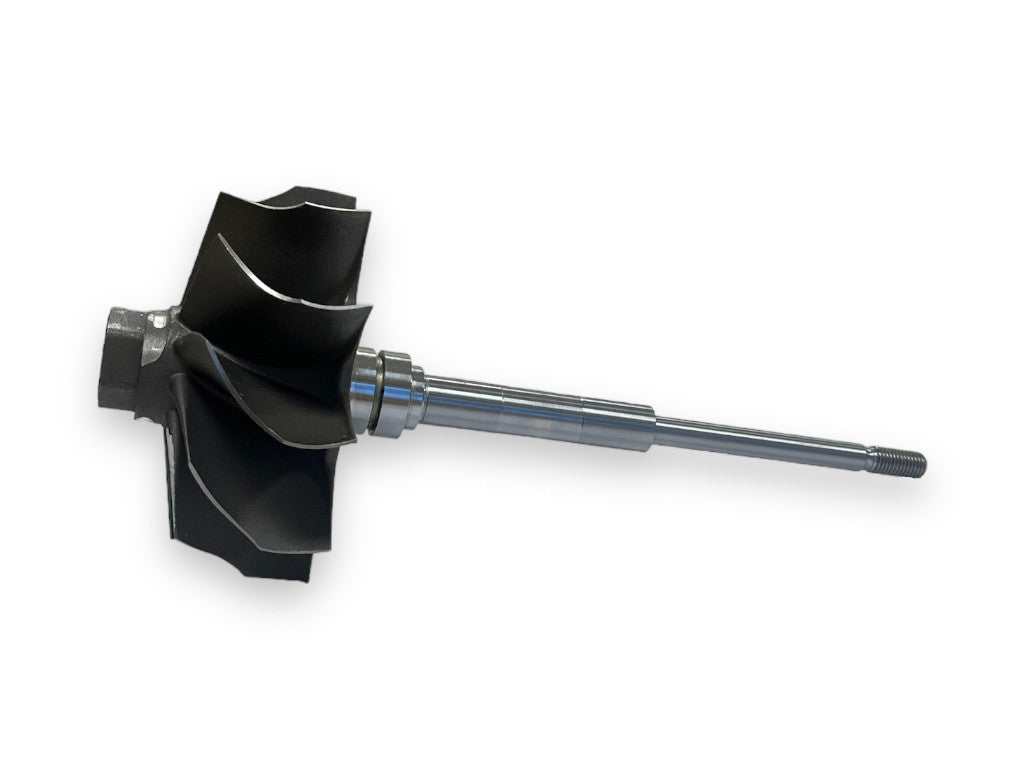

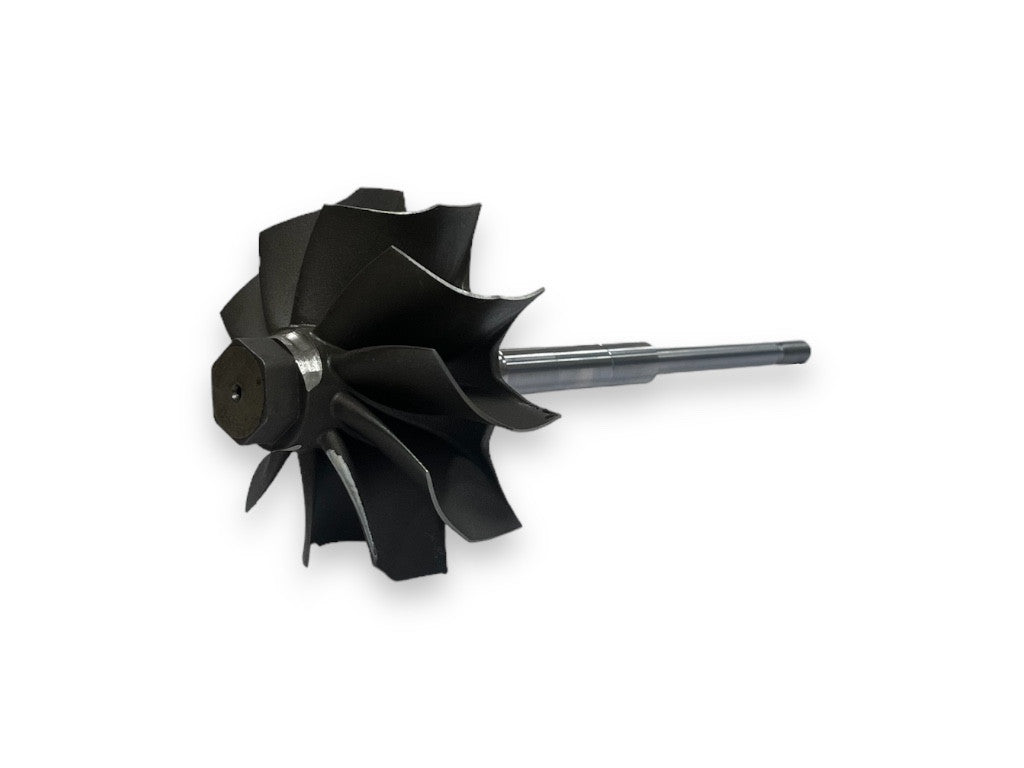

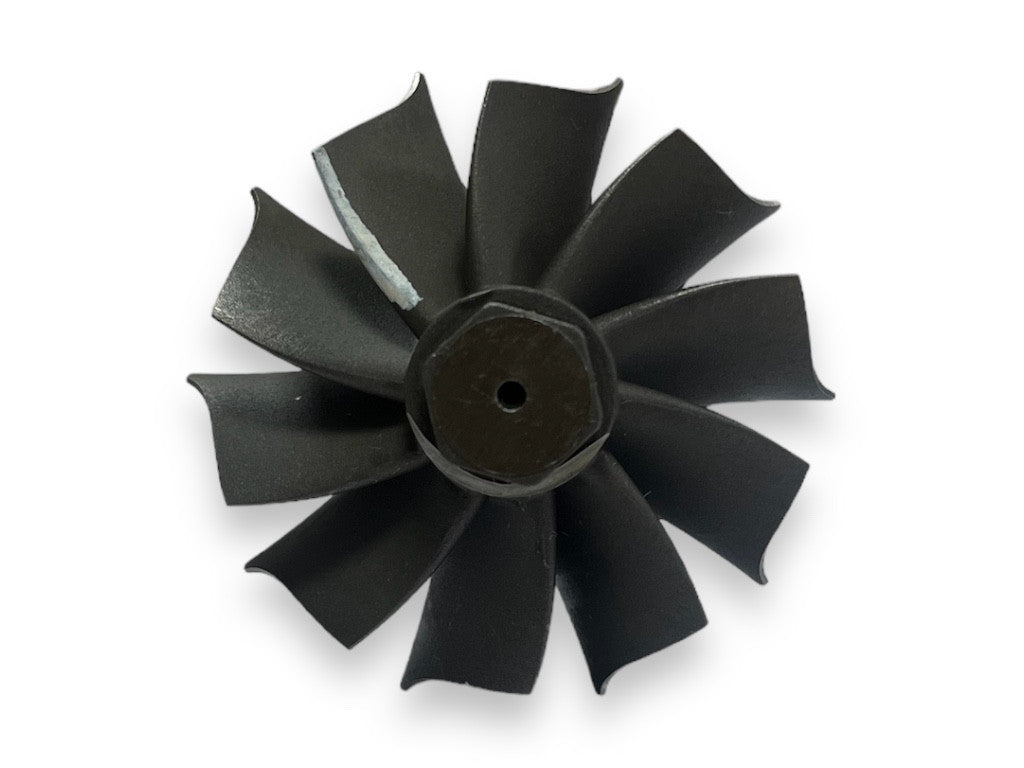

GA-02-0125 (170296, 445604-0601) - Shaft and wheel

Brand: TurboCentras

TurboCentras Reference: GA-02-0125

OEM Numbers: 170296, 445604-0601

GA-02-0125 - Alternative numbers

TCP (TurboCentras part number): GA-02-0125

TCO (TurboCentras old part number): GT38-35

GA-02-0125 - Compatibility table

Shaft and wheel GA-02-0125 - Compatible turbochargers
TURBO MAKER TURBO MODEL TURBO REFERENCE TURBO PART NUMBER TURBO OE NUMBER
Garrett GTP38R 471128-0010 471128-0010 1825878C91, 5C3Z6V682ARM
Garrett GTP38R 471128-0011 471128-0011 18255878C92
Garrett GTP38R 702011-0008 702011-0008 --
Garrett GTP38R 702011-0009 702011-0009 --
Garrett GTP38R 702011-0011 702011-0011 1831383C92
Garrett GTP38R 702012-0004 702012-0004 1831383C93
Garrett GTP38R 702012-0005 702012-0005 --
Garrett GTP38R 702012-0006 702012-0006 1831383C92
Garrett GTP38R 702012-0007 702012-0007 --
Garrett GTP38R 702012-0008 702012-0008 --
Garrett GTP38R 702012-0009 702012-0009 --
Garrett GTP38R 702012-0010 702012-0010 1831383C93
Garrett GTP38R 702012-0012 702012-0012 1831383C94
Garrett GTP38R 702013-0004 702013-0004 1831383C94
Garrett GTP38R 702013-0005 702013-0005 1831383C94
Garrett GTP38R 702013-0006 702013-0006 1831383C94
Garrett GTP38R 702013-0007 702013-0007 1831383C94
Garrett GTP38R 702013-0008 702013-0008 1831383C94
Garrett GTP38R 702013-0009 702013-0009 1831383C94
Garrett GTP38R 702013-0010 702013-0010 1831383C94
Garrett GTP38R 702013-0011 702013-0011 1831383C94
Garrett GTP38R 702650-0001 702650-0001, 702650-5001S 1825878C91
Garrett GTP38R 702650-0003 702650-0003, 702650-5003S --
Garrett GTP38 702650-0005 702650-0005, 702650-5005S 1825878C92
Garrett GTP38R 706447-0003 706447-0003 F81Z6K682BARM
Garrett GTP38R 710134-0010 710134-0010 1831775C92, 1833649C91

GA-02-0125 - Part Properties

Blades (Shaft & Wheel blades count): 10

Rotation (Shaft & Wheel rotation direction): Reverse

Type (Shaft & Wheel type): Straight

Back (Shaft & Wheel back type): Open

P.R. (Shaft & Wheel piston rings count): Single

A (Size A): 76.50

A1 (Size A1): 76.50

B (Size B): 67.80

C (Size C): 12.24

D (Size D): 10.16

E (Size E): 6.35

H (Size H): 31.00

L (Size L): 134.00

T (Size T): 1/4X24UNF-RH

GA-02-0125
170296, 445604-0601, GA-02-0125, GT38-35
1825878C91, 471128-0010, 5C3Z6V682ARM, 18255878C92, 471128-0011, 702011-0008, 702011-0009, 1831383C92, 702011-0011, 1831383C93, 702012-0004, 702012-0005, 1831383C92, 702012-0006, 702012-0007, 702012-0008, 702012-0009, 1831383C93, 702012-0010, 1831383C94, 702012-0012, 1831383C94, 702013-0004, 1831383C94, 702013-0005, 1831383C94, 702013-0006, 1831383C94, 702013-0007, 1831383C94, 702013-0008, 1831383C94, 702013-0009, 1831383C94, 702013-0010, 1831383C94, 702013-0011, 1825878C91, 702650-0001, 702650-5001S, 702650-0003, 702650-5003S, 1825878C92, 702650-0005, 702650-5005S, 706447-0003, F81Z6K682BARM, 1831775C92, 1833649C91, 710134-0010

Data updated: 2025-02-12 16:31:01
