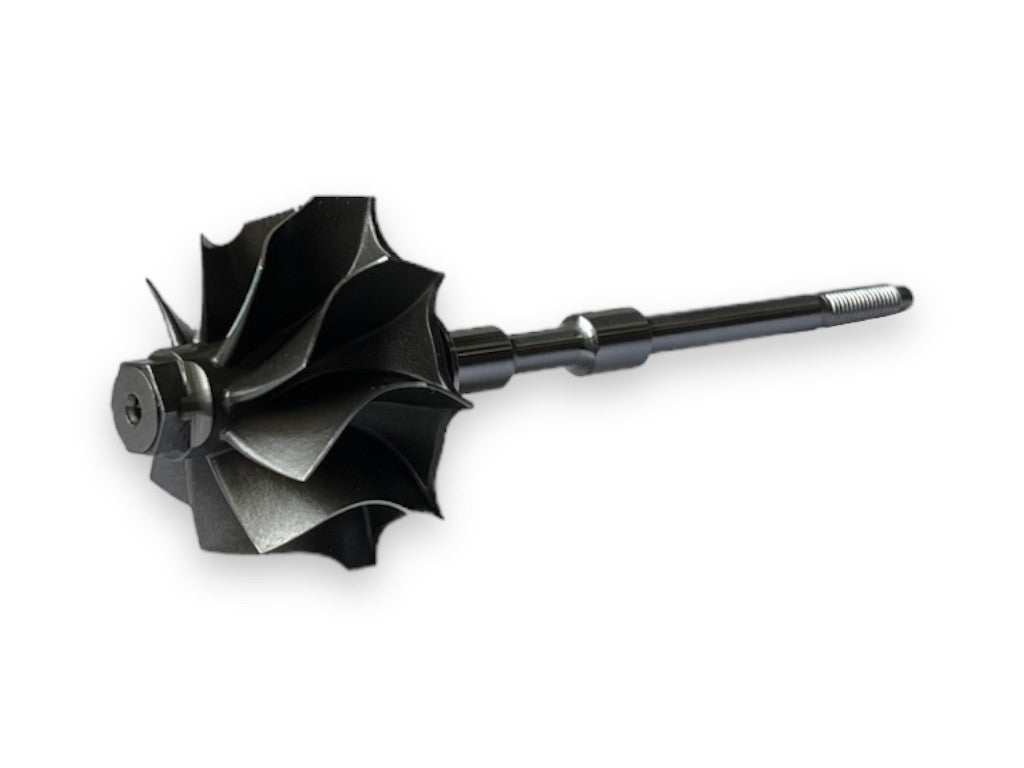

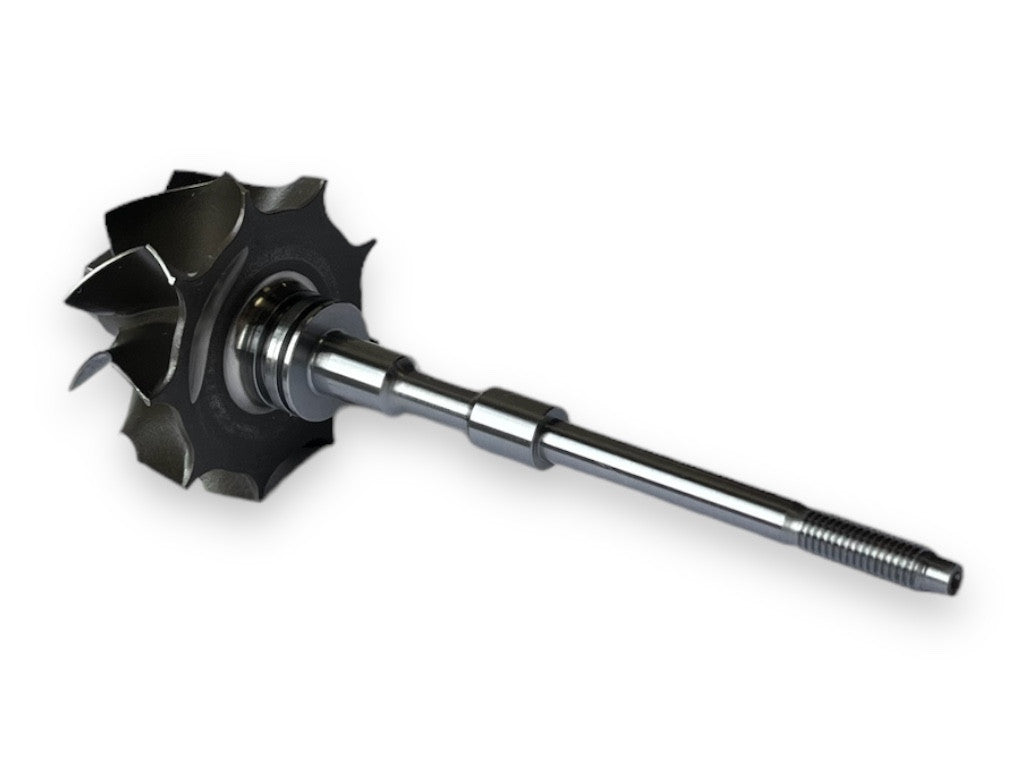

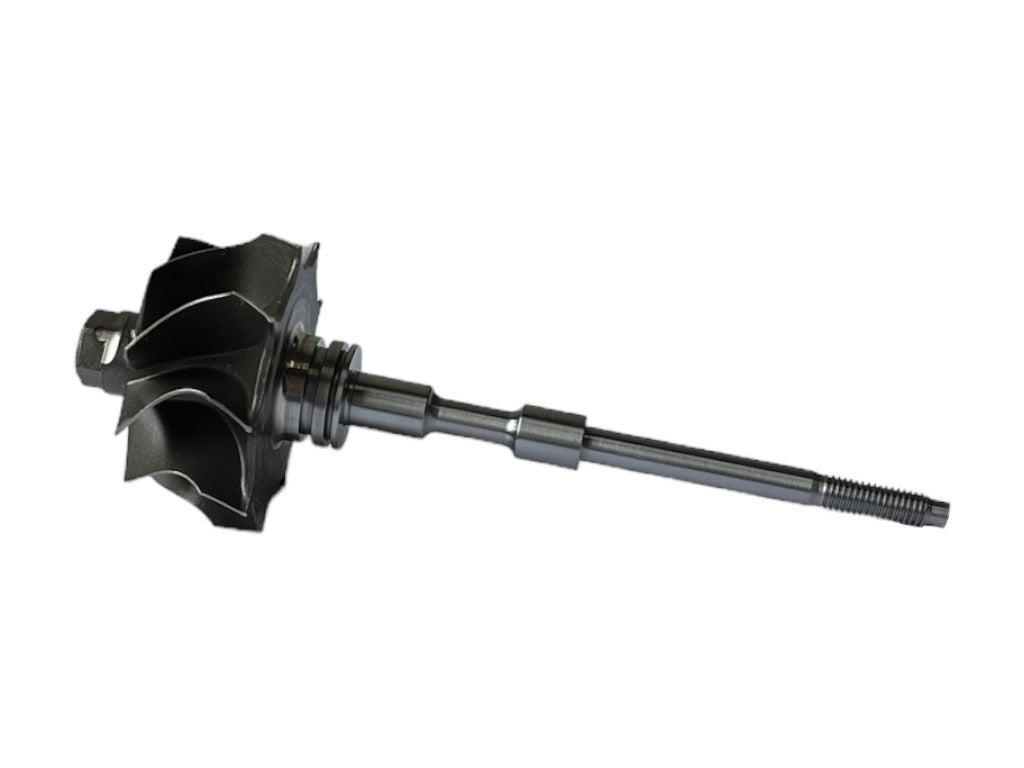

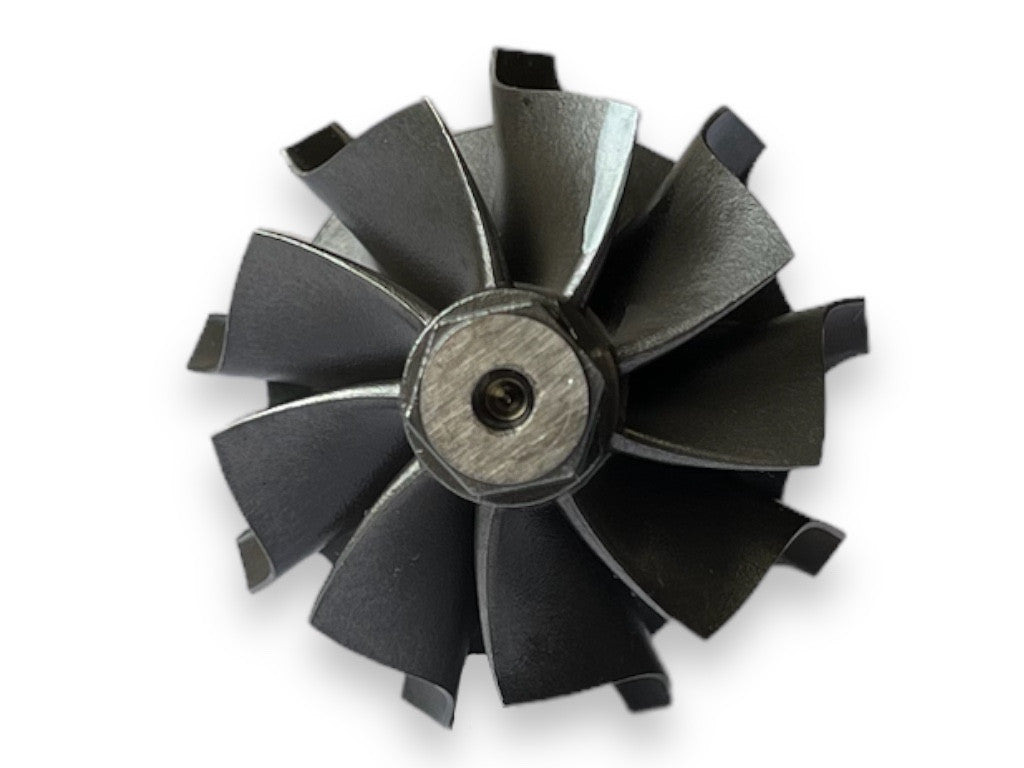

Shaft and wheel GA-02-0068
Shaft and wheel GA-02-0068
Redna cena
€20,58 EUR
Redna cena
Znižana cena
€20,58 EUR
Cena na enoto
na
Podatka o razpoložljivosti osebnega prevzema ni mogoče naložiti
GA-02-0068 (433257-0010, 434533-0007, 434533-0009, 434533-0015, 434533-0035, 434533-0037, 434533-0058, 434533-0059) - Shaft and wheel
Brand: TurboCentras
TurboCentras Reference: GA-02-0068
OEM Numbers: 433257-0010, 434533-0007, 434533-0009, 434533-0015, 434533-0035, 434533-0037, 434533-0058, 434533-0059
GA-02-0068 - Alternative numbers
TCP (TurboCentras part number): GA-02-0068
TCO (TurboCentras old part number): GT17-38
GA-02-0068 - Part Properties
Blades (Shaft & Wheel blades count): 9
Rotation (Shaft & Wheel rotation direction): Standard
Type (Shaft & Wheel type): Slender
Back (Shaft & Wheel back type): Open
P.R. (Shaft & Wheel piston rings count): Single
A (Size A): 43.00
A1 (Size A1): 43.00
B (Size B): 36.00
C (Size C): 6.20
D (Size D): 7.88
E (Size E): 5.08
H (Size H): 20.00
L (Size L): 92.50
T (Size T): M5.0X0.8LH
| TURBO MAKER | TURBO MODEL | TURBO PART NUMBERS | TURBO OE NUMBERS |
|---|---|---|---|
| Garrett | GT1749V | 454158-0004, 454158-5004S | -- |
| Garrett | GT1749V | 454183-0004 | 028145702E |
| Garrett | GT1749V | 454183-0005, 454183-5005S | 028145702E |
| Garrett | GTA1749V | 454231-0002, 454231-5002S | 028145702R, 038145702L |
| Garrett | GTA1749V | 454231-0008, 454231-5008S | 028145702R, 028145702RV500, 038145702L |
| Garrett | GT1749V | 454232-0002, 454232-5002S | 038253019D |
| Garrett | GT1749V | 454232-0006, 454232-5006S | 038253019D |
| Garrett | GTA1749MV | 454232-0008 | -- |
| Garrett | GTA1749MV | 454232-0010 | -- |
| Garrett | GT1749V | 454232-0011, 454232-5011S | 038253019D, 038253019DV500 |
| Garrett | GTA1749MV | 454232-0014, 454232-5014S | 038253019D, 038253019DV500 |
| Garrett | GT1749V | 701470-0003 | -- |
| Garrett | GT1749V | 701470-0004 | -- |
| Garrett | GT1749V | 701854-0001 | -- |
| Garrett | GT1749V | 701854-0002, 701854-5002S | 028145702N |
| Garrett | GT1749V | 701854-0004, 701854-5004S | 028145702NV500 |
| Garrett | GT1749V | 701855-0002, 701855-5002S | 028145702S, 1094743, 95VW9G438CA |
| Garrett | GTA1749V | 701855-0004 | 028145702SX |
| Garrett | GT1749V | 701855-0005, 701855-5005S | 028145702P, 028145702PV500 |
| Garrett | GT1749V | 701855-0006, 701855-5006S | 028145702S, 028145702SV500 |
| Garrett | GT1749V | 701855-0007, 701855-5007S | 028145702P, 028145702PV500 |
| Garrett | GT1749V | 701855-0008, 701855-5008S, 701855-9008S | 028145702S, 028145702SV500 |
| Garrett | GT1749V | 704505-0001 | -- |
| Garrett | GT1749V | 704505-0002 | -- |
| Garrett | GT1749V | 705998-0012 | -- |
| Garrett | GT1749V | 712077-0001 | -- |
| Garrett | GT1749V | 712078-0001 | -- |
| Garrett | GT1749V | 712078-0002 | -- |
| Garrett | GT1749V | 712968-0001 | 038253019L, 03G253016P |
| Garrett | GT1749V | 712968-0002 | 038253019L, 03G253016P |
| Garrett | GT1749V | 712968-0003 | 038253019L, 038253019LV225, 03G253016P |
| Garrett | GT1749V | 712968-0004 | 038253019L, 038253019LV500, 03G253016P |
| Garrett | GT1749V | 712968-0005 | 038253019L, 038253019LV500, 03G253016P |
| Garrett | GT1749V | 712968-0006 | 038253019L, 03G253016P |
| Garrett | GT1749V | 712968-0007 | 038253019L, 03G253016P |
| Garrett | GTA1749MV | 713673-0001 | 038253019N |
| Garrett | GT1749V | 713673-0002, 713673-5002S | 038253019N, 038253019NV220, 038253019NV225, 03G253014E |
| Garrett | GT1749V | 713673-0003, 713673-5003S | 038253019N, 038253019NV225, 03G253014E |
| Garrett | GT1749V | 713673-0004, 713673-5004S | 038253019N, 038253019NV500, 03G253014E, 1135819, 1556571, 6M219G438AA, YM219G438BA |
| Garrett | GT1749V | 713673-0005, 713673-5005S | 038253019NV500, 1135819, 6M219G438AA |
| Garrett | GT1749V | 713673-0006, 713673-5006S | 038253019N, 03G253014E, 1556571 |
| Garrett | GT1749V | 713673-0007, 713673-5007S, 713673-9007S | 038253019N, 03G253014E, 1135819, 1556571, 6M219G438AA, YM219G438BA |
| Garrett | GT174 | 714485-0001, 714485-5001S | 7786798B |
| Garrett | GT174 | 714485-0002, 714485-5002S | 7786800B |
| Garrett | GTA1749VK | 714486-0001, 714486-5001S | 7786799B |
| Garrett | GTA1749VK | 714486-0002, 714486-5002S | 7786801B |
| Garrett | GTA1749VK | 714486-0005, 714486-5005S | 7786799C |
| Garrett | GTA1749VK | 714486-0006, 714486-5006S | 7786801C |
| Garrett | GTA1749VK | 714486-0008, 714486-5008S | 7786801C |
| Garrett | GT1749V | 716215-0001, 716215-5001S | -- |
| Garrett | GT1749V | 716216-0001 | -- |
| Garrett | GT1749V | 716419-0002, 716419-5002S | 038253019Q |
| Garrett | GT1749V | 716419-0003 | 038253019Q |
| Garrett | GT1749V | 716860-0001, 716860-5001S | 038253016E, 038253016F, 03G253016Q |
| Garrett | GT1749V | 716860-0002, 716860-5002S | 038253016E, 038253016F, 03G253016Q |
| Garrett | GT1749V | 716860-0003, 716860-5003S | 038253016E, 038253016F, 03G253016Q |
| Garrett | GT1749V | 716860-0004, 716860-5004S | 038253016E, 038253016EV500, 038253016F, 03G253016Q |
| Garrett | GT1749V | 716860-0005, 716860-5005S, 716860-9005W | 038253016E, 038253016EV500, 038253016F, 03G253016Q |
| Garrett | GTA1749V | 717858-0001, 717858-5001S | 038145702E, 038145702G, 038145702J, 038145702N, 38145702 |
| Garrett | GTA1749V | 717858-0002, 717858-5002S | 038145702E, 038145702EV110, 038145702G, 038145702J, 038145702N, 38145702 |
| Garrett | GTA1749V | 717858-0003, 717858-5003S | 038145702E, 038145702G, 038145702J, 038145702N, 38145702 |
| Garrett | GTA1749V | 717858-0004, 717858-5004S | 038145702E, 038145702G, 038145702GV105, 038145702J, 038145702N, 38145702 |
| Garrett | GTA1749V | 717858-0005, 717858-5005S | 038145702E, 038145702G, 038145702GV500, 038145702J, 038145702N, 38145702 |
| Garrett | GTA1749V | 717858-0006, 717858-5006S | 038145702E, 038145702G, 038145702GV505, 038145702J, 038145702N, 38145702 |
| Garrett | GTA1749V | 717858-0007, 717858-5007S, 717858-9010S | 038145702E, 038145702G, 038145702GV550, 038145702J, 038145702N, 38145702 |
| Garrett | GTA1749V | 717858-0008, 717858-5008S, 717858-9010S | 038145702E, 038145702G, 038145702J, 038145702N, 38145702 |
| Garrett | GTA1749V | 717858-0009, 717858-5009S, 717858-9010S | 038145702E, 038145702G, 038145702J, 038145702N, 38145702 |
| Garrett | GTA1749V | 717858-0010, 717858-5010S, 717858-9010S | 038145702E, 038145702G, 038145702J, 038145702N, 38145702 |
| Garrett | GT1749V | 720855-0001, 720855-5001S | 038253016E, 038253016F, 03G253016Q |
| Garrett | GTA1749MV | 720855-0002 | -- |
| Garrett | GT1749V | 720855-0003, 720855-5003S | 038253016E, 038253016F, 038253016FV115, 03G253016Q |
| Garrett | GT1749V | 720855-0004, 720855-5004S | 038253016E, 038253016F, 038253016FV500, 03G253016Q |
| Garrett | GT1749V | 720855-0005, 720855-5005S | 038253016E, 038253016F, 038253016FV510, 03G253016Q |
| Garrett | GT1749V | 720855-0006, 720855-5006S, 720855-5006U | 038253016E, 038253016F, 03G253016Q |
| Garrett | GT1749V | 720855-0007, 720855-5007S, 720855-9007S | 03G253016Q |
| Garrett | GT1749V | 721164-0003 | 1720127030, 1720127030A |
| Garrett | GT1749V | 721164-0004 | 1720127040 |
| Garrett | GT1749V | 721164-0005 | -- |
| Garrett | GT1749V | 721164-0006 | -- |
| Garrett | GT1749V | 721164-0009 | -- |
| Garrett | GT1749V | 721164-0010 | -- |
| Garrett | GT1749V | 721164-0011 | 1720127030, 1720127030E |
| Garrett | GT1749V | 721164-0012 | 1720127030, 1720127030D |
| Garrett | GT1749V | 721164-0013, 721164-5013S | 1720127040D |
| Garrett | GT1749V | 721164-0014, 721164-5014S | 1720127040D |
| Garrett | GT1749V | 722010-0003 | 11657789077, 77890582A, 7789069E, 7789076F |
| Garrett | GT1749V | 722010-0004 | 11657789077, 77890582A, 7789069E, 7789076F |
| Garrett | GT1749VK | 722010-0005 | -- |
| Garrett | GT1749VK | 722010-0007 | -- |
| Garrett | GT1749V | 722010-0008 | 11657789077, 77890582A, 7789069E, 7789076F |
| Garrett | GT1749VK | 722010-0010 | -- |
| Garrett | GT1749V | 722011-0003, 722011-5003S | 11657789076, 7789070E, 7789077F, 7789583A |
| Garrett | GT1749V | 722011-0004, 722011-5004S | 11657789076, 7789070E, 7789077F, 7789583A |
| Garrett | GTA1749VK | 722011-0005 | -- |
| Garrett | GT1749V | 722011-0007, 722011-5007S | 11657789076, 7789070E, 7789077F, 7789583A |
| Garrett | GTA1749VK | 722011-0009, 722011-5009S | -- |
| Garrett | GT1749VK | 722011-0010 | -- |
| Garrett | GT1749V | 722730-0001, 722730-5001S | 038253016H |
| Garrett | GT1749V | 722730-0002 | 03825301H |
| Garrett | GT1749V | 722730-0003, 722730-5003S, 722730-9003W | 038253016H, 038253016HV500 |
| Garrett | GT1749V | 722730-0004 | 038253016HV505 |
| Garrett | GT1749V | 722730-0005, 722730-5005S | 038253016H, 038253016HV500 |
| Garrett | GT1749MV | 724930-0001 | -- |
| Garrett | GTA1749MV | 724930-0002, 724930-5002S | 03G253019A |
| Garrett | GT1749MV | 724930-0003 | -- |
| Garrett | GTA1749MV | 724930-0004, 724930-5004S | 03G253019A |
| Garrett | GTA1749MV | 724930-0006, 724930-5006S | 03G253019AV550 |
| Garrett | GTA1749MV | 724930-0008, 724930-5008S | 03G253014H |
| Garrett | GTA1749MV | 724930-0009, 724930-5009S | 03G253010J |
| Garrett | GTA1749MV | 724930-0010, 724930-5010S | 03G253010J |
| Garrett | GTA1749MV | 724930-0012, 724930-5012S | 03G253010J, 03G253014H, 03G253019A, 03G253019AV550 |
| Garrett | GT1749V | 725864-0001, 725864-5001S | 14411AU600 |
| Garrett | GT1749V | 725864-0002, 725864-5002S | 14411AU600 |
| Garrett | GTA1749LV | 727210-0001, 727210-5001S | 172010G01B |
| Garrett | GTA1749LV | 727210-0003, 727210-5003S | 172010G01B |
| Garrett | GT1749V | 729041-0009, 729041-5009S, 729041-9009S | 28231-27900, 2823127900 |
| Garrett | GT1749V | 740911-0001, 740911-5001S | 7790221C |
| Garrett | GT1749V | 740911-0003, 740911-5003S | 7790223C |
| Garrett | GT1749V | 740911-0006, 740911-5006S | 7790223D03 |
| Garrett | GT1749V | 740911-0007, 740911-5007S | 7790223D03 |
| Garrett | GTA1749V | 742535-0002 | -- |
| Garrett | GTA1749V | 751953-0001, 751953-5001S | 481A-1118010 |
| Garrett | GT17V | 751953-0004, 751953-5004S | -- |
| Garrett | GT17V | 751953-0005, 751953-5005S | -- |
| Garrett | GT1749V | 756062-0001, 756062-5001S | 03G253019HV100, MN980201 |
| Garrett | GT1749V | 756062-0002, 756062-5002S | 03G253014J, MN980201 |
| Garrett | GT1749V | 756062-0003, 756062-5003S | 03G253010H, MN980201 |
| Garrett | GTA1749MV | 756062-0004, 756062-5004S, 756062-9004S | 03G253010H, MN980201 |
| Garrett | GT1749V | 801891-0001, 801891-5001S | 1720127030 |
| Garrett | GT1749V | 801891-0002, 801891-5002S | 1720127040D |
| Garrett | GT1749V | 801891-0003, 801891-5003S | 1720127040D |
| Garrett | GT1749V | 801891-0004, 801891-5004S | 1720127030F |
| EE Turbo | GT1749V(S2) | 717858-0001, 717858-0002, 717858-0003, 717858-0004, 717858-0005, 717858-0006, 717858-0007, 717858-0008, 717858-0009, 717858-0010, 717858-5001S, 717858-5002S, 717858-5003S, 717858-5004S, 717858-5005S, 717858-5006S, 717858-5007S, 717858-5008S, 717858-5009S, 717858-5010S, 717858-9010S, 751953-0001, 751953-5001S, Turbo-G015 | 038145702E, 038145702EV110, 038145702G, 038145702GV105, 038145702GV500, 038145702GV505, 038145702GV550, 038145702J, 038145702N, 38145702, 481A-1118010 |
| EE Turbo | GT1749MV | 724930-0002, 724930-0004, 724930-0006, 724930-0008, 724930-0009, 724930-0010, Turbo-G016S | 03G253010J, 03G253014H, 03G253019AV550 |
GA-02-0068 - Used in turbocharges
454158-0004, 454158-5004S, 028145702E, 454183-0004, 454183-0005, 454183-5005S, 028145702R, 038145702L, 454231-0002, 454231-5002S, 028145702RV500, 454231-0008, 454231-5008S, 038253019D, 454232-0002, 454232-5002S, 454232-0006, 454232-5006S, 454232-0008, 454232-0010, 038253019DV500, 454232-0011, 454232-5011S, 454232-0014, 454232-5014S, 701470-0003, 701470-0004, 701854-0001, 028145702N, 701854-0002, 701854-5002S, 028145702NV500, 701854-0004, 701854-5004S, 028145702S, 1094743, 701855-0002, 701855-5002S, 95VW9G438CA, 028145702SX, 701855-0004, 028145702P, 028145702PV500, 701855-0005, 701855-5005S, 028145702SV500, 701855-0006, 701855-5006S, 701855-0007, 701855-5007S, 701855-0008, 701855-5008S, 701855-9008S, 704505-0001, 704505-0002, 705998-0012, 712077-0001, 712078-0001, 712078-0002, 038253019L, 03G253016P, 712968-0001, 712968-0002, 038253019LV225, 712968-0003, 038253019LV500, 712968-0004, 712968-0005, 712968-0006, 712968-0007, 038253019N, 713673-0001, 038253019NV220, 038253019NV225, 03G253014E, 713673-0002, 713673-5002S, 713673-0003, 713673-5003S, 038253019NV500, 1135819, 1556571, 6M219G438AA, 713673-0004, 713673-5004S, YM219G438BA, 713673-0005, 713673-5005S, 713673-0006, 713673-5006S, 713673-0007, 713673-5007S, 713673-9007S, 714485-0001, 714485-5001S, 7786798B, 714485-0002, 714485-5002S, 7786800B, 714486-0001, 714486-5001S, 7786799B, 714486-0002, 714486-5002S, 7786801B, 714486-0005, 714486-5005S, 7786799C, 714486-0006, 714486-5006S, 7786801C, 714486-0008, 714486-5008S, 716215-0001, 716215-5001S, 716216-0001, 038253019Q, 716419-0002, 716419-5002S, 716419-0003, 038253016E, 038253016F, 03G253016Q, 716860-0001, 716860-5001S, 716860-0002, 716860-5002S, 716860-0003, 716860-5003S, 038253016EV500, 716860-0004, 716860-5004S, 716860-0005, 716860-5005S, 716860-9005W, 038145702E, 038145702G, 038145702J, 038145702N, 38145702, 717858-0001, 717858-5001S, 038145702EV110, 717858-0002, 717858-5002S, 717858-0003, 717858-5003S, 038145702GV105, 717858-0004, 717858-5004S, 038145702GV500, 717858-0005, 717858-5005S, 038145702GV505, 717858-0006, 717858-5006S, 038145702GV550, 717858-0007, 717858-5007S, 717858-9010S, 717858-0008, 717858-5008S, 717858-0009, 717858-5009S, 717858-0010, 717858-5010S, 720855-0001, 720855-5001S, 720855-0002, 038253016FV115, 720855-0003, 720855-5003S, 038253016FV500, 720855-0004, 720855-5004S, 038253016FV510, 720855-0005, 720855-5005S, 720855-0006, 720855-5006S, 720855-5006U, 720855-0007, 720855-5007S, 720855-9007S, 1720127030, 1720127030A, 721164-0003, 1720127040, 721164-0004, 721164-0005, 721164-0006, 721164-0009, 721164-0010, 1720127030E, 721164-0011, 1720127030D, 721164-0012, 1720127040D, 721164-0013, 721164-5013S, 721164-0014, 721164-5014S, 11657789077, 722010-0003, 77890582A, 7789069E, 7789076F, 722010-0004, 722010-0005, 722010-0007, 722010-0008, 722010-0010, 11657789076, 722011-0003, 722011-5003S, 7789070E, 7789077F, 7789583A, 722011-0004, 722011-5004S, 722011-0005, 722011-0007, 722011-5007S, 722011-0009, 722011-5009S, 722011-0010, 038253016H, 722730-0001, 722730-5001S, 03825301H, 722730-0002, 038253016HV500, 722730-0003, 722730-5003S, 722730-9003W, 038253016HV505, 722730-0004, 722730-0005, 722730-5005S, 724930-0001, 03G253019A, 724930-0002, 724930-5002S, 724930-0003, 724930-0004, 724930-5004S, 03G253019AV550, 724930-0006, 724930-5006S, 03G253014H, 724930-0008, 724930-5008S, 03G253010J, 724930-0009, 724930-5009S, 724930-0010, 724930-5010S, 724930-0012, 724930-5012S, 14411AU600, 725864-0001, 725864-5001S, 725864-0002, 725864-5002S, 172010G01B, 727210-0001, 727210-5001S, 727210-0003, 727210-5003S, 28231-27900, 2823127900, 729041-0009, 729041-5009S, 729041-9009S, 740911-0001, 740911-5001S, 7790221C, 740911-0003, 740911-5003S, 7790223C, 740911-0006, 740911-5006S, 7790223D03, 740911-0007, 740911-5007S, 742535-0002, 481A-1118010, 751953-0001, 751953-5001S, 751953-0004, 751953-5004S, 751953-0005, 751953-5005S, 03G253019HV100, 756062-0001, 756062-5001S, MN980201, 03G253014J, 756062-0002, 756062-5002S, 03G253010H, 756062-0003, 756062-5003S, 756062-0004, 756062-5004S, 756062-9004S, 801891-0001, 801891-5001S, 801891-0002, 801891-5002S, 801891-0003, 801891-5003S, 1720127030F, 801891-0004, 801891-5004S, Turbo-G015, Turbo-G016SData updated: 2025-09-23 11:26:10
