Shaft and wheel GA-02-0067
Shaft and wheel GA-02-0067
Redna cena
€25,62 EUR
Redna cena
Znižana cena
€25,62 EUR
Cena na enoto
na
Podatka o razpoložljivosti osebnega prevzema ni mogoče naložiti

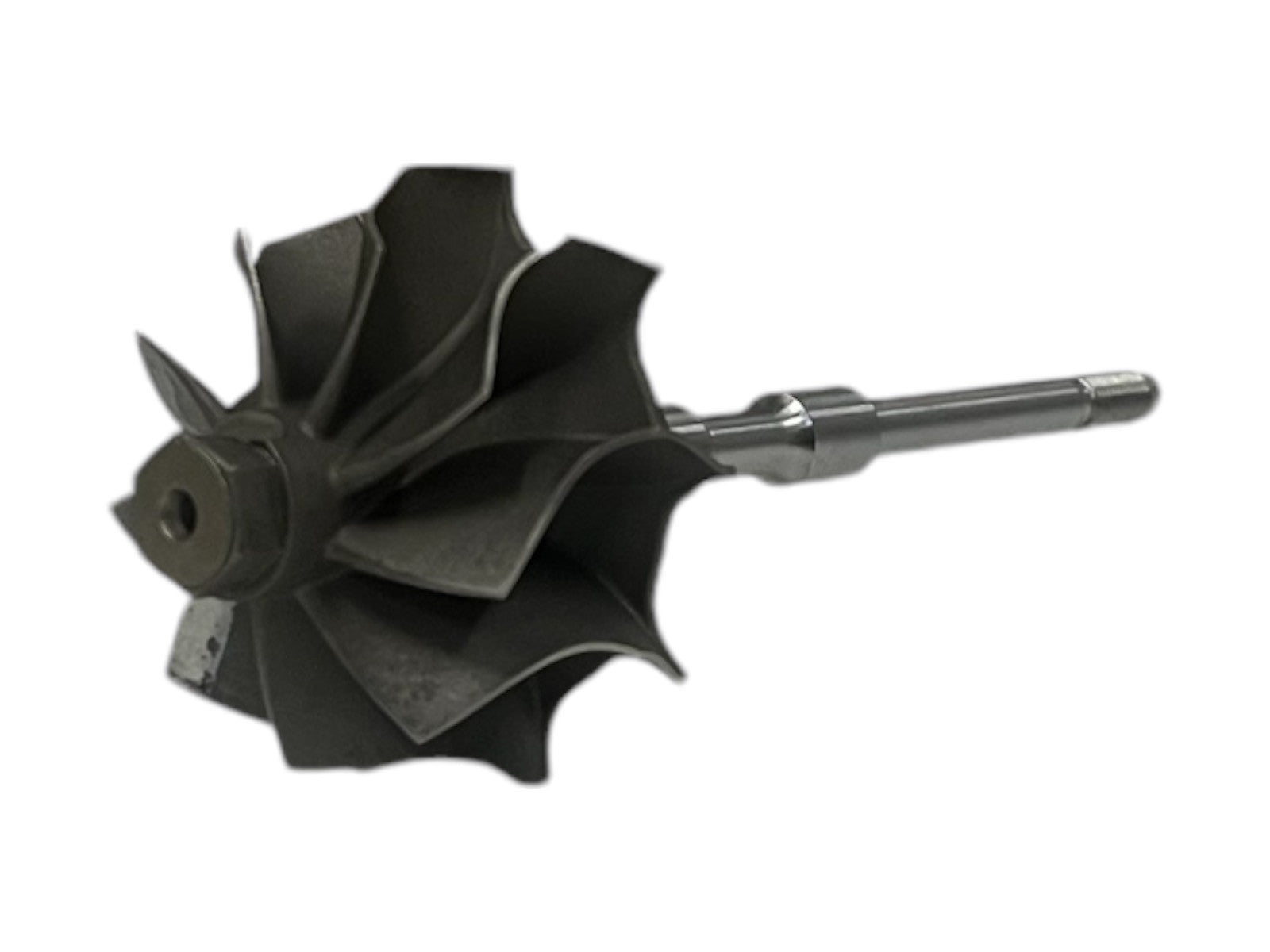

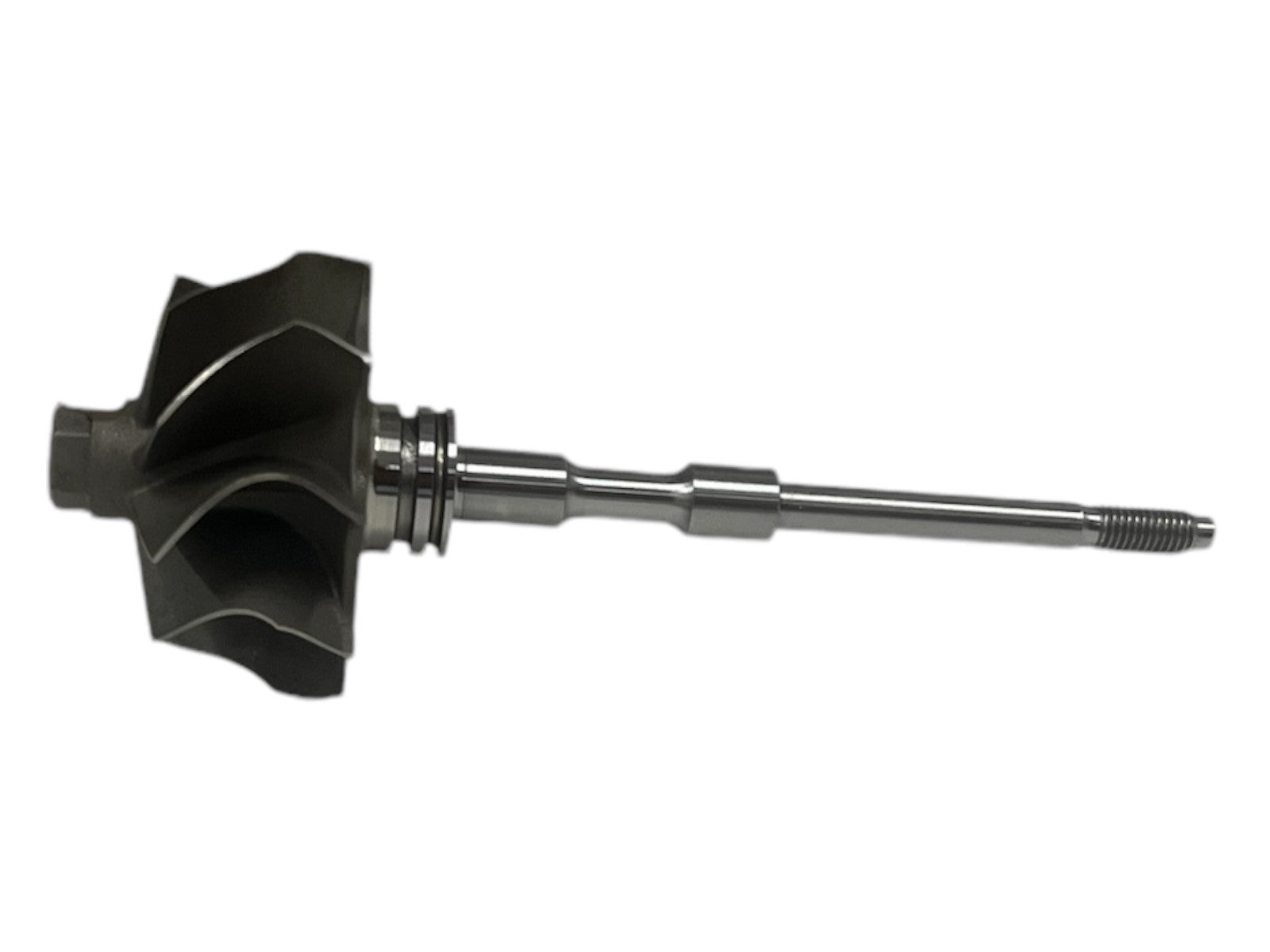

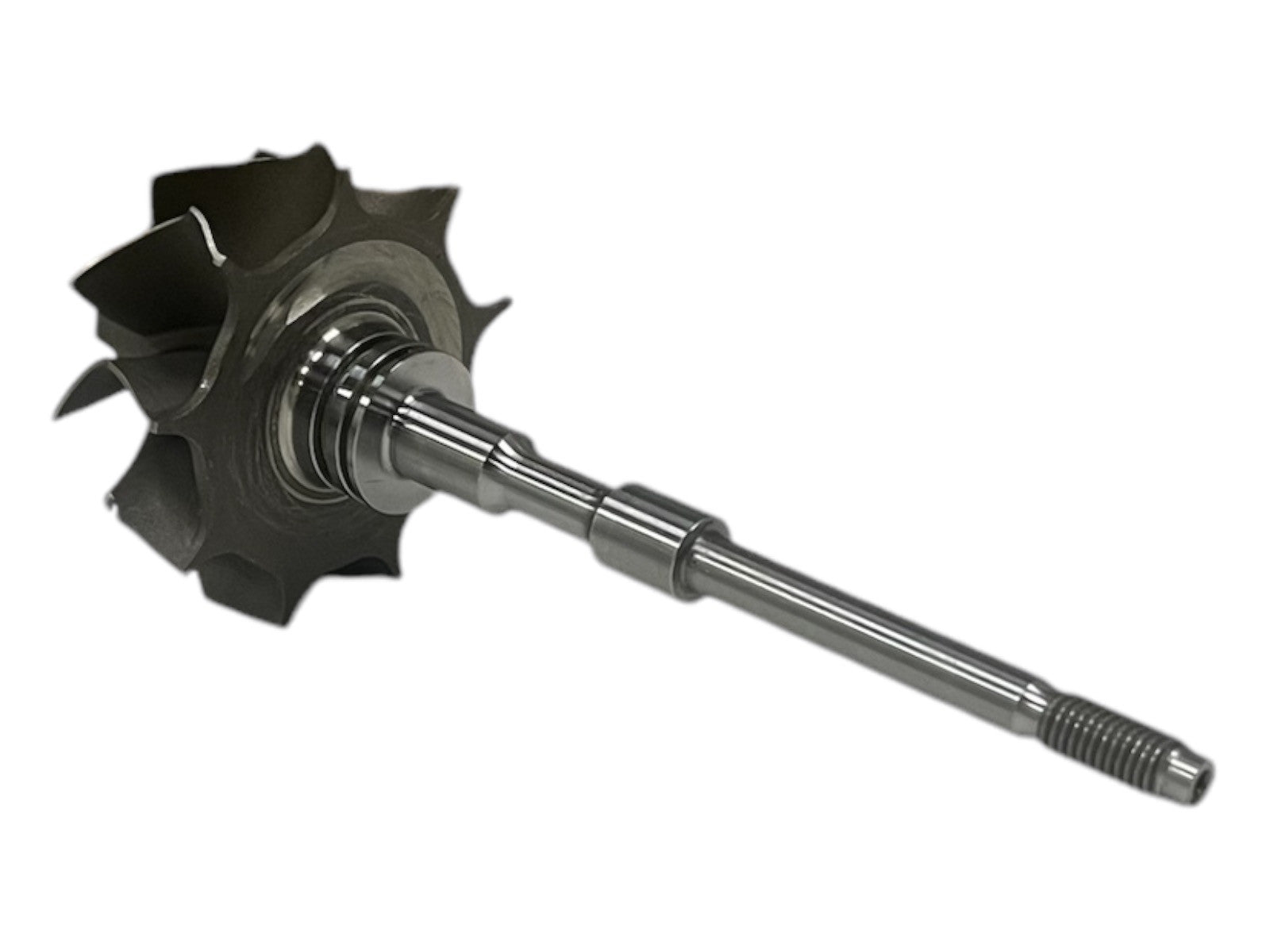

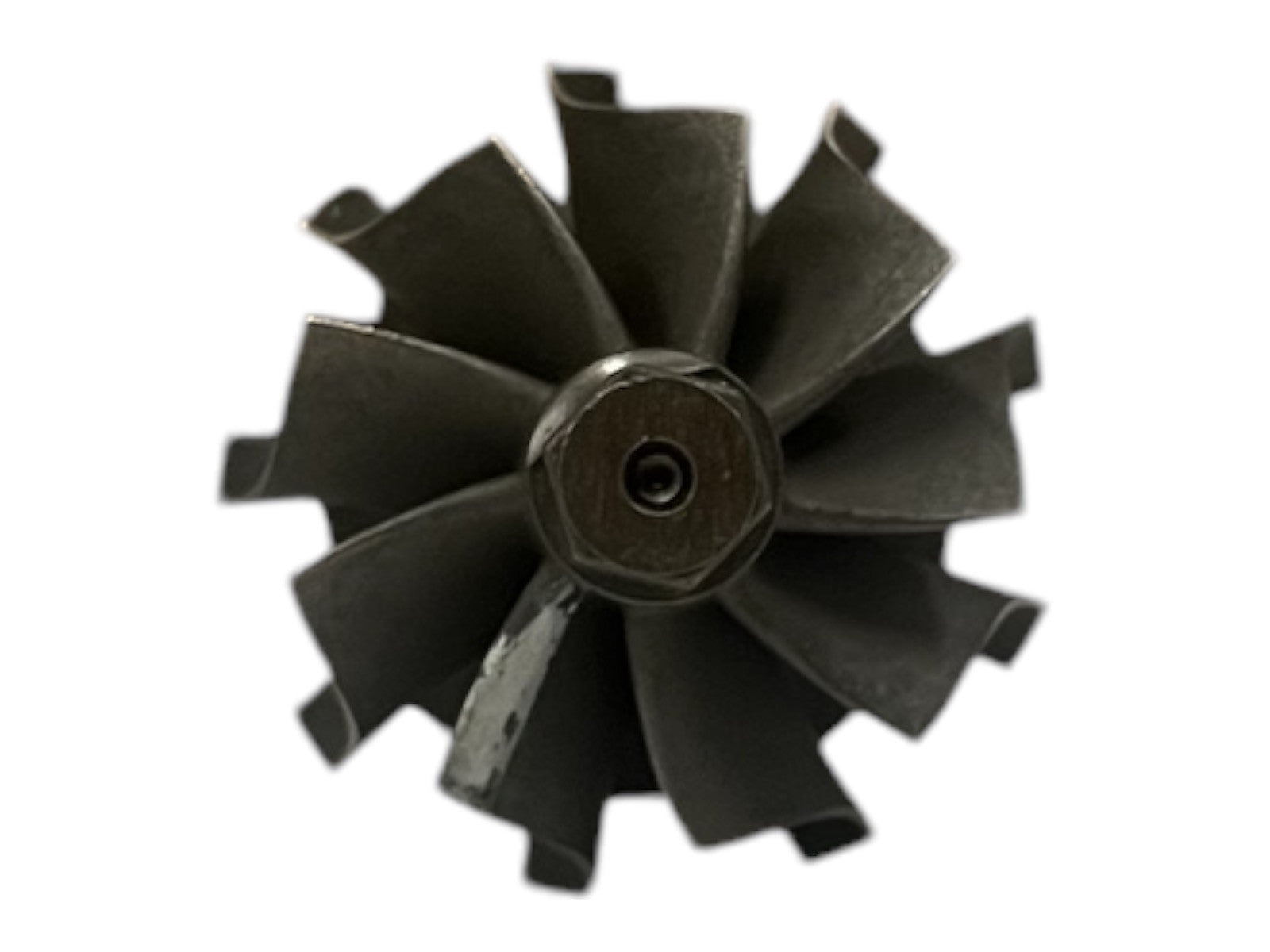

GA-02-0067 (435923-0001) - Shaft and wheel
Brand: TurboCentras
TurboCentras Reference: GA-02-0067
OEM Numbers: 435923-0001
GA-02-0067 - Alternative numbers
TCP (TurboCentras part number): GA-02-0067
TCO (TurboCentras old part number): GT17-37
GA-02-0067 - Part Properties
Blades (Shaft & Wheel blades count): 9
Rotation (Shaft & Wheel rotation direction): Standard
Type (Shaft & Wheel type): Slender
Back (Shaft & Wheel back type): Open
P.R. (Shaft & Wheel piston rings count): Single
A (Size A): 44.20
A1 (Size A1): 44.20
B (Size B): 37.50
C (Size C): 7.60
D (Size D): 7.88
E (Size E): 5.08
H (Size H): 20.00
L (Size L): 89.00
T (Size T): M5.0X0.8LH
| TURBO MAKER | TURBO MODEL | TURBO PART NUMBERS | TURBO OE NUMBERS |
|---|---|---|---|
| Garrett | GT1749S | 454220-0001, 454220-5001S | A6610903080 |
| Garrett | GT1749LS | 466501-0002, 466501-5002S | 28230-41401, 2823041401 |
| Garrett | GT1749LS | 466501-0003, 466501-5003S | 2823041402, 28320-41412 |
| Garrett | GT1749S | 466501-0004, 466501-5004S | 2823041411 |
| Garrett | GT1749S | 466501-0005, 466501-5005S | 2823041412 |
| Garrett | GT1749LS | 471037-0001 | 28230-41421 |
| Garrett | GT1749S | 471037-0002 | -- |
| Garrett | GT1749S | 471189-0001, 471189-5001S | 2823041601 |
| Garrett | GT1749S | 471189-0002 | -- |
| Garrett | GT1749S | 700273-0001 | -- |
| Garrett | GT1749S | 700273-0002, 700273-5002S | 282004B160 |
| Garrett | GT1749S | 700917-0001 | -- |
| Garrett | GT1752S | 701196-0001 | 14411-VB300, 14411VB300 |
| Garrett | GT1752S | 701196-0002 | -- |
| Garrett | GT1752S | 701196-0003 | -- |
| Garrett | GT1752S | 701196-0006 | 14411-VB301 |
| Garrett | GT1752S | 701196-0007, 701196-5007S | 14411-VB301, 14411VB301 |
| Garrett | GT1749S | 702297-0002, 702297-5002S | A6610903080 |
| Garrett | GT1749S | 702637-0001, 702637-5001S | 252039 |
| Garrett | GT1749S | 704119-0001, 704119-5001S | A6610903180 |
| Garrett | GT1749S | 704119-0002, 704119-5002S | A661 090 34 80 |
| Garrett | GT1749S | 704674-0003, 704674-5003S | 8972202270 |
| Garrett | GT1749S | 708337-0001, 708337-5001S | 2823041720 |
| Garrett | GT1749S | 708337-0002, 708337-5002S | 2823041730 |
GA-02-0067 - Used in turbocharges
A6610903480, 454220-0001, 454220-5001S, A6610903080, 28230-41401, 2823041401, 466501-0002, 466501-5002S, 2823041402, 28320-41412, 466501-0003, 466501-5003S, 2823041411, 466501-0004, 466501-5004S, 2823041412, 466501-0005, 466501-5005S, 28230-41421, 471037-0001, 471037-0002, 2823041601, 471189-0001, 471189-5001S, 471189-0002, 700273-0001, 282004B160, 700273-0002, 700273-5002S, 700917-0001, 14411-VB300, 14411VB300, 701196-0001, 701196-0002, 701196-0003, 14411-VB301, 701196-0006, 14411VB301, 701196-0007, 701196-5007S, 702297-0002, 702297-5002S, 252039, 702637-0001, 702637-5001S, 704119-0001, 704119-5001S, A6610903180, 704119-0002, 704119-5002S, A661 090 34 80, 704674-0003, 704674-5003S, 8972202270, 2823041720, 708337-0001, 708337-5001S, 2823041730, 708337-0002, 708337-5002SData updated: 2025-09-23 11:24:56
