1 4

TurboCentras

Shaft and wheel GA-02-0059

Shaft and wheel GA-02-0059

€28,72 EUR
€28,72 EUR
Znižanje Razprodano

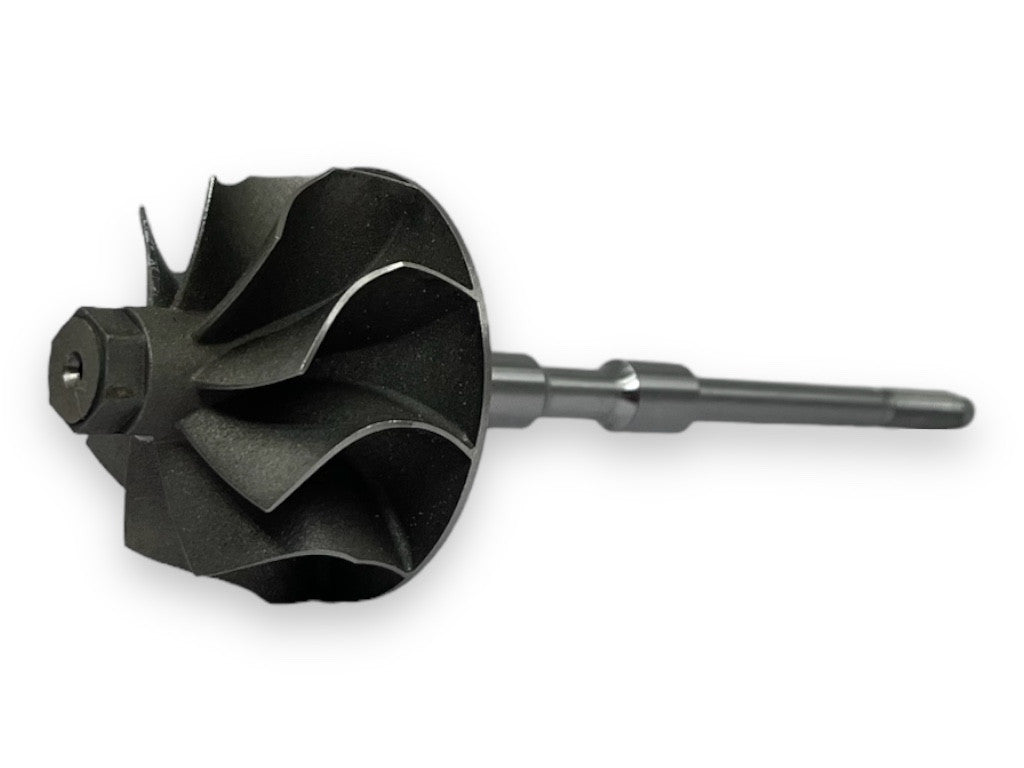

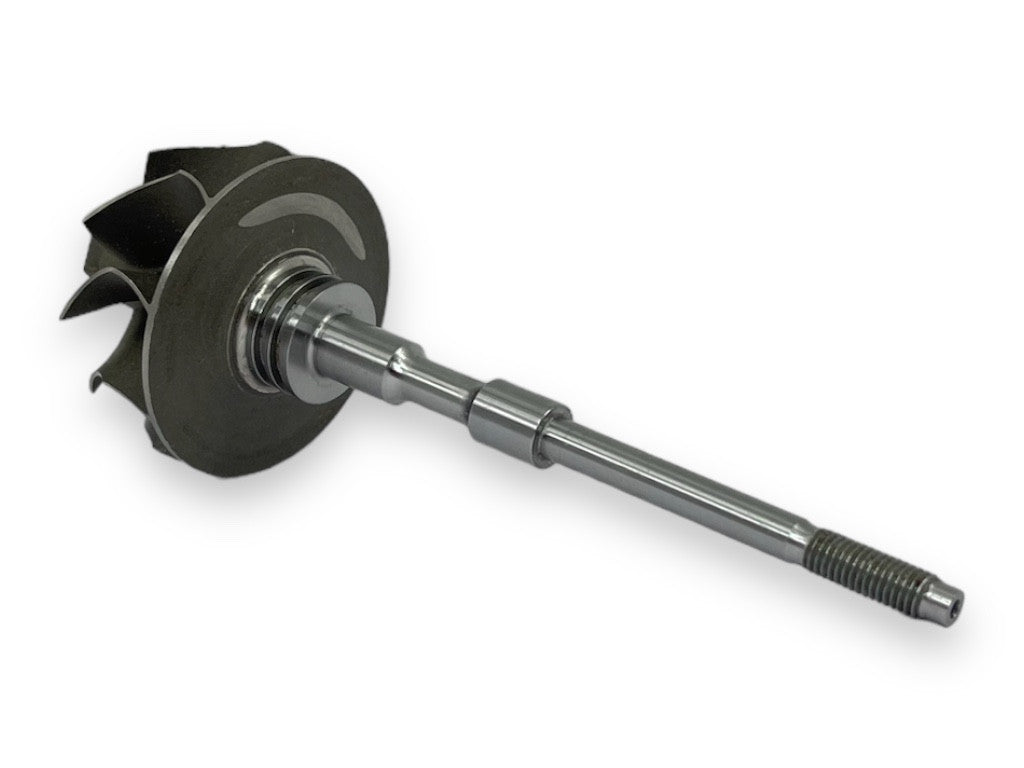

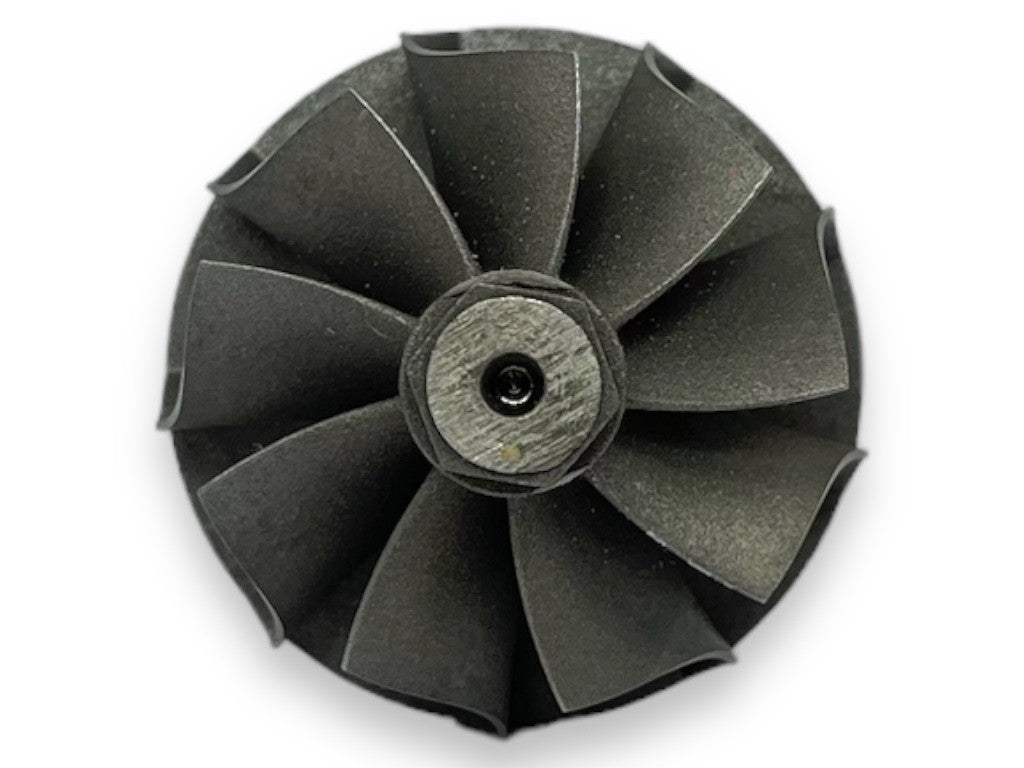

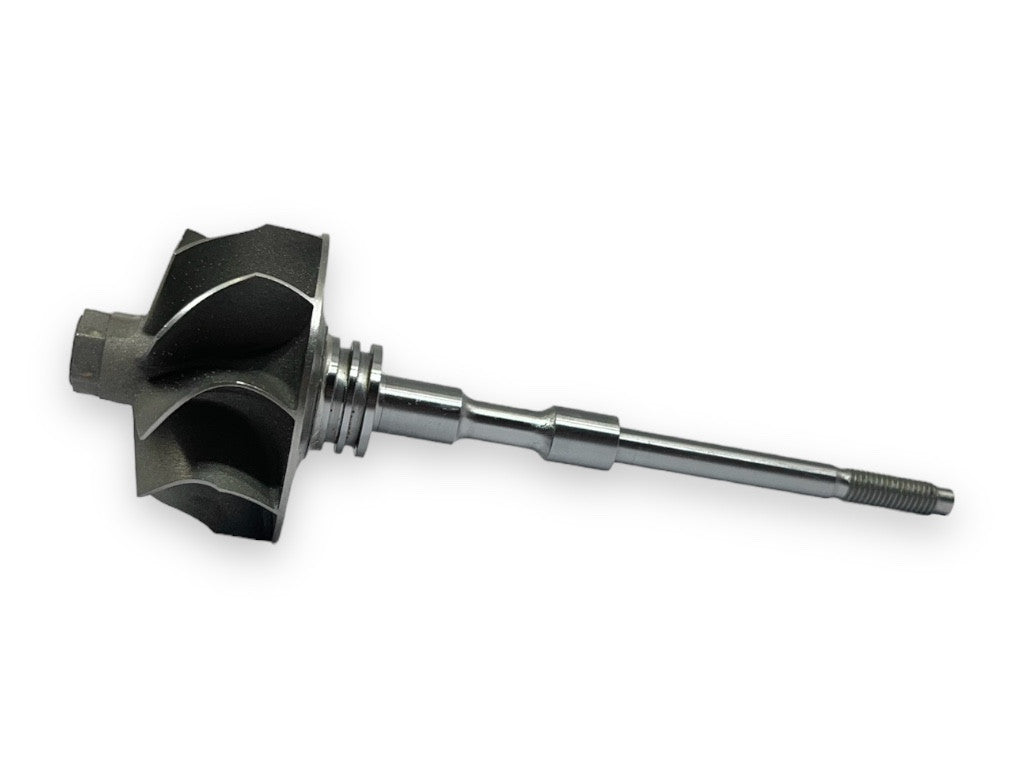

GA-02-0059 - Shaft and wheel

Brand: TurboCentras

TurboCentras Reference: GA-02-0059

GA-02-0059 - Alternative numbers

TCP (TurboCentras part number): GA-02-0059

TCO (TurboCentras old part number): GT16-36

GA-02-0059 - Part Properties

Blades (Shaft & Wheel blades count): 9

Rotation (Shaft & Wheel rotation direction): Standard

Type (Shaft & Wheel type): Slender

Back (Shaft & Wheel back type): Full

P.R. (Shaft & Wheel piston rings count): Twin

A (Size A): 41.00

A1 (Size A1): 41.00

B (Size B): 35.75

C (Size C): 8.15

D (Size D): 7.88

E (Size E): 5.08

H (Size H): 24.00

L (Size L): 92.50

T (Size T): M5.0X0.8LH

GA-02-0059
Shaft and wheel GA-02-0059 - Compatible turbochargers
TURBO MAKER TURBO MODEL TURBO PART NUMBERS TURBO OE NUMBERS
Garrett GT1646V 756867-0001, 756867-5001S 03G253010, 03G253014N, 03G253019L
Garrett GT1646V 756867-0002 03G253010, 03G253014N, 03G253016H, 03G253019L
Garrett GT1646V 756867-0003, 756867-5003S 03G253010, 03G253014N, 03G253016H
Garrett GTB1646MV 756867-0008 --
Garrett GTB1549V 761433-0002, 761433-5002S A6640900780
Garrett GTB1549V 761433-0003, 761433-5003S A6640900880
Garrett GTB1549VK 762463-0002, 762463-5002S 96440365
Garrett GTB1549VK 762463-0003 96440365
Garrett GTB1549VK 762463-0004 96440365
Garrett GTB1549VK 762463-0006, 762463-5006S, 762463-9006S 96440365
Garrett GTB1549VK 762463-0006, 762463-5006S, 762463-9006S 96440365
Garrett GTB1549VK 762463-0006, 762463-5006S, 762463-9006S 96440365
Garrett GT1646V 765261-0001 03G253010, 03G253014N, 03G253016H, 03G253019L
Garrett GTB1646MV 765261-0002, 765261-5002S 03G253016HV100
Garrett GTB1646MV 765261-0003, 765261-5003S 03G257016HV110
Garrett GTB1646MV 765261-0004, 765261-5004S 03G253014N
Garrett GTB1646MV 765261-0005, 765261-5005S, 765261-9008S 03G253014NV100
Garrett GTB1646MV 765261-0006, 765261-5006S 03G253010
Garrett GTB1646MV 765261-0007, 765261-5007S 03G253010V100, 03G253010V101, 03G253010V102, 03G253010V103, 03G253010V104
Garrett GTB1646MV 765261-0008, 765261-5008S, 765261-9008S 03G253010V100, 03G253010V101, 03G253010V102, 03G253010V103, 03G253010V104
Garrett GTB1549VK 771903-0002 --
Garrett GTB1549VK 771903-0003, 771903-5003S 9683200, 96832200
Garrett GTB1549VK 806874-0001, 806874-5001S 11181000B01

GA-02-0059 - Used in turbocharges

03G253010, 03G253014N, 03G253019L, 756867-0001, 756867-5001S, 03G253016H, 756867-0002, 756867-0003, 756867-5003S, 756867-0008, 761433-0002, 761433-5002S, A6640900780, 761433-0003, 761433-5003S, A6640900880, 762463-0002, 762463-5002S, 96440365, 762463-0003, 762463-0004, 762463-0006, 762463-5006S, 762463-9006S, 765261-0001, 03G253016HV100, 765261-0002, 765261-5002S, 03G257016HV110, 765261-0003, 765261-5003S, 765261-0004, 765261-5004S, 03G253014NV100, 765261-0005, 765261-5005S, 765261-9008S, 765261-0006, 765261-5006S, 03G253010V100, 03G253010V101, 03G253010V102, 03G253010V103, 03G253010V104, 765261-0007, 765261-5007S, 765261-0008, 765261-5008S, 771903-0002, 771903-0003, 771903-5003S, 9683200, 96832200, 11181000B01, 806874-0001, 806874-5001S

Data updated: 2025-09-23 11:20:45

Prikaži vse podrobnosti
