TurboCentras

Shaft and wheel GA-02-0035

Shaft and wheel GA-02-0035

€23,00 EUR
€23,00 EUR
Znižanje Razprodano

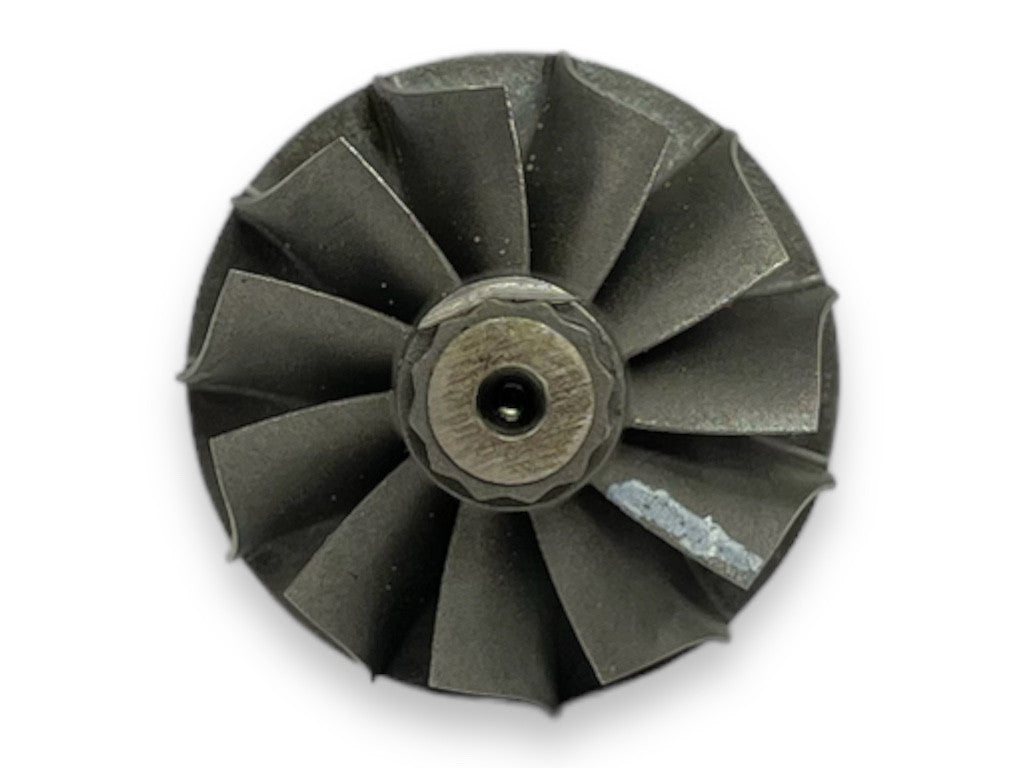

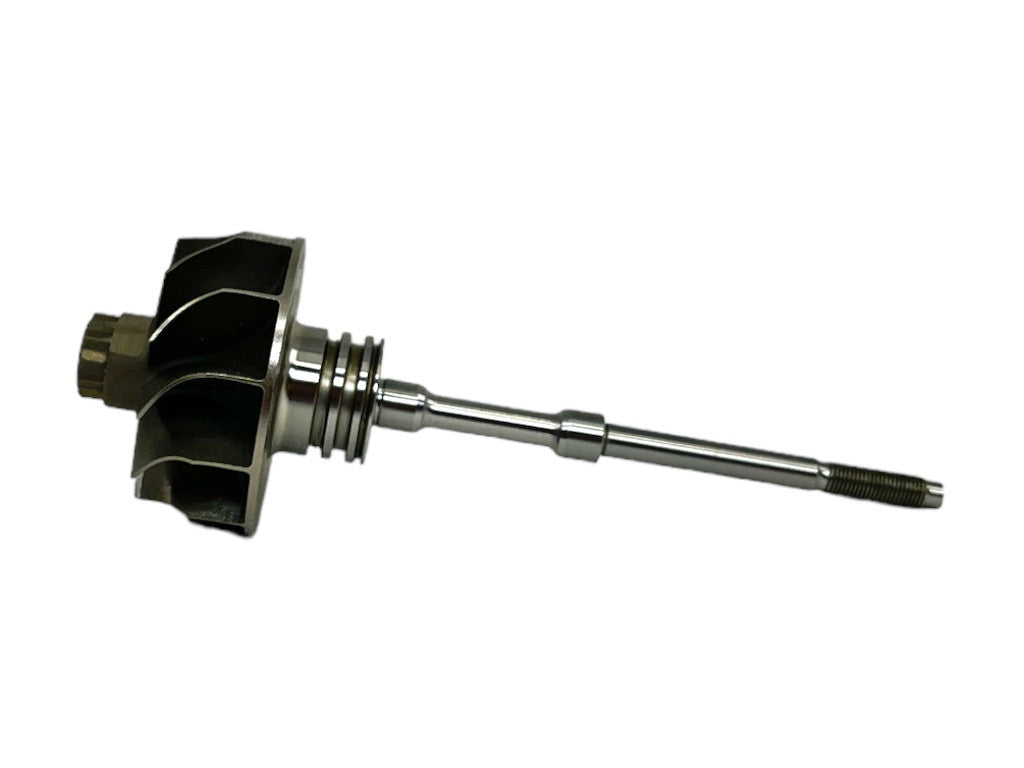

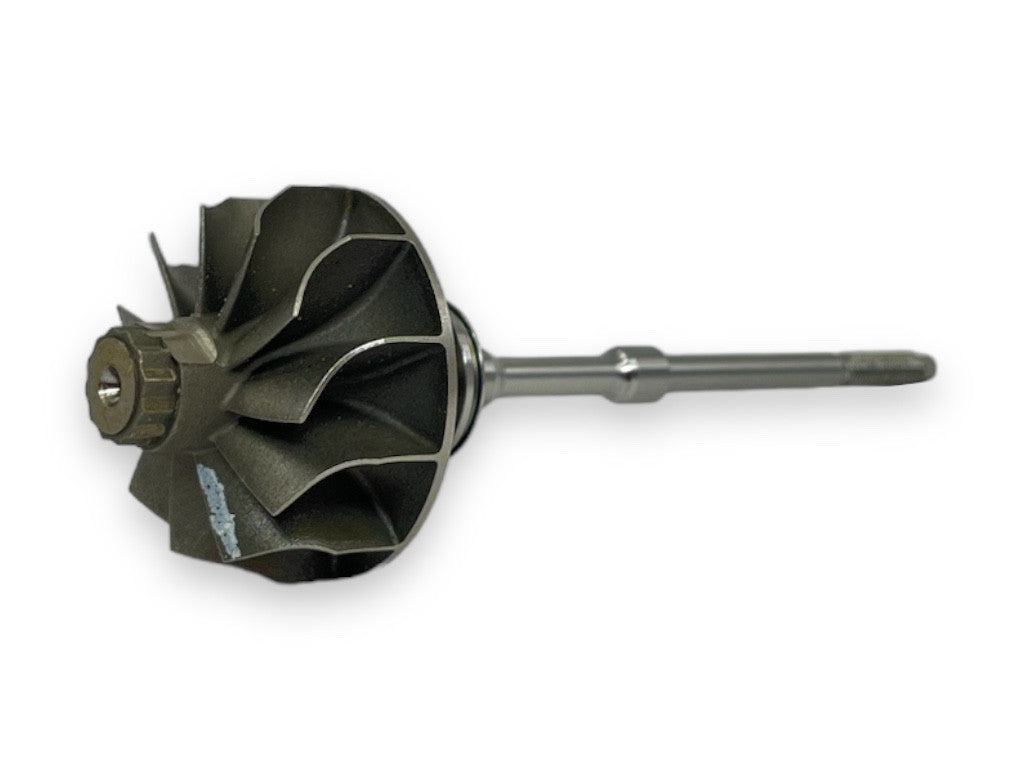

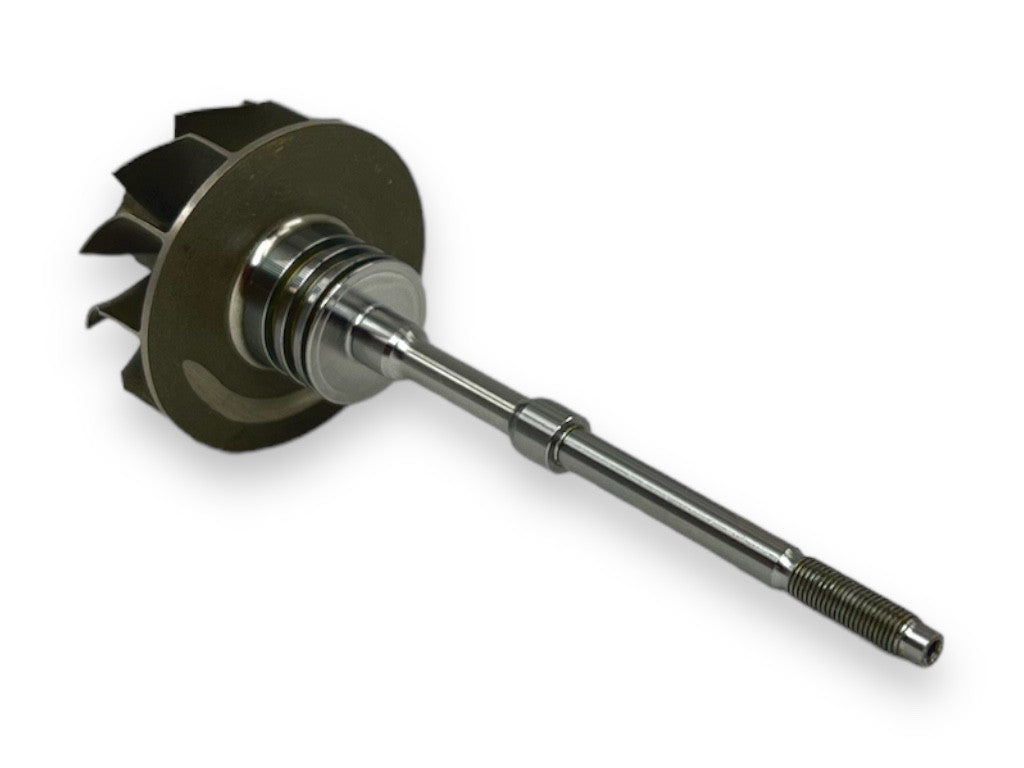

GA-02-0035 - Shaft and wheel

Brand: TurboCentras

TurboCentras Reference: GA-02-0035

GA-02-0035 - Alternative numbers

TCP (TurboCentras part number): GA-02-0035

TCO (TurboCentras old part number): GT14-42

GA-02-0035 - Part Properties

Blades (Shaft & Wheel blades count): 11

Rotation (Shaft & Wheel rotation direction): Standard

Type (Shaft & Wheel type): Slender

Back (Shaft & Wheel back type): Full

P.R. (Shaft & Wheel piston rings count): Twin

A (Size A): 35.60

A1 (Size A1): 35.60

B (Size B): 31.15

C (Size C): 7.45

D (Size D): 6.00

E (Size E): 4.08

H (Size H): 16.00

L (Size L): 80.00

T (Size T): M4.0X0.5LH

GA-02-0035
Shaft and wheel GA-02-0035 - Compatible turbochargers
TURBO MAKER TURBO MODEL TURBO PART NUMBERS TURBO OE NUMBERS
Garrett GTD1244VZ 813860-0001, 813860-5001S 04L253016H
Garrett GTD1244MVKZ 813860-0002 --
Garrett GTD1244VZ 813860-0003, 813860-5003S 04L253016H, 04L253016H V120
Garrett GTD1244VZ 820371-0001, 820371-5001S 18900-RZ0-G021-M2, 18900RZ0G021M2
Garrett GTD1244VZ 820371-0002, 820371-5002S, 820371-9002S 18900-RZ0-G021-M2, 18900RZ0G021M2
Garrett GTD1241VZK 828760-0006 --
Garrett GTD1241VZK 828760-0008 A6730900080
Garrett GTD1244VZ 829847-0003, 829847-5003S 04L253016KV100
Garrett GTD1244MVZ 829847-0005, 829847-5005S 04L253016K
Garrett GTD1244VZ 829847-0006, 829847-5006S 04L253016K
Garrett GTD1244MVZ 829847-0007, 829847-5007S 04L253124B
Garrett GTD1244VZ 840213-0001, 840213-5001S 18900-RSX-G031-M2, 18900-RSX-G033-M2, 18900RSXG031M2
Garrett GTD1244VZ 840213-0002, 840213-5002S 18900-RSX-G032-M2, 18900RSXG032M2
Garrett GTD1244VZ 847671-0001 04L253016H
Garrett GTD1244VZ 847671-0002, 847671-5002S 04L253016H, 04L253020A
Garrett GTD1244VZ 847671-0003, 847671-5003S 04L253020H
Garrett GTD1244MVZ 847671-0004, 847671-5004S, 847671-9004S 04L253020A, 04L253020S
Garrett GTD1244MVZ 847671-0004, 847671-0004-SC, 847671-5004S, 847671-9004S 04L253020S
Garrett GTD1244VKZ 854578-0002 --

GA-02-0035 - Used in turbocharges

04L253016HV120, 04L253016H, 813860-0001, 813860-5001S, 813860-0002, 04L253016H V120, 813860-0003, 813860-5003S, 18900-RZ0-G021-M2, 18900RZ0G021M2, 820371-0001, 820371-5001S, 820371-0002, 820371-5002S, 820371-9002S, 828760-0006, 828760-0008, A6730900080, 04L253016KV100, 829847-0003, 829847-5003S, 04L253016K, 829847-0005, 829847-5005S, 829847-0006, 829847-5006S, 04L253124B, 829847-0007, 829847-5007S, 18900-RSX-G031-M2, 18900-RSX-G033-M2, 18900RSXG031M2, 840213-0001, 840213-5001S, 18900-RSX-G032-M2, 18900RSXG032M2, 840213-0002, 840213-5002S, 847671-0001, 04L253020A, 847671-0002, 847671-5002S, 04L253020H, 847671-0003, 847671-5003S, 04L253020S, 847671-0004, 847671-5004S, 847671-9004S, 847671-0004-SC, 854578-0002

Data updated: 2025-09-23 10:11:04
