TurboCentras

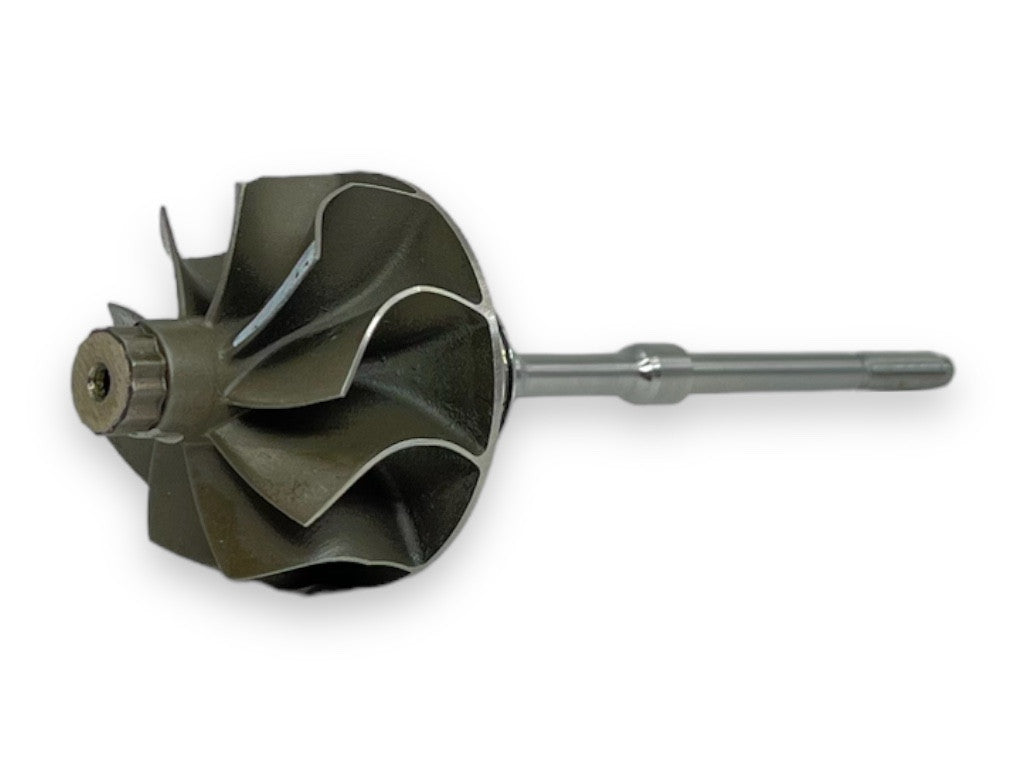

Shaft and wheel GA-02-0032
Shaft and wheel GA-02-0032
Redna cena
€19,02 EUR
Redna cena
Znižana cena
€19,02 EUR
Cena na enoto
na
Podatka o razpoložljivosti osebnega prevzema ni mogoče naložiti
GA-02-0032 - Shaft and wheel
Brand: TurboCentras
TurboCentras Reference: GA-02-0032
GA-02-0032 - Alternative numbers
TCP (TurboCentras part number): GA-02-0032
TCO (TurboCentras old part number): GT14-39
GA-02-0032 - Part Properties
Blades (Shaft & Wheel blades count): 9
Rotation (Shaft & Wheel rotation direction): Standard
Type (Shaft & Wheel type): Slender
Back (Shaft & Wheel back type): Full
P.R. (Shaft & Wheel piston rings count): Twin
A (Size A): 35.60
A1 (Size A1): 35.60
B (Size B): 32.50
C (Size C): 7.70
D (Size D): 6.00
E (Size E): 4.08
H (Size H): 18.00
L (Size L): 80.00
T (Size T): M4.0X0.5LH
| TURBO MAKER | TURBO MODEL | TURBO PART NUMBERS | TURBO OE NUMBERS |
|---|---|---|---|
| Garrett | GTC1244MVZ | 775517-0001, 775517-5001S | 03L253016T |
| Garrett | GTC1244MVZ | 775517-0002, 775517-5002S, 775517-9002S | 03L253016T |
| Garrett | GTC1244MVKZ | 775517-0005 | -- |
| Garrett | GTC1244VZ | 784011-0005, 784011-5005S | 0375P7, 968612068005, 968612068010 |
| Garrett | GTB1244VZ | 794097-0002 | 28201-2A850 |
| Garrett | GTB1244VZ | 794097-0003, 794097-5003S | 28201-2A850, 282012A850 |
| Garrett | GTC1244VZ | 804485-0002, 804485-5002S, 804485-9002S | 2X0253019D |
| Garrett | GTC1244VZ | 804485-0004, 804485-5004S, 804485-9004S | 2X0253019D |
| Garrett | GTC1244MVZ | 804485-0005 | -- |
| Garrett | GTC1244VZ | 806291-0001 | 0375P7, 968612068006, 968612068010 |
| Garrett | GTC1244VZ | 806291-0002 | 0375P7, 968612068006, 968612068010 |
| Garrett | GTC1244VZ | 806291-0003, 806291-5003S, 806291-9003S | 0375P7, 968612068006, 968612068010 |
| Garrett | GTC1244VZ | 829886-0001, 829886-5001S | 03L253014F |
GA-02-0032 - Used in turbocharges
03L253016T, 775517-0001, 775517-5001S, 775517-0002, 775517-5002S, 775517-9002S, 775517-0005, 0375P7, 784011-0005, 784011-5005S, 968612068005, 968612068010, 28201-2A850, 794097-0002, 282012A850, 794097-0003, 794097-5003S, 2X0253019D, 804485-0002, 804485-5002S, 804485-9002S, 804485-0004, 804485-5004S, 804485-9004S, 804485-0005, 806291-0001, 968612068006, 806291-0002, 806291-0003, 806291-5003S, 806291-9003S, 03L253014F, 829886-0001, 829886-5001SData updated: 2025-09-23 10:08:03
