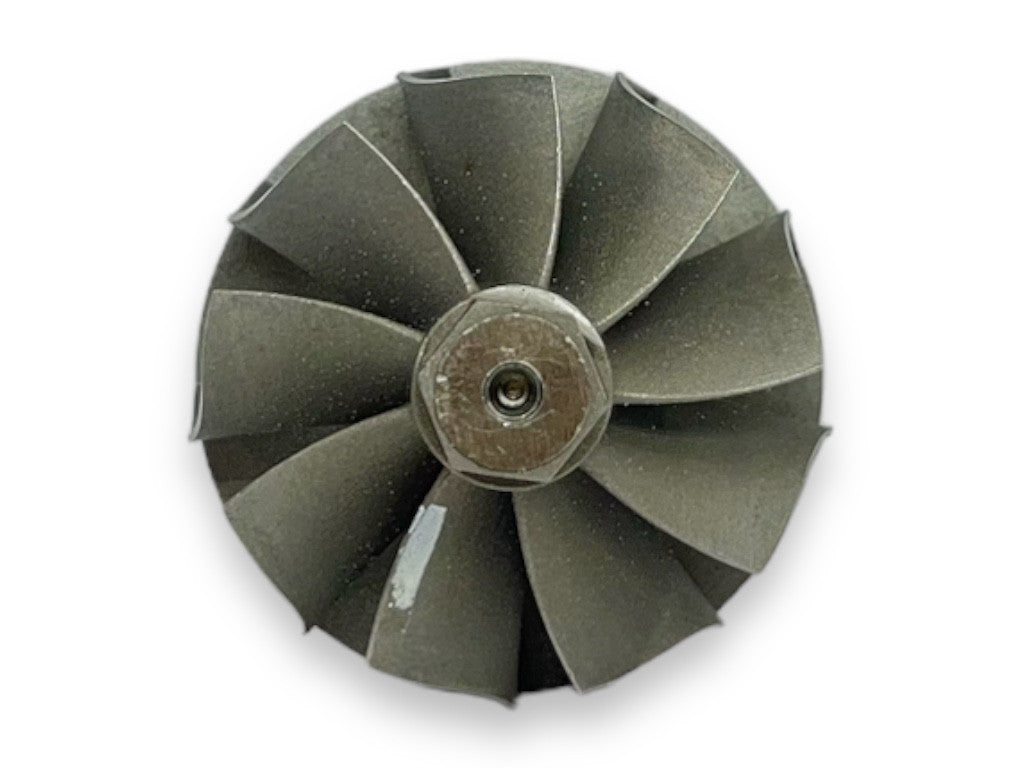

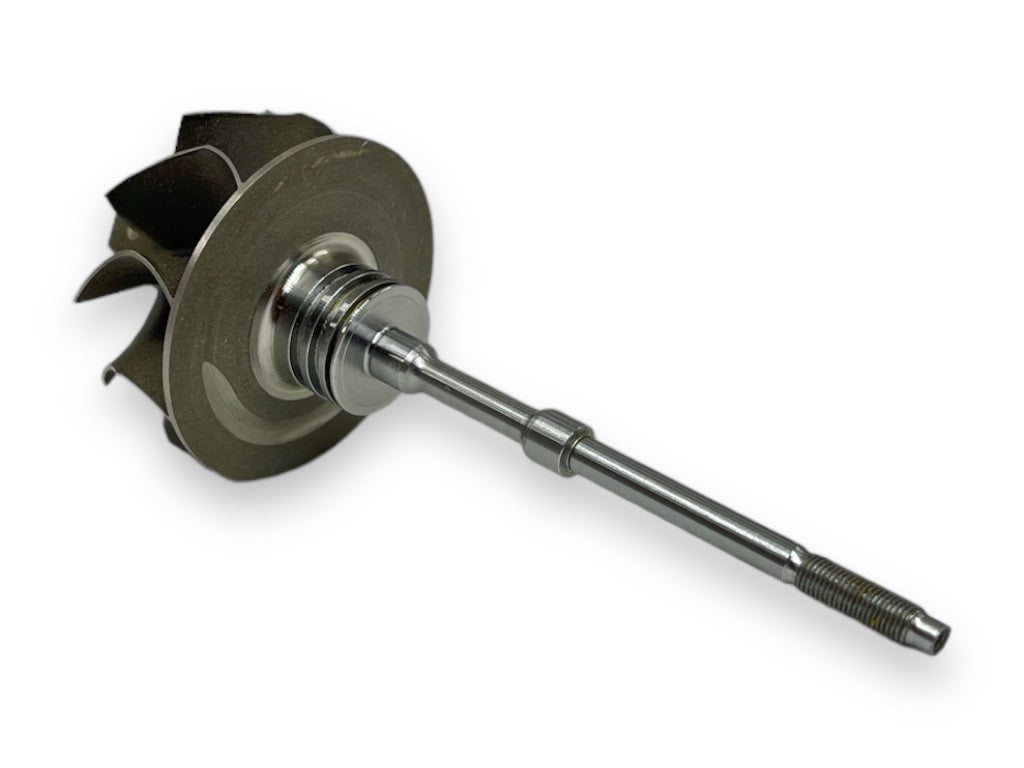

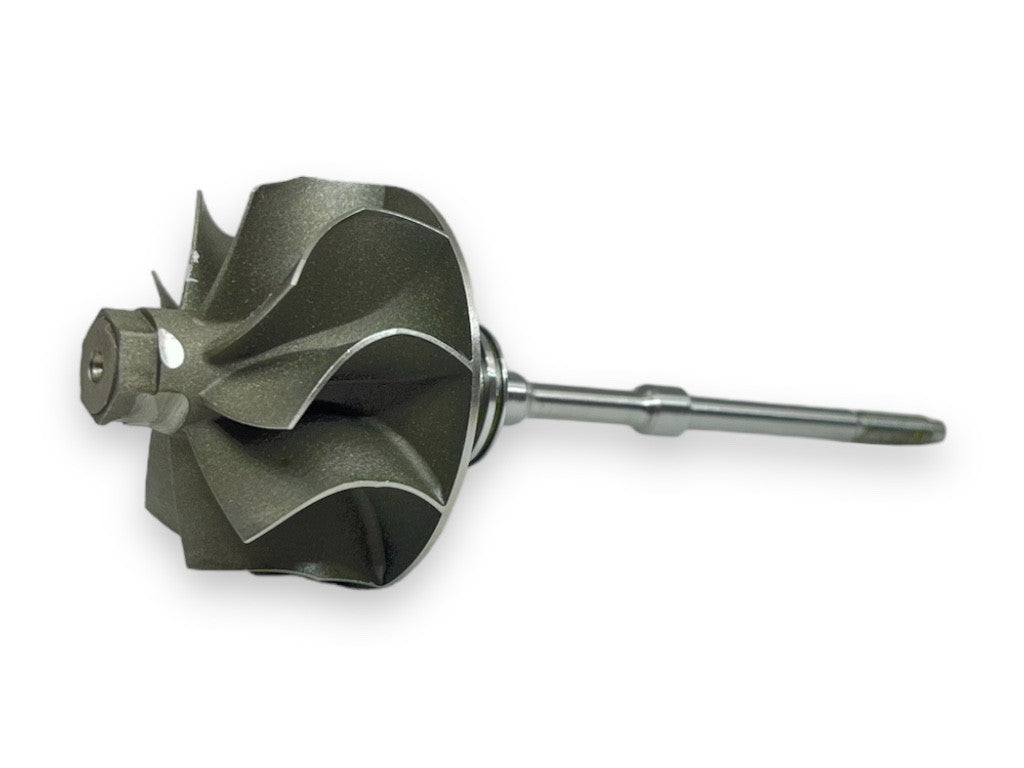

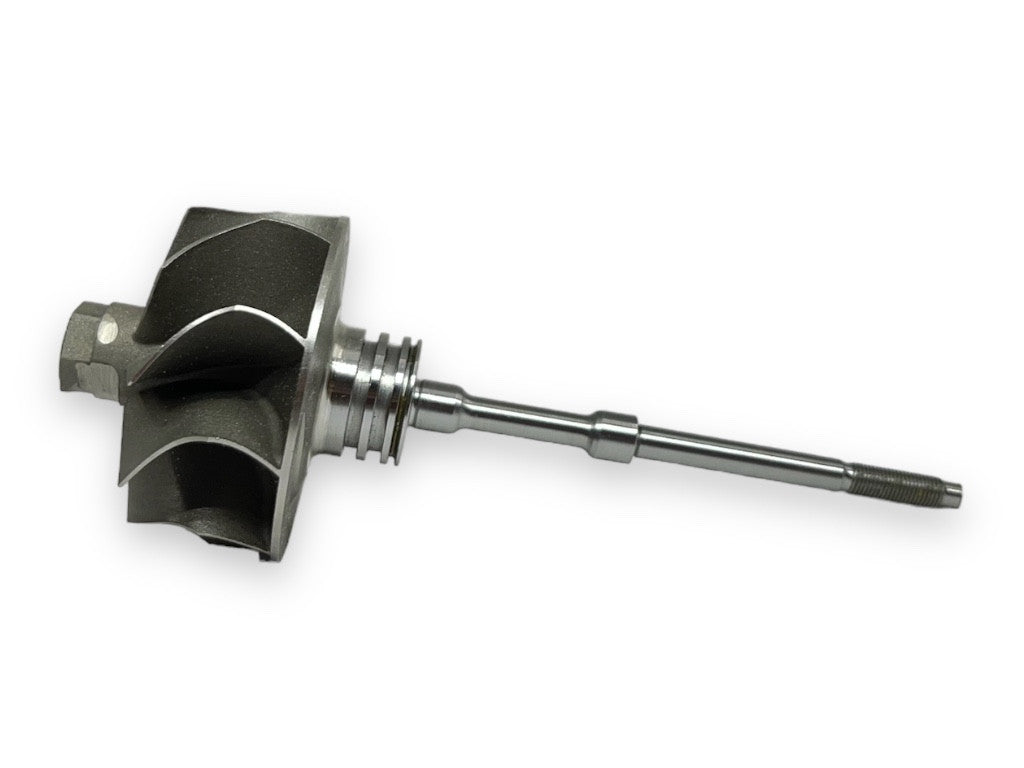

Shaft and wheel GA-02-0031
Shaft and wheel GA-02-0031
Redna cena
€26,94 EUR
Redna cena
Znižana cena
€26,94 EUR
Cena na enoto
na
Podatka o razpoložljivosti osebnega prevzema ni mogoče naložiti
GA-02-0031 - Shaft and wheel
Brand: TurboCentras
TurboCentras Reference: GA-02-0031
GA-02-0031 - Alternative numbers
TCP (TurboCentras part number): GA-02-0031
TCO (TurboCentras old part number): GT14-38
GA-02-0031 - Part Properties
Blades (Shaft & Wheel blades count): 9
Rotation (Shaft & Wheel rotation direction): Standard
Type (Shaft & Wheel type): Slender
Back (Shaft & Wheel back type): Full
P.R. (Shaft & Wheel piston rings count): Twin
A (Size A): 41.00
A1 (Size A1): 41.00
B (Size B): 37.60
C (Size C): 9.20
D (Size D): 6.00
E (Size E): 4.08
H (Size H): 22.00
L (Size L): 80.00
T (Size T): M4.0X0.5LH
| TURBO MAKER | TURBO MODEL | TURBO PART NUMBERS | TURBO OE NUMBERS |
|---|---|---|---|
| Garrett | GTC1549MVZ | 785448-0003, 785448-5003S | 03L253010E |
| Garrett | GTC1549MVZ | 785448-0005, 785448-5005S, 785448-9005S | 03L253010F |
| Garrett | GTC1549VZ | 785448-0006, 785448-5005S, 785448-9005S | 03L253010E, 03L253010F |
| Garrett | GTC1549MVZ | 785448-0005, 785448-5005S | 03L253010F |
| Garrett | GTC1549VZ | 804888-0003 | 03L145701K, 03L145701L, 03L145701LV400, 03L145702G |
| Garrett | GTC1549VZ | 809415-0001 | DP2-6K682-AB |
| Garrett | GTC15V | 809415-0002, 809415-5002S | DP1-6K682-CA |
| Garrett | GTC1549VZ | 809415-0004, 809415-5004S | DP26K682AC |
| Garrett | GTC1549VZ | 817047-0001 | 03L145701K, 03L145702G, 03L145721B |
| Garrett | GTC1549VZ | 817083-0001, 817083-5001S | 03L145721D |
| Garrett | GTC1549VZ | 818987-0001, 818987-5001S, 818987-9001S | 03L145721BV100 |
| Garrett | GTC1549VZ | 818987-0002 | -- |
| Garrett | GTC1549VZ | 818990-0001, 818990-5001S | 03L145721D, 03L145721DV100 |
| Garrett | GTC1549VZ | 818990-0002 | 03L145721D, 03L145721DV100 |
| Garrett | GTC1549VZ | 842483-0002 | -- |
| Garrett | GTC1549VZ | 842483-0003 | -- |
| Garrett | GTC1549VZ | 842483-0004 | -- |
GA-02-0031 - Used in turbocharges
03L253010E, 785448-0003, 785448-5003S, 03L253010F, 785448-0005, 785448-5005S, 785448-9005S, 785448-0006, 03L145701K, 03L145701L, 03L145701LV400, 03L145702G, 804888-0003, 809415-0001, DP2-6K682-AB, 809415-0002, 809415-5002S, DP1-6K682-CA, 809415-0004, 809415-5004S, DP26K682AC, 03L145721B, 817047-0001, 03L145721D, 817083-0001, 817083-5001S, 03L145721BV100, 818987-0001, 818987-5001S, 818987-9001S, 818987-0002, 03L145721DV100, 818990-0001, 818990-5001S, 818990-0002, 842483-0002, 842483-0003, 842483-0004Data updated: 2025-09-23 10:05:44
