TurboCentras

Compressor wheel IH-03-0028

Compressor wheel IH-03-0028

€8,96 EUR
€8,96 EUR
Znižanje Razprodano

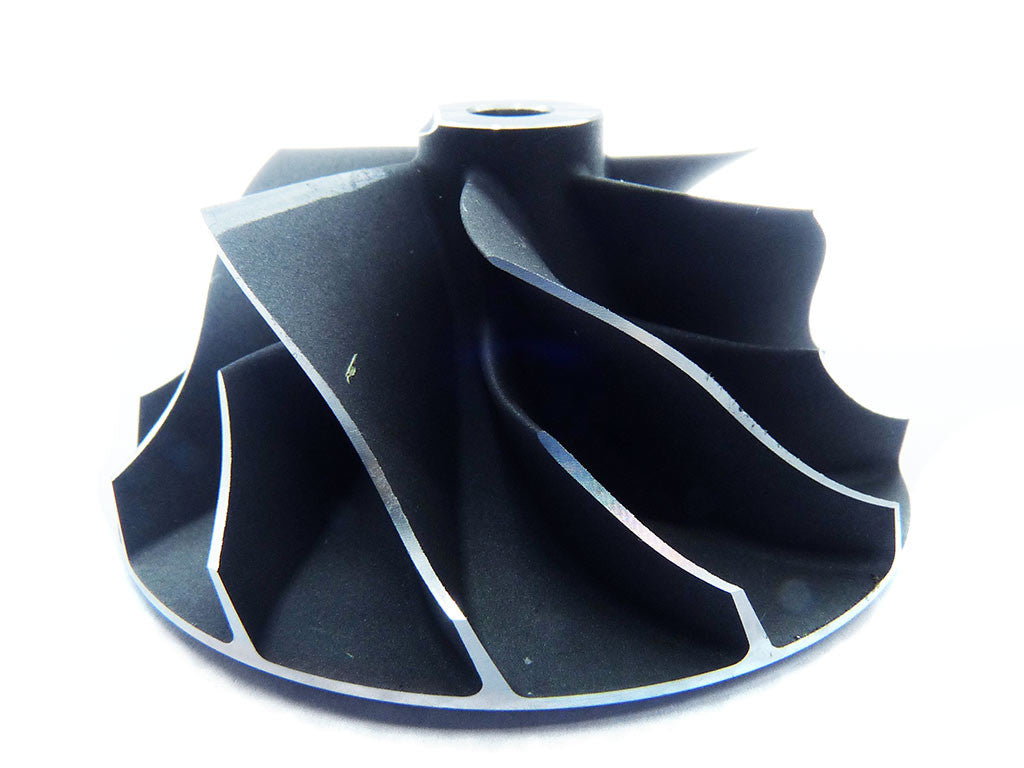

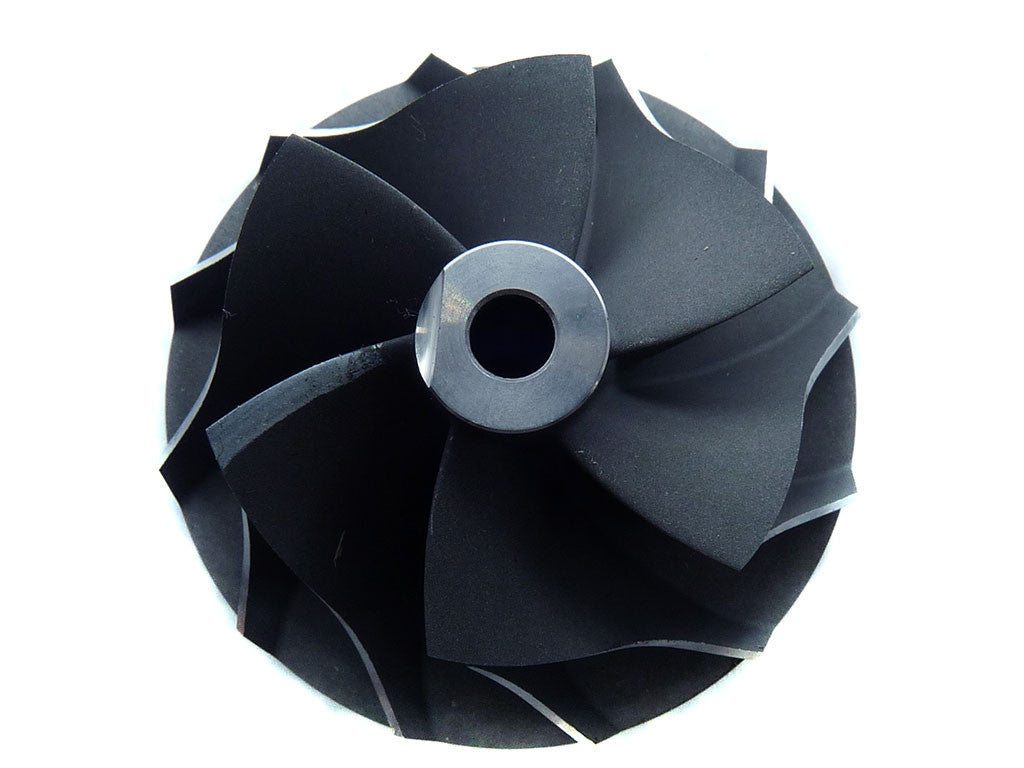

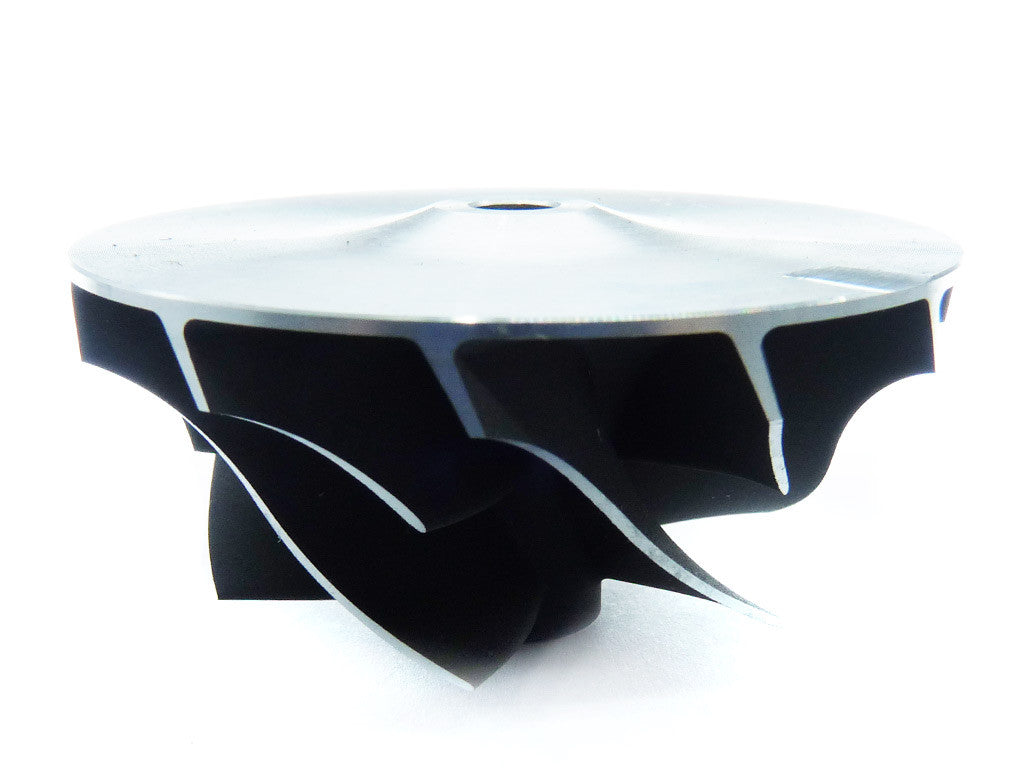

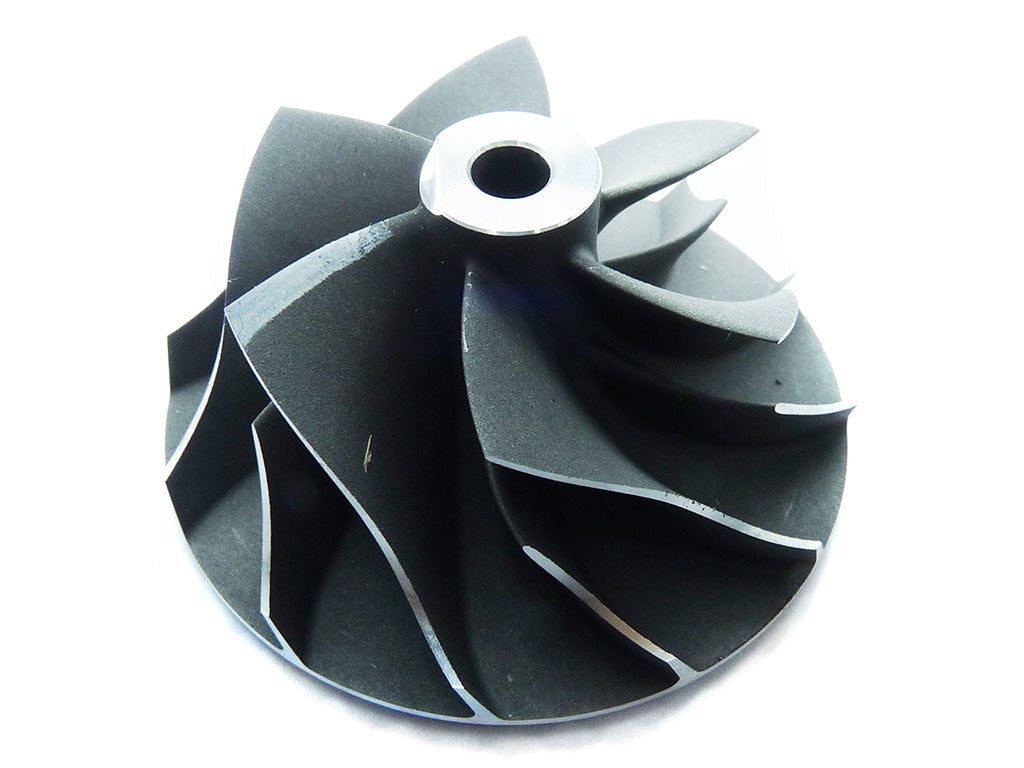

IH-03-0028 - Compressor wheel

Brand: TurboCentras

TurboCentras Reference: IH-03-0028

IH-03-0028 - Alternative numbers

TCP (TurboCentras part number): IH-03-0028

TCO (TurboCentras old part number): RHF5-02

IH-03-0028 - Compatibility table

Compressor wheel IH-03-0028 - Compatible turbochargers
TURBO MAKER TURBO MODEL TURBO REFERENCE TURBO PART NUMBER TURBO OE NUMBER
IHI RHF5 06J145701F 9VA02 06J145701F
IHI RHF5 06J145701N 9VA13 06J145701N
IHI RHF5 06J145701Q 9VA02 06J145701Q
IHI RHF5 06J145701T 9VA13 06J145701T
IHI RHF5 06J145702B 9VA02 06J145702B
IHI RHF5 06J145702K 9VA13 06J145702K
IHI RHF5 06J145702L 9VA02 06J145702L
IHI RHF5 06J145702T -- 06J145702T
IHI RHF5 06J145703C -- 06J145703C
IHI RHF5 06J145703N -- 06J145703N
IHI RHF5 06J145704D -- 06J145704D
IHI RHF5 06J145710L -- 06J145710L
IHI RHF5 06J145713A 9VA15 06J145713A
IHI RHF5 06J145713C -- 06J145713C
IHI RHF5 06J145713F 9VA15 06J145713F
IHI RHF5 06J145713K 9VA13 06J145713K
IHI RHF5 06J145713L 9VA02 06J145713L
IHI RHF5 06J145713T 9VA13 06J145713T
IHI RHF5 06J145722B 9VA13 06J145722B
IHI RHF5 9VA15 9VA15, F51CAY-SR038B 06J145713A, 06J145713D, 06J145713F
IHI RHF5 FU10000698 FU10000698 F50FF001A
IHI RHF5 KHF5-2B KHF5-2B, RHF5-2B 28200-4X400, 28201-4X700, 28201-4X701, 28201-4X710
IHI RHF5 SF500027 SF500027 P700000204
IHI RHF5-64006P15NHBRL3930CEZ VIDW F51CAD-S0077B, F51CAD-S0077G, V*430077, VA430077, VB430077, VC430077, VIDW 8973109482, 8973109483
IHI RHF5-64006P15NHBRL401CEZ VIED F51CAD-S0084B, F51CAD-S0093B, VC430084, VIED 8973659480, 8973659481, 8973659482
IHI RHF5-64006P15NHBRL401CEZ VIEK F51CAD-S0093B, VB430093, VIEK 8973544234
IHI RHF5-6400N VR14 VR14 --
IHI RHF5-64006P15NHBRL401CEZ VR15 KHF5-1A, VA430036, VB430036, VR12A, VR15 28200-4X300, OK059A-13700, OK551-13700C
IHI RHF5 VR18 KHF5-4A, VR18 28200-4X610, 28201-4X610

IH-03-0028 - Part Properties

Blades (Compressor wheel blades count): 6/6

Rotation (Compressor wheel rotation direction): Standard

Type (Compressor wheel production method type): Cast

Back (Compressor wheel back design): Super

A (Size A): 52.50

A1 (Size A1): 52.50

B (Size B): 39.40

C (Size C): 5.40

C1 (Size C1): 1.60

D (Size D): 26.60

E (Size E): 5.10

IH-03-0028
IH-03-0028, RHF5-02
06J145701F, 9VA02, 06J145701N, 9VA13, 06J145701Q, 9VA02, 06J145701T, 9VA13, 06J145702B, 9VA02, 06J145702K, 9VA13, 06J145702L, 9VA02, 06J145702T, 06J145703C, 06J145703N, 06J145704D, 06J145710L, 06J145713A, 9VA15, 06J145713C, 06J145713F, 9VA15, 06J145713K, 9VA13, 06J145713L, 9VA02, 06J145713T, 9VA13, 06J145722B, 9VA13, 06J145713A, 06J145713D, 06J145713F, 9VA15, F51CAY-SR038B, F50FF001A, FU10000698, 28200-4X400, 28201-4X700, 28201-4X701, 28201-4X710, KHF5-2B, RHF5-2B, P700000204, SF500027, 8973109482, 8973109483, F51CAD-S0077B, F51CAD-S0077G, V*430077, VA430077, VB430077, VC430077, VIDW, 8973659480, 8973659481, 8973659482, F51CAD-S0084B, F51CAD-S0093B, VC430084, VIED, 8973544234, F51CAD-S0093B, VB430093, VIEK, VR14, 28200-4X300, KHF5-1A, OK059A-13700, OK551-13700C, VA430036, VB430036, VR12A, VR15, 28200-4X610, 28201-4X610, KHF5-4A, VR18

Data updated: 2025-02-07 18:00:42
