TurboCentras

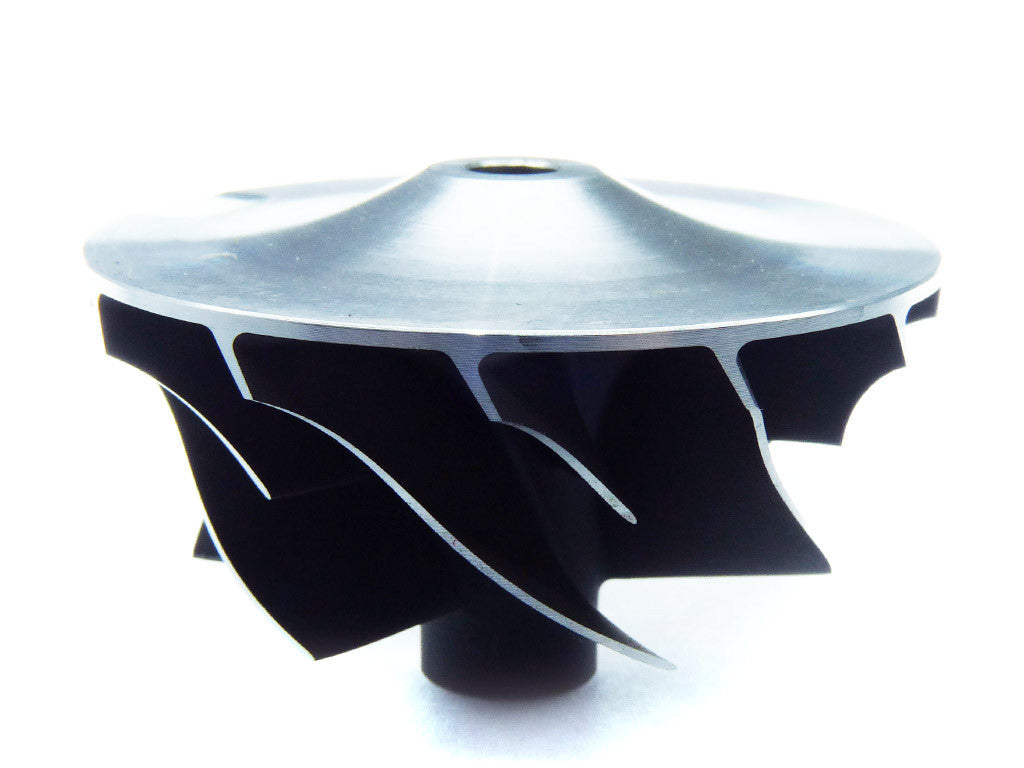

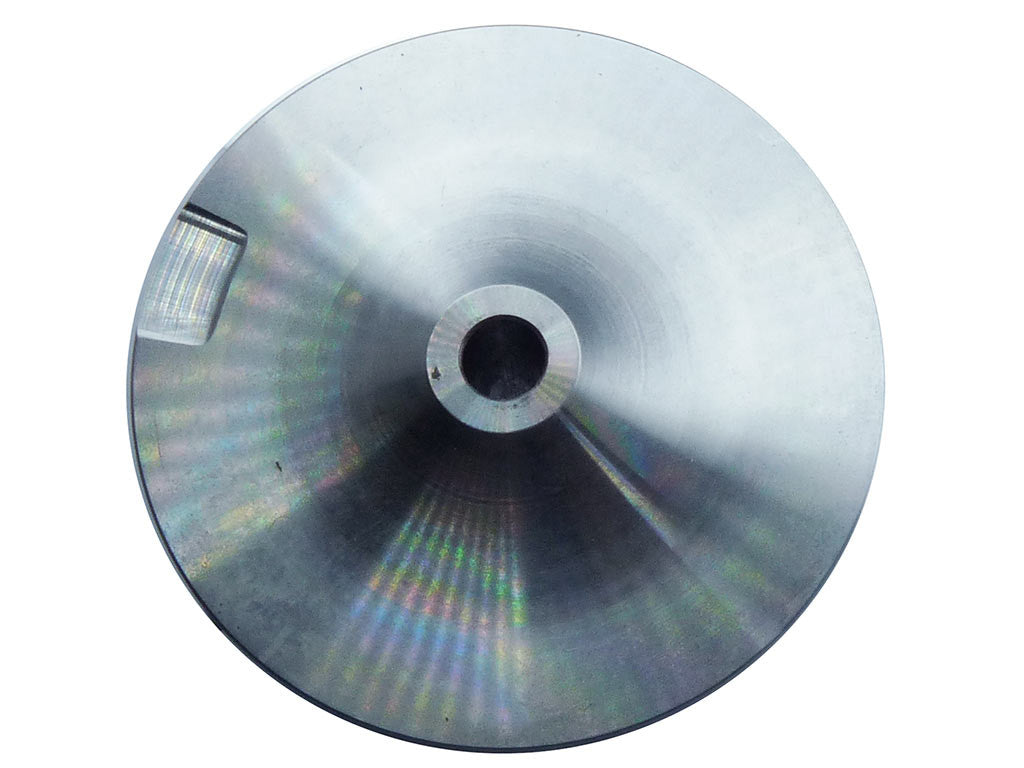

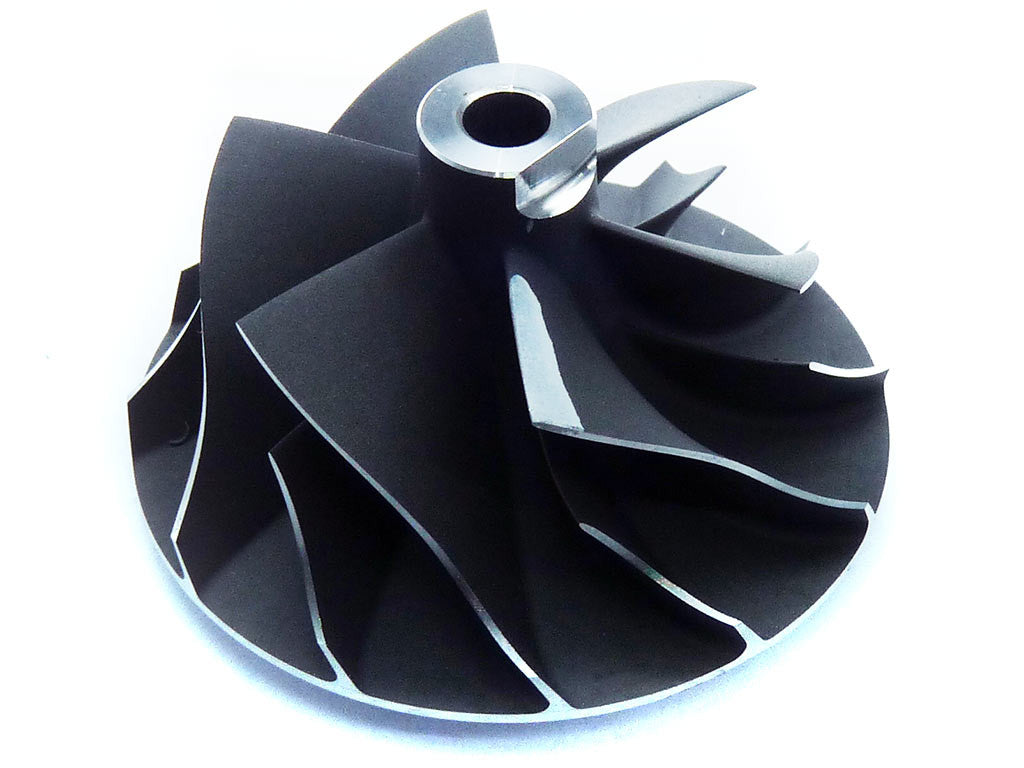

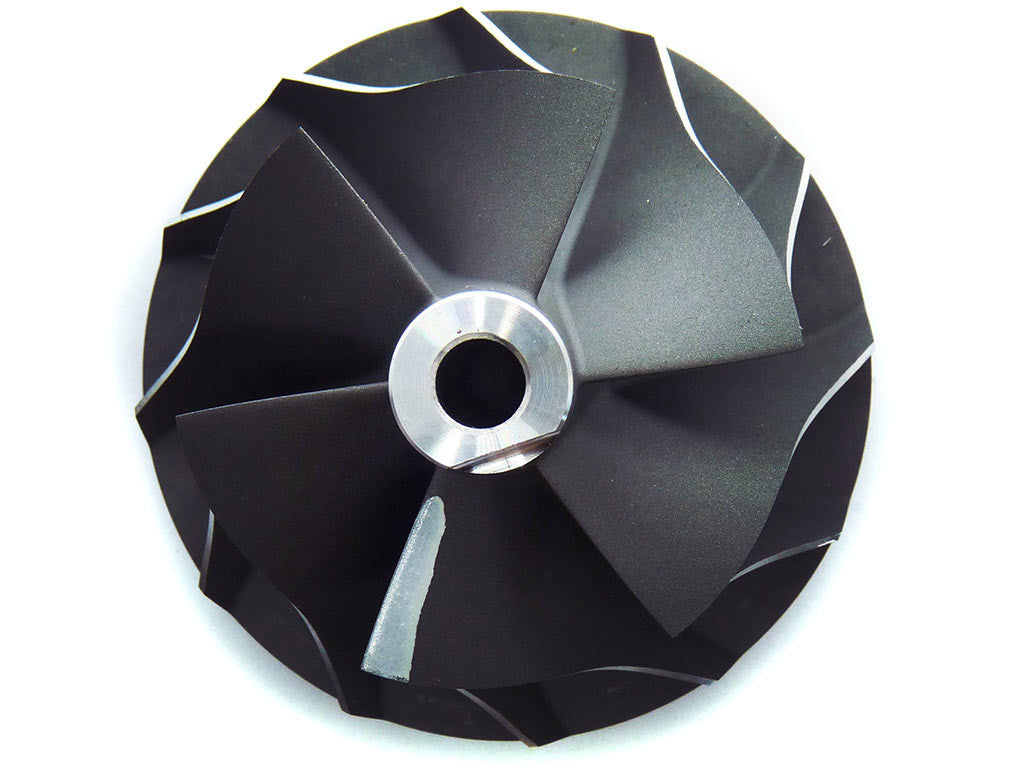

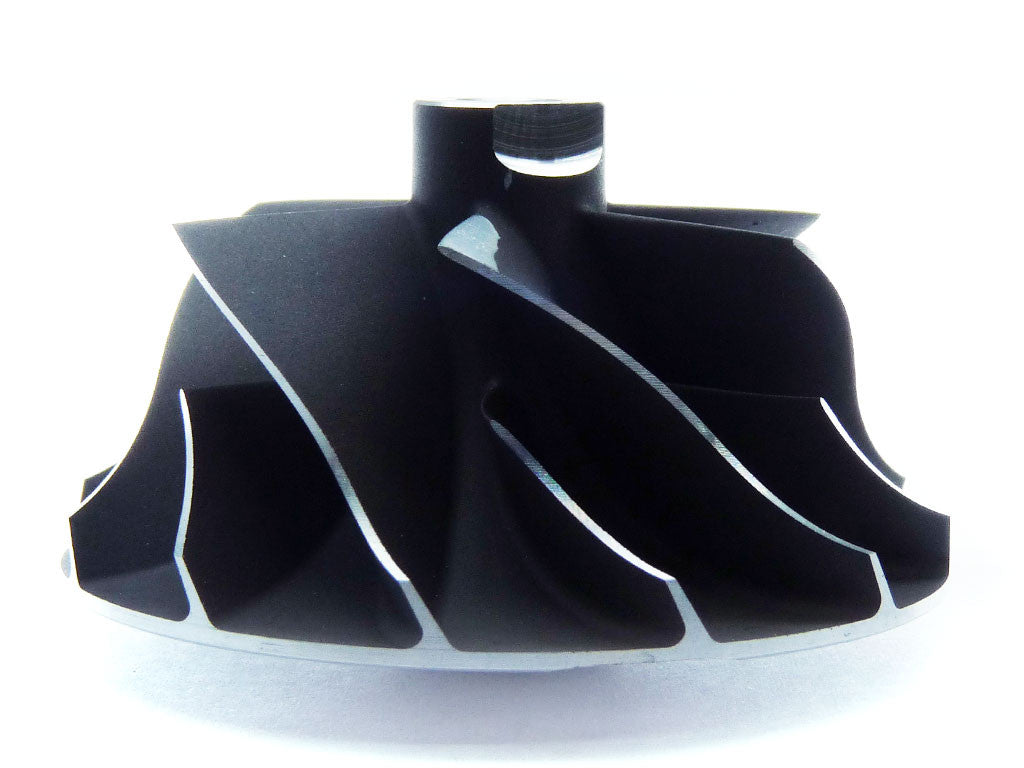

Compressor wheel IH-03-0019
Compressor wheel IH-03-0019
Redna cena
€8,58 EUR
Redna cena
Znižana cena
€8,58 EUR
Cena na enoto
na
Podatka o razpoložljivosti osebnega prevzema ni mogoče naložiti
IH-03-0019 - Compressor wheel
Brand: TurboCentras
TurboCentras Reference: IH-03-0019
IH-03-0019 - Alternative numbers
TCP (TurboCentras part number): IH-03-0019
TCO (TurboCentras old part number): RHF4-09
IH-03-0019 - Compatibility table
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO PART NUMBER | TURBO OE NUMBER |
|---|---|---|---|---|
| IHI | RHV4 | VB22 | VB22 | -- |
| IHI | RHV4-720010P15NMXBRS389CD | VB23 | VAD20027, VB23, VBD20027, VCD20027, VDD20027, VED20027 | 17208-51010 |
| IHI | RHV4 | VB36 | VB36 | 17201-51201 |
| IHI | RHV4 | VB37 | VB37 | 17208-51011 |
| IHI | RHV4 | VV19 | AL0044, V41VEY-S0096B, VV19 | A6460900780, A6460901380, A6460901580 |
IH-03-0019 - Part Properties
Blades (Compressor wheel blades count): 6/6
Rotation (Compressor wheel rotation direction): Standard
Type (Compressor wheel production method type): Cast
Back (Compressor wheel back design): Deep Super
A (Size A): 48.00
A1 (Size A1): 48.00
B (Size B): 37.20
C (Size C): 4.30
C1 (Size C1): 3.85
D (Size D): 29.60
E (Size E): 5.10
IH-03-0019, RHF4-09
VB22, 17208-51010, VAD20027, VB23, VBD20027, VCD20027, VDD20027, VED20027, 17201-51201, VB36, 17208-51011, VB37, A6460900780, A6460901380, A6460901580, AL0044, V41VEY-S0096B, VV19
Data updated: 2024-06-20 16:41:46
