Compressor wheel IH-03-0016
Compressor wheel IH-03-0016
Redna cena
€9,32 EUR
Redna cena
Znižana cena
€9,32 EUR
Cena na enoto
na
Podatka o razpoložljivosti osebnega prevzema ni mogoče naložiti

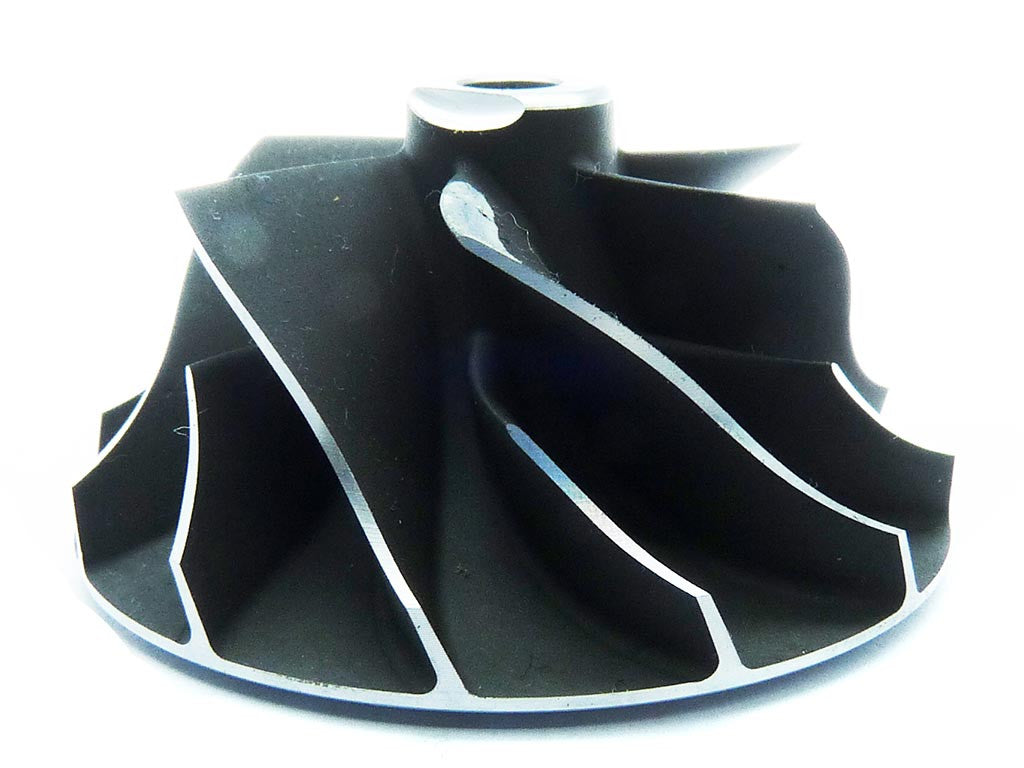

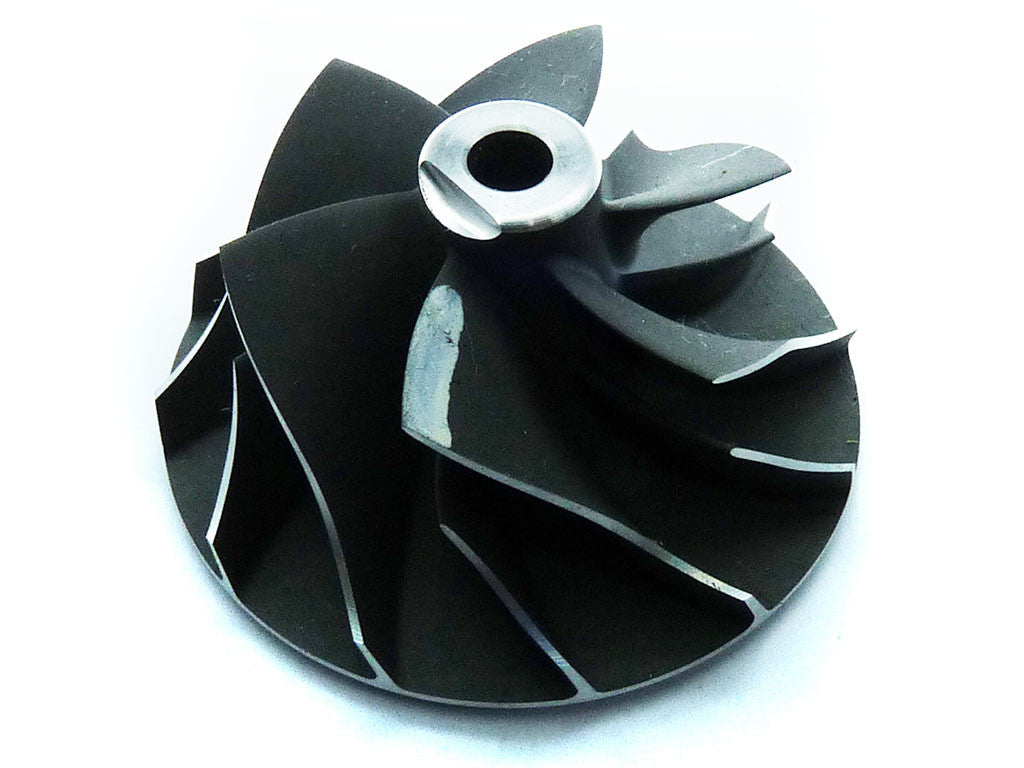

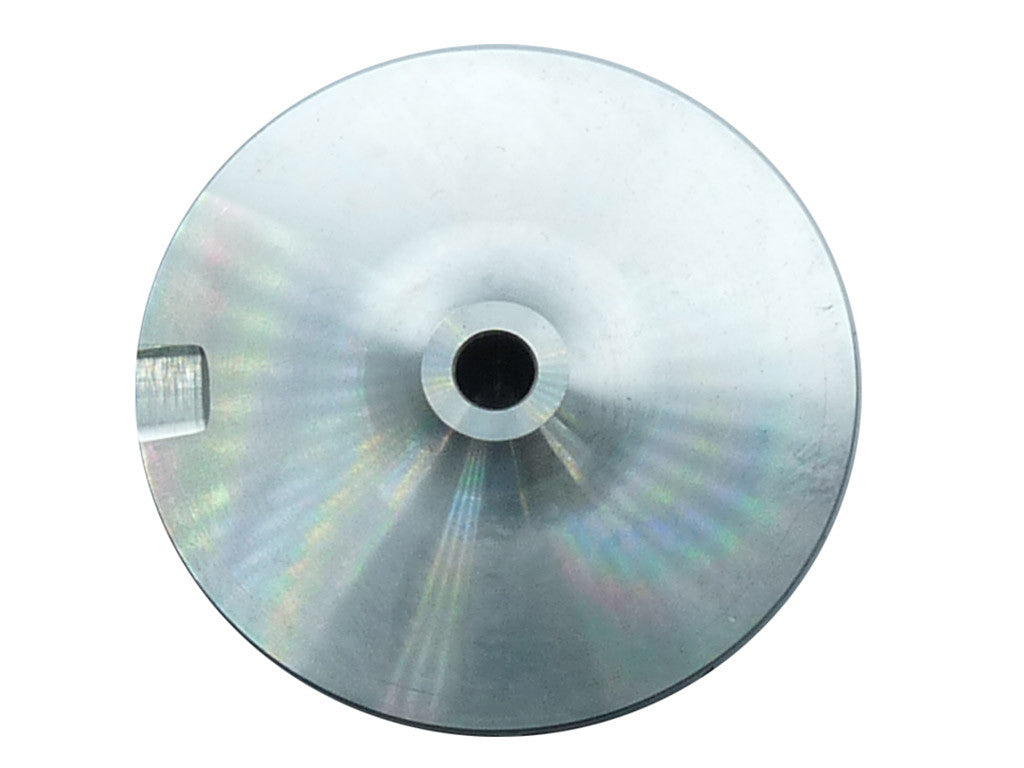

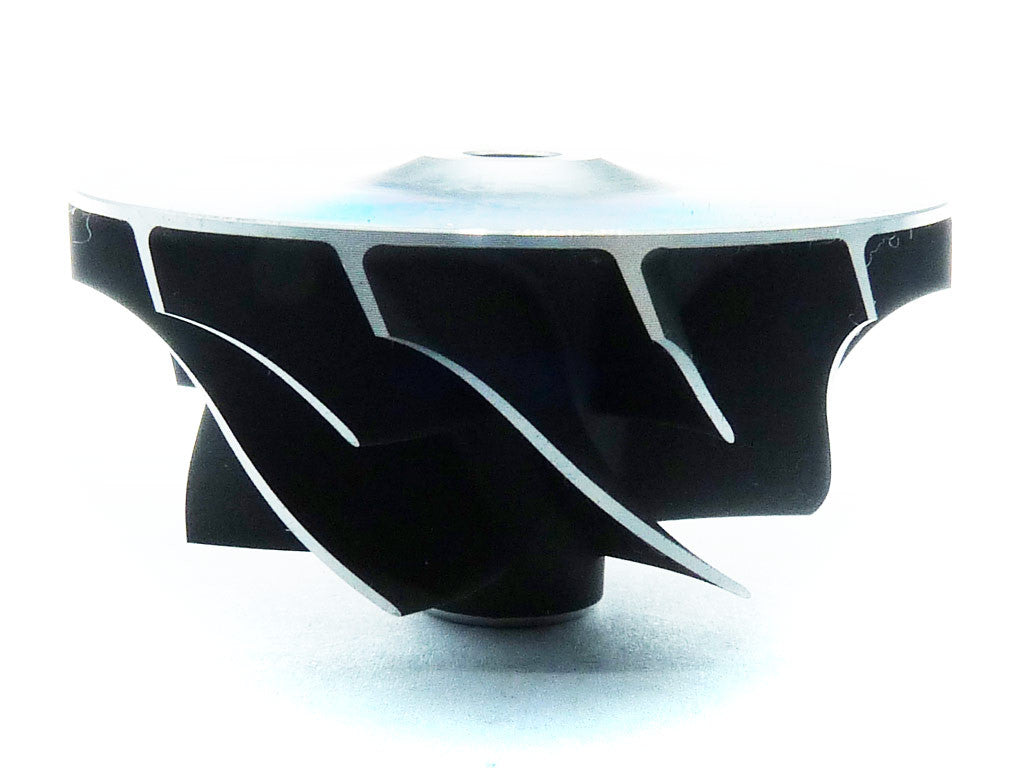

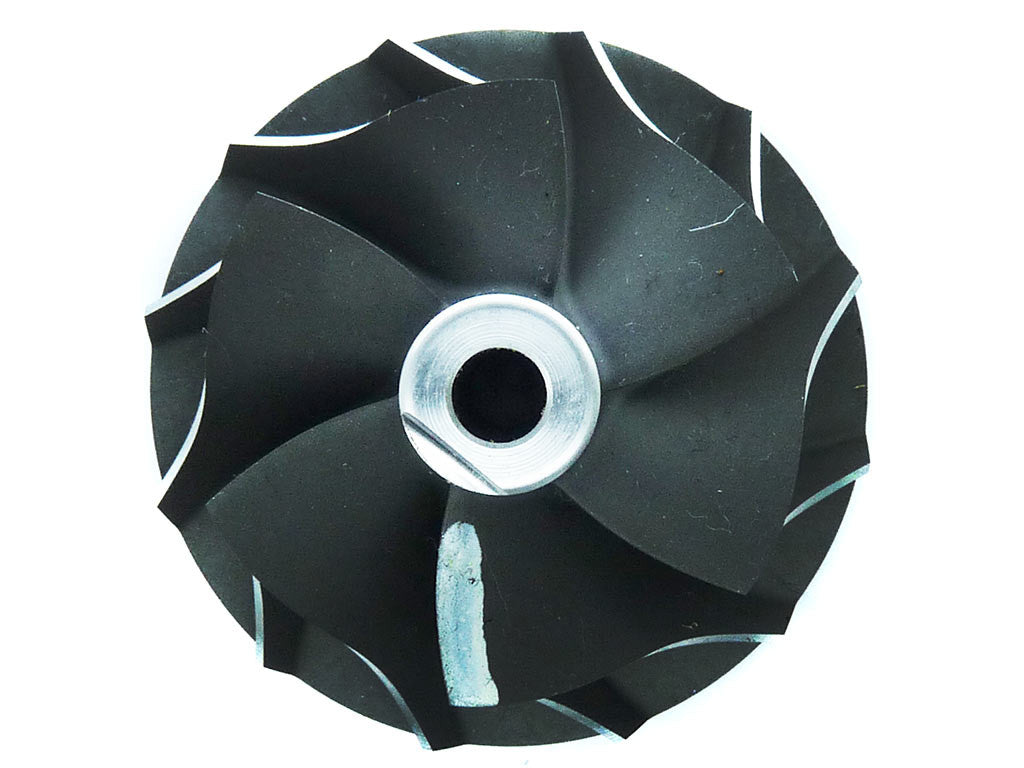

IH-03-0016 - Compressor wheel
Brand: TurboCentras
TurboCentras Reference: IH-03-0016
IH-03-0016 - Alternative numbers
TCP (TurboCentras part number): IH-03-0016
TCO (TurboCentras old part number): RHF4-06
IH-03-0016 - Compatibility table
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO PART NUMBER | TURBO OE NUMBER |
|---|---|---|---|---|
| IHI | RHF4H-64006P12NHBRL362CCZ | VIBR | 4T-504, F41CAD-S0014B, F41CAD-S0014G, V*420014, VA420014, VB420014, VC420014, VD420014, VE420014, VF420014, VG420014, VIBR | 8971397241, 8971397242, 8971397243 |
| IHI | RHF4 | VICL | VICL | -- |
| IHI | RHF4H-64006P12NHBRL362CCZ | VICQ | F41CAD-S0028B, F41CAD-S0028G, VA420028, VB420028, VC420028, VD420028, VE420028, VF420028, VH420028, VICQ | 8971923310, 8971923311, 8971923312, 8971923314 |
| IHI | RHF4H-64006P16NHBRL362CC | VICT | F41CND-S0041B, F41CND-S0041G, VA420041, VB420041, VC420041, VD420041, VE420041, VICT | 8972128422, 8972128423 |
| IHI | RHF4 | VIDA | VIDA | -- |
| IHI | RHF4H-64006P12NHBRL362CCZ | VIDE | F41CAD-S0054B, F41CAD-S0054G, VA420054, VB420054, VC420054, VIDE | 8972585940 |
| IHI | RHF4 | VIEF | VIEF | -- |
| IHI | RHF4H-64006PZ10.5NHBRL363CCZ | VN2 | 4T-509, F41CAD-S0051B, F41CAD-S0051G, VA420051, VB420051, VC420051, VD420051, VE420051, VN2 | 14411-8H800, 14411-8H80B, 14411-8H80C |
| IHI | RHF4H | VN3 | VA420058, VA420115, VB420058, VD420058, VN3 | 14411-VK500, 14411-VK50B |
| IHI | RHF4 | VV11 | VV11 | -- |
| IHI | RHF4 | VV13 | VV13 | -- |
| IHI | RHF4 | VV17 | VV17 | -- |
IH-03-0016 - Part Properties
Blades (Compressor wheel blades count): 6/6
Rotation (Compressor wheel rotation direction): Standard
Type (Compressor wheel production method type): Cast
Back (Compressor wheel back design): Super
A (Size A): 47.00
A1 (Size A1): 47.00
B (Size B): 35.40
C (Size C): 4.85
C1 (Size C1): 1.30
D (Size D): 25.00
E (Size E): 5.10
IH-03-0016, RHF4-06
4T-504, 8971397241, 8971397242, 8971397243, F41CAD-S0014B, F41CAD-S0014G, V*420014, VA420014, VB420014, VC420014, VD420014, VE420014, VF420014, VG420014, VIBR, VICL, 8971923310, 8971923311, 8971923312, 8971923314, F41CAD-S0028B, F41CAD-S0028G, VA420028, VB420028, VC420028, VD420028, VE420028, VF420028, VH420028, VICQ, 8972128422, 8972128423, F41CND-S0041B, F41CND-S0041G, VA420041, VB420041, VC420041, VD420041, VE420041, VICT, VIDA, 8972585940, F41CAD-S0054B, F41CAD-S0054G, VA420054, VB420054, VC420054, VIDE, VIEF, 14411-8H800, 14411-8H80B, 14411-8H80C, 4T-509, F41CAD-S0051B, F41CAD-S0051G, VA420051, VB420051, VC420051, VD420051, VE420051, VN2, 14411-VK500, 14411-VK50B, VA420058, VA420115, VB420058, VD420058, VN3, VV11, VV13, VV17
