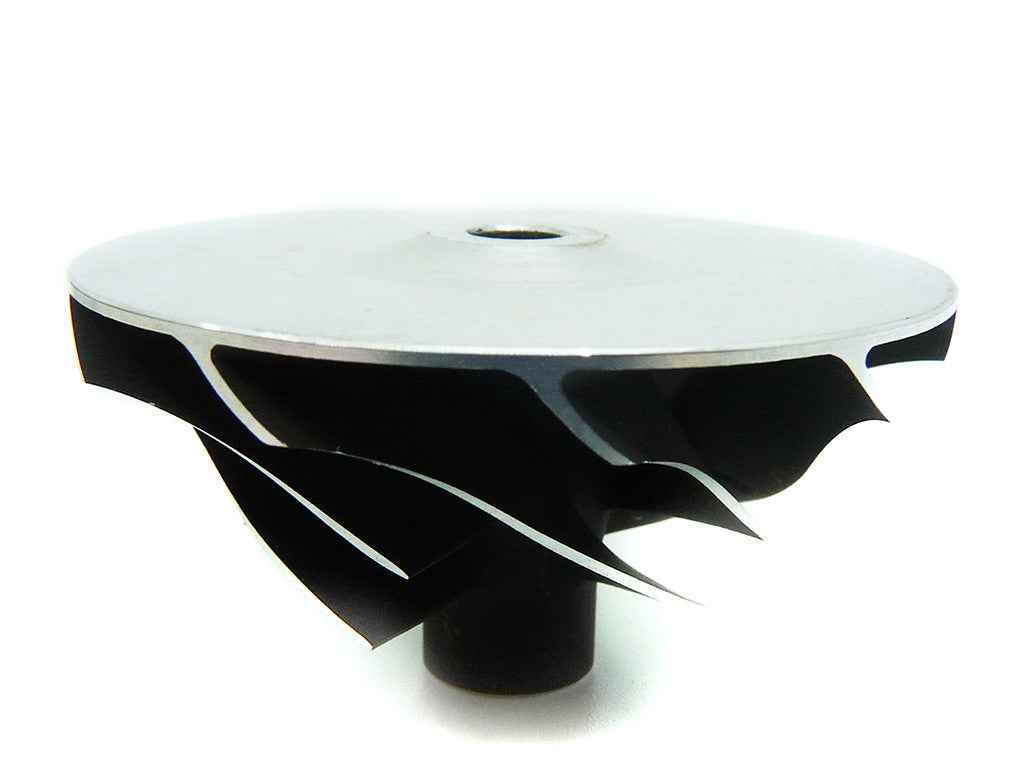

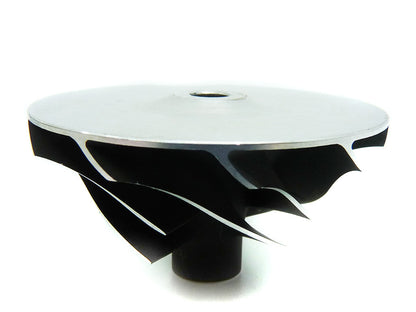

Compressor wheel IH-03-0012
Compressor wheel IH-03-0012
Redna cena
€10,16 EUR
Redna cena
Znižana cena
€10,16 EUR
Cena na enoto
na
Podatka o razpoložljivosti osebnega prevzema ni mogoče naložiti
IH-03-0012 - Compressor wheel
Brand: TurboCentras
TurboCentras Reference: IH-03-0012
IH-03-0012 - Alternative numbers
TCP (TurboCentras part number): IH-03-0012
TCO (TurboCentras old part number): RHF4-02
IH-03-0012 - Compatibility table
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO PART NUMBER | TURBO OE NUMBER |
|---|---|---|---|---|
| IHI | RHF4-46001P8.5NHBRL323CAZ | AS11 | 4T-507, AS11, F41CAD-S0057B, F41CAD-S0057G, VA420057, VB420057, VC420057 | 135756170, 135756171 |
| IHI | RHF4-46001P8.5NHBRL323CAZ | AS12 | AS12, VA420081, VB420081, VC420081 | 135756180 |
IH-03-0012 - Part Properties
Blades (Compressor wheel blades count): 5/5
Rotation (Compressor wheel rotation direction): Standard
Type (Compressor wheel production method type): Cast
Back (Compressor wheel back design): Super
A (Size A): 46.00
A1 (Size A1): 46.00
B (Size B): 31.10
C (Size C): 4.65
C1 (Size C1): 1.30
D (Size D): 25.00
E (Size E): 5.10
IH-03-0012, RHF4-02
135756170, 135756171, 4T-507, AS11, F41CAD-S0057B, F41CAD-S0057G, VA420057, VB420057, VC420057, 135756180, AS12, VA420081, VB420081, VC420081
Data updated: 2024-06-20 16:40:06
