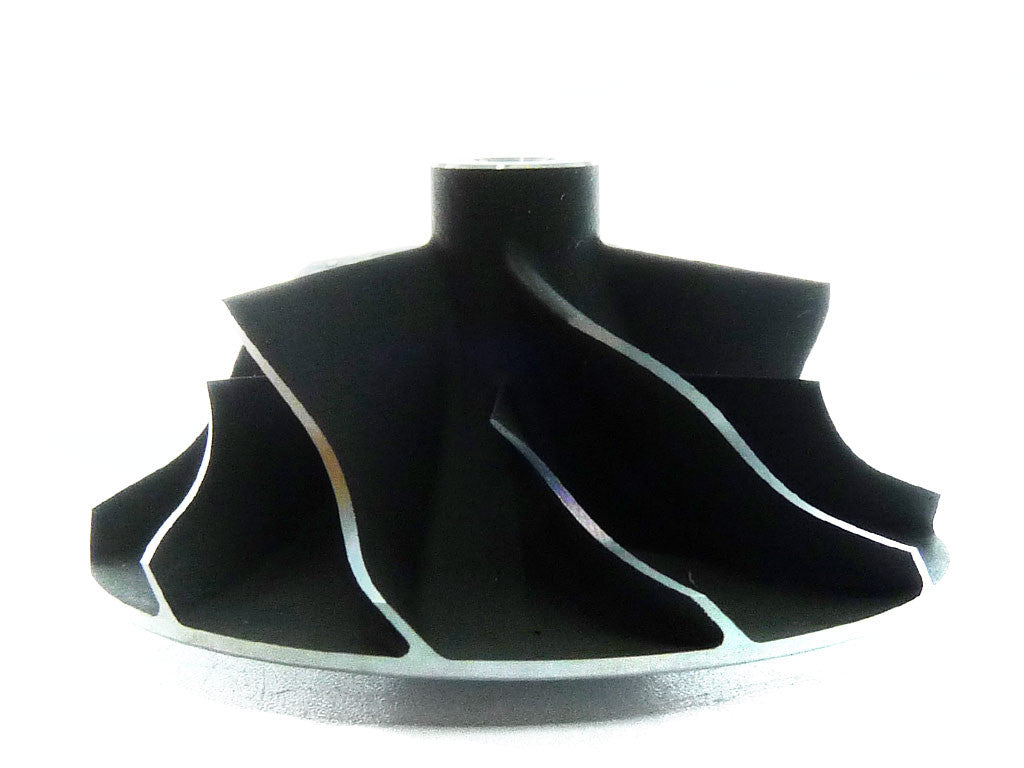

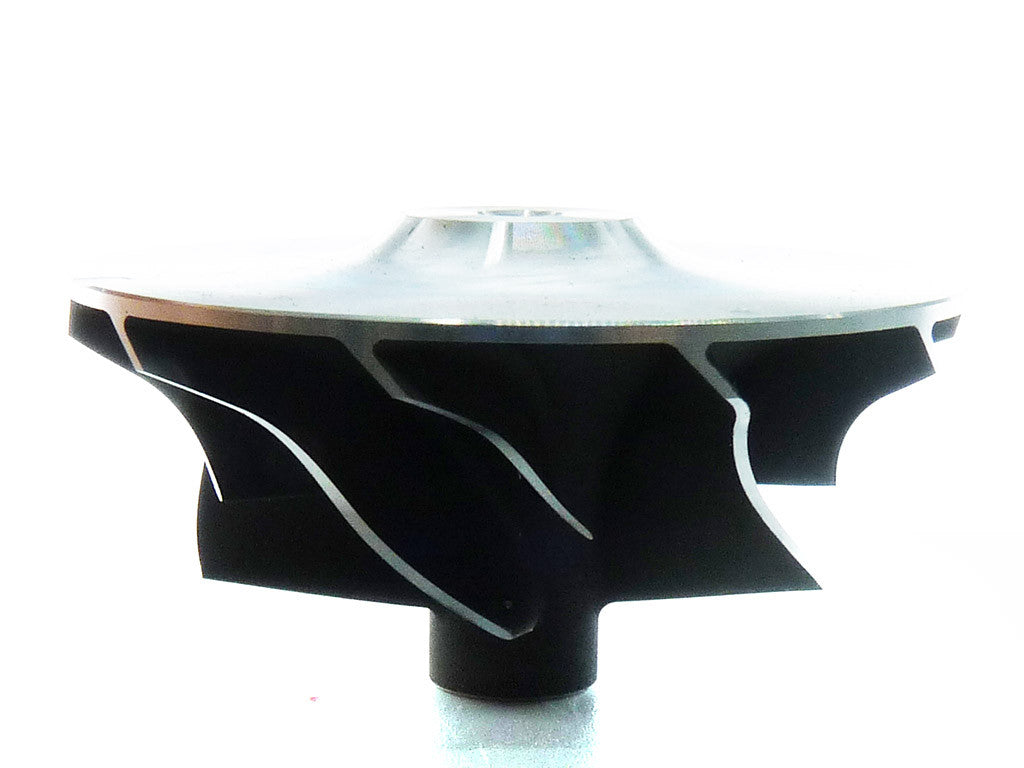

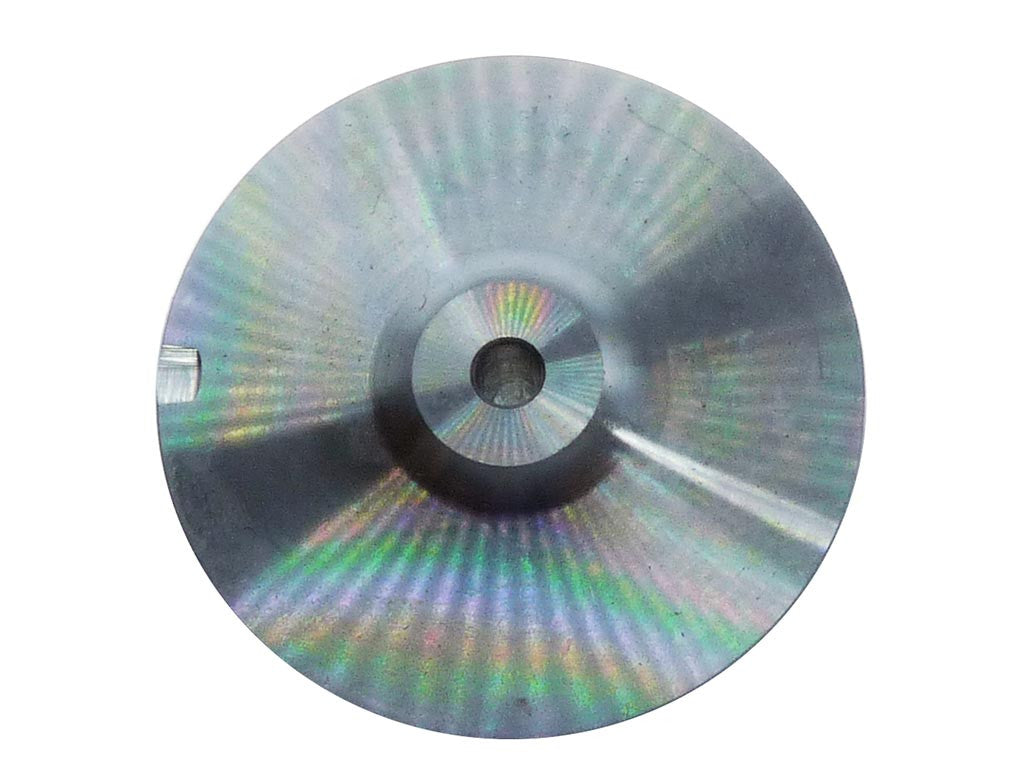

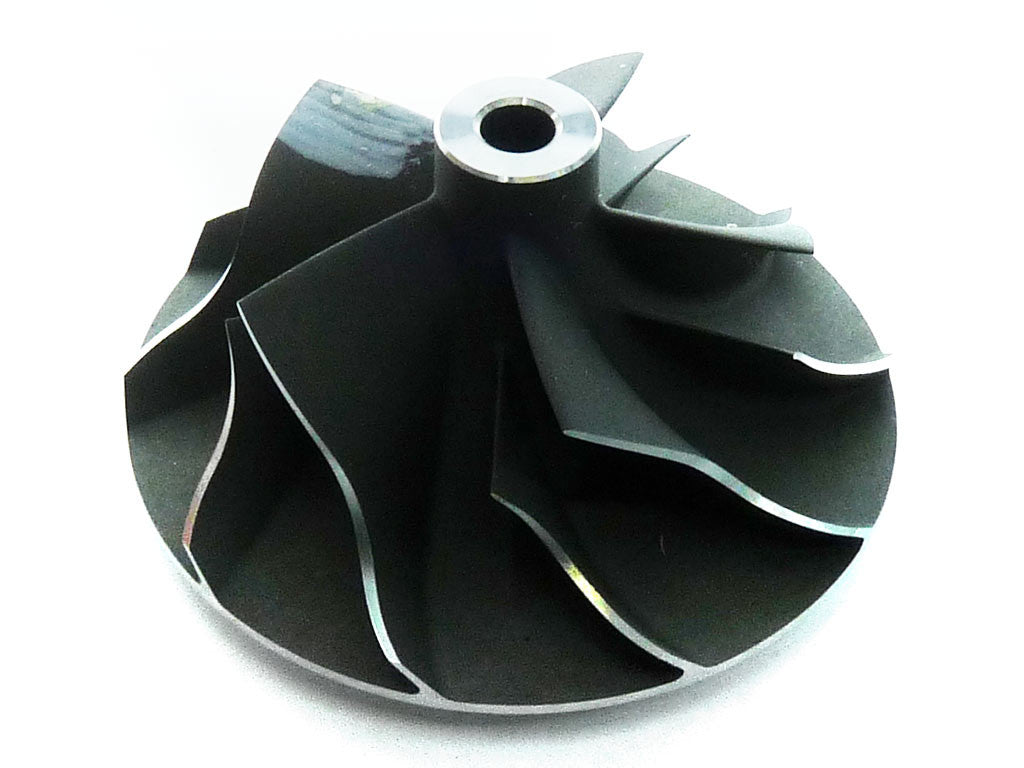

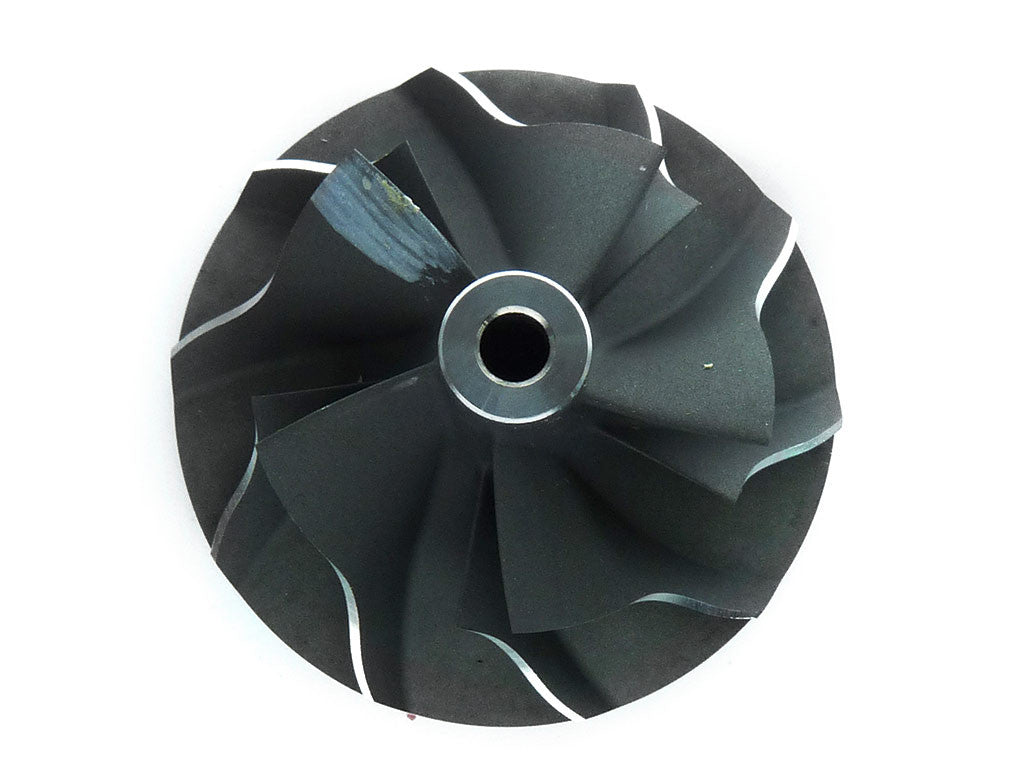

Compressor wheel BW-03-0063

Compressor wheel BW-03-0063

€8,48 EUR
€8,48 EUR
Znižanje Razprodano

BW-03-0063 (5443-123-2027, 5443-123-2035) - Compressor wheel

Brand: TurboCentras

TurboCentras Reference: BW-03-0063

OEM Numbers: 5443-123-2027, 5443-123-2035

BW-03-0063 - Alternative numbers

TCP (TurboCentras part number): BW-03-0063

TCO (TurboCentras old part number): KP39-11

BW-03-0063 - Compatibility table

Compressor wheel BW-03-0063 - Compatible turbochargers
TURBO MAKER TURBO MODEL TURBO REFERENCE TURBO PART NUMBER TURBO OE NUMBER
BorgWarner BV39-1872FFAAA426.18BVAXC 54399700061 5439 970 0061 6H4Q 6K682HF, 6H4Q-6K682-HD, LR004527
BorgWarner BV39-1872FFAAA426.18BVAXC 54399700062 5439 970 0062 6H4Q-6K682-GD, 6H4Q-6K682-GG, 6H4Q6K682GD, 6H4Q6K682GG, LR004526
BorgWarner BV39-1872FFAAA426.18BVAXC 54399700063 5439 970 0063 6H3Q-6K682-FC, 6H3Q-6K682-FE, LR004038
BorgWarner BV39-1872FFAAA426.18BVAXC 54399700064 5439 970 0064 6H3Q-6K682-EC, 6H3Q6K682EC, 6H4Q-6K682-EE, 6H4Q6K682EE, LR004037
BorgWarner BV39-1872FFAAA426.18BVAXC 54399700110 5439 970 0110, 5439 988 0110 6H4Q-6K682-HG, 6H4Q6K682HG, LR021046
BorgWarner BV39-1872FFAAA426.18BVAXC 54399700111 5439 970 0111, 5439 988 0111 6H4Q-6K682-GH, 6H4Q6K682GH, LR021045
BorgWarner BV39-1872FFAAA426.18BVAXC 54399700112 5439 970 0112, 5439 988 0112 6H3Q6K682FF, LR021044
BorgWarner BV39-1872FFAAA426.18BVAXC 54399700113 5439 970 0113, 5439 988 0113 6H3Q-6K682-EF, 6H3Q6K682EF, LR021043

BW-03-0063 - Part Properties

Blades (Compressor wheel blades count): 5/5

Rotation (Compressor wheel rotation direction): Standard

Type (Compressor wheel production method type): Cast

Back (Compressor wheel back design): Super

A (Size A): 46.00

A1 (Size A1): 46.00

B (Size B): 33.30

C (Size C): 3.50

C1 (Size C1): 2.80

D (Size D): 25.70

E (Size E): 4.11

BW-03-0063
5443-123-2027, 5443-123-2035, BW-03-0063, KP39-11
54399880113, 54399700113, 54399880112, 54399700112, 54399880111, 54399700111, 54399880110, 54399700110, 54399700064, 54399700063, 54399700062, 6H4Q6K682HF, 54399700061, 5439 970 0061, 6H4Q 6K682HF, 6H4Q-6K682-HD, LR004527, 5439 970 0062, 6H4Q-6K682-GD, 6H4Q-6K682-GG, 6H4Q6K682GD, 6H4Q6K682GG, LR004526, 5439 970 0063, 6H3Q-6K682-FC, 6H3Q-6K682-FE, LR004038, 5439 970 0064, 6H3Q-6K682-EC, 6H3Q6K682EC, 6H4Q-6K682-EE, 6H4Q6K682EE, LR004037, 5439 970 0110, 5439 988 0110, 6H4Q-6K682-HG, 6H4Q6K682HG, LR021046, 5439 970 0111, 5439 988 0111, 6H4Q-6K682-GH, 6H4Q6K682GH, LR021045, 5439 970 0112, 5439 988 0112, 6H3Q6K682FF, LR021044, 5439 970 0113, 5439 988 0113, 6H3Q-6K682-EF, 6H3Q6K682EF, LR021043

Data updated: 2025-02-06 16:25:30
