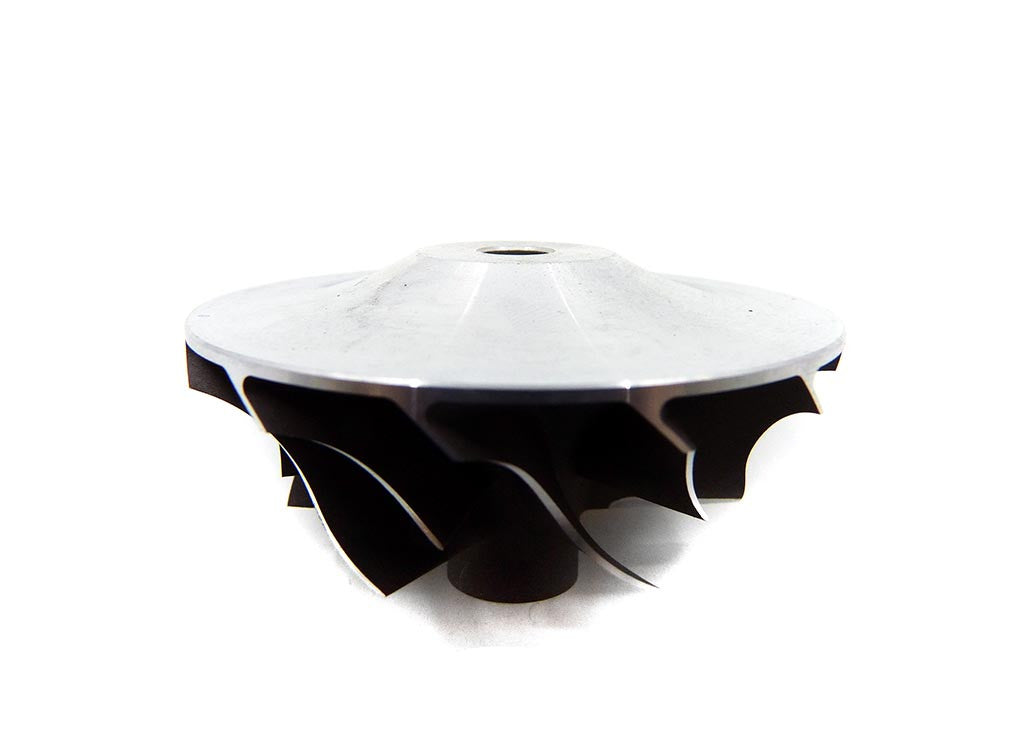

Compressor wheel GA-03-0054
Compressor wheel GA-03-0054
Redna cena
€9,70 EUR
Redna cena
Znižana cena
€9,70 EUR
Cena na enoto
na
Podatka o razpoložljivosti osebnega prevzema ni mogoče naložiti
GA-03-0054 (737686-0002, 784959-0002) - Compressor wheel
Brand: TurboCentras
TurboCentras Reference: GA-03-0054
OEM Numbers: 737686-0002, 784959-0002
GA-03-0054 - Alternative numbers
TCP (TurboCentras part number): GA-03-0054
TCO (TurboCentras old part number): GT16-01
GA-03-0054 - Compatibility table
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO PART NUMBER | TURBO OE NUMBER |
|---|---|---|---|---|
| Garrett | GT1646V | 756867-0001 | 756867-0001, 756867-5001S | 03G253010, 03G253014N, 03G253019L |
| Garrett | GT1646V | 756867-0002 | 756867-0002 | 03G253010, 03G253014N, 03G253016H, 03G253019L |
| Garrett | GT1646V | 756867-0003 | 756867-0003, 756867-5003S | 03G253010, 03G253014N, 03G253016H |
| Garrett | GTB1646MV | 756867-0008 | 756867-0008 | -- |
| Garrett | GTA1546VK | 763980-0004 | 763980-0004, 763980-5004S | 8200673918 |
| Garrett | GTA1546VK | 763980-0005 | 763980-0005, 763980-5005S | 8200782790 |
| Garrett | GT15 | 763980-0007 | 763980-0007, 763980-5007S | 8200901189A |
| Garrett | GTB1646MV | 765261-0002 | 765261-0002, 765261-5002S | 03G253016HV100 |
| Garrett | GTB1646MV | 765261-0003 | 765261-0003, 765261-5003S | 03G257016HV110 |
| Garrett | GTB1646MV | 765261-0004 | 765261-0004, 765261-5004S | 03G253014N |
| Garrett | GTB1646MV | 765261-0005 | 765261-0005, 765261-5005S, 765261-9008S | 03G253014NV100 |
| Garrett | GTB1646MV | 765261-0006 | 765261-0006, 765261-5006S | 03G253010 |
| Garrett | GTB1646MV | 765261-0007 | 765261-0007, 765261-5007S | 03G253010V100, 03G253010V101, 03G253010V102, 03G253010V103, 03G253010V104 |
| Garrett | GTB1646MV | 765261-0008 | 765261-0008, 765261-5008S, 765261-9008S | 03G253010V100, 03G253010V101, 03G253010V102, 03G253010V103, 03G253010V104 |
| Garrett | GTB1646VM | 768652-0001 | 768652-0001 | 68000633AB, 68000633AC |
| Garrett | GTB1646MVK | 768652-0002 | 768652-0002 | -- |
| Garrett | GTB1646VM | 768652-0003 | 768652-0003 | 03G253019R, 03G253019RV100, 68000633AB, 68000633AC |
| Garrett | GTB1646MV | 768652-0004 | 768652-0004, 768652-5004S | -- |
| Garrett | GTB1646MV | 768652-0005 | 768652-0005, 768652-5005S | 03G253019RV200 |
| Garrett | GTB1646MV | 768652-0007 | 768652-0007, 768652-5007S, 768652-9007S | -- |
| Garrett | GT1546LJS | 786997-0001 | 786997-0001, 786997-5001S | 144101946R, 144109364R, 144110463R, 7701477300, 7711368774, 8200994301B |
| Garrett | GT1546LJS | 786997-0001-R | 786997-0001, 786997-9001S | 144101946R, 144109364R, 144110463R, 7701477300, 7711368774, 8200994301B |
| Garrett | GT1546JS | 795637-0001 | 433289-0447, 433289-5447S, 795637-0001, 795637-5001S | 144109364R, 54152, 8201054152 |
| Garrett | GT1546JS | 795637-0001-R | 795637-0001, 795637-9001S | 144109364R, 8201054152 |
| Garrett | GT1546JS | 795637-0002 | 795637-0002 | -- |
| Garrett | GT1546JS | 795637-5001S | 795637-0001, 795637-5001S | 144109364R, 8201054152 |
| Garrett | GT1546S | 807686-0001 | 807686-0001 | -- |
| Garrett | GT1546S | 807686-0002 | 807686-0002 | 253414510156 |
GA-03-0054 - Part Properties
Blades (Compressor wheel blades count): 6/6
Rotation (Compressor wheel rotation direction): Standard
Type (Compressor wheel production method type): Cast
Back (Compressor wheel back design): Deep Super
A (Size A): 46.00
A1 (Size A1): 46.00
B (Size B): 34.10
C (Size C): 4.05
C1 (Size C1): 4.00
D (Size D): 25.00
E (Size E): 5.08
737686-0002, 784959-0002, GA-03-0054, GT16-01
