TurboCentras

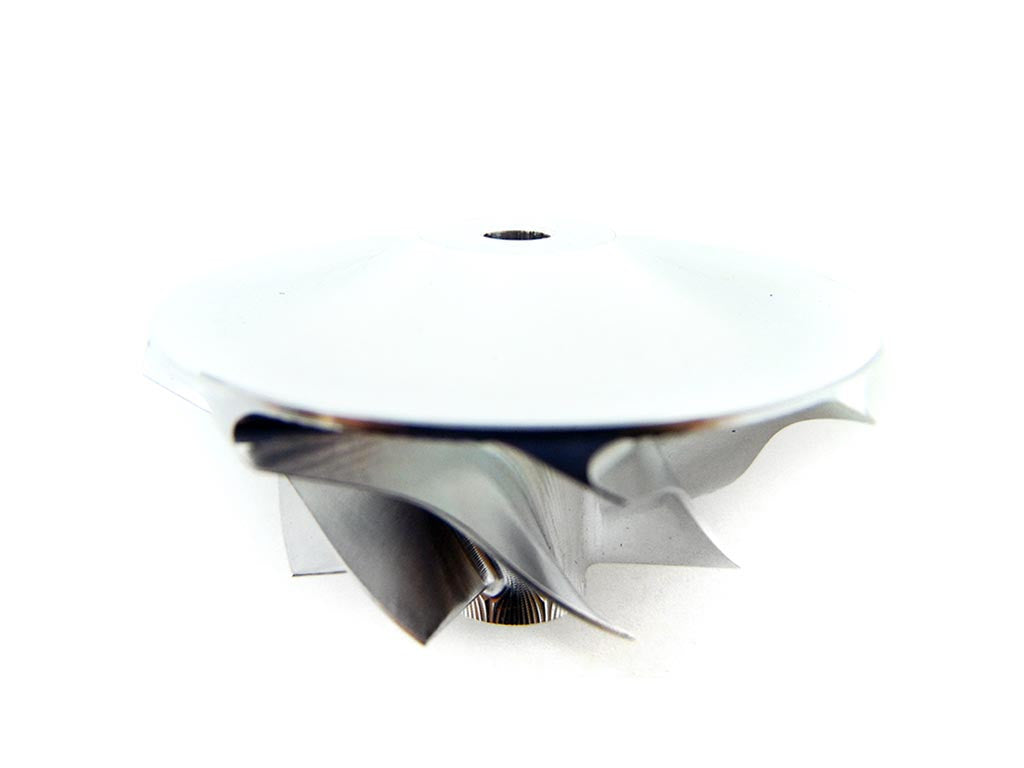

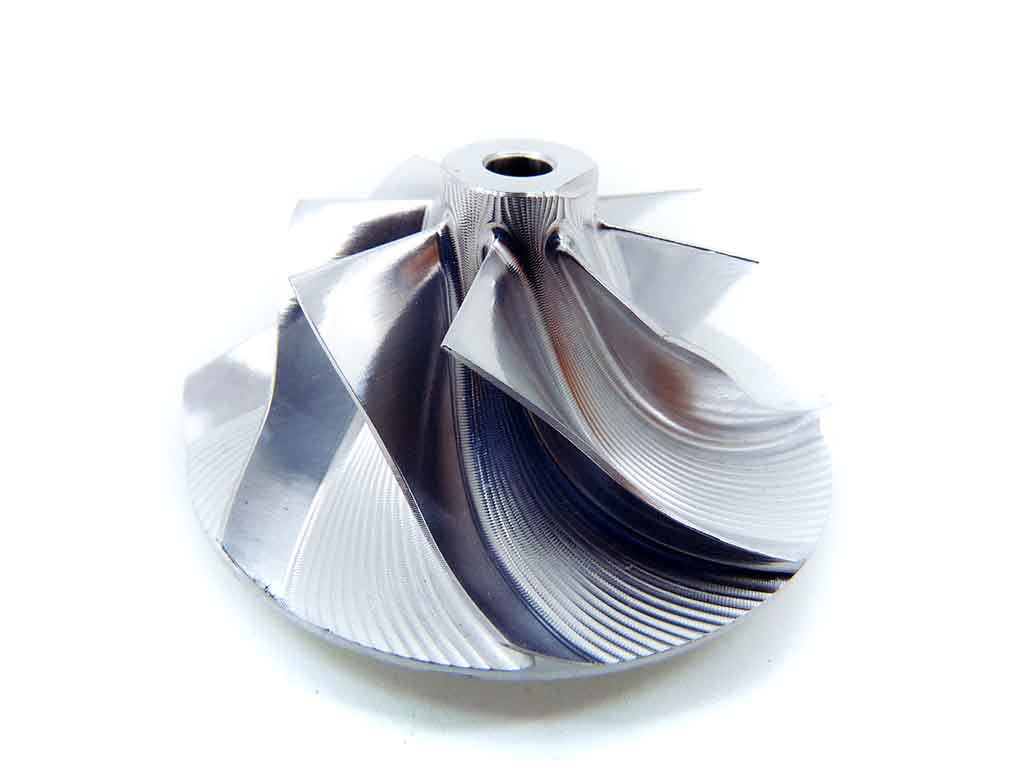

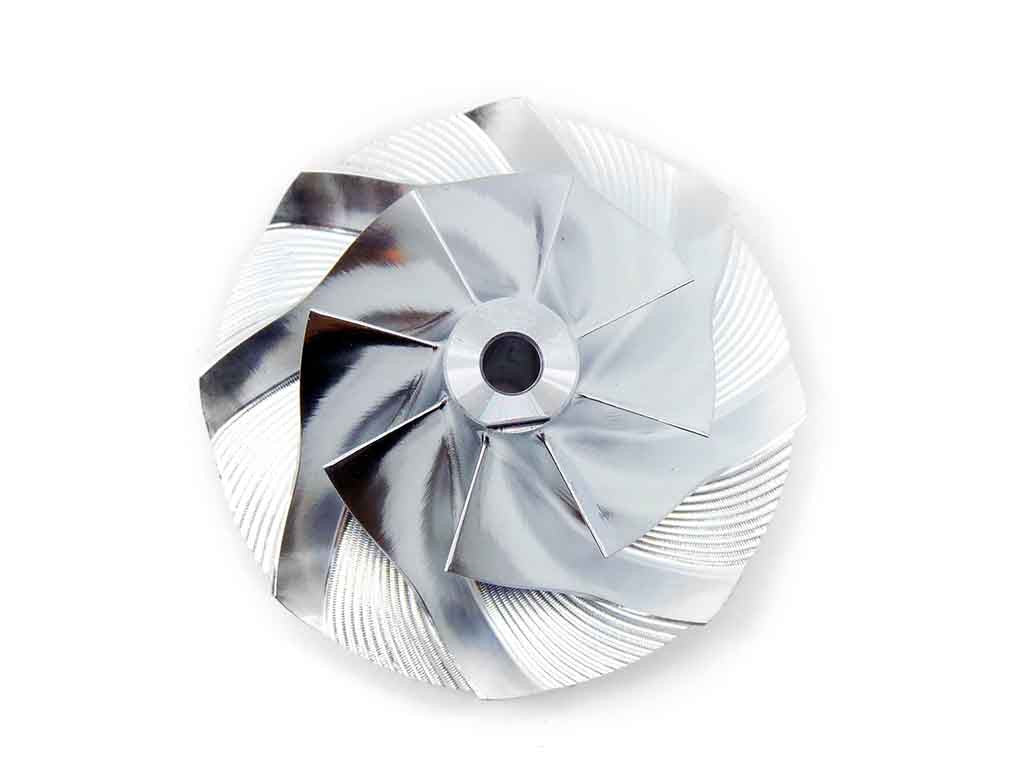

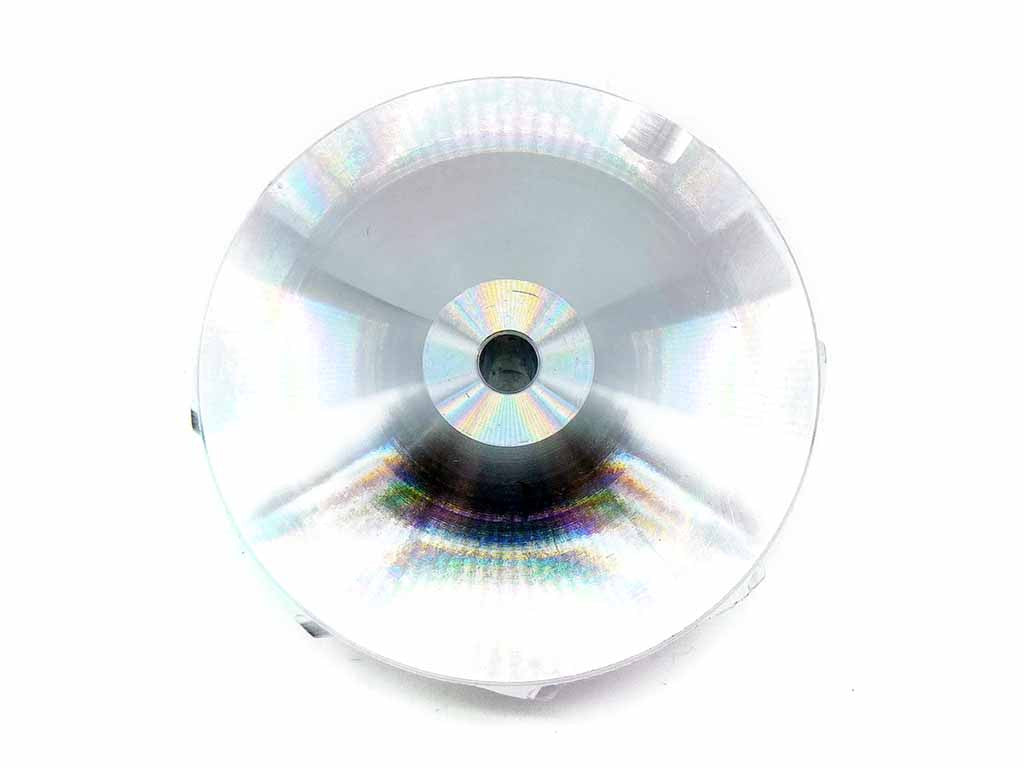

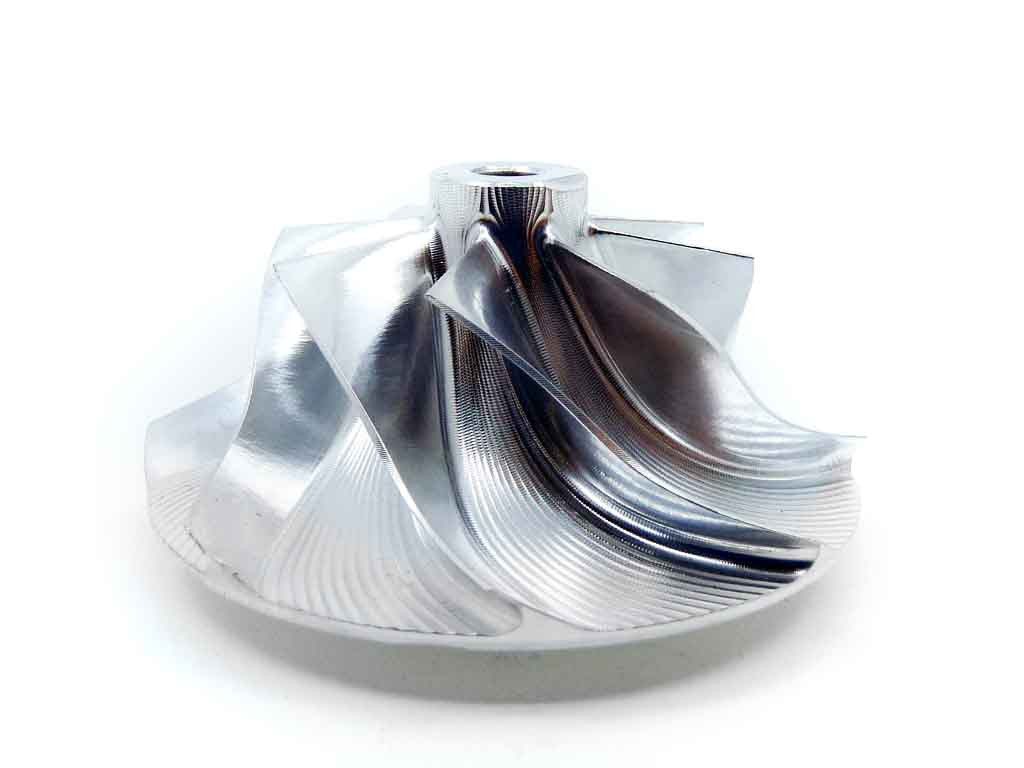

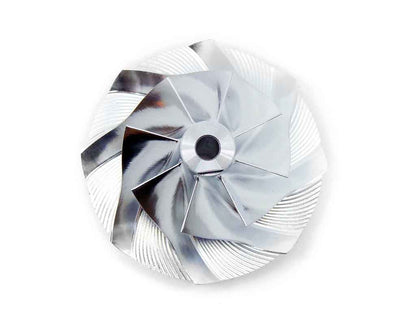

Compressor wheel GA-03-0017

Compressor wheel GA-03-0017

€14,90 EUR
€14,90 EUR
Znižanje Razprodano

GA-03-0017 - Compressor wheel

Brand: TurboCentras

TurboCentras Reference: GA-03-0017

GA-03-0017 - Alternative numbers

TCP (TurboCentras part number): GA-03-0017

TCO (TurboCentras old part number): GT14-05B

GA-03-0017 - Compatibility table

Compressor wheel GA-03-0017 - Compatible turbochargers
TURBO MAKER TURBO MODEL TURBO REFERENCE TURBO PART NUMBER TURBO OE NUMBER
Garrett GTD1244VZ 813860-0001 813860-0001, 813860-5001S 04L253016H
Garrett GTD1244MVKZ 813860-0002 813860-0002 --
Garrett GTD1244VZ 813860-0003 813860-0003, 813860-5003S 04L253016H V120
Garrett GTD1244MVZ 824168-0002 824168-0002, 824168-5002S 28201-2A820, M282012A820
Garrett GTD1244VZ 829847-0003 829847-0003, 829847-5003S 04L253016KV100
Garrett GTD1244MVZ 829847-0005 829847-0005, 829847-5005S 04L253016K
Garrett GTD1244VZ 829847-0006 829847-0006, 829847-5006S 04L253016K
Garrett GTD1244VZ 847671-0002 847671-0002, 847671-5002S 04L253016H, 04L253020A
Garrett GTD1244VZ 847671-0003 847671-0003, 847671-5003S 04L253020H
Garrett GTD1244MVZ 847671-0004 847671-0004, 847671-5004S, 847671-9004S 04L253020S
Garrett GTD1244MVZ 847671-0004-SC 847671-0004, 847671-5004S, 847671-9004S 04L253020S

GA-03-0017 - Part Properties

Blades (Compressor wheel blades count): 8

Rotation (Compressor wheel rotation direction): Standard

Type (Compressor wheel production method type): Billet

Back (Compressor wheel back design): Deep Super

A (Size A): 44.00

A1 (Size A1): 45.60

B (Size B): 29.90

C (Size C): 3.70

C1 (Size C1): 4.00

D (Size D): 24.20

E (Size E): 4.08

GA-03-0017
GA-03-0017, GT14-05B
04L253016HV120, 04L253016H, 813860-0001, 813860-5001S, 813860-0002, 04L253016H V120, 813860-0003, 813860-5003S, 28201-2A820, 824168-0002, 824168-5002S, M282012A820, 04L253016KV100, 829847-0003, 829847-5003S, 04L253016K, 829847-0005, 829847-5005S, 04L253016K, 829847-0006, 829847-5006S, 04L253016H, 04L253020A, 847671-0002, 847671-5002S, 04L253020H, 847671-0003, 847671-5003S, 04L253020S, 847671-0004, 847671-5004S, 847671-9004S, 04L253020S, 847671-0004, 847671-5004S, 847671-9004S

Data updated: 2024-05-13 13:34:08
