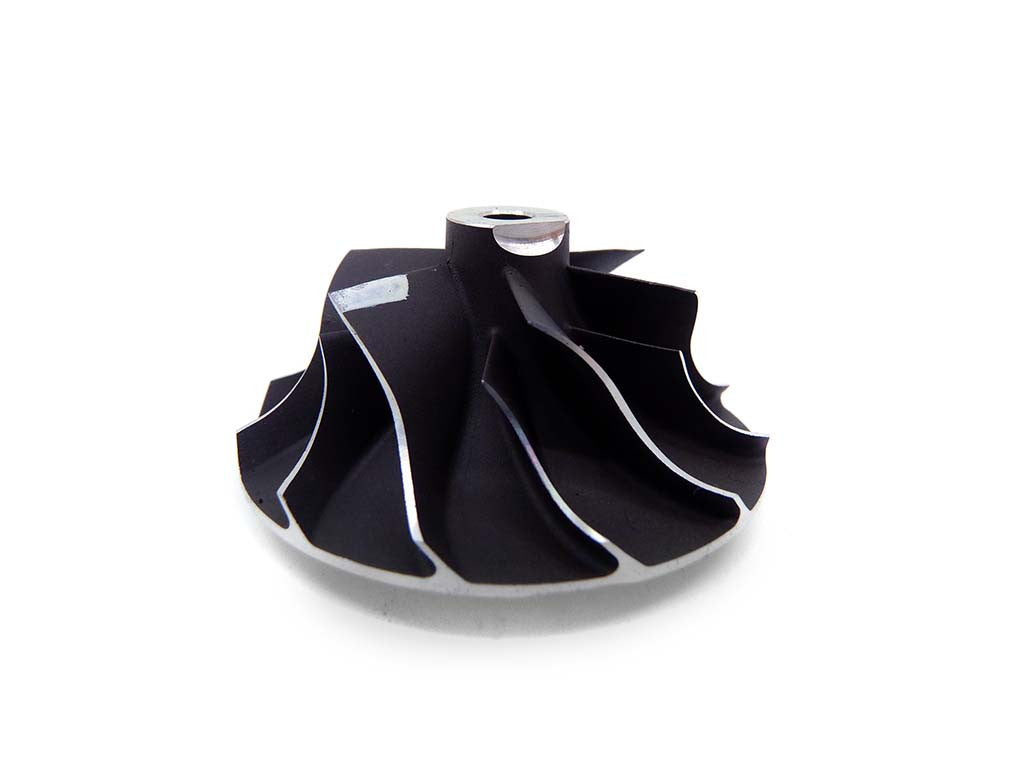

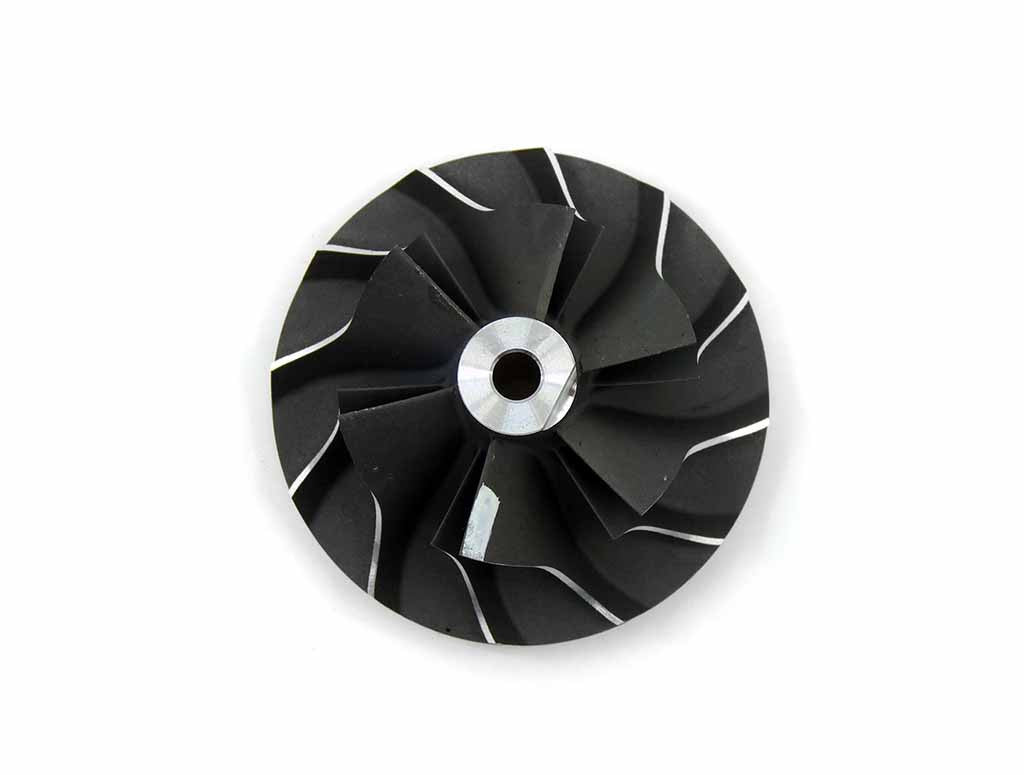

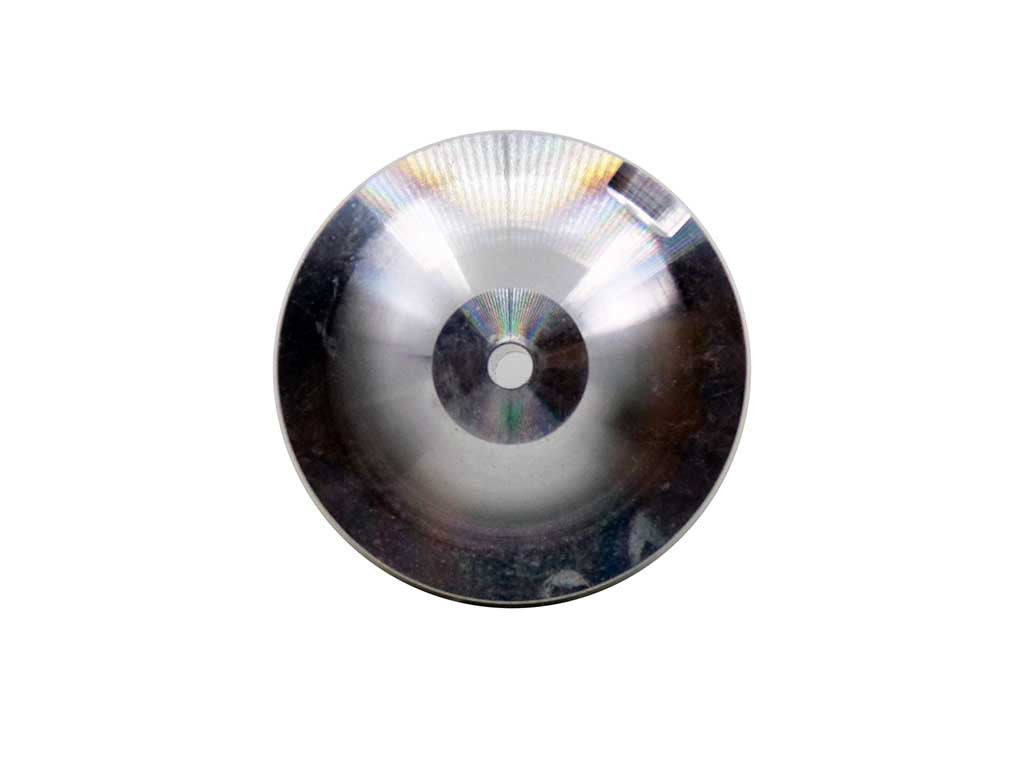

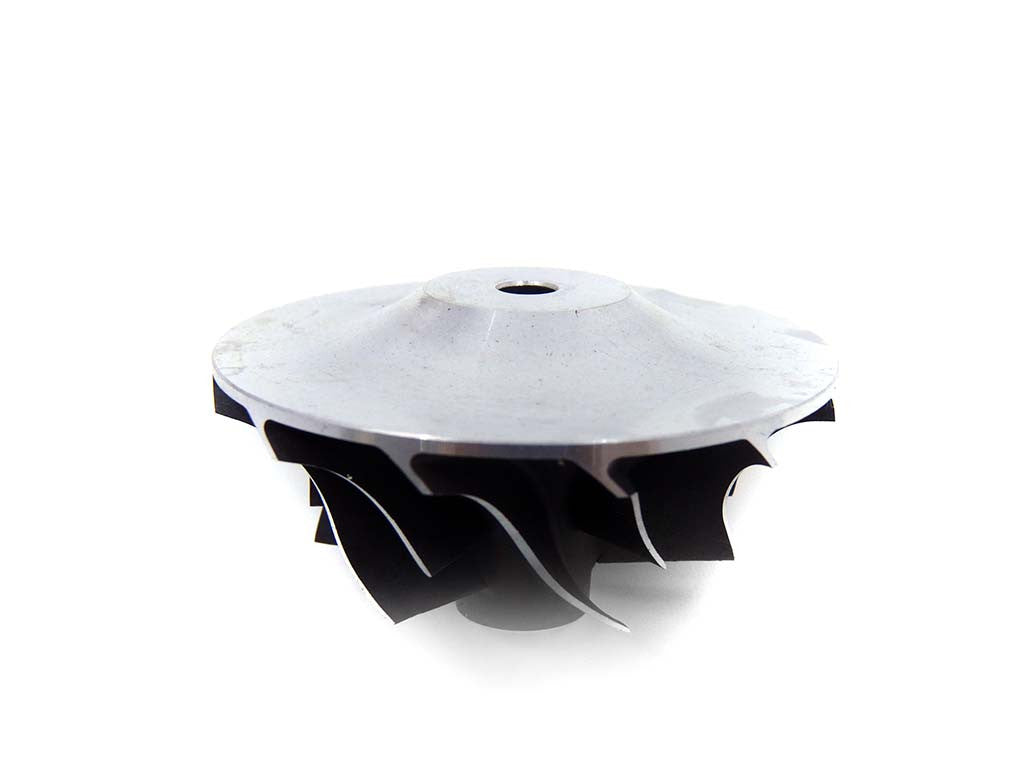

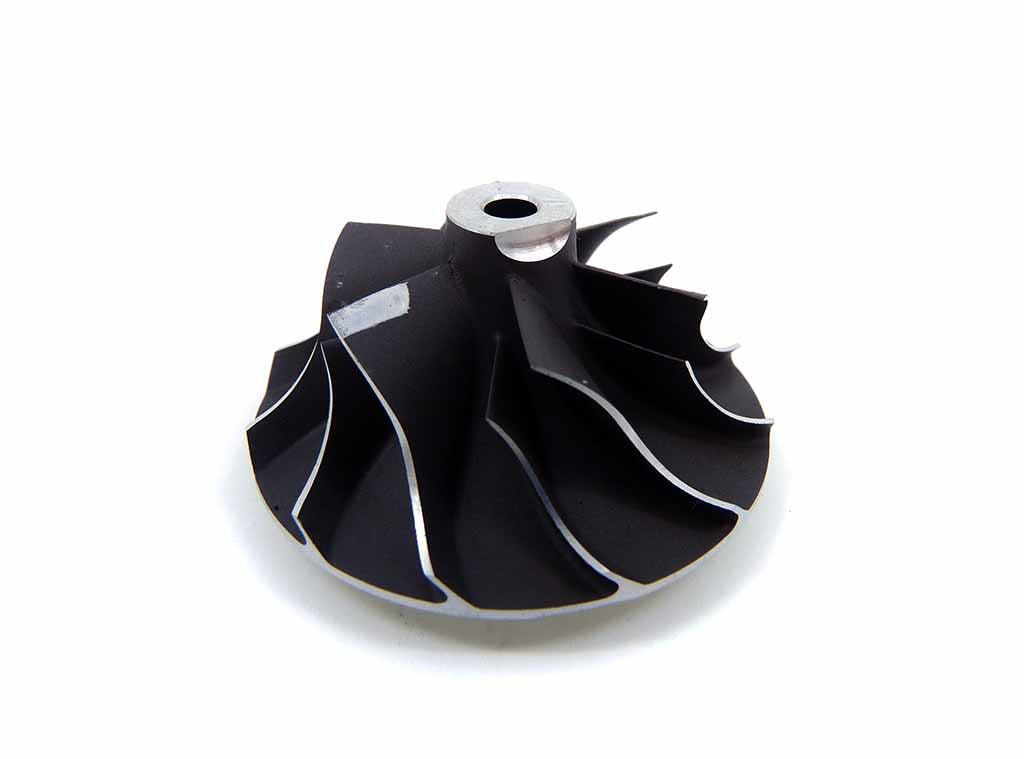

Compressor wheel GA-03-0016
Compressor wheel GA-03-0016
Redna cena
€7,94 EUR
Redna cena
Znižana cena
€7,94 EUR
Cena na enoto
na
Podatka o razpoložljivosti osebnega prevzema ni mogoče naložiti
GA-03-0016 (786554-0003) - Compressor wheel
Brand: TurboCentras
TurboCentras Reference: GA-03-0016
OEM Numbers: 786554-0003
GA-03-0016 - Alternative numbers
TCP (TurboCentras part number): GA-03-0016
TCO (TurboCentras old part number): GT14-04
GA-03-0016 - Part Properties
Blades (Compressor wheel blades count): 6/6
Rotation (Compressor wheel rotation direction): Standard
Type (Compressor wheel production method type): Cast
Back (Compressor wheel back design): Deep Super
A (Size A): 44.00
A1 (Size A1): 44.00
B (Size B): 31.10
C (Size C): 3.50
C1 (Size C1): 4.00
D (Size D): 24.20
E (Size E): 4.08
| TURBO MAKER | TURBO MODEL | TURBO PART NUMBERS | TURBO OE NUMBERS |
|---|---|---|---|
| Garrett | GTC1244MVZ | 775517-0001, 775517-5001S | 03L253016T |
| Garrett | GTC1244MVZ | 775517-0002, 775517-5002S, 775517-9002S | 03L253016T |
| Garrett | GTC1244MVKZ | 775517-0005 | -- |
| Garrett | GTB1244VZ | 776402-0002, 776402-5002S | 9U3Q-6K682-FA |
| Garrett | GTB1244VZ | 776402-0003, 776402-5003S | 9U3Q-6K682-FB |
| Garrett | GTB1244VZ | 776403-0002, 776403-5002S | 9U3Q-6K682-EA |
| Garrett | GTB1244VZ | 776403-0003, 776403-5003S | 9U3Q-6K682-EB |
| Garrett | GTC1244VZ | 784011-0005, 784011-5005S | 0375P7, 968612068005, 968612068010 |
| Garrett | GTB1244VZ | 794097-0002 | 28201-2A850 |
| Garrett | GTB1244VZ | 794097-0003, 794097-5003S | 28201-2A850, 282012A850 |
| Garrett | GTC1444VZ | 795680-0003, 795680-5003S, 795680-9003S | 31312713 |
| Garrett | GTC1244VZ | 806291-0001 | 0375P7, 968612068006, 968612068010 |
| Garrett | GTC1244VZ | 806291-0002 | 0375P7, 968612068006, 968612068010 |
| Garrett | GTC1244VZ | 806291-0003, 806291-5003S, 806291-9003S | 0375P7, 968612068006, 968612068010 |
| Garrett | GTC1244VZ | 824060-0005, 824060-5005S | CV6Q6K682AA |
| Garrett | GTC1244VZ | 824060-0006, 824060-5006S | CV6Q6K682AB |
| Garrett | GTC1444VZ | 824060-0007, 824060-5007S | CV6Q6K682AC |
| Garrett | GTC1244VZ | 829886-0001, 829886-5001S | 03L253014F |
GA-03-0016 - Used in turbocharges
03L253016T, 775517-0001, 775517-5001S, 775517-0002, 775517-5002S, 775517-9002S, 775517-0005, 776402-0002, 776402-5002S, 9U3Q-6K682-FA, 776402-0003, 776402-5003S, 9U3Q-6K682-FB, 776403-0002, 776403-5002S, 9U3Q-6K682-EA, 776403-0003, 776403-5003S, 9U3Q-6K682-EB, 0375P7, 784011-0005, 784011-5005S, 968612068005, 968612068010, 28201-2A850, 794097-0002, 282012A850, 794097-0003, 794097-5003S, 31312713, 795680-0003, 795680-5003S, 795680-9003S, 806291-0001, 968612068006, 806291-0002, 806291-0003, 806291-5003S, 806291-9003S, 824060-0005, 824060-5005S, CV6Q6K682AA, 824060-0006, 824060-5006S, CV6Q6K682AB, 824060-0007, 824060-5007S, CV6Q6K682AC, 03L253014F, 829886-0001, 829886-5001SData updated: 2025-09-04 16:09:19
