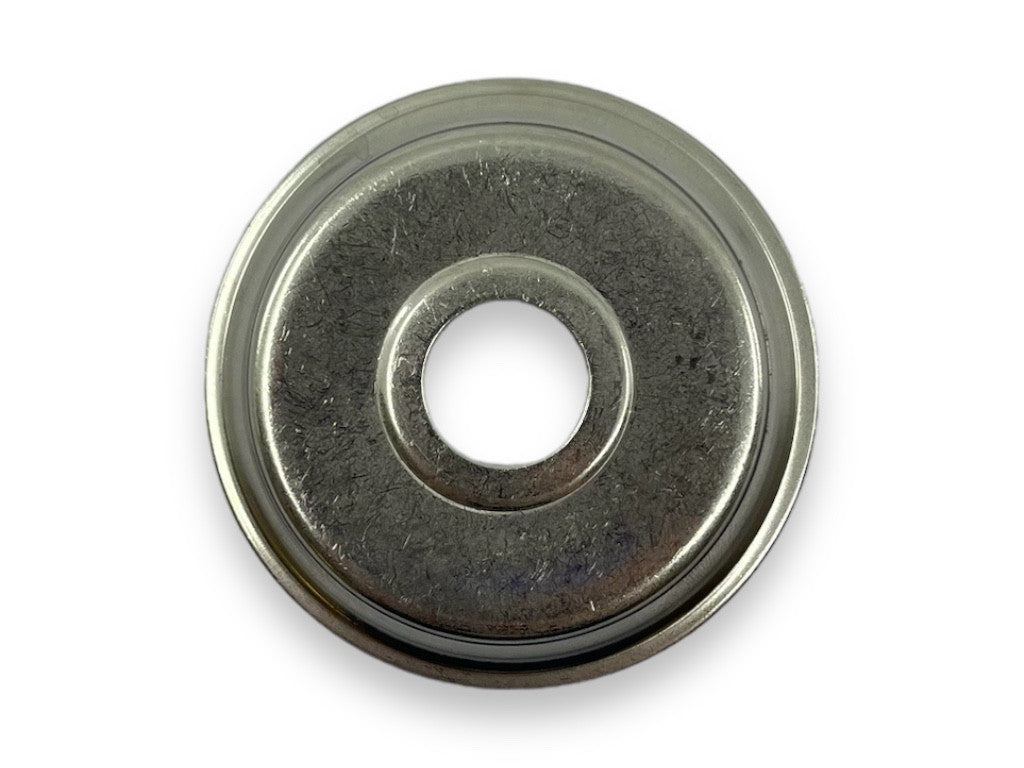

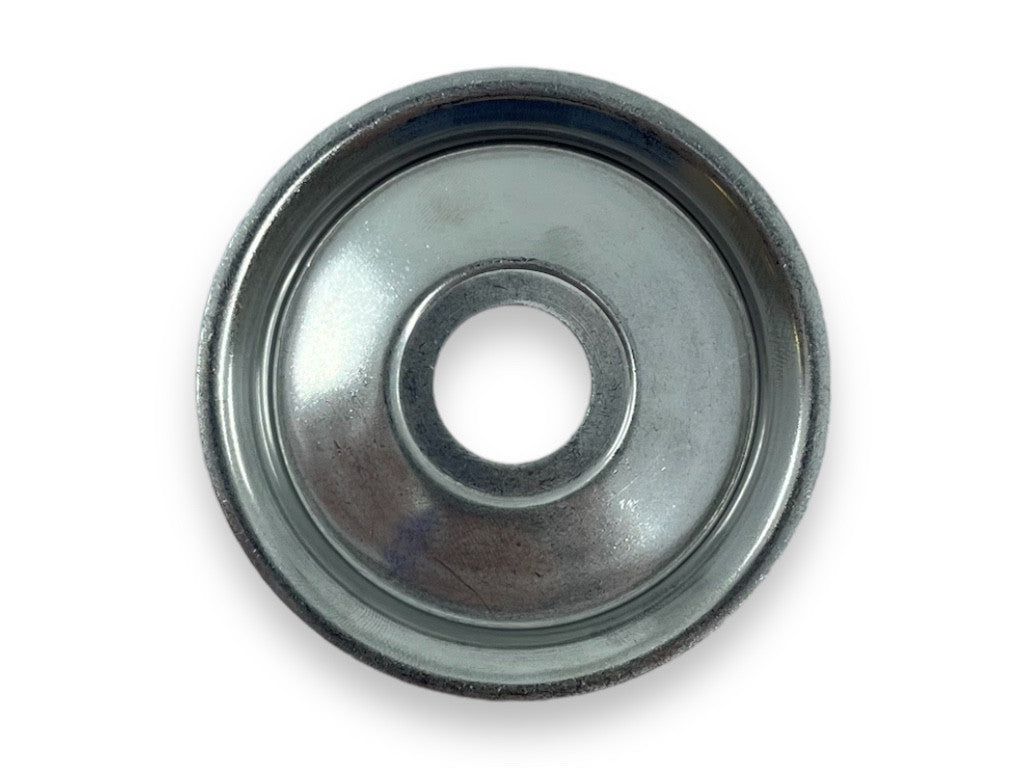

Heat shield GA-05-0021

GA-05-0021 - Heat shield

Brand: TurboCentras

TurboCentras Reference: GA-05-0021

GA-05-0021 - Alternative numbers

TCP (TurboCentras part number): GA-05-0021

TCO (TurboCentras old part number): T2-321

GA-05-0021 - Compatibility table

Heat shield GA-05-0021 - Compatible turbochargers

TURBO MAKER	TURBO MODEL	TURBO REFERENCE	TURBO PART NUMBER	TURBO OE NUMBER
Garrett	TB2544	452038-0001	452038-0001	--
Garrett	TB2545	452039-0001	452039-0001	--
Garrett	TB2548	452044-0001	452044-0001	--
Garrett	TB2548	452044-0002	452044-0002	2674A067
Garrett	TB2548	452044-0003	452044-0003, 452044-5003S	--
Garrett	TB2548	452044-0004	452044-0004	--
Garrett	TB2554	452052-0001	452052-0001	--
Garrett	TB2556	452058-0001	452058-0001	2674A055
Garrett	TB2556	452058-0002	452058-0002, 452058-5002S	--
Garrett	T250-02	452061-0001	452061-0001	2674A142
Garrett	T250-02	452061-0002	452061-0002, 452061-5002S	2674A061
Garrett	T250-02	452061-0003	452061-0003	--
Garrett	T250-02	452061-0004	452061-0004, 452061-5004S	2674A142
Garrett	T250-02	452061-0005	452061-0005, 452061-5005S	--
Garrett	TB2807	452062-0002	452062-0002	--
Garrett	TB2807	452062-0003	452062-0003	--
Garrett	TB2558	452065-0002	452065-0002	2674A149
Garrett	TB2558	452065-0003	452065-0003, 452065-5003S	--
Garrett	TB2569	452068-0001	452068-0001	9146010
Garrett	TB2569	452068-0002	452068-0002	9185372
Garrett	TB2569	452068-0003	452068-0003	9198318
Garrett	TB2569	452068-0004	452068-0004	30584735, 9198326
Garrett	TB2565	452073-0002	452073-0002	2674A056
Garrett	TB2565	452073-0003	452073-0003, 452073-5003S	11998929, 2674A054
Garrett	TB2565	452073-0004	452073-0004, 452073-5004S	11999239, 2674A056
Garrett	TB2565	452073-0005	452073-0005, 452073-5005S	11701612
Garrett	TB2565	452073-0006	452073-0006	--
Garrett	T250-06	452152-0001	452152-0001	6804306550
Garrett	TB25	452162-0001	452162-0001	14411-7F400, 144117F400
Garrett	TB25	452162-0002	452162-0002	14411-3S900
Garrett	TB25	452162-0005	452162-0005	--
Garrett	TB25	452162-0007	452162-0007	--
Garrett	TB2571	452181-0001	452181-0001, 452181-5001S	2674A079
Garrett	TB2538	454054-0001	454054-0001	60596462
Garrett	TB2538	454054-0002	454054-0002	60607750
Garrett	TB256	454059-0004	454059-0004	--
Garrett	T2	454110-0001	454110-0001, 454110-5001S	A6050960299
Garrett	GT2538C	454110-0001	454110-0001	A6050960299
Garrett	GT25C	454110-0002	454110-0002, 454110-5002S	A6050960299
Garrett	GT25C	454127-0001	454127-0001, 454127-5001S	A6020960599
Garrett	GT25C	454127-0002	454127-0002, 454127-5002S	A6020960599
Garrett	GT25C	454145-0001	454145-0001	--
Garrett	GT25C	454145-0002	454145-0002, A6020960299	454145-5002S
Garrett	GT25C	454145-0003	454145-0003, 454145-5003S	A6020961299
Garrett	TB2810	454154-0001	454154-0001, 454154-5001S	7700872574
Garrett	GT20	454156-0001	454156-0001	--
Garrett	TA2505	454163-0001	454163-0001, 454163-5001S	99449947
Garrett	TA2505	454163-0002	454163-0002, 454163-5002S	99462782, 99462782T
Garrett	GT25C	454169-0001	454169-0001, 454169-5001S	A6020960499
Garrett	GT25C	454169-0002	454169-0002, 454169-5002S	A6020961399
Garrett	GT25C	454169-0003	454169-0003, 454169-5003S	A6020960499
Garrett	GT25C	454169-0004	454169-0004, 454169-5004S	A6020961399
Garrett	GT2538C	454193-0001	454193-0001, 454193-5001S	A6020960799
Garrett	GT2538C	454193-0002	454193-0002, 454193-5002S	A6020960999
Garrett	GT2538C	454193-0003	454193-0003, 454193-5003S	A6020960799
Garrett	GT2538C	454193-0004	454193-0004, 454193-5004S	A6020960999
Garrett	GT25C	454203-0001	454203-0001, 454203-5001S	A6050960499
Garrett	GT25C	454203-0002	454203-0002, 454203-5002S	A6050960499
Garrett	GT25C	454207-0001	454207-0001	6020900880, 6020901380, 6020960699, 6020960899, A6020900880, A6020901380, A6020960699, A6020960899
Garrett	GT25C	454207-0002	454207-0002, 454207-5002S	6020900880, 6020901380, 6020960699, 6020960899, A6020900880, A6020901380, A6020960699, A6020960899
Garrett	TB25	454224-0001	454224-0001	--
Garrett	T250	465153-0003	465153-0003, 465153-5003S	83999247
Garrett	T250-01	465153-0004	465153-0004, 465153-5004S	87800959
Garrett	TB2529	465181-0001	465181-0001	911932
Garrett	TB2529	465181-0002	465181-0002	911932
Garrett	TB2531	465183-0003	465183-0003	--
Garrett	TB2531	465183-0004	465183-0004	787209
Garrett	TB2531	465183-0006	465183-0006	787208
Garrett	TB2531	465183-0007	465183-0007	787209, 911707
Garrett	T250-05	465209-0002	465209-0002	--
Garrett	T250-05	465209-0003	465209-0003	--
Garrett	T250-05	465209-0004	465209-0004, 465209-5004S	87801413
Garrett	T250-05	465209-0005	465209-0005	--
Garrett	T250-05	465209-0006	465209-0006	--
Garrett	TB251	465555-0002	465555-0002	--
Garrett	TB251	465555-0003	465555-0003	--
Garrett	TB0236	465699-0001	465699-0001	--
Garrett	TB0239	465853-0001	465853-0001	10106086
Garrett	TB2502	466480-0008	466480-0008	--
Garrett	TB2504	466546-0007	466546-0007	--
Garrett	TB2504	466546-0008	466546-0008	--
Garrett	TB2505	466548-0012	466548-0012	--
Garrett	TB2505	466548-0013	466548-0013	--
Garrett	TB2505	466548-0014	466548-0014	--
Garrett	TB2518	466898-0006	466898-0006	--
Garrett	TB2518	466898-0007	466898-0007	2910099001
Garrett	TB2518	466898-0008	466898-0008	8944805870
Garrett	TB2518	466898-0009	466898-0009	8943829000, 8987320741
Garrett	TB281	702021-0001	702021-0001	--
Garrett	GT25C	703325-0001	703325-0001, 703325-5001S	82145701, 90529201004906
Garrett	GT2256LMS	704136-0001	704136-0001	--
Garrett	GT2256LMS	704136-0002	704136-0002	8972083520
Garrett	GT2256LMS	704136-0003	704136-0003, 704136-5003S	8973267520
Garrett	TB25	704152-0001	704152-0001	--
Garrett	TB25	704152-0002	704152-0002	--
Garrett	TB2559	704205-0001	704205-0001	--
Garrett	TB2559	704205-0002	704205-0002	--
Garrett	GT2252S	704757-0001	704757-0001	905292010076
Garrett	GT2252S	704757-0002	704757-0002	--
Garrett	TB2810	705547-0001	705547-0001	71723525
Garrett	GT2556S	706769-0001	706769-0001	905292010052
Garrett	GT2554LS	708954-0001	708954-0001	--
Garrett	T250	711857-0001	711857-0001	79512
Garrett	T250	711857-0002	711857-0002	79523
Garrett	TB2556	711858-0001	711858-0001	79513
Garrett	TB25	717123-0001	717123-0001, 717123-5001S	A6620903080, A6620903580
Garrett	TB2558	727530-0003	727530-0003	T2674A150
Garrett	GT2559S	728918-0002	728918-0002	E0800-1118020135
Garrett	GT2559S	728918-0007	728918-0007	E0401-1118100135
Garrett	TB2558	758817-0001	758817-0001	2674A150
Garrett	GT2559L	786363-0004	786363-0004, 786363-5004S	17201E0680A
Garrett	GT25	786363-0005	786363-0005, 786363-5005S	17201-EW021

---

GA-05-0021, T2-321

---
