Heat shield IH-05-0010
Heat shield IH-05-0010
Redna cena
€4,50 EUR
Redna cena
Znižana cena
€4,50 EUR
Cena na enoto
na
Podatka o razpoložljivosti osebnega prevzema ni mogoče naložiti

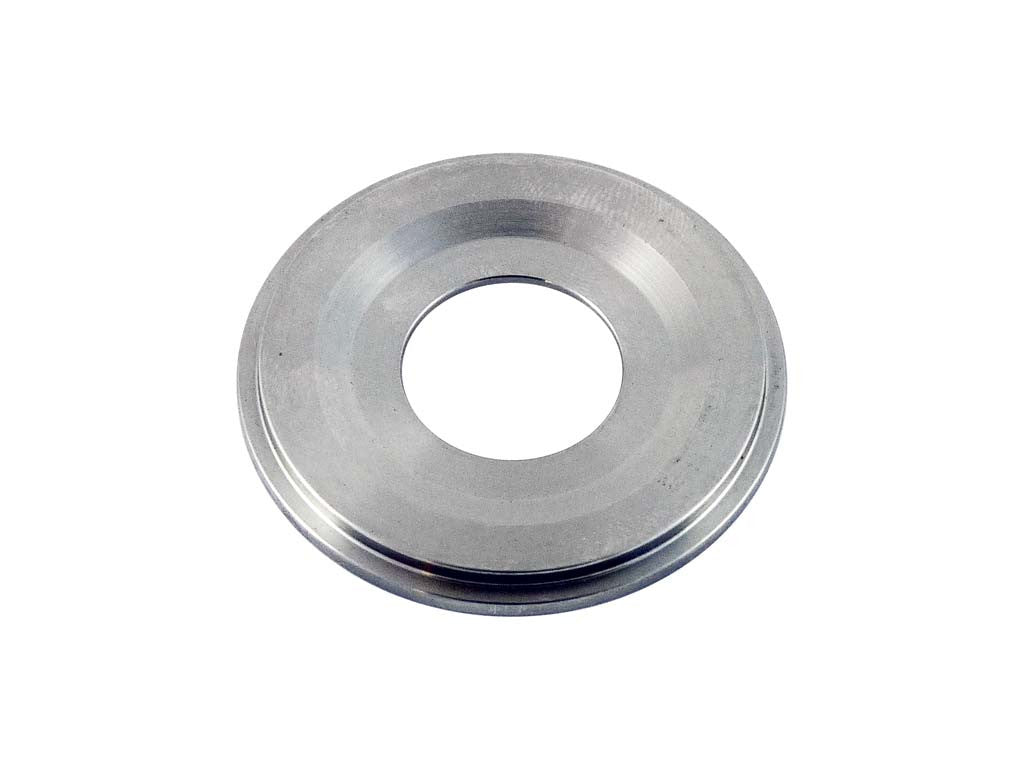

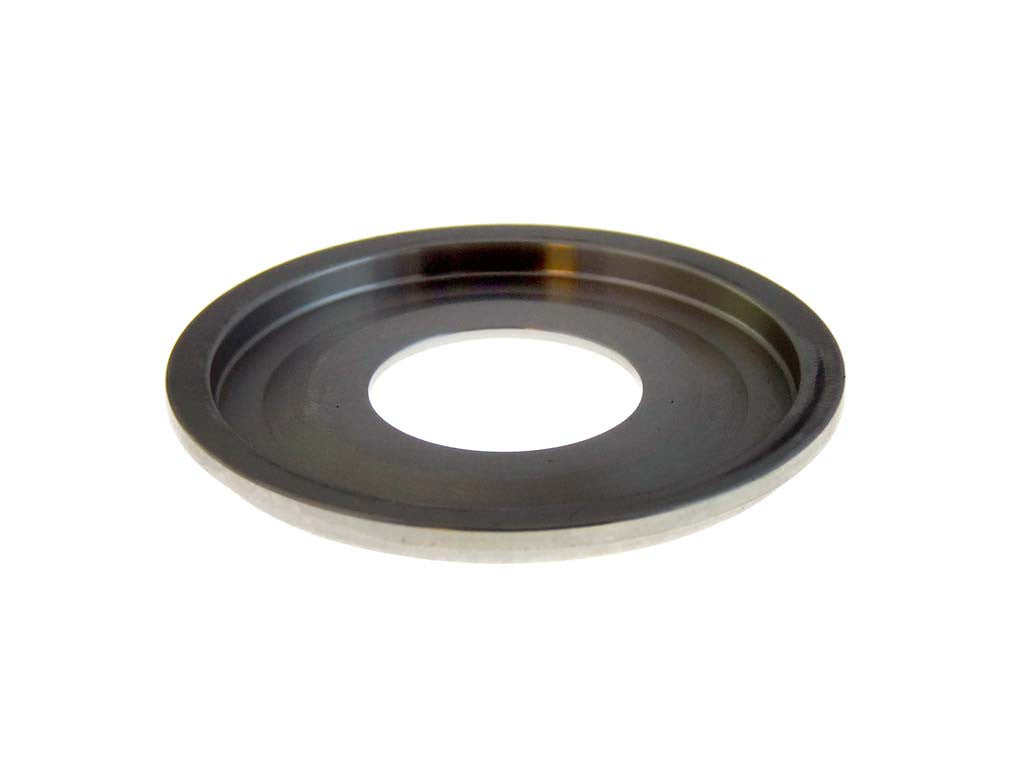

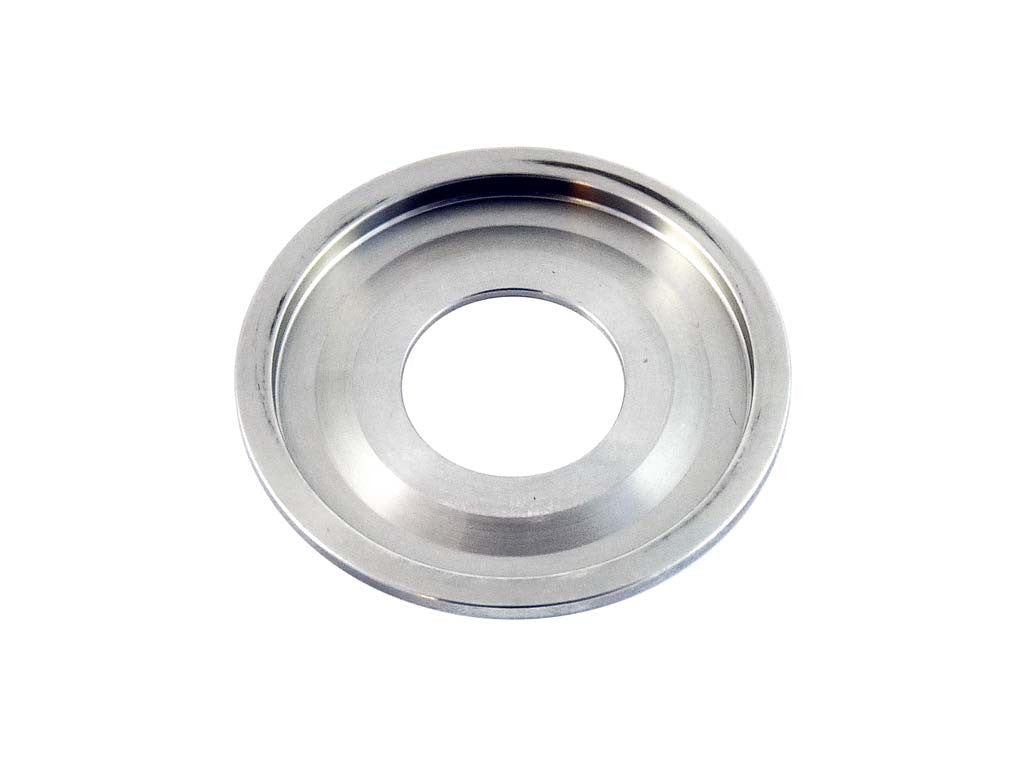

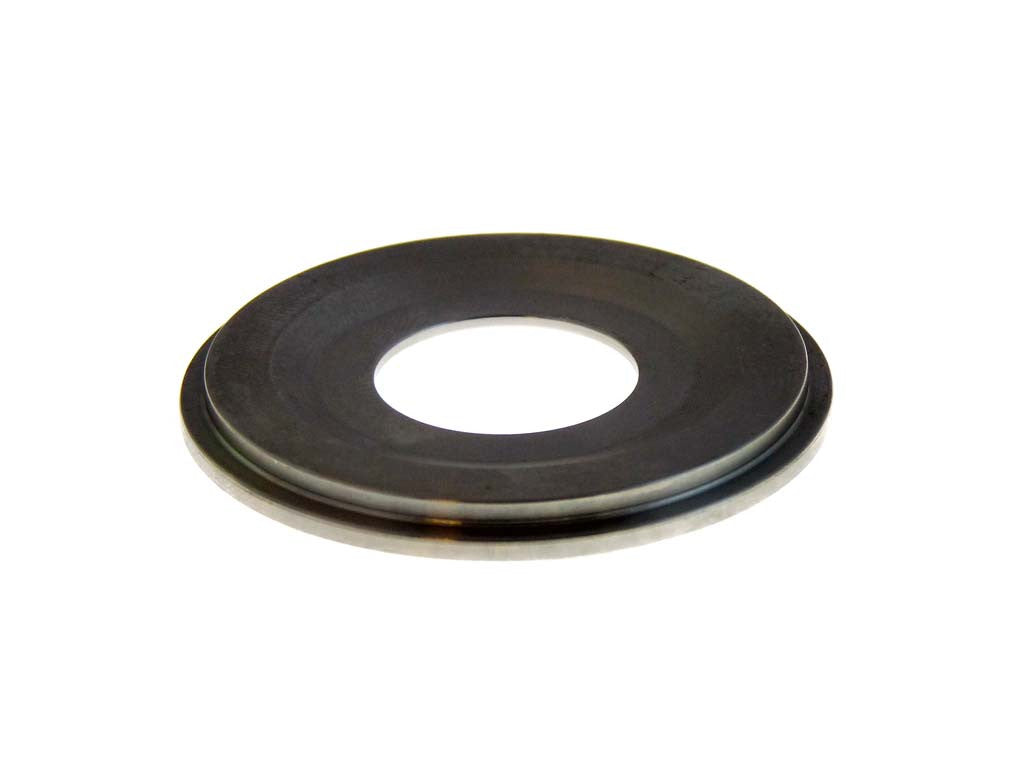

IH-05-0010 - Heat shield
Brand: TurboCentras
TurboCentras Reference: IH-05-0010
IH-05-0010 - Alternative numbers
TCP (TurboCentras part number): IH-05-0010
TCO (TurboCentras old part number): RHF4-323
IH-05-0010 - Compatibility table
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO PART NUMBER | TURBO OE NUMBER |
|---|---|---|---|---|
| IHI | RHF4 | VF50 | VF50 | 14411AA720 |
| IHI | RHF4 | VF55 | VF55 | -- |
| IHI | RHV4-874053P24NHBRS3812CH | VIGL | V41VAT-S0039B, VAD20039, VIGL | 8981320703 |
| IHI | RHV4-874053P24NHBRS4113CE | VIGM | V41VAT-S0045B, VAD20045, VIGM | 8981320692 |
| IHI | RHV4 | VIIH | V41VAT-S0091B, VIIH | 8982216741 |
| IHI | RHV4 | VIIO | V41VAT-S0099B, VIIO | 8982356271 |
| IHI | RHV4 | VIIP | V41VAT-S0100B, VIIP | 8982356281 |
| IHI | RHV4 | VIJE | V41VAT-S0105B, VIJE | 8974350061 |
| IHI | RHV4 | VIJF | V41VAT-S0106B, VIJF | 8974350071 |
| IHI | RHV4 | VJ40 | VJ40 | R2AC13700C, R2AC13700D |
| IHI | RHF4 | VJ41 | VJ41 | -- |
| IHI | RHV4 | VJ42 | VJ42 | -- |
| IHI | RHV4 | VJ44 | V41VAD-S0059B, V41VAD-S0059G, VJ44 | R2BH13700 |
| IHI | RHV4-884235P15NR5BRL3913CE | VT16 | V41VAT-S0022B, VAD20022, VT16 | 1515A170 |
| IHI | RHV4 | VT17 | V41VAT-S0079B, VT17 | 1515A222 |

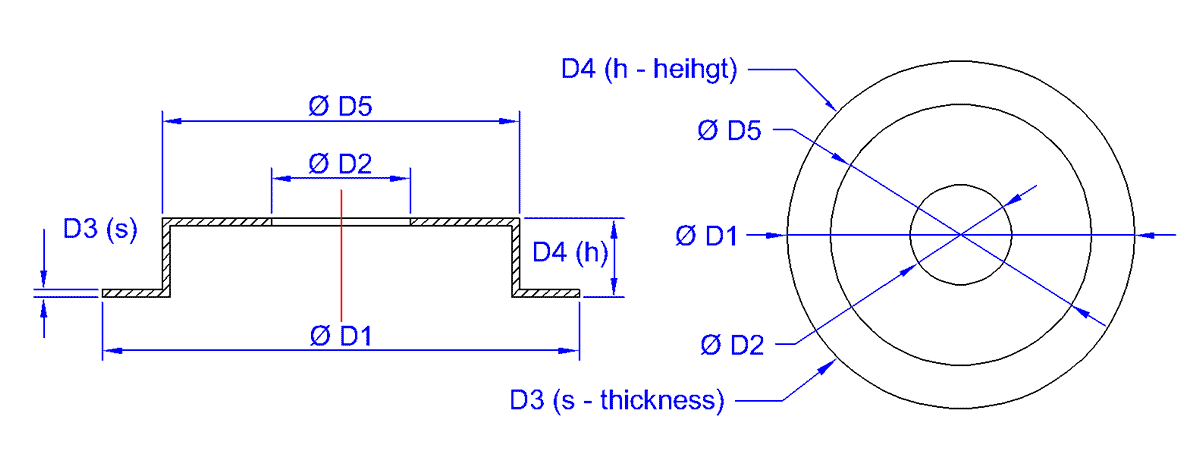

IH-05-0010 - Part Properties
D1 (OD) (D1 outer diameter mm): 50.00
D2 (ID) (D2 inner diameter mm): 20.00
D3 (s) (D3 metal thickness (s) mm): 2.00
D4 (h) (D4 Height mm): 4.00
D5 (IND) (D5 Inducer area diameter mm): 46.00
IH-05-0010, RHF4-323
14411AA720, VF50, VF55, 8981320703, V41VAT-S0039B, VAD20039, VIGL, 8981320692, V41VAT-S0045B, VAD20045, VIGM, 8982216741, V41VAT-S0091B, VIIH, 8982356271, V41VAT-S0099B, VIIO, 8982356281, V41VAT-S0100B, VIIP, 8974350061, V41VAT-S0105B, VIJE, 8974350071, V41VAT-S0106B, VIJF, R2AC13700C, R2AC13700D, VJ40, VJ41, VJ42, R2BH13700, V41VAD-S0059B, V41VAD-S0059G, VJ44, 1515A170, V41VAT-S0022B, VAD20022, VT16, 1515A222, V41VAT-S0079B, VT17
Data updated: 2024-06-07 11:41:57
