Heat shield IH-05-0008
Heat shield IH-05-0008
Redna cena
€7,12 EUR
Redna cena
Znižana cena
€7,12 EUR
Cena na enoto
na
Podatka o razpoložljivosti osebnega prevzema ni mogoče naložiti

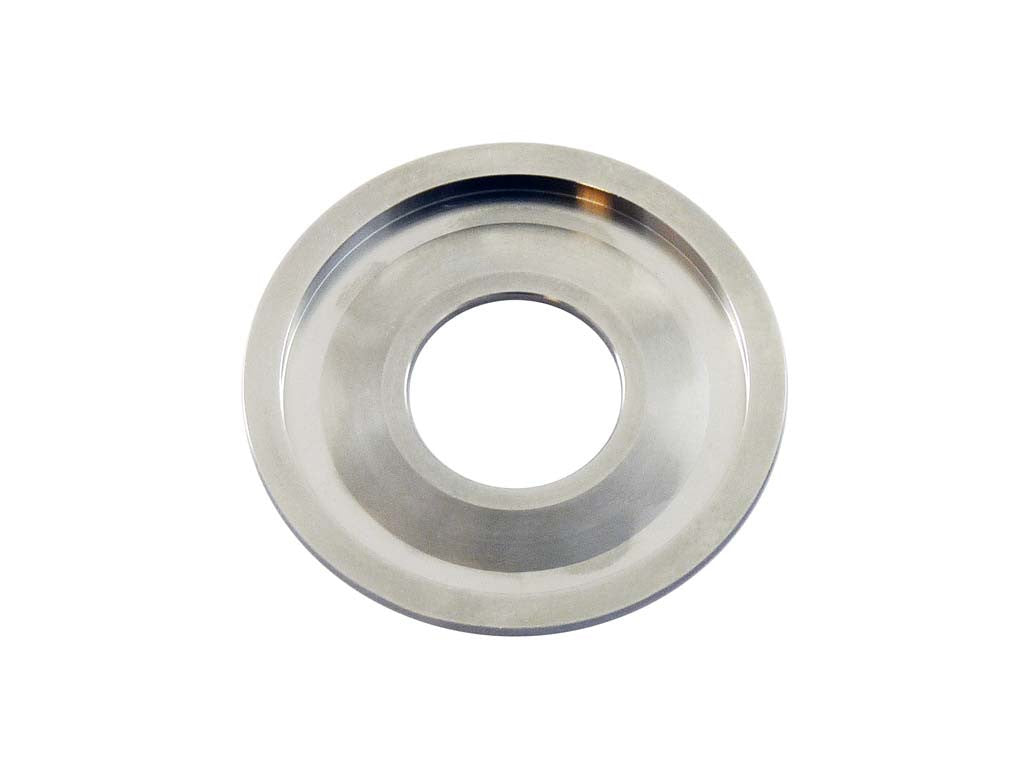

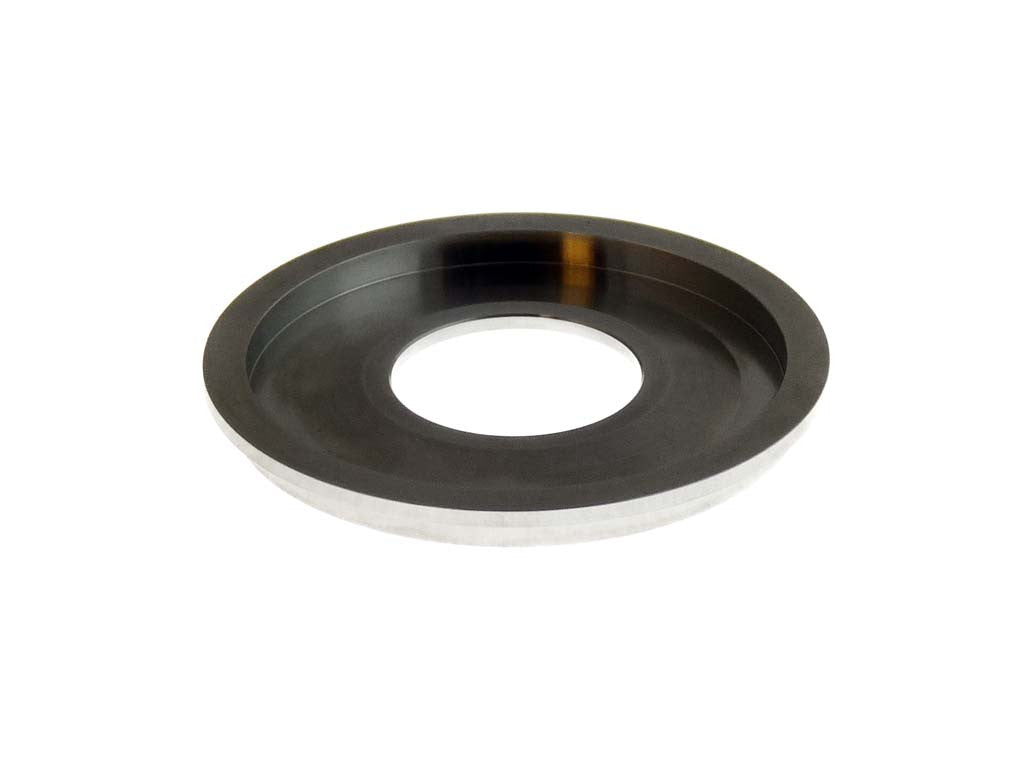

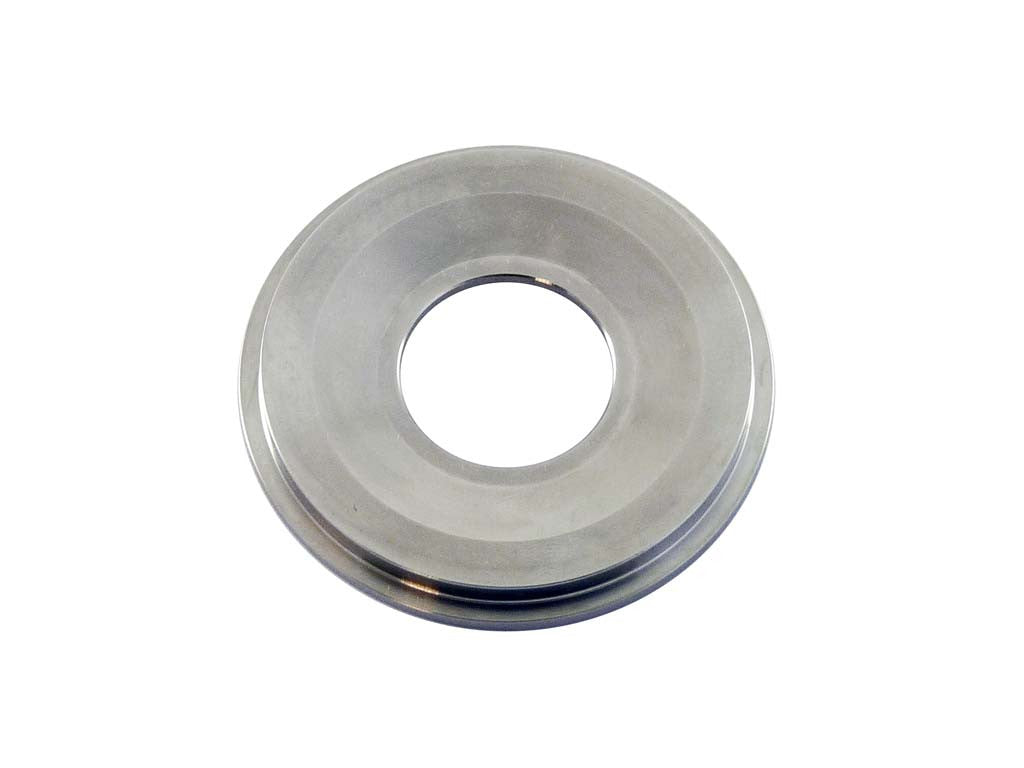

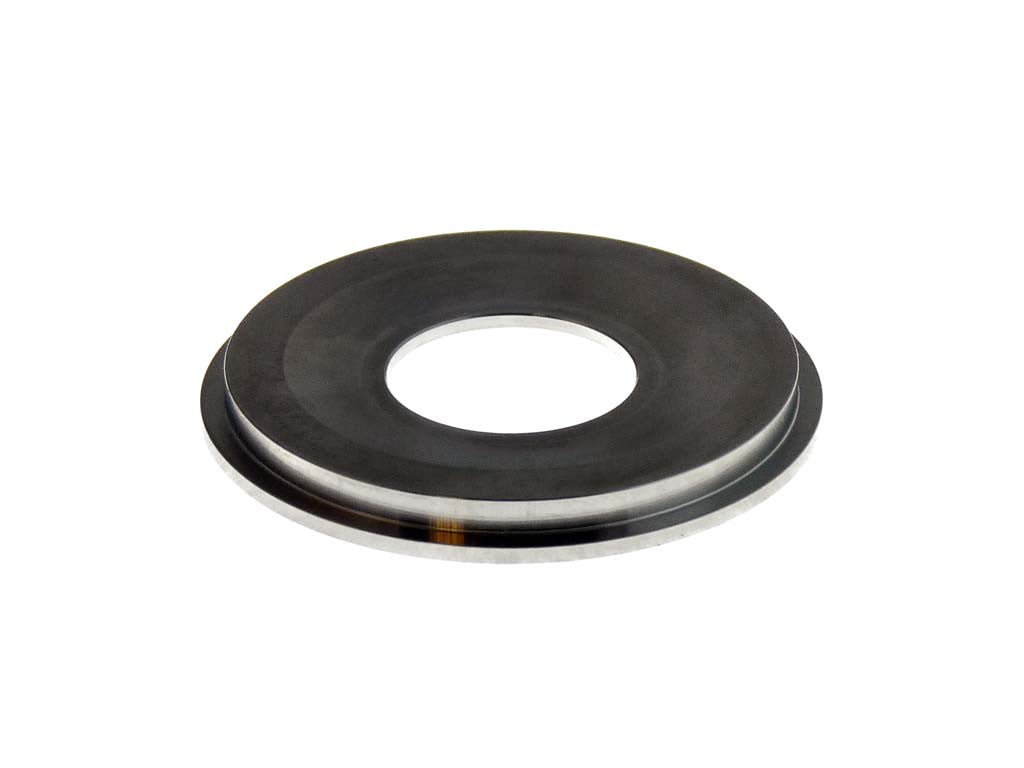

IH-05-0008 - Heat shield
Brand: TurboCentras
TurboCentras Reference: IH-05-0008
IH-05-0008 - Alternative numbers
TCP (TurboCentras part number): IH-05-0008
TCO (TurboCentras old part number): RHF4-322

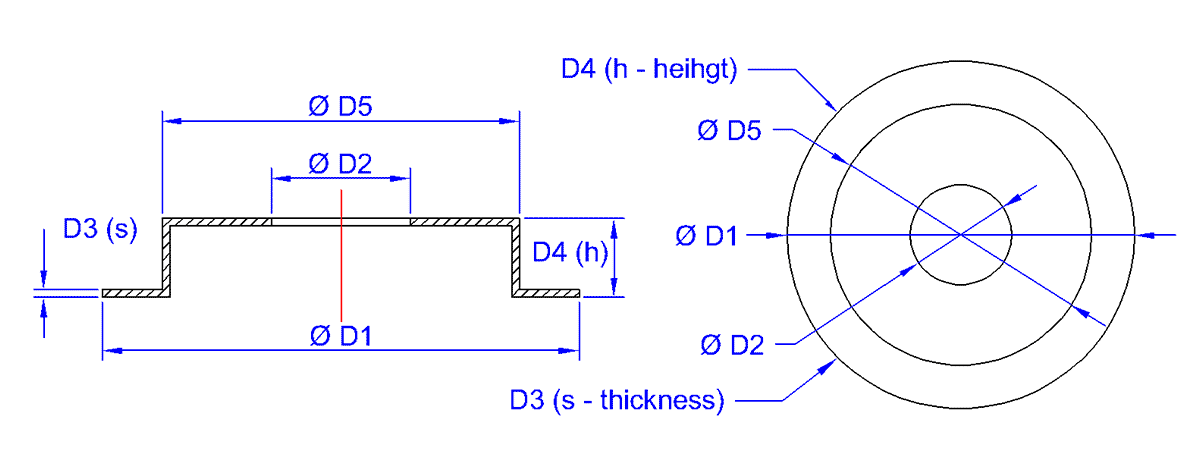

IH-05-0008 - Part Properties
D1 (OD) (D1 outer diameter mm): 50.00
D2 (ID) (D2 inner diameter mm): 20.00
D3 (s) (D3 metal thickness (s) mm): 1.50
D4 (h) (D4 Height mm): 4.50
D5 (IND) (D5 Inducer area diameter mm): 46.00
| TURBO MAKER | TURBO MODEL | TURBO PART NUMBERS | TURBO OE NUMBERS |
|---|---|---|---|
| IHI | RHV4 | 781232101 | -- |
| IHI | RHV4 | -- | 781232104 |
| IHI | RHV4 | 781232105 | -- |
| IHI | RHV4-T39 | 9VB01, V41VEG-SR022B | 11657812321, 1165781232102, 1165781232103, 11658506722, 11658513122, 1165851312202, 11658513123, 11658513124, 11658518204, 1165851820401, 1165851820402, 11658518205, 1165851820502, 7812321, 7812321.03, 781232102, 781232103, 8506722, 8513122, 8513123, 8513124, 8518204, 8518204.02, 851820402, 8518205, 8518205.02, 851820502 |
| IHI | RHV4-720010P15NMXBRS389CD | VAD20027, VB23, VBD20027, VCD20027, VDD20027, VED20027 | 17208-51010 |
| IHI | RHV4 | VB36 | 17201-51201 |
| IHI | RHV4 | VB37 | 17208-51011 |
| IHI | RHV4 | VAD20013, VIFC | 897376-2731, 897376-2734, 897376-2735, 898102-3711, 898102-3712 |
| IHI | RHV4 | VAD20013, VIFC, VIFC-R | 897376-2731, 897376-2734, 897376-2735, 898102-3711, 898102-3712 |
| IHI | RHV4 | V41VAD-S0074B, V41VAD-S0074G, VIHO | 8981796831 |
| IHI | RHV4 | V41VAD-S0089B, V41VAD-S0089G, VIHX | 8981951431 |
| IHI | RHV4 | VAD20012, VHA20012, VJ36 | RF7J-13700D, RF7J-13700E |
| IHI | RHV4 | VAD20012, VHA20012, VJ36 | RF7J-13700D, RF7J-13700E |
| IHI | RHV4 | V41VAT-S0011B, VJ38 | -- |
| IHI | RHV4 | V*D20060, V41VAD-S0060B, V41VAD-S0060G, VJ45 | R2BF13700 |
| IHI | RHV4 | AL0044, V41VEY-S0096B, VV19 | A6460900780, A6460901380, A6460901580 |
| IHI | RHF4V | AL0049, AL2011, V41VEY-SR020B, VV20 | A6510900086, A651090086, A6510902270, A6510902780 |
| IHI | RHF4V | VV21 | 6510901180, A6510901180, A651090118080 |
| IHI | RHF4 | VV21 | 6510900186, A6510900186 |
| IHI | RHF3V | VV21 | A6510900180, A6510900486, A6510900586, A6510900786 |
IH-05-0008 - Used in turbocharges
781232101, 781232104, 781232105, 11657812321, 1165781232102, 1165781232103, 11658506722, 11658513122, 1165851312202, 11658513123, 11658513124, 11658518204, 1165851820401, 1165851820402, 11658518205, 1165851820502, 7812321, 7812321.03, 781232102, 781232103, 8506722, 8513122, 8513123, 8513124, 8518204, 8518204.02, 851820402, 8518205, 8518205.02, 851820502, 9VB01, V41VEG-SR022B, 17208-51010, VAD20027, VB23, VBD20027, VCD20027, VDD20027, VED20027, 17201-51201, VB36, 17208-51011, VB37, 897376-2731, 897376-2734, 897376-2735, 898102-3711, 898102-3712, VAD20013, VIFC, VIFC-R, 8981796831, V41VAD-S0074B, V41VAD-S0074G, VIHO, 8981951431, V41VAD-S0089B, V41VAD-S0089G, VIHX, RF7J-13700D, RF7J-13700E, VAD20012, VHA20012, VJ36, V41VAT-S0011B, VJ38, R2BF13700, V*D20060, V41VAD-S0060B, V41VAD-S0060G, VJ45, A6460900780, A6460901380, A6460901580, AL0044, V41VEY-S0096B, VV19, A6510900086, A651090086, A6510902270, A6510902780, AL0049, AL2011, V41VEY-SR020B, VV20, 6510901180, A6510901180, A651090118080, VV21, 6510900186, A6510900186, A6510900180, A6510900486, A6510900586, A6510900786Data updated: 2025-10-14 10:05:55
