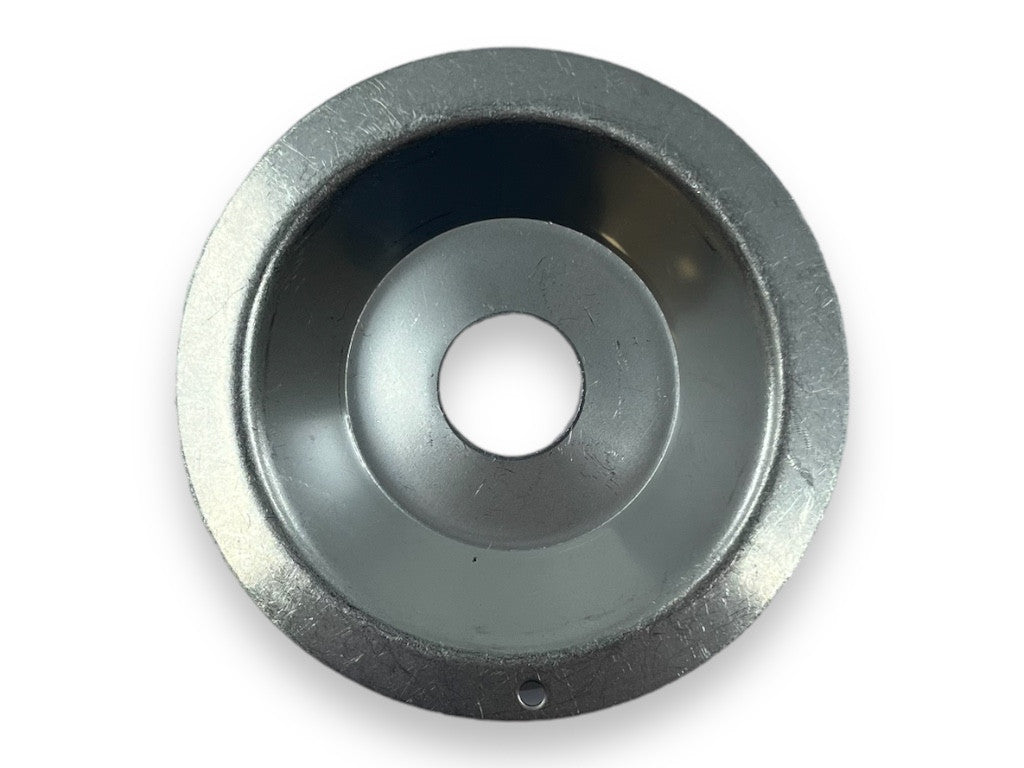

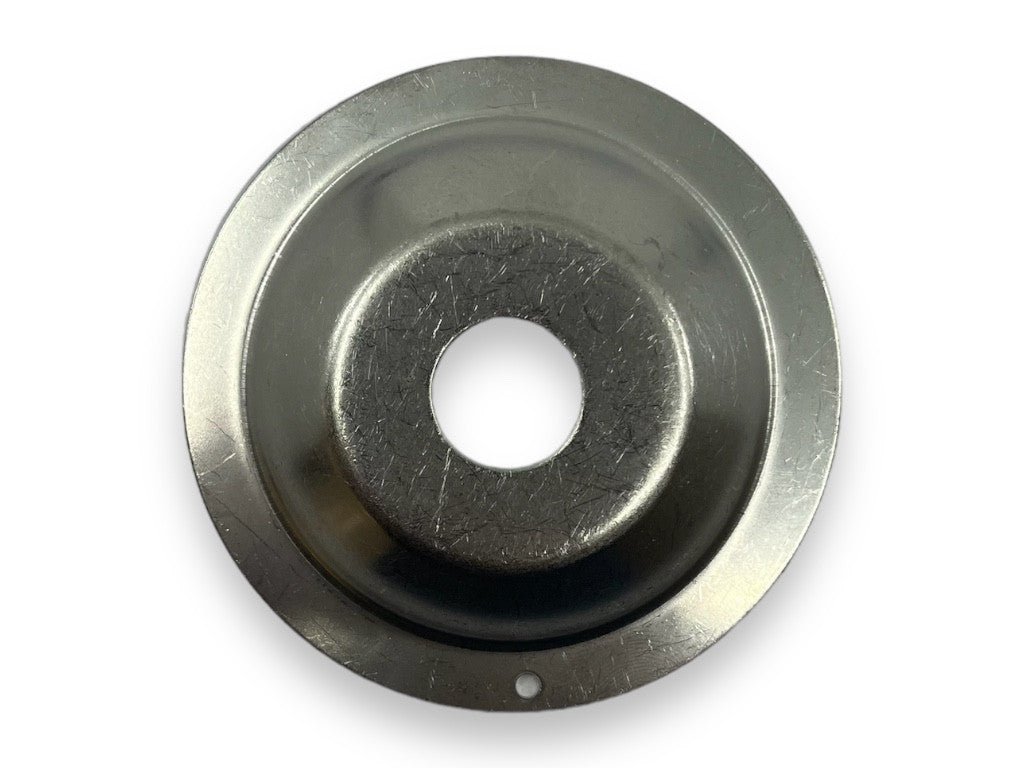

Heat shield GA-05-0017

GA-05-0017 - Heat shield

Brand: TurboCentras

TurboCentras Reference: GA-05-0017

GA-05-0017 - Alternative numbers

TCP (TurboCentras part number): GA-05-0017

TCO (TurboCentras old part number): GT17-321

GA-05-0017 - Compatibility table

Heat shield GA-05-0017 - Compatible turbochargers

TURBO MAKER	TURBO MODEL	TURBO REFERENCE	TURBO PART NUMBER	TURBO OE NUMBER
Garrett	GT1752S	701196-0001	701196-0001	14411-VB300, 14411VB300
Garrett	GT1752S	701196-0002	701196-0002	--
Garrett	GT1752S	701196-0006	701196-0006	14411-VB301
Garrett	GT1752S	701196-0007	701196-0007, 701196-5007S	14411-VB301, 14411VB301
Garrett	GT1549S	705306-0001	705306-0001	14411-5M300, 144115M300
Garrett	GT1549S	705306-0002	705306-0002	14411-4U100, 144114U100
Garrett	GT1549S	705306-0006	705306-0006	14411-5M310, 144115M310
Garrett	GT1549S	705306-0007	705306-0007	14411-4U110, 144114U110

---

GA-05-0017, GT17-321

---

14411-VB300, 14411VB300, 701196-0001, 701196-0002, 14411-VB301, 701196-0006, 14411-VB301, 14411VB301, 701196-0007, 701196-5007S, 14411-5M300, 144115M300, 705306-0001, 14411-4U100, 144114U100, 705306-0002, 14411-5M310, 144115M310, 705306-0006, 14411-4U110, 144114U110, 705306-0007

---

Data updated: 2024-06-07 16:37:20
