TurboCentras

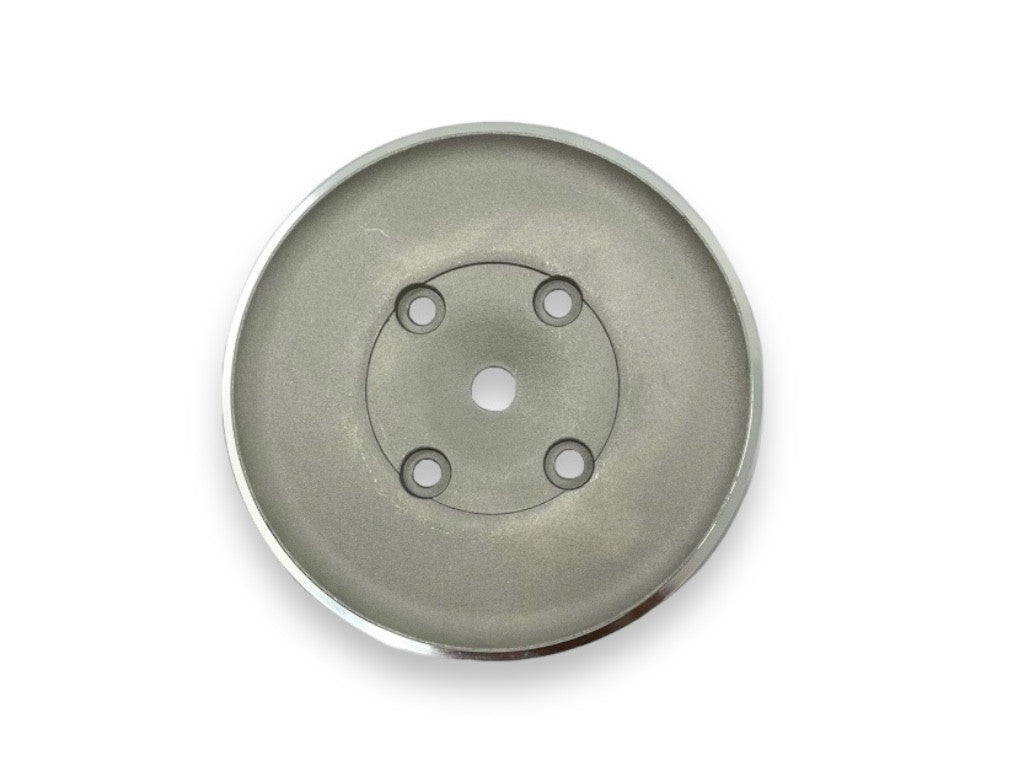

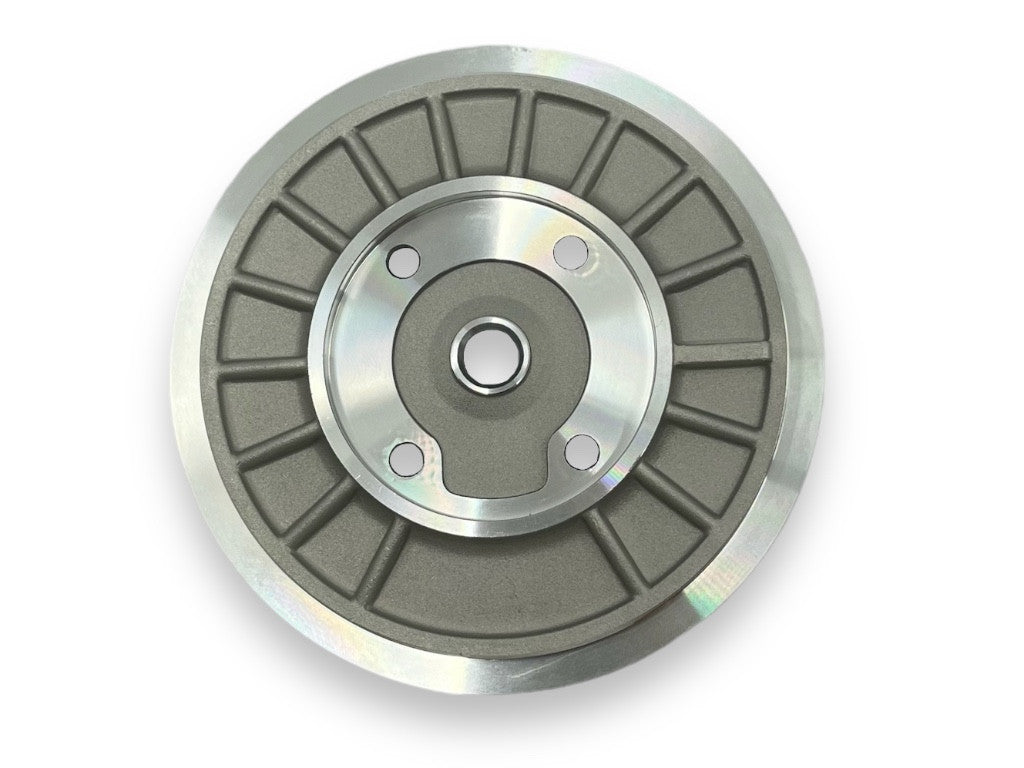

Back plate IH-08-0006

Back plate IH-08-0006

€8,72 EUR
€8,72 EUR
Znižanje Razprodano

IH-08-0006 - Back plate

Brand: TurboCentras

TurboCentras Reference: IH-08-0006

IH-08-0006 - Alternative numbers

TCP (TurboCentras part number): IH-08-0006

TCO (TurboCentras old part number): RHF4-62

IH-08-0006 - Compatibility table

Back plate IH-08-0006 - Compatible turbochargers
TURBO MAKER TURBO MODEL TURBO REFERENCE TURBO PART NUMBER TURBO OE NUMBER
IHI RHF4V VB14 VB14 17201-0R010, 17201-0R011
IHI RHF4 VB17 VB17 17201-26020, 17201-26021
IHI RHF4 VB19 VB19 17201-0R040, 17201-0R041, 17201-26051, 17201-26053
IHI RHF4 VB21 VB21 17201-0R040, 17201-0R041, 17201-26051, 17201-26053, 172010R040, 172010R041, 1720126051, 1720126053
IHI RHF4V VB25 VB25 --
IHI RHF4V VB28 F43VAD-S0052B, F43VAD-S0052G, VB28 17201-26072

IH-08-0006 - Part Properties

Type (Back plate type): Outside

Trim (Back plate trim): Deep Superback

A (Size A): 115.00

B (Size B): 109.00

C (Size C): 53.50

D (Size D): 10.00

E (Size E): 13.50

IH-08-0006
IH-08-0006, RHF4-62
17201-0R010, 17201-0R011, VB14, 17201-26020, 17201-26021, VB17, 17201-0R040, 17201-0R041, 17201-26051, 17201-26053, VB19, 17201-0R040, 17201-0R041, 17201-26051, 17201-26053, 172010R040, 172010R041, 1720126051, 1720126053, VB21, VB25, 17201-26072, F43VAD-S0052B, F43VAD-S0052G, VB28
