Back plate BW-08-0034

Back plate BW-08-0034

€7,20 EUR
€7,20 EUR
Znižanje Razprodano

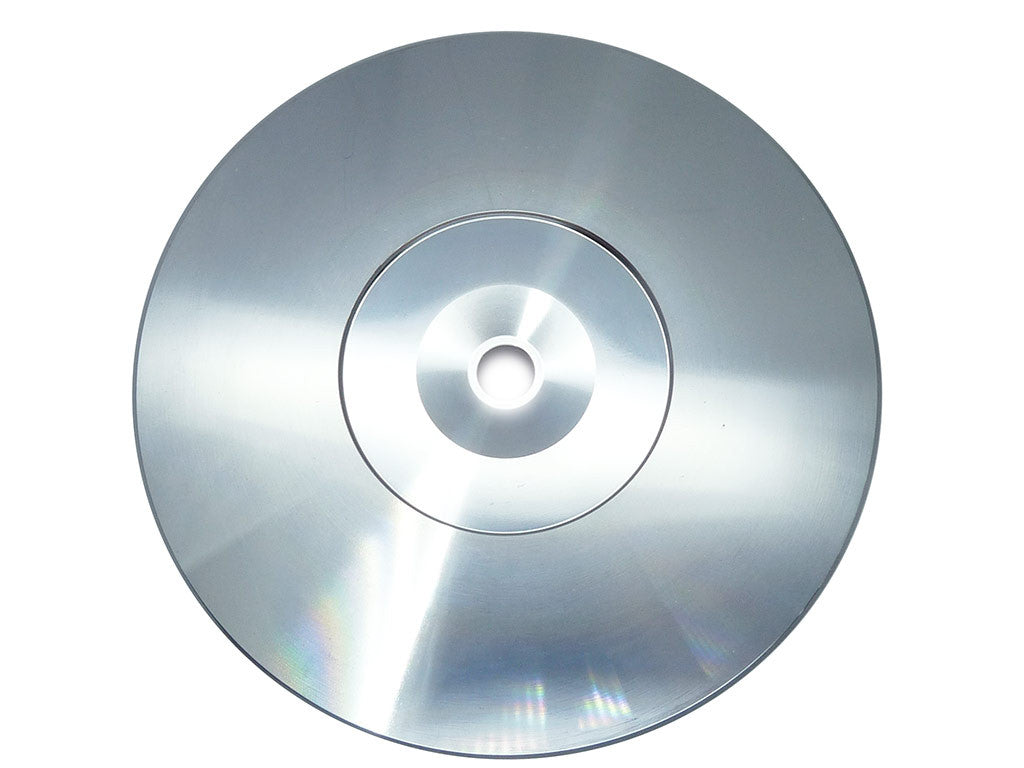

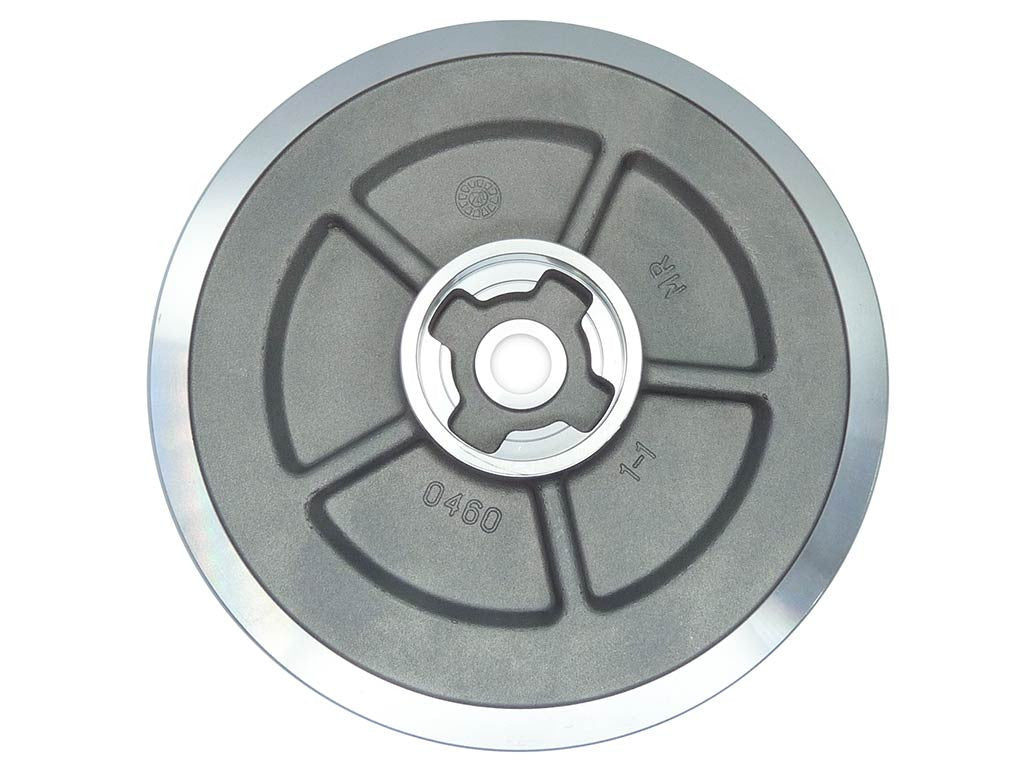

BW-08-0034 - Back plate

Brand: TurboCentras

TurboCentras Reference: BW-08-0034

BW-08-0034 - Alternative numbers

TCP (TurboCentras part number): BW-08-0034

TCO (TurboCentras old part number): K04-63

BW-08-0034 - Compatibility table

Back plate BW-08-0034 - Compatible turbochargers
TURBO MAKER TURBO MODEL TURBO REFERENCE TURBO PART NUMBER TURBO OE NUMBER
BorgWarner K04-R2S 10009500026-K04 1000 950 0026 55562590
BorgWarner K04-R2S 10009700018-K04 1000 970 0018 55579038
BorgWarner K04-R2S 10009700062-K04 1000 970 0062, 1000 988 0062 55577924
BorgWarner K04-2274DGB201.88GCAAK 53049700085 1000 970 0007, 5304 970 0085 6510900280
BorgWarner K04-2270DGB5.82GCAAK 53049700086 1000 970 0008, 1000 970 0036, 1000 970 0074, 5304 970 0086 6510900980
BorgWarner K04-2274DGF201.88GCAAK 53049700094 1000 970 0019, 1000 970 0028, 1000 970 0033, 1000 970 0034, 1000 970 0054, 1000 970 0070, 1000 970 0071, 1000 970 0075, 1000 970 0076, 1000 970 0081, 5304 970 0094 6510902880
BorgWarner K04-R2S 53049700127 1000 970 0037, 5304 970 0127 6510905680

BW-08-0034 - Part Properties

Type (Back plate type): Outside

Trim (Back plate trim): Superback

A (Size A): 130.00

B (Size B): 130.00

C (Size C): 57.00

D (Size D): 10.00

E (Size E): 17.50

BW-08-0034
BW-08-0034, K04-63
53049700127, 10009700037, 53049700094, 10009700081, 10009700076, 10009700075, 10009700071, 10009700070, 10009700054, 10009700034, 10009700033, 10009700028, 10009700019, 53049700086, 10009700074, 10009700036, 10009700008, 53049700085, 10009700007, 10009880062, 10009700062, 10009700018, 10009500026, 1000 950 0026, 55562590, 1000 970 0018, 55579038, 1000 970 0062, 1000 988 0062, 55577924, 1000 970 0007, 5304 970 0085, 6510900280, 1000 970 0008, 1000 970 0036, 1000 970 0074, 5304 970 0086, 6510900980, 1000 970 0019, 1000 970 0028, 1000 970 0033, 1000 970 0034, 1000 970 0054, 1000 970 0070, 1000 970 0071, 1000 970 0075, 1000 970 0076, 1000 970 0081, 5304 970 0094, 6510902880, 1000 970 0037, 5304 970 0127, 6510905680
