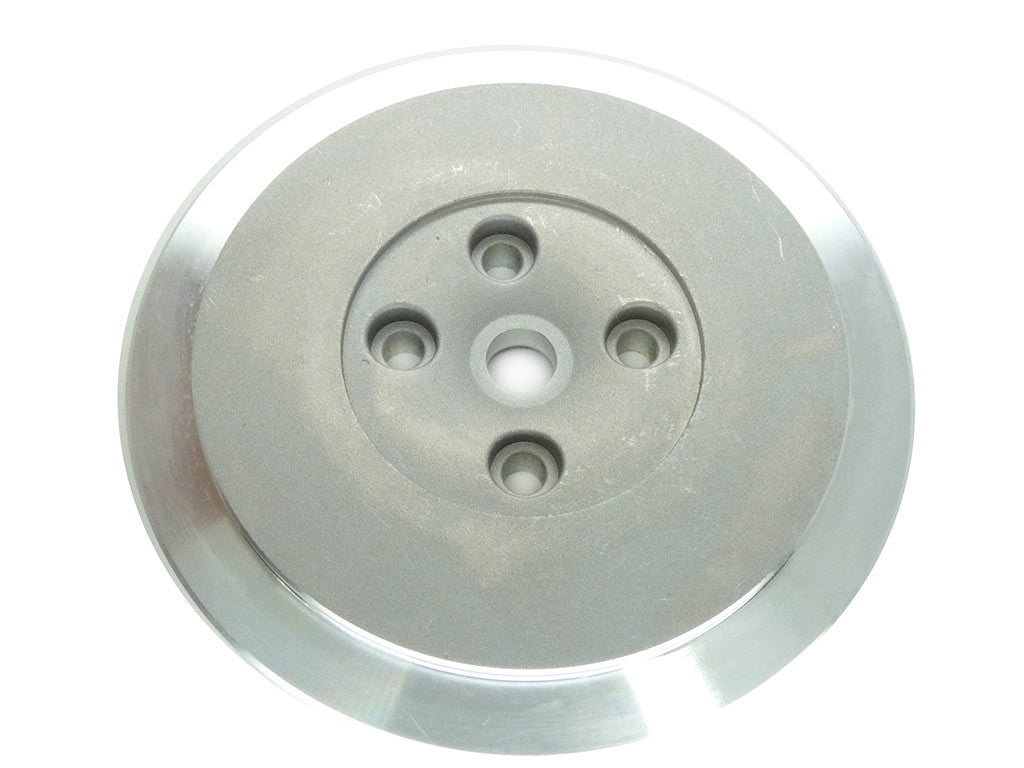

Back plate GA-08-0034
Back plate GA-08-0034
Redna cena
€5,18 EUR
Redna cena
Znižana cena
€5,18 EUR
Cena na enoto
na
Podatka o razpoložljivosti osebnega prevzema ni mogoče naložiti
GA-08-0034 - Back plate
Brand: TurboCentras
TurboCentras Reference: GA-08-0034
GA-08-0034 - Alternative numbers
TCP (TurboCentras part number): GA-08-0034
TCO (TurboCentras old part number): GT15-89
GA-08-0034 - Part Properties
Trim (Back plate trim): Deep Superback
A (Size A): 111.00
B (Size B): 91.30
C (Size C): 50.50
D (Size D): 10.00
E (Size E): 13.70
| TURBO MAKER | TURBO MODEL | TURBO PART NUMBERS | TURBO OE NUMBERS |
|---|---|---|---|
| Garrett | TBP418 | 715189-0001 | 90529201006903 |
| Garrett | TBP418 | 735598-0001 | -- |
| Garrett | GT1749MV | 736168-0002 | 55188690, 55191485, 55205177, 55214061 |
| Garrett | GT1749MV | 736168-0003 | 55188690, 55191485, 55205177, 55214061 |
| Garrett | GT1749MV | 740067-0001 | -- |
| Garrett | GT1749MV | 740067-0002, 740067-5002S | 55188659, 55190872, 55193106, 55195788, 55196766, 55196859, 55205356, 55205483, 55211063, 55217692, 93184791 |
| Garrett | GT1749MV | 740080-0001 | -- |
| Garrett | GT1749MV | 740080-0002, 740080-5002S | 55188334, 55190871, 55193105, 55195787, 55196765, 55196858, 55205179, 55205474 |
| Garrett | GT1749MV | 752814-0001 | 55188334, 55190871, 55193105, 55195787, 55196765, 55196858, 55205179, 55205474 |
| Garrett | GTA1749V | 753519-0007, 753519-5007S | 1372392, 1456074, 1497697, 6C1Q6K682BC, 6C1Q6K682BD, 6C1Q6K682BE |
| Garrett | GTA1749V | 753519-0008 | 1372392, 1456074, 1497697, 6C1Q6K682BC, 6C1Q6K682BD, 6C1Q6K682BE, 6C1Q6K682DB |
| Garrett | GTA1749V | 753519-0009, 753519-5009S, 753519-9009S | 1372392, 1456074, 1497697, 6C1Q6K682BC, 6C1Q6K682BD, 6C1Q6K682BE, 6C1Q6K682DB |
| Garrett | GT1749MV | 754821-0001 | -- |
| Garrett | GT1749MV | 755042-0001, 755042-5001S | 55188334, 55190871, 55193105, 55195787, 55196765, 55196858, 55205179, 55205474 |
| Garrett | GT1749MV | 755042-0002 | 55188334, 55190871, 55193105, 55195787, 55196765, 55196858, 55205179, 55205474 |
| Garrett | GT1749MV | 755042-0003 | 55188334, 55190871, 55193105, 55195787, 55196765, 55196858, 55205179, 55205474 |
| Garrett | GT1749MV | 755042-0003, 755042-0003-R, 755042-9003S | 55188334, 55190871, 55193105, 55195787, 55196765, 55196858, 55205179, 55205474 |
| EE Turbo | GT1749MV | 755042-0004 | -- |
| Garrett | GT1749MV | 755042-0003, 755042-9003S | 55188334, 55190871, 55193105, 55195787, 55196765, 55196858, 55205179, 55205474 |
| Garrett | GT1749MV | 755046-0001 | 55196859 |
| Garrett | GT1749MV | 755046-0002 | 55196766 |
| Garrett | GT1749MV | 755046-0003 | 55205356 |
| Garrett | GT1749MV | 755046-0004, 755046-5004S, 755046-9004S | 7550460004 |
| Garrett | GT1749MV | 755373-0001, 755373-5001S | 55188334, 55190871, 55193105, 55195787, 55196765, 55196858, 55205179, 55205474 |
| Garrett | GT1749MV | 755373-0003 | -- |
| Garrett | GTB1749MV | 757042-0008, 757042-5008S | 03G253010AV100 |
| Garrett | GTB1749MV | 757042-0010, 757042-5010S | 03G253019NV395 |
| Garrett | GTB1749MV | 757042-0011, 757042-5011S | 03G253010AV100 |
| Garrett | GTB1749MV | 757042-0013, 757042-5013S | 03G253014KV100 |
| Garrett | GTB1749MV | 757042-0014, 757042-5014S | 03G253010A |
| Garrett | GTB1749MV | 757042-0015, 757042-5015S | 03G253010AV100 |
| Garrett | GTB1749MV | 757042-0016, 757042-5016S | 03G253010AV100 |
| Garrett | GTB1749MV | 757042-0017 | 03G253010A |
| Garrett | GTB1749MV | 757042-0018, 757042-5018S, 757042-9018S | 03G253010AV100 |
| Garrett | GTA1749MVK | 758226-0002 | 6S7Q6K682AB |
| Garrett | GT1749V | 758226-0004 | 02JDE4644, 6S7Q-6K682-AD, 6S7Q6K682AD |
| Garrett | GT1749V | 758226-0008 | 02JDE4959, 6S7Q-6K682-AF, 6S7Q6K682AF |
| Garrett | GTA1749MVK | 758226-0010 | 02C2S51563, 6S7Q-6K682-AG, 6S7Q6K682AG |
| Garrett | GTA1749MVK | 758226-0014, 758226-5014S, 758226-9014W | 02C2S51563, 6S7Q-6K682-AG, 6S7Q6K682AG |
| Garrett | GT1749V | 760497-0001, 760497-5001S | 55200925 |
| Garrett | GT1749V | 760497-0002 | 55205370 |
| Garrett | GT1749MV | 760822-0001, 760822-5001S | 55195268, 55200807, 55205181, 55205475 |
| Garrett | GTA1749MV | 760822-0002, 760822-5002S | 55200807 |
| Garrett | GT1749V | 761899-0001 | -- |
| Garrett | GT1749V | 761899-0002 | -- |
| Garrett | GT1749V | 761899-0003 | -- |
| Garrett | GT1749MV | 762660-0002, 762660-5002S | 55203091 |
| Garrett | GTA1749MV | 762660-0003, 762660-5003S | 55205481 |
| Garrett | GT1749MV | 766340-0001, 766340-5001S | 55205483 |
| Garrett | GT1749MV | 766340-0001, 766340-0001-R, 766340-5001S | 55205483 |
| Garrett | GT1749MV | 766340-0002, 766340-5002S, 766340-9002S | 55190872, 55196766, 55196859, 55205356, 55205483 |
| Garrett | GT1749MV | 766340-0003 | -- |
| Garrett | GT1749MV | 766340-0001, 766340-5001S | 55205483 |
| Garrett | GT1749MV | 767835-0001, 767835-5001S | 55188334, 55190871, 55193105, 55195787, 55196765, 55196858, 55205179, 55205474 |
| Garrett | GTA1749MV | 767835-0003, 767835-5003S, 767835-9003S | 55205474 |
| Garrett | GT1749V | 767836-0001 | -- |
| Garrett | GT1749MV | 767837-0001, 767837-5001S | 55205475 |
| Garrett | GT1749MV | 767837-0001, 767837-9001S | 55205475 |
| Garrett | GTA1749MV | 767837-0002, 767837-5002S, 767837-9002S | 55205475 |
| Garrett | GT1749MV | 767837-0001, 767837-9001S | 55205475 |
| Garrett | GTA2052VK | 767933-0008, 767933-5008S | 1479061, 1495914, 1692434, 8C1Q6K682BA, 8C1Q6K682BB, 8C1Q6K682BC |
| Garrett | GTA2052VK | 767933-0015, 767933-5015W, 767933-9015W | 1479061, 1495914, 1692434, 8C1Q6K682BA, 8C1Q6K682BB, 8C1Q6K682BC |
| Garrett | GT17 | 773148-0001, 773148-5001S | 55565542 |
| Garrett | GTA1749MV | 773148-0002, 773148-5002S, 773148-9002W | 55565542 |
| Garrett | GT1749MV | 773720-0001 | -- |
| Garrett | GT1749MV | 773720-0003, 773720-5003S | 552110630 |
| Garrett | GT1749V | 773721-0001, 773721-5001S, 773721-9001W | 55211064 |
| Garrett | GTA1749MV | 773721-0003, 773721-5003S | 55211064 |
| Garrett | GT1749V | 777250-0001 | 55214063 |
| Garrett | GT1749V | 777250-0002, 777250-5002S, 777250-9002W | 55214063 |
| Garrett | GT1749MV | 777251-0001, 777251-5001S | 55214061 |
| Garrett | GTA1749V | 777251-0002, 777251-5002S, 777251-9002S | 55214061 |
GA-08-0034 - Used in turbocharges
715189-0001, 90529201006903, 735598-0001, 55188690, 55191485, 55205177, 55214061, 736168-0002, 736168-0003, 740067-0001, 55188659, 55190872, 55193106, 55195788, 55196766, 55196859, 55205356, 55205483, 55211063, 55217692, 740067-0002, 740067-5002S, 93184791, 740080-0001, 55188334, 55190871, 55193105, 55195787, 55196765, 55196858, 55205179, 55205474, 740080-0002, 740080-5002S, 752814-0001, 1372392, 1456074, 1497697, 6C1Q6K682BC, 6C1Q6K682BD, 6C1Q6K682BE, 753519-0007, 753519-5007S, 6C1Q6K682DB, 753519-0008, 753519-0009, 753519-5009S, 753519-9009S, 754821-0001, 755042-0001, 755042-5001S, 755042-0002, 755042-0003, 755042-0003-R, 755042-9003S, 755042-0004, 755046-0001, 755046-0002, 755046-0003, 755046-0004, 755046-5004S, 755046-9004S, 7550460004, 755373-0001, 755373-5001S, 755373-0003, 03G253010AV100, 757042-0008, 757042-5008S, 03G253019NV395, 757042-0010, 757042-5010S, 757042-0011, 757042-5011S, 03G253014KV100, 757042-0013, 757042-5013S, 03G253010A, 757042-0014, 757042-5014S, 757042-0015, 757042-5015S, 757042-0016, 757042-5016S, 757042-0017, 757042-0018, 757042-5018S, 757042-9018S, 6S7Q6K682AB, 758226-0002, 02JDE4644, 6S7Q-6K682-AD, 6S7Q6K682AD, 758226-0004, 02JDE4959, 6S7Q-6K682-AF, 6S7Q6K682AF, 758226-0008, 02C2S51563, 6S7Q-6K682-AG, 6S7Q6K682AG, 758226-0010, 758226-0014, 758226-5014S, 758226-9014W, 55200925, 760497-0001, 760497-5001S, 55205370, 760497-0002, 55195268, 55200807, 55205181, 55205475, 760822-0001, 760822-5001S, 760822-0002, 760822-5002S, 761899-0001, 761899-0002, 761899-0003, 55203091, 762660-0002, 762660-5002S, 55205481, 762660-0003, 762660-5003S, 766340-0001, 766340-5001S, 766340-0001-R, 766340-0002, 766340-5002S, 766340-9002S, 766340-0003, 767835-0001, 767835-5001S, 767835-0003, 767835-5003S, 767835-9003S, 767836-0001, 767837-0001, 767837-5001S, 767837-9001S, 767837-0002, 767837-5002S, 767837-9002S, 1479061, 1495914, 1692434, 767933-0008, 767933-5008S, 8C1Q6K682BA, 8C1Q6K682BB, 8C1Q6K682BC, 767933-0015, 767933-5015W, 767933-9015W, 55565542, 773148-0001, 773148-5001S, 773148-0002, 773148-5002S, 773148-9002W, 773720-0001, 552110630, 773720-0003, 773720-5003S, 55211064, 773721-0001, 773721-5001S, 773721-9001W, 773721-0003, 773721-5003S, 55214063, 777250-0001, 777250-0002, 777250-5002S, 777250-9002W, 777251-0001, 777251-5001S, 777251-0002, 777251-5002S, 777251-9002SData updated: 2025-11-05 14:39:55
