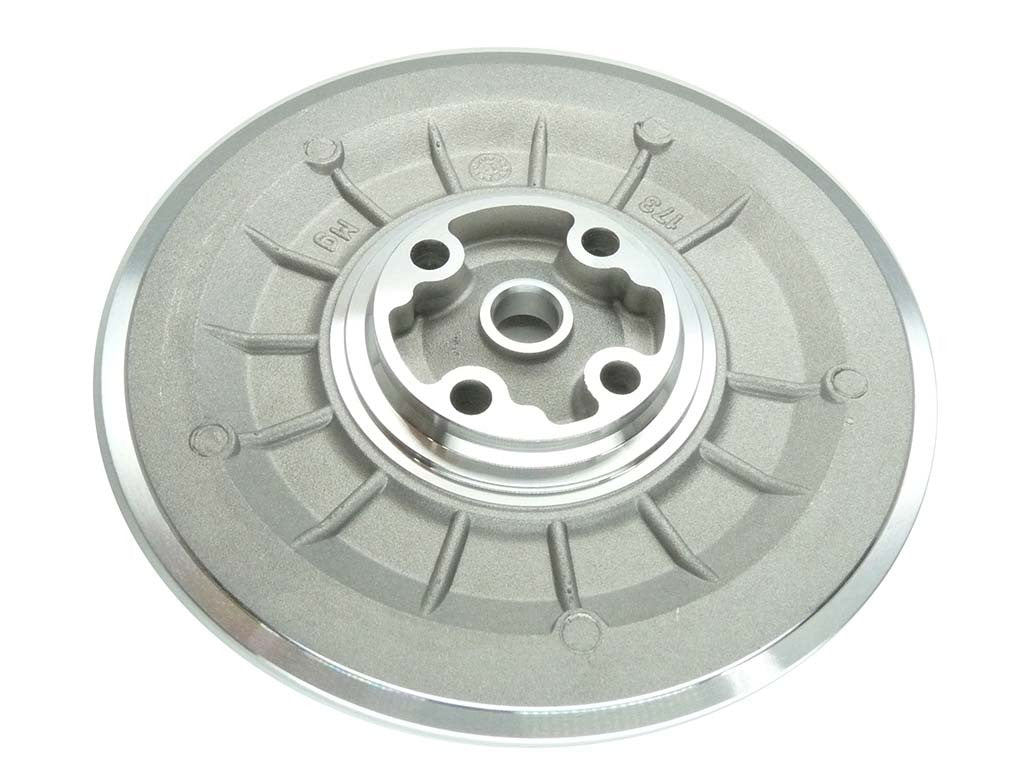

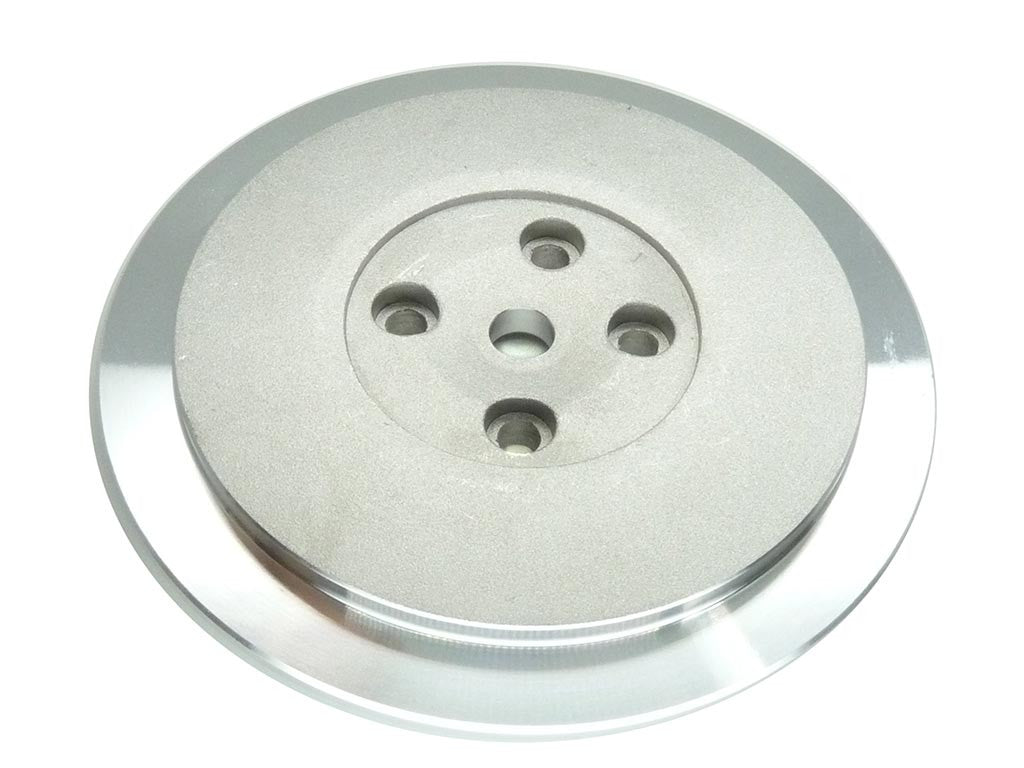

Back plate GA-08-0015
Back plate GA-08-0015
Redna cena
€6,20 EUR
Redna cena
Znižana cena
€6,20 EUR
Cena na enoto
na
Podatka o razpoložljivosti osebnega prevzema ni mogoče naložiti
GA-08-0015 (433259-0001, 433294-0002, 433294-0004) - Back plate
Brand: TurboCentras
TurboCentras Reference: GA-08-0015
OEM Numbers: 433259-0001, 433294-0002, 433294-0004
GA-08-0015 - Alternative numbers
TCP (TurboCentras part number): GA-08-0015
TCO (TurboCentras old part number): GT15-70
GA-08-0015 - Compatibility table
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO PART NUMBER | TURBO OE NUMBER |
|---|---|---|---|---|
| Garrett | GT1749S | 454220-0001 | 454220-0001, 454220-5001S | A6610903080 |
| Garrett | GT1749LS | 466501-0002 | 466501-0002, 466501-5002S | 28230-41401, 2823041401 |
| Garrett | GT1749LS | 466501-0003 | 466501-0003, 466501-5003S | 2823041402, 28320-41412 |
| Garrett | GT1749S | 466501-0004 | 466501-0004, 466501-5004S | 2823041411 |
| Garrett | GT1749S | 466501-0005 | 466501-0005, 466501-5005S | 2823041412 |
| Garrett | GT1749LS | 471037-0001 | 471037-0001 | 28230-41421 |
| Garrett | GT1749S | 471037-0002 | 471037-0002 | -- |
| Garrett | GT1749S | 471189-0001 | 471189-0001, 471189-5001S | 2823041601 |
| Garrett | GT1749S | 700273-0001 | 700273-0001 | -- |
| Garrett | GT1749S | 700273-0002 | 700273-0002, 700273-5002S | 282004B160 |
| Garrett | GT1749S | 700917-0001 | 700917-0001 | -- |
| Garrett | GT1749S | 702297-0002 | 702297-0002, 702297-5002S | A6610903080 |
| Garrett | GT1749S | 704119-0001 | 704119-0001, 704119-5001S | A6610903180 |
| Garrett | GT1749S | 704119-0002 | 704119-0002, 704119-5002S | A661 090 34 80 |
| Garrett | GT1749S | 708337-0001 | 708337-0001, 708337-5001S | 2823041720 |
| Garrett | GT1749S | 708337-0002 | 708337-0002, 708337-5002S | 2823041730 |
| Garrett | GT1749S | 708337-0004 | 708337-0004 | -- |
| Garrett | GT1749S | 715843-0001 | 715843-0001, 715843-5001S | 2820042600 |
| Garrett | GT1749S | 715843-0002 | 715843-0002, 715843-5002S | 28200-42650 |
| Garrett | GT1749S | 715924-0001 | 715924-0001, 715924-5001S | 28200-42610, 2820042610 |
| Garrett | GT1749S | 715924-0002 | 715924-0002, 715924-5002S | 28200-42700, 2820042700 |
| Garrett | GT1749S | 715924-0003 | 715924-0003, 715924-5003S, 715924-5003W | 28200-42610, 2820042610 |
| Garrett | GT1749S | 715924-0004 | 715924-0004, 715924-5004S, 715924-5004W | 28200-42700, 2820042700 |
| Garrett | GT1749S | 715924-0005 | 715924-0005, 715924-5005S | 28200-42800, 2820042800 |
| Garrett | GT1749S | 716938-0001 | 716938-0001, 716938-5001S | 2820042560 |
| Garrett | GT1749S | 716938-0002 | 716938-0002 | -- |
| Garrett | GT1749LS | 730640-0001 | 730640-0001, 730640-5001S | 28200-4A200, 282004A200 |
| Garrett | GT15 | 730640-0002 | 730640-0002 | 28200-4A200, 282004A200 |
| Garrett | GT1749S | 732340-0001 | 732340-0001, 732340-5001S | 28200-4A350 |
GA-08-0015 - Part Properties
Type (Back plate type): Outside
Trim (Back plate trim): Superback
A (Size A): 120.00
B (Size B): 97.60
C (Size C): 50.40
D (Size D): 10.00
E (Size E): 12.00
433259-0001, 433294-0002, 433294-0004, GA-08-0015, GT15-70
A6610903480, 454220-0001, 454220-5001S, A6610903080, 28230-41401, 2823041401, 466501-0002, 466501-5002S, 2823041402, 28320-41412, 466501-0003, 466501-5003S, 2823041411, 466501-0004, 466501-5004S, 2823041412, 466501-0005, 466501-5005S, 28230-41421, 471037-0001, 471037-0002, 2823041601, 471189-0001, 471189-5001S, 700273-0001, 282004B160, 700273-0002, 700273-5002S, 700917-0001, 702297-0002, 702297-5002S, A6610903080, 704119-0001, 704119-5001S, A6610903180, 704119-0002, 704119-5002S, A661 090 34 80, 2823041720, 708337-0001, 708337-5001S, 2823041730, 708337-0002, 708337-5002S, 708337-0004, 2820042600, 715843-0001, 715843-5001S, 28200-42650, 715843-0002, 715843-5002S, 28200-42610, 2820042610, 715924-0001, 715924-5001S, 28200-42700, 2820042700, 715924-0002, 715924-5002S, 28200-42610, 2820042610, 715924-0003, 715924-5003S, 715924-5003W, 28200-42700, 2820042700, 715924-0004, 715924-5004S, 715924-5004W, 28200-42800, 2820042800, 715924-0005, 715924-5005S, 2820042560, 716938-0001, 716938-5001S, 716938-0002, 28200-4A200, 282004A200, 730640-0001, 730640-5001S, 28200-4A200, 282004A200, 730640-0002, 28200-4A350, 732340-0001, 732340-5001S
Data updated: 2025-03-03 15:59:10
