Nozzle ring assy GA-06-0038
Nozzle ring assy GA-06-0038
Podatka o razpoložljivosti osebnega prevzema ni mogoče naložiti

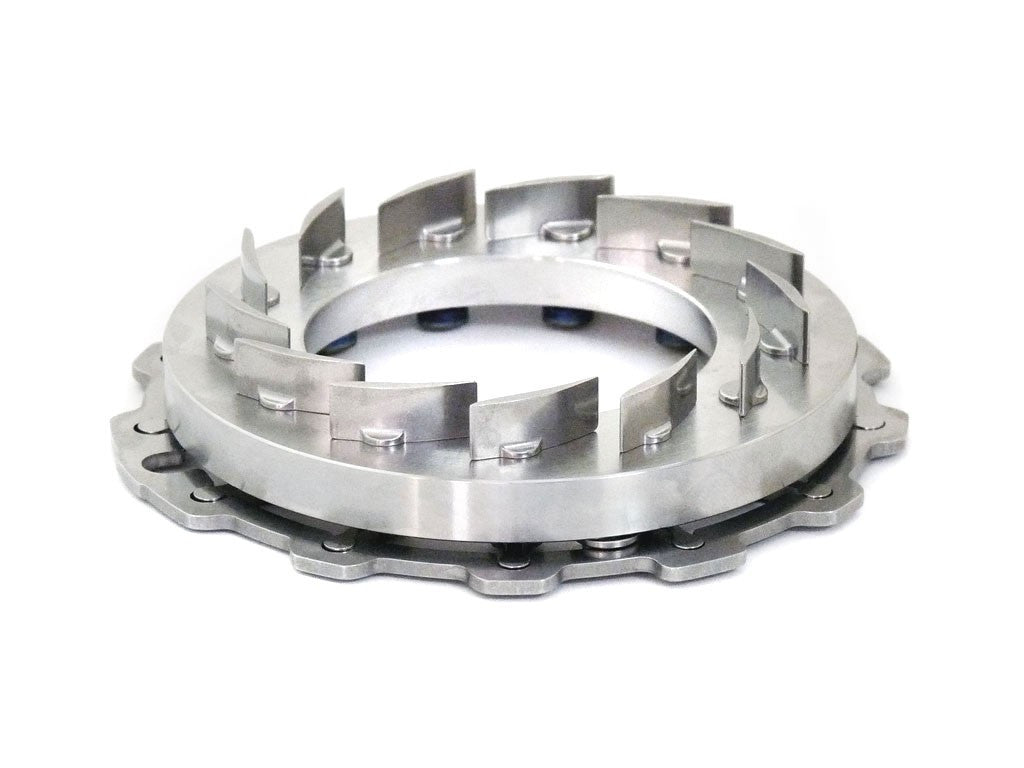

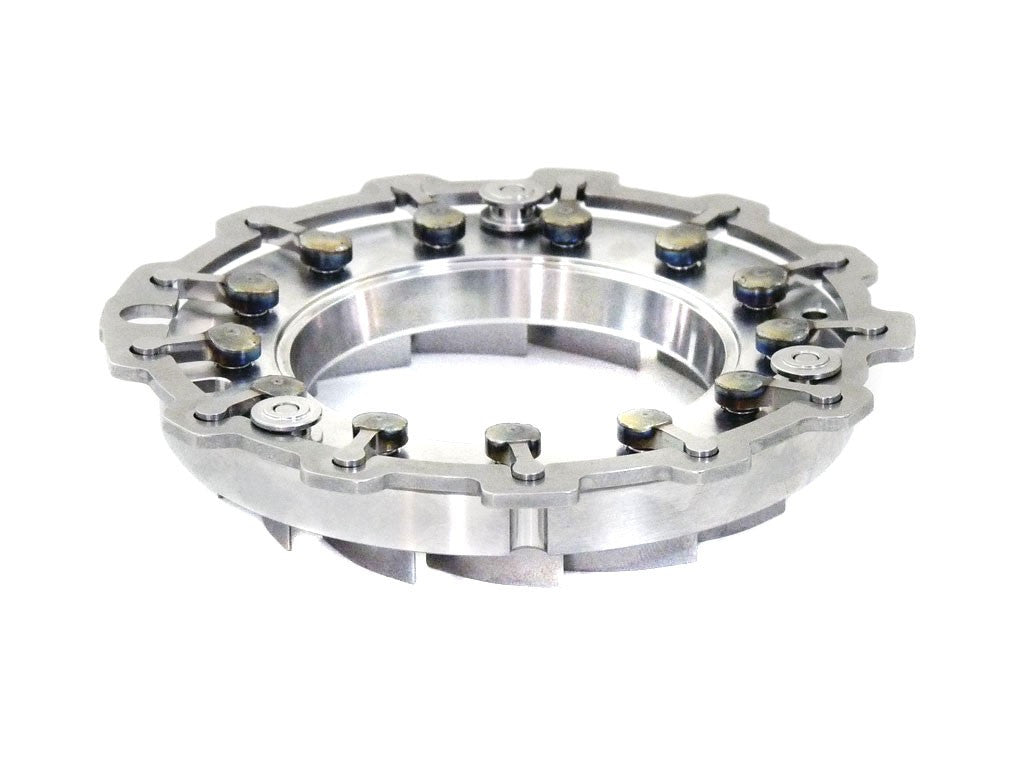

GA-06-0038 - Nozzle ring assy.
Brand: TurboCentras
TurboCentras Reference: GA-06-0038
GA-06-0038 - Alternative numbers
TCP (TurboCentras part number): GA-06-0038
TCO (TurboCentras old part number): GT20-94
GA-06-0038 - Compatibility table
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO PART NUMBER | TURBO OE NUMBER |
|---|---|---|---|---|
| Garrett | GTB2056VL | 757779-0004 | 757779-0004 | 30757080 |
| Garrett | GTB2056VL | 757779-0010 | 757779-0010, 757779-5010S | 30757080 |
| Garrett | GTB2056VL | 757779-0020 | 757779-0020, 757779-5020S | 31219698 |
| Garrett | GTB2056VL | 757779-0021 | 757779-0021 | 31293030 |
| Garrett | GTB2056VL | 757779-0022 | 757779-0022, 757779-5022S, 757779-9022S | 31293507 |
| Garrett | GTB2056VK | 764381-0002 | 764381-0002, 764381-5002S | A6420900880 |
| Garrett | GTB2056VK | 764381-0004 | 764381-0004, 764381-5004S | A6420900880 |
| Garrett | GTB2056VK | 764809-0001 | 764809-0001 | A6420901680 |
| Garrett | GTB2056VK | 764809-0002 | 764809-0002, 764809-5002S | A6420901680 |
| Garrett | GTB2056VK | 764809-0003 | 764809-0003 | -- |
| Garrett | GTB2056VK | 764809-0004 | 764809-0004, 764809-5004S | A6420901680 |
| Garrett | GTB2056VK | 777318-0001 | 777318-0001 | 6420900980, 6420902180, 6420905880, 6420906280, 6420908580, 6420908680, A6420908580 |
| Garrett | GTB2056VK | 777318-0002 | 777318-0002, 777318-5002W, 777318-9002W | 6420900980, 6420902180, 6420905880, 6420906280, 6420908580, 6420908680, A6420908580 |
| Garrett | GTB2056VK | 777318-0003 | 777318-0003, 777318-5003W | 6420908580, A6420908580 |
| Garrett | GTB2056 | 781743-0001 | 781743-0001, 781743-5001S | 6420905780, A6420905780 |
| Garrett | GTB2056 | 781743-0003 | 781743-0003, 781743-5003S | 6420905780, A6420905780 |
| Garrett | GTB2256VK | 798166-0002 | 798166-0002 | -- |
| Garrett | GTB2256VK | 798166-0007 | 798166-0007, 798166-5007S | BK3Q6K682RC |
| Garrett | GTB2256VK | 812971-0002 | 812971-0002, 812971-5002S | BK3Q6K682AB |
| Garrett | GTB2256VK | 812971-0006 | 812971-0006, 812971-5006S | BK3Q6K682AC |
| Garrett | GTB2256VK | 812971-0007 | 812971-0007, 812971-5007S | BK3Q 6K682EA, BK3Z 6K682U |
| Garrett | GTB2256VK | 853333-0001 | 853333-0001, 853333-5001W, 853333-9001W | -- |
| Garrett | GTB2256VK | 853333-0002 | 853333-0002 | -- |
| Garrett | GTB2256VK | 853333-0003 | 853333-0003, 853333-5003W | BK3Q 6K682EA, BK3Z 6K682U |
| Garrett | GTB22 | 880862-0001 | 880862-0001, 880862-5001W | -- |
GA-06-0038 - Part Properties
Blades (Nozzle Ring blades count): 14
A (Size A): 90.00
B (Size B): 52.00
C (Size C): 59.20
D (Size D): 8.00
E (Size E): 7.00
F (Size F): 18.00
GA-06-0038, GT20-94
BK3Z6K682U, BK3Q6K682EA, BK3Z6K682U, BK3Q6K682EA, 30757080, 757779-0004, 30757080, 757779-0010, 757779-5010S, 31219698, 757779-0020, 757779-5020S, 31293030, 757779-0021, 31293507, 757779-0022, 757779-5022S, 757779-9022S, 764381-0002, 764381-5002S, A6420900880, 764381-0004, 764381-5004S, A6420900880, 764809-0001, A6420901680, 764809-0002, 764809-5002S, A6420901680, 764809-0003, 764809-0004, 764809-5004S, A6420901680, 6420900980, 6420902180, 6420905880, 6420906280, 6420908580, 6420908680, 777318-0001, A6420908580, 6420900980, 6420902180, 6420905880, 6420906280, 6420908580, 6420908680, 777318-0002, 777318-5002W, 777318-9002W, A6420908580, 6420908580, 777318-0003, 777318-5003W, A6420908580, 6420905780, 781743-0001, 781743-5001S, A6420905780, 6420905780, 781743-0003, 781743-5003S, A6420905780, 798166-0002, 798166-0007, 798166-5007S, BK3Q6K682RC, 812971-0002, 812971-5002S, BK3Q6K682AB, 812971-0006, 812971-5006S, BK3Q6K682AC, 812971-0007, 812971-5007S, BK3Q 6K682EA, BK3Z 6K682U, 853333-0001, 853333-5001W, 853333-9001W, 853333-0002, 853333-0003, 853333-5003W, BK3Q 6K682EA, BK3Z 6K682U, 880862-0001, 880862-5001W
Data updated: 2025-02-21 17:38:12
