Garrett

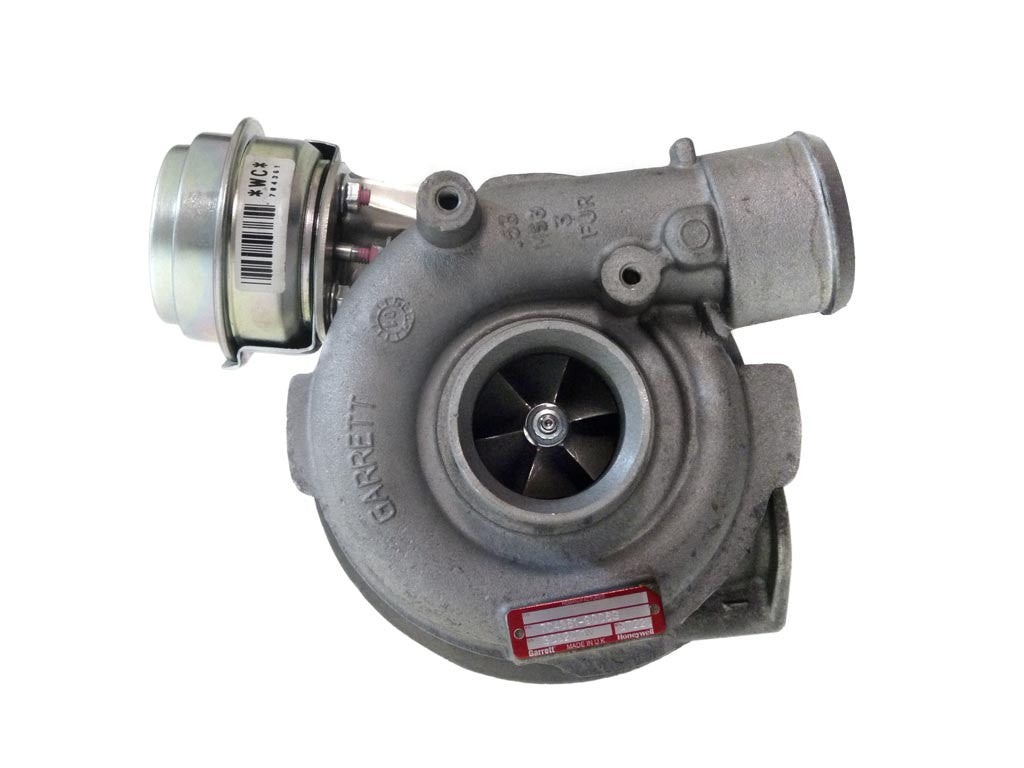

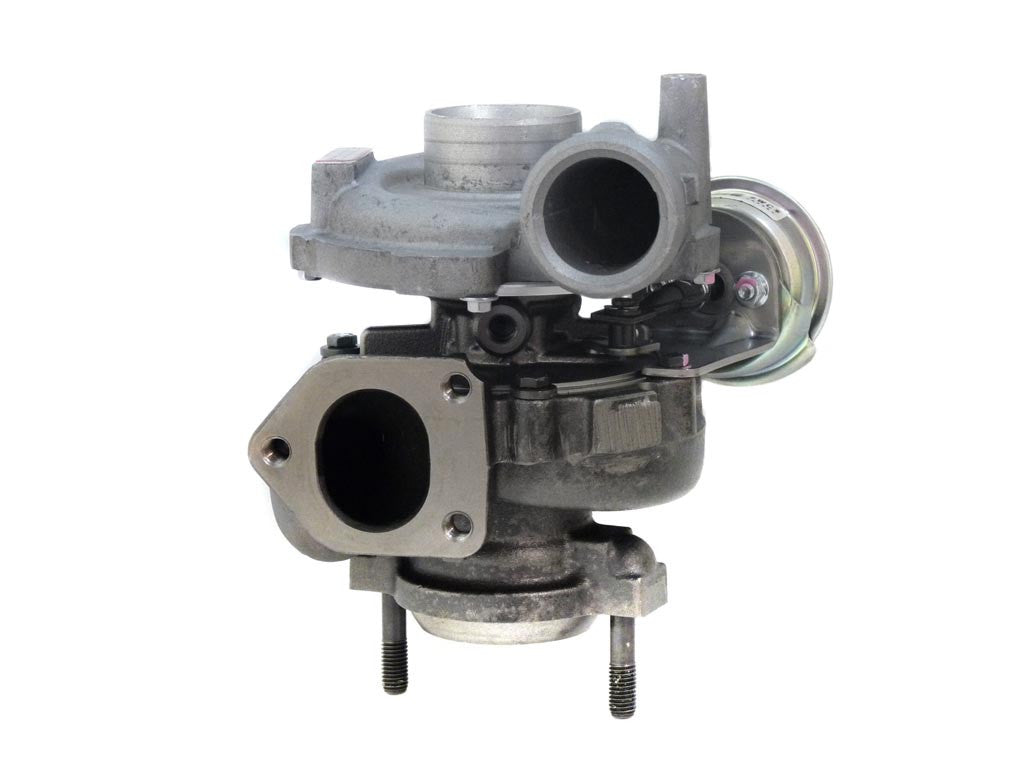

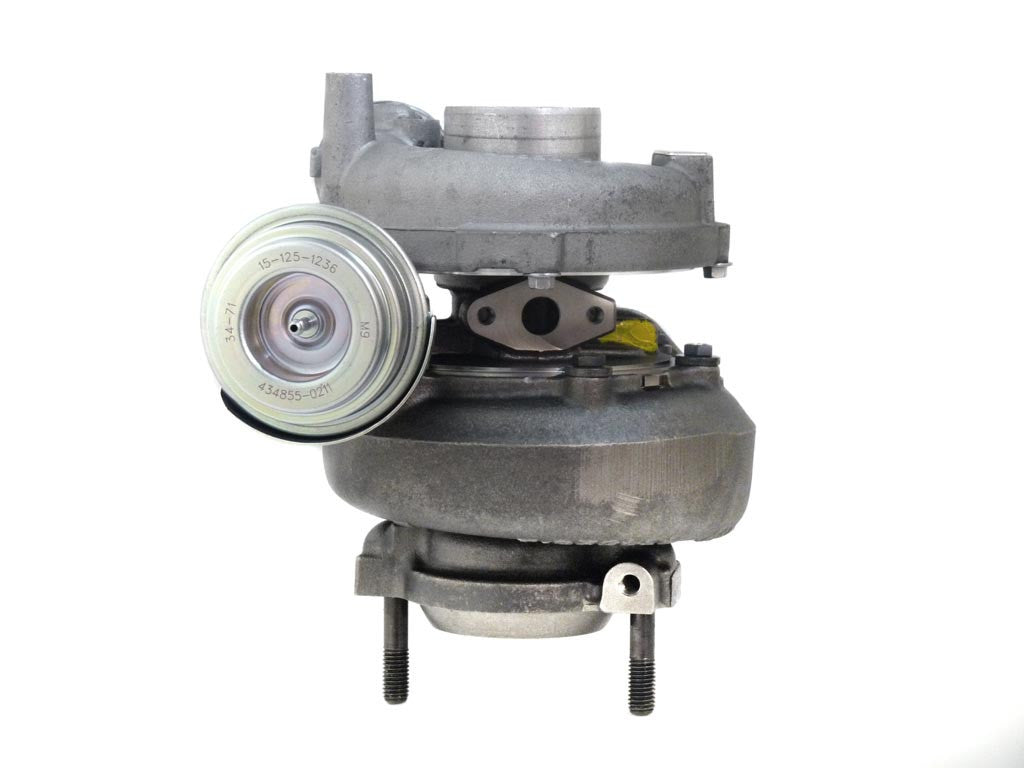

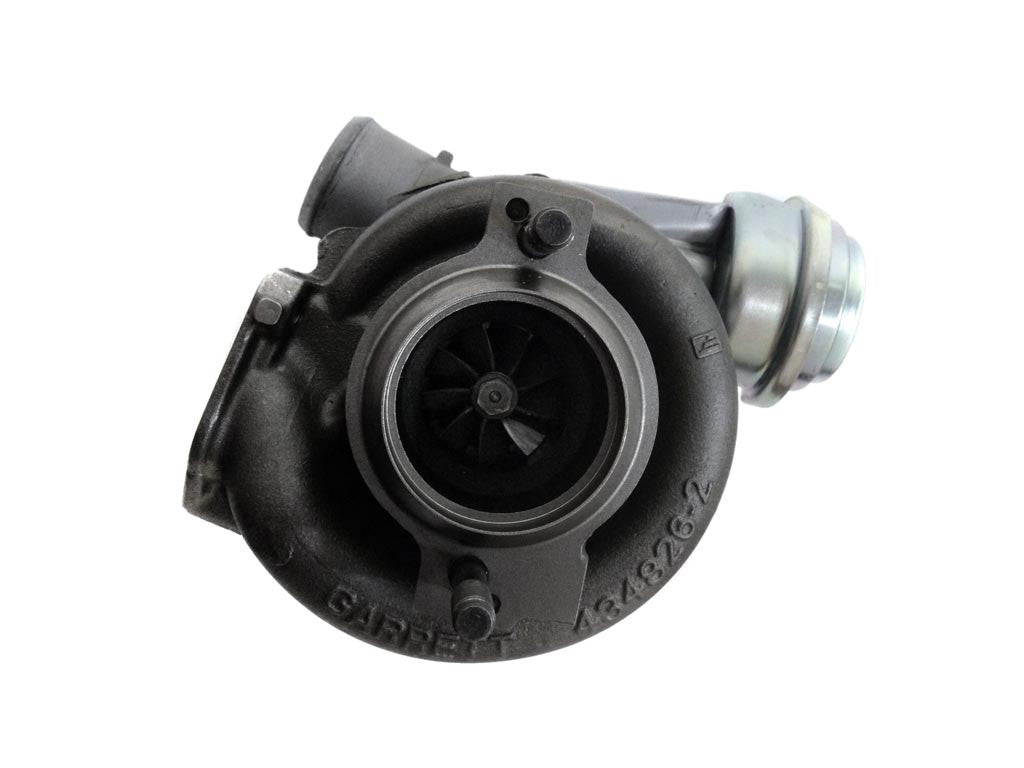

Turbo 704361-0006 704361-9006S (R)
Turbo 704361-0006 704361-9006S (R)
Regular price
€326,00 EUR
Regular price
Sale price
€326,00 EUR
Unit price
/
per
Couldn't load pickup availability
704361-0006 (22499509) - Turbocharger
Brand: Garrett
Garrett Reference: 704361-0006
OEM Numbers: 22499509
704361-0006 - Alternative numbers
GHT (Garrett OEM, original turbo number): 704361-0006
GHA (Garrett IAM, aftermarket turbo number): 704361-5006S
704361-0006 - Technologies and actuation
Actuation type: Pneumatic (Pneumatic actuation)
Turbocharger technology: VNT (Variable Nozzle Turbine)
704361-0006 - Turbo replacements
Replaced by: Garrett GT2256V 704361-0010
704361-0006 - Turbo interchangeability
Interchangeable with: Garrett GT2256V 704361-0001
Interchangeable with: Garrett GT2256V 704361-0004
Interchangeable with: Garrett GT2256V 704361-0005
Interchangeable with: Garrett GT2256V 704361-0010
| PART BRAND | PART NAME | PART REFERENCE | QTY | PART OE NUMBER | GARRETT PART NUMBER |
|---|---|---|---|---|---|
| TurboCentras | Bolt | BO-98-0004 | 6 | -- | -- |
| TurboCentras | Bolt | BO-98-0005 | 6 | -- | -- |
| TurboCentras | Cartridge | GA-00-0194 | 1 | -- | 434766-0012 |
| TurboCentras | Bearing housing | GA-01-0094 | 1 | -- | 722282-0004 |
| TurboCentras | Shaft and wheel | GA-02-0104 | 1 | -- | -- |
| TurboCentras | Compressor wheel | GA-03-0080 | 1 | 436563-0001, 436563-0009, 703361-0010 | -- |
| TurboCentras | Repair kit | GA-04-0015 | 1 | -- | -- |
| TurboCentras | Heat shield | GA-05-0012 | 1 | -- | -- |
| TurboCentras | Nozzle ring assy. | GA-06-0034 | 1 | -- | -- |
| TurboCentras | Back plate | GA-08-0050 | 1 | 434820-0003 | -- |
| TurboCentras | Actuator clip | GR.5 | 1 | -- | -- |
| TurboCentras | Journal bearing | GT15-101 | 1 | -- | -- |
| TurboCentras | Thrust bearing | GT15-120 | 1 | -- | -- |
| TurboCentras | Thrust flinger | GT15-130 | 1 | -- | -- |
| TurboCentras | Thrust Collar | GT15-135 | 1 | -- | -- |
| TurboCentras | Retaining ring | GT15-143 | 1 | -- | -- |
| TurboCentras | Piston ring | GT15-160 | 1 | -- | -- |
| TurboCentras | Piston ring | GT15-170 | 1 | -- | -- |
| TurboCentras | Shaft nut | GT15-180 | 1 | -- | -- |
| TurboCentras | Anti-rotation pin | GT15-330 | 1 | -- | -- |
| TurboCentras | Screw | SC-96-0007 | 4 | -- | -- |
| TurboCentras | Gasket oil outlet | T-1 | 1 | -- | -- |
| TurboCentras | Gasket kit | TC1001 | 1 | -- | -- |
| TurboCentras | Gasket kit | TC1001F | 1 | -- | -- |
| TurboCentras | Washer | WA-95-0001 | 4 | -- | -- |
22499509, 704361-0006, 704361-5006S
