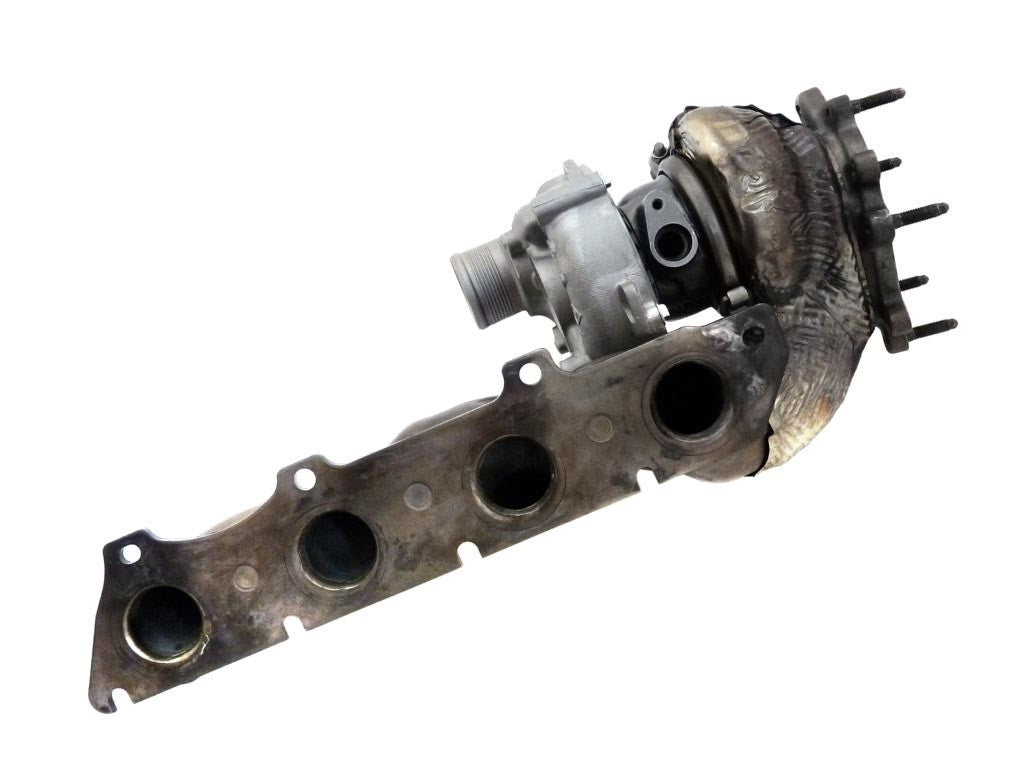

Turbo 079145704F-R
Turbo 079145704F-R
Regular price
€350,00 EUR
Regular price
Sale price
€350,00 EUR
Unit price
/
per
Couldn't load pickup availability
079145704F - Turbocharger RHF5
Brand: IHI
Model: RHF5 - RHF5
IHI Reference: 079145704F
079145704F - Alternative numbers
IHT (IHI turbo number): 9VA19
079145704F - Technologies and actuation
Actuation type: NA (No actuator), Pneumatic (Pneumatic actuator), WVA (Wastegate valve actuator)
Turbocharger technology: WGT (Wastegate Turbocharger), IMF (Integrated Manifold Turbocharger), WCT (Water cooled turbocharger)
079145704F - Turbo interchangeability
Interchangeable with: IHI RHF5 079145704B, 9VA19
Interchangeable with: IHI RHF5 079145704C, 9VA19
Interchangeable with: IHI RHF5 079145704M, 9VA19
Interchangeable with: IHI RHF5 079145704Q, 9VA19
Interchangeable with: IHI RHF5 079145722A, 9VA19
Interchangeable with: IHI RHF5 9VA19, 079145704B, 079145704C, 079145704F, 079145704M, 079145704Q, 079145722A, F51CNY-SR041
| PART BRAND | PART NAME | PART REFERENCE | QTY | PART OE NUMBER | IHI PART NUMBER |
|---|---|---|---|---|---|
| TurboCentras | Cartridge | IH-00-0035 | 1 | -- | -- |
| TurboCentras | Bearing housing | IH-01-0031 | 1 | -- | -- |
| TurboCentras | Shaft and wheel | IH-02-0034 | 1 | -- | -- |
| TurboCentras | Compressor wheel | IH-03-0032 | 1 | -- | -- |
| TurboCentras | Repair kit | IH-04-0011 | 1 | -- | -- |
| TurboCentras | Heat shield | IH-05-0018 | 1 | -- | -- |
| TurboCentras | Back plate | IH-08-0028 | 1 | -- | -- |
| TurboCentras | Shaft nut | IH-21-0005 | 1 | -- | -- |
| TurboCentras | Thrust washer | RHF4-146 | 1 | -- | -- |
| EE Turbo | Cartridge | RHF5-088 | 1 | -- | -- |
| TurboCentras | Journal bearing | RHF5-100 | 2 | -- | -- |
| TurboCentras | Thrust bearing | RHF5-120 | 1 | -- | -- |
| TurboCentras | Thrust flinger | RHF5-130 | 1 | -- | -- |
| TurboCentras | Retaining ring | RHF5-145 | 1 | -- | -- |
| TurboCentras | Piston ring | RHF5-160 | 1 | -- | -- |
| TurboCentras | Piston ring | RHF5-170 | 1 | -- | -- |
| TurboCentras | Screw | SC-96-0002 | 3 | -- | -- |
| TurboCentras | Screw | SC-96-0008 | 4 | -- | -- |
079145704F, 9VA19
Data updated: 2024-10-01 14:54:22
