BorgWarner

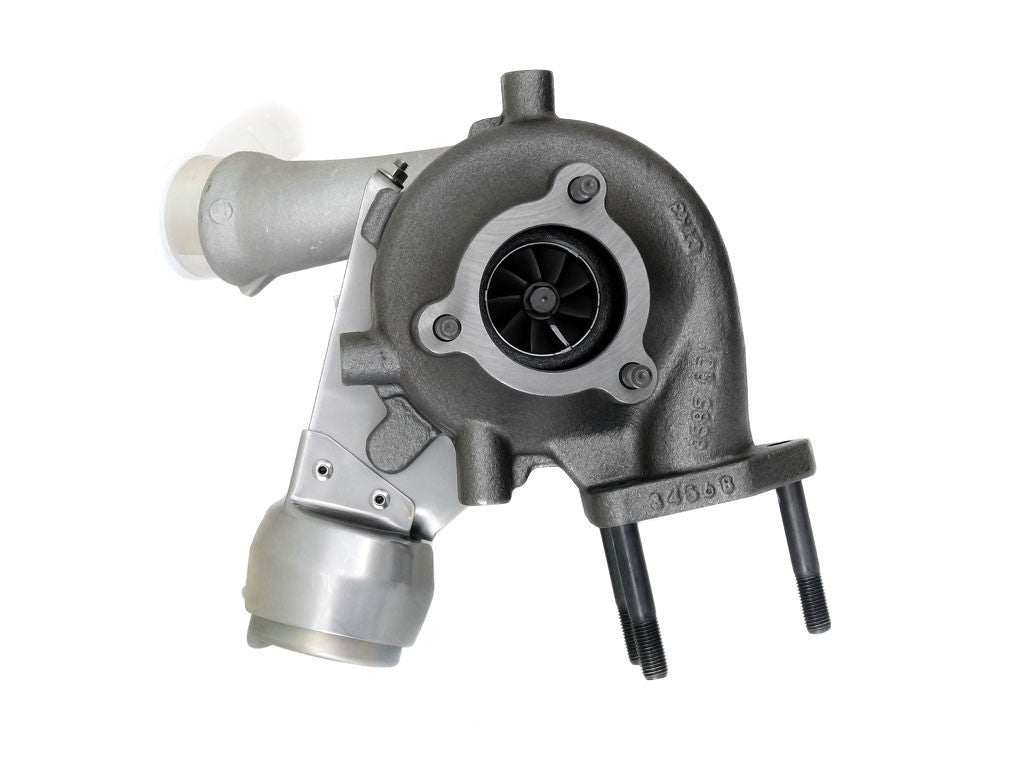

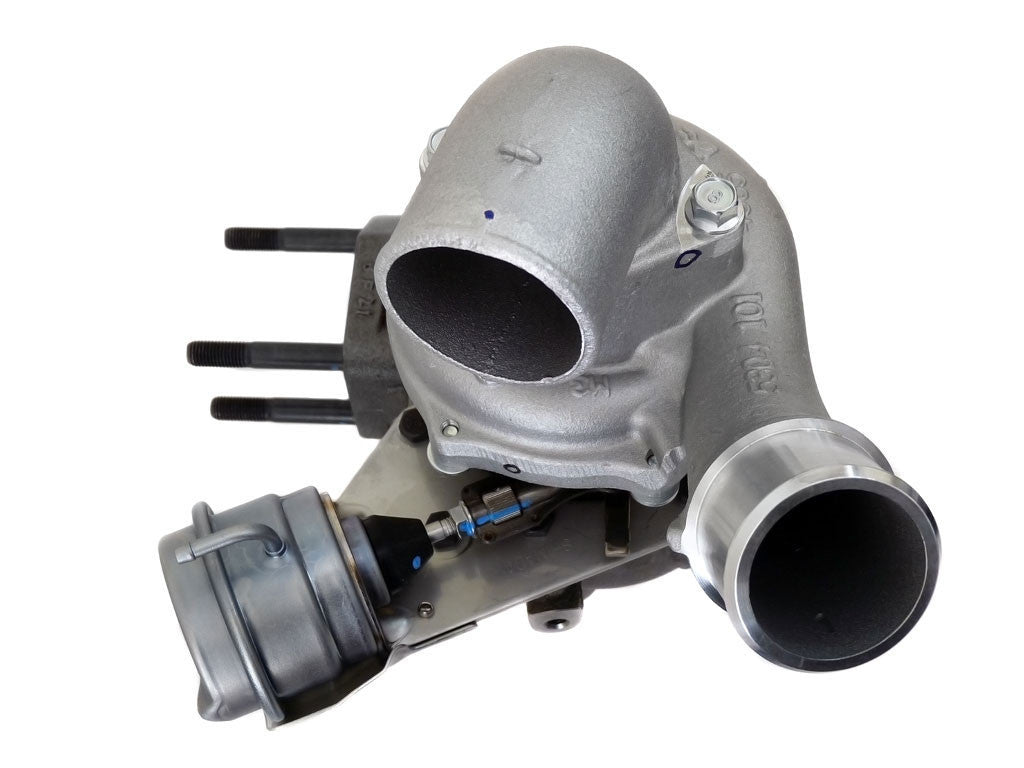

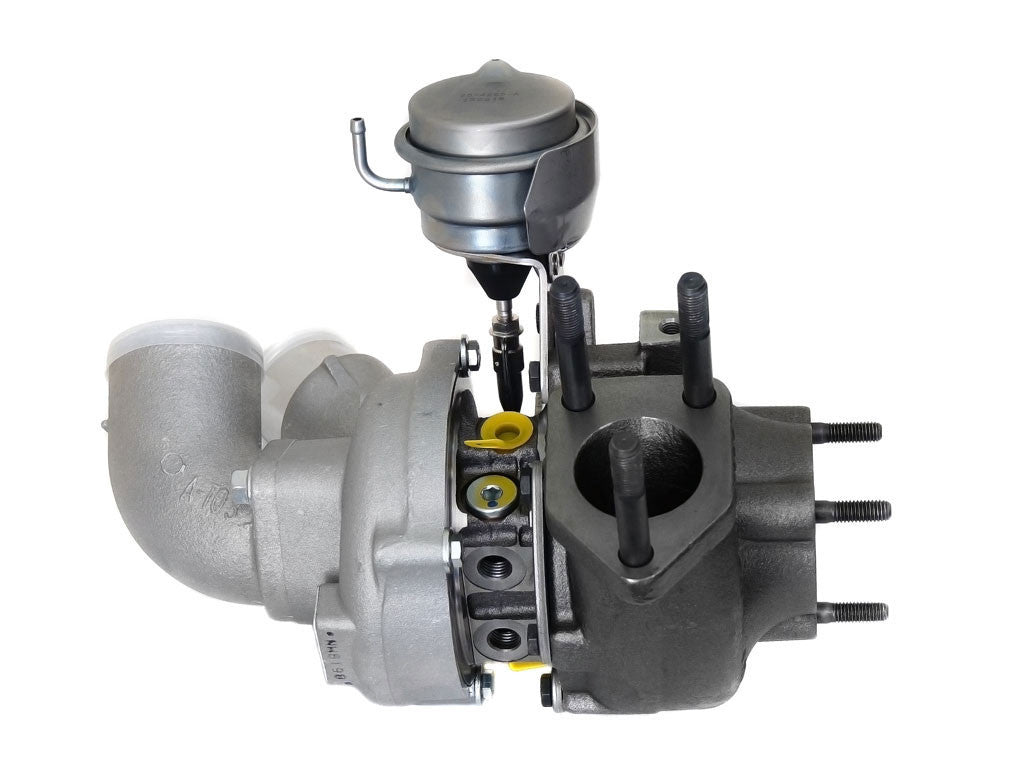

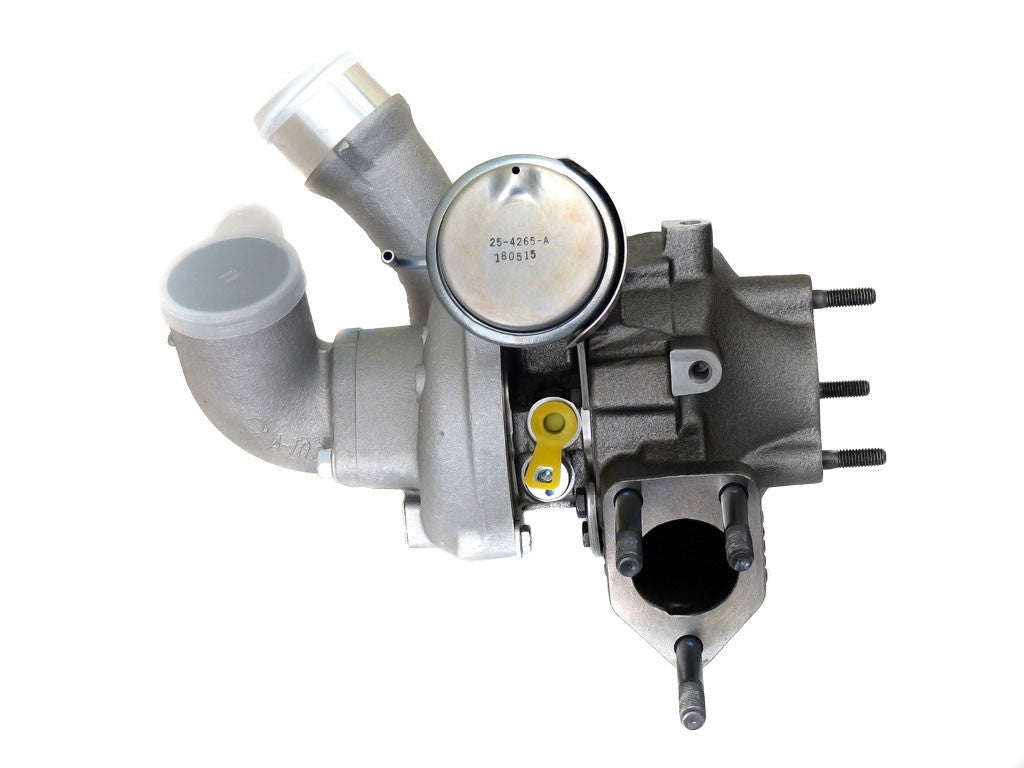

Turbo 53039880145
Turbo 53039880145
Regular price
€420,00 EUR
Regular price
Sale price
€420,00 EUR
Unit price
/
per
Couldn't load pickup availability
53039880145 (28200-4A480) - Turbocharger BV43-2074DCBAA419.18BVAXC
Brand: BorgWarner
Model: BV43 - BV43-2074DCBAA419.18BVAXC
BorgWarner Reference: 53039880145
OEM Numbers: 28200-4A480
53039880145 - Alternative numbers

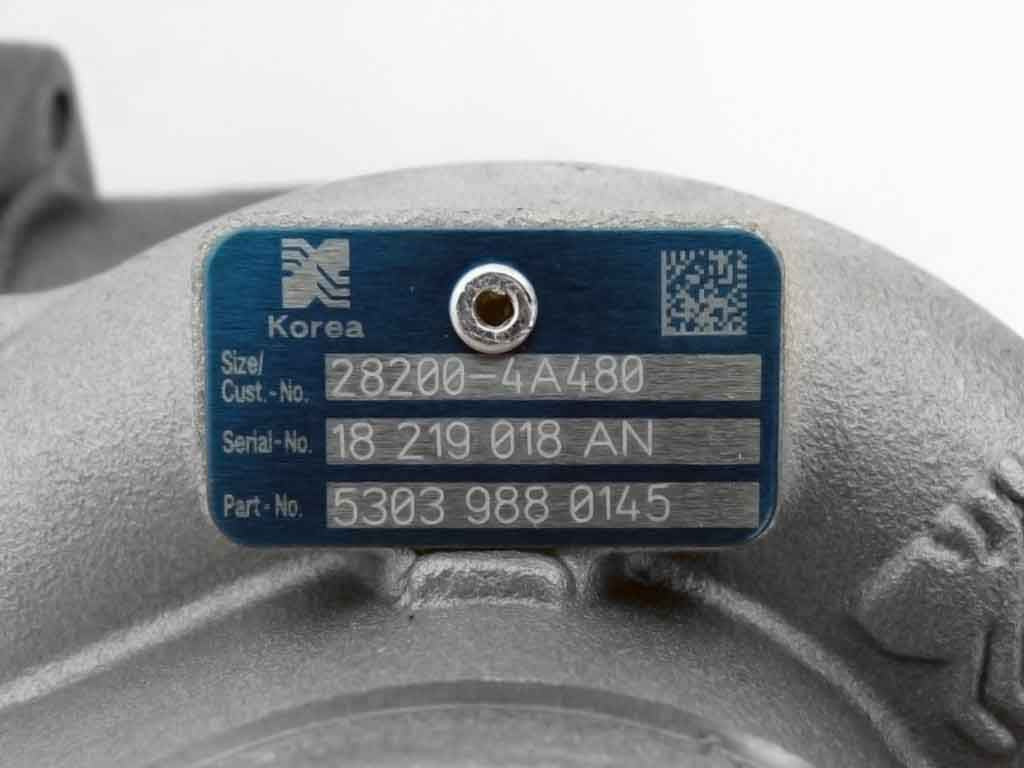

BWT (BorgWarner turbo number): 5303 970 0145
BWT (BorgWarner turbo number): 5303 988 0145
BWT (BorgWarner turbo number): 5303 990 0145
53039880145 - Technologies and actuation
Actuation type: Pneumatic (Pneumatic actuator)
Turbocharger technology: VGT (Variable Geometry (VFT, VG, VGS, VGT, VNT, VTG) Turbocharger)
53039880145 - Turbo replacements
Replacement for: BorgWarner BV43-2074DCBAA419.18BVAXK 53039700127
53039880145 - Turbo interchangeability
Interchangeable with: BorgWarner BV43-2074DCBAA419.18BVAXK 53039700127
Interchangeable with: BorgWarner BV43-2074DCBAA419.18BVAXC 53039700145
Interchangeable with: BorgWarner BV43-2074DCBAA419.18BVAXC 53039700145-R
| PART BRAND | PART NAME | PART REFERENCE | QTY | PART OE NUMBER | BORGWARNER PART NUMBER |
|---|---|---|---|---|---|
| TurboCentras | Bolt | BO-98-0005 | 6 | -- | -- |
| TurboCentras | Bolt | BO-98-0007 | 4 | -- | -- |
| TurboCentras | Cartridge | BW-00-0005 | 1 | -- | -- |
| TurboCentras | Bearing housing | BW-01-0054 | 1 | 5303-151-1500 | -- |
| TurboCentras | Shaft and wheel | BW-02-0004 | 1 | 5303-120-5030, 5303-120-5034, 5303-120-8505 | -- |
| TurboCentras | Compressor wheel | BW-03-0006 | 1 | 5304-123-2209, 5304-123-2216, 5304-123-2222 | -- |
| TurboCentras | Repair kit | BW-04-0003 | 1 | -- | -- |
| TurboCentras | Heat shield | BW-05-0002 | 1 | -- | -- |
| TurboCentras | Nozzle ring assy. | BW-06-0009 | 1 | 5303-160-5023 | -- |
| TurboCentras | Back plate | BW-08-0031 | 1 | -- | -- |
| TurboCentras | Turbine housing | BW-09-0013 | 1 | -- | -- |
| TurboCentras | Actuator | BW-10-0017 | 1 | -- | -- |
| TurboCentras | Shaft nut | BW-21-0004 | 1 | -- | -- |
| TurboCentras | Piston ring | GT15-170 | 1 | -- | -- |
| EE Turbo | Cartridge | K03-035 | 1 | -- | -- |
| TurboCentras | Thrust bearing | K03/04-120 | 1 | -- | -- |
| TurboCentras | Thrust flinger | K03/04-130 | 1 | -- | -- |
| TurboCentras | Retaining ring | K03/04-143 | 1 | -- | -- |
| TurboCentras | Retaining ring | K03/04-144 | 1 | -- | -- |
| TurboCentras | Retaining ring | K03/04-145 | 1 | -- | -- |
| TurboCentras | Oil deflector | K03/04-146 | 1 | -- | -- |
| TurboCentras | Thrust washer | K03/04-155 | 1 | -- | -- |
| TurboCentras | Piston ring | K03/04-160 | 1 | -- | -- |
| TurboCentras | Piston ring | K03/04-170 | 1 | -- | -- |
| TurboCentras | Gasket oil outlet | T-1 | 1 | -- | -- |
53039900145, 53039880145, 53039700145, 28200-4A480, 5303 970 0145, 5303 988 0145, 5303 990 0145
Data updated: 2024-05-15 10:28:29
