Garrett

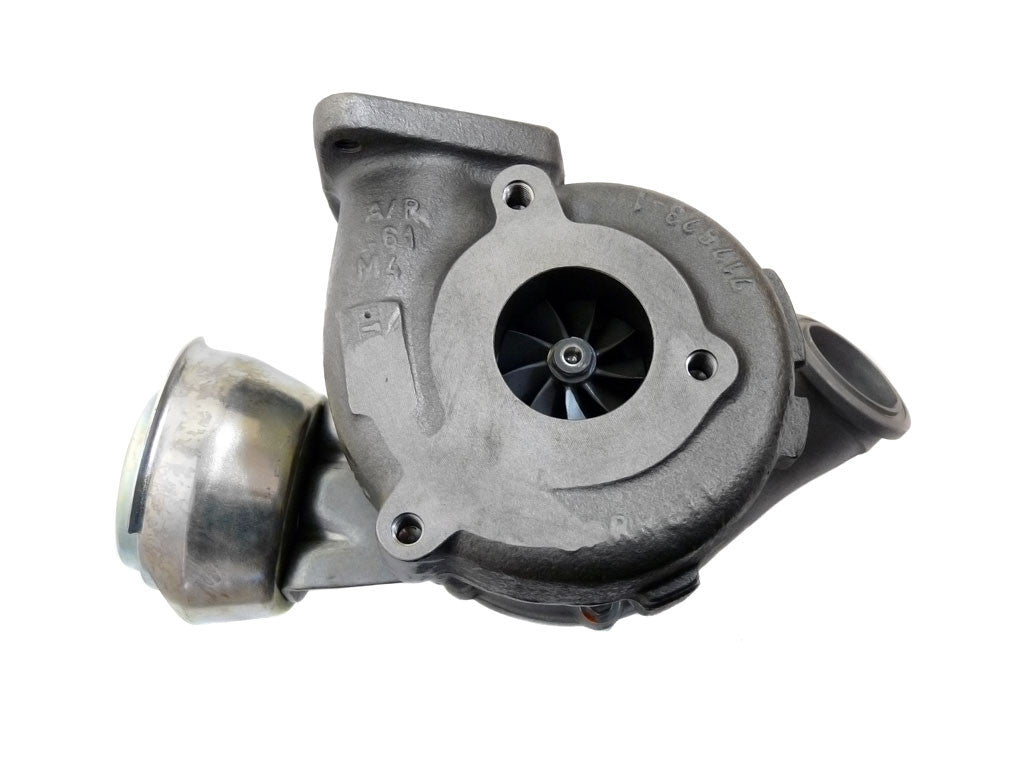

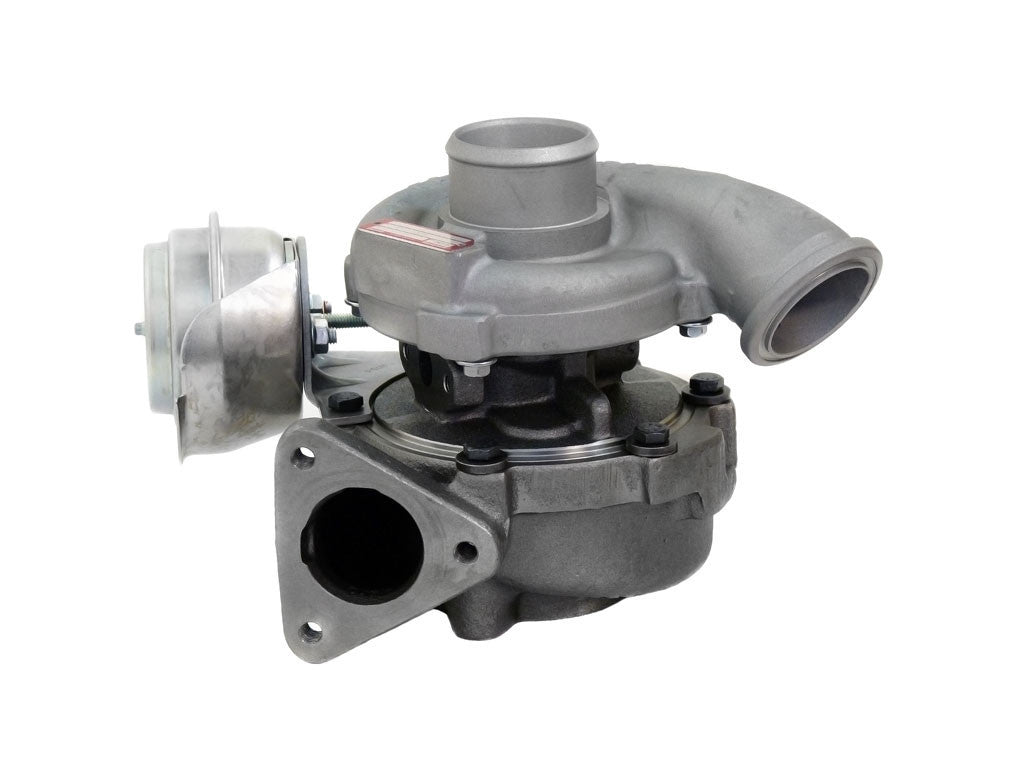

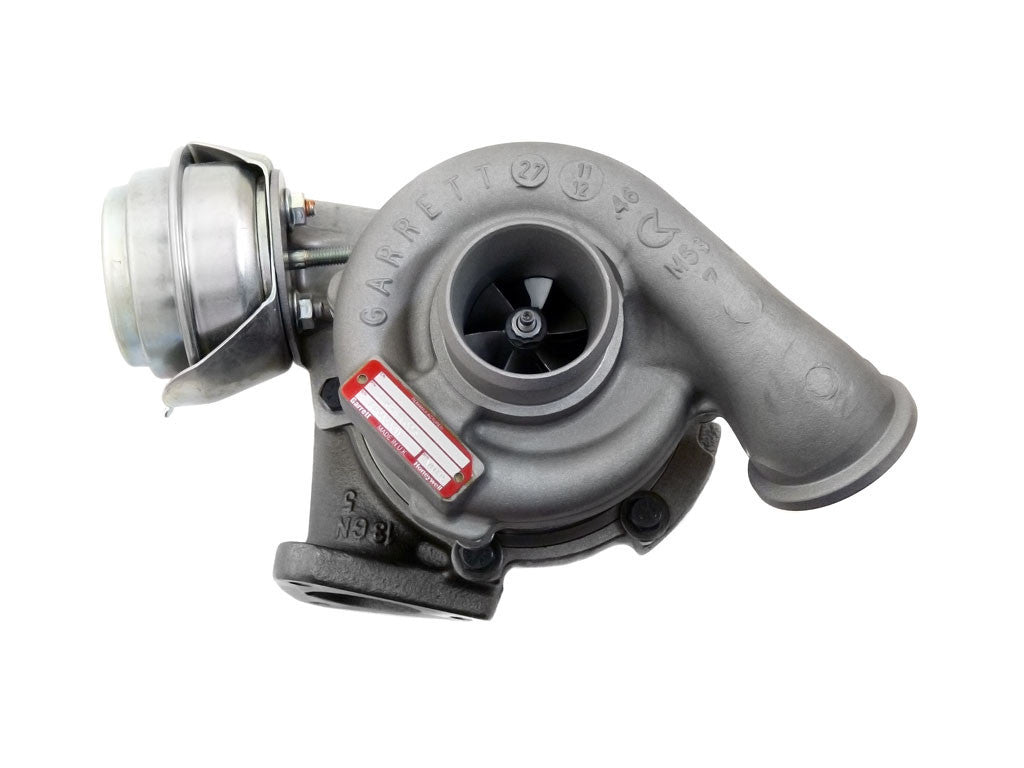

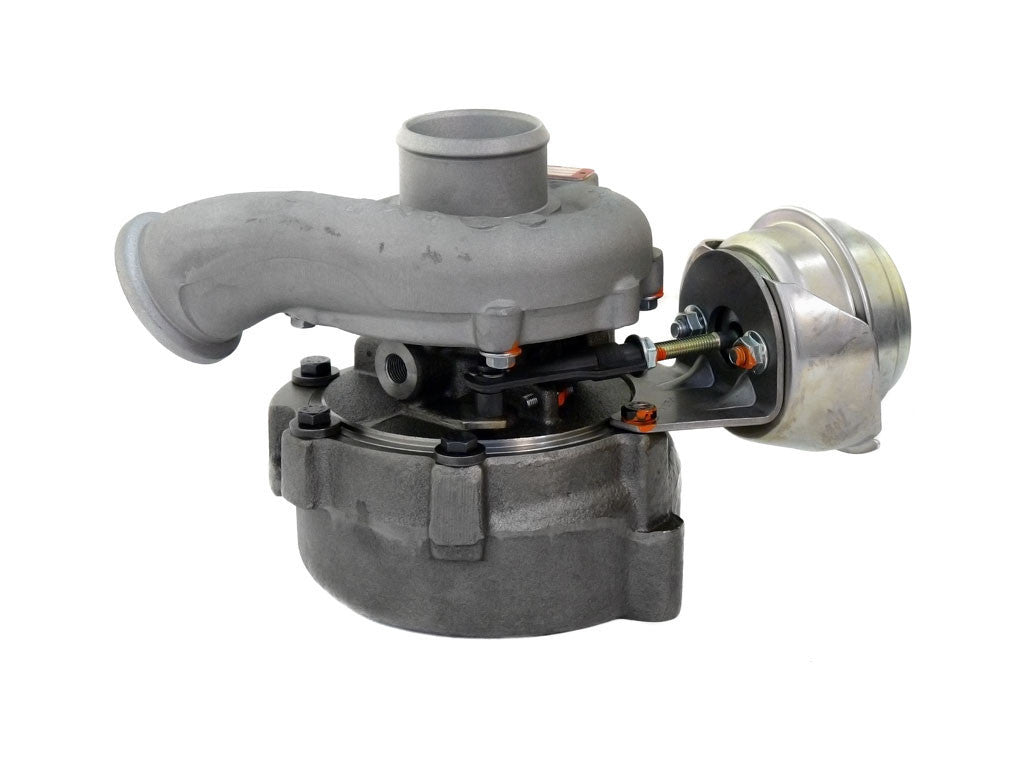

Turbo 717625-9001S
Turbo 717625-9001S
Regular price
€230,00 EUR
Regular price
Sale price
€230,00 EUR
Unit price
/
per
Couldn't load pickup availability
717625-9001S (24445061) - Turbocharger GT1849V
Brand: Garrett
Model: GT18 - GT1849V
Garrett Reference: 717625-9001S
OEM Numbers: 24445061
717625-9001S - Alternative numbers
GHT (Garrett turbo number): 717625-0001
GHT (Garrett turbo number): 717625-5001S
GHT (Garrett turbo number): 717625-9001S
717625-9001S - Technologies and actuation
Actuation type: Pneumatic (Pneumatic actuator)
Turbocharger technology: VGT (Variable Geometry (VFT, VG, VGS, VGT, VNT, VTG) Turbocharger)
717625-9001S - Turbo replacements
Replaced by: Garrett GT1849V 717625-0003
717625-9001S - Turbo interchangeability
Interchangeable with: Garrett GT1849V 717625-0001
Interchangeable with: Garrett GT1849V 717625-0001-R
Interchangeable with: Garrett GT1849V 717625-0003
| PART BRAND | PART NAME | PART REFERENCE | QTY | PART OE NUMBER | GARRETT PART NUMBER |
|---|---|---|---|---|---|
| TurboCentras | Bolt | BO-98-0004 | 6 | -- | -- |
| TurboCentras | Bolt | BO-98-0005 | 6 | -- | -- |
| TurboCentras | Cartridge | GA-00-0058 | 1 | -- | -- |
| TurboCentras | Bearing housing | GA-01-0090 | 1 | 703882-0002, 722282-0013, 722282-0062 | -- |
| TurboCentras | Shaft and wheel | GA-02-0069 | 1 | 704580-0001, 704580-0016 | -- |
| TurboCentras | Compressor wheel | GA-03-0030 | 1 | 436132-0003, 436132-0014, 436334-0003, 701300-0007, 703925-0003, 703925-0011, 706164-0003 | -- |
| TurboCentras | Repair kit | GA-04-0015 | 1 | -- | -- |
| TurboCentras | Heat shield | GA-05-0013 | 1 | -- | -- |
| TurboCentras | Nozzle ring assy. | GA-06-0023 | 1 | -- | -- |
| TurboCentras | Back plate | GA-08-0005 | 1 | 700593-0006 | -- |
| TurboCentras | Actuator | GA-10-0025 | 1 | -- | -- |
| TurboCentras | Shaft nut | GA-21-0005 | 1 | -- | -- |
| TurboCentras | Actuator clip | GR.5 | 1 | -- | -- |
| EE Turbo | Cartridge | GT15-034 | 1 | -- | -- |
| TurboCentras | Thrust bearing | GT15-120 | 1 | -- | -- |
| TurboCentras | Thrust flinger | GT15-130 | 1 | -- | -- |
| TurboCentras | Thrust Collar | GT15-135 | 1 | -- | -- |
| TurboCentras | Retaining ring | GT15-143 | 1 | -- | -- |
| TurboCentras | Piston ring | GT15-160 | 1 | -- | -- |
| TurboCentras | Piston ring | GT15-170 | 1 | -- | -- |
| TurboCentras | Anti-rotation pin | GT15-330 | 1 | -- | -- |
| TurboCentras | Screw | SC-96-0007 | 4 | -- | -- |
| TurboCentras | Gasket oil outlet | T-1 | 1 | -- | -- |
| TurboCentras | Washer | WA-95-0001 | 4 | -- | -- |
24445061, 717625-0001, 717625-5001S, 717625-9001S
Data updated: 2024-05-16 08:54:34
