BorgWarner
Turbo 54409700002 (R)
Turbo 54409700002 (R)
Couldn't load pickup availability

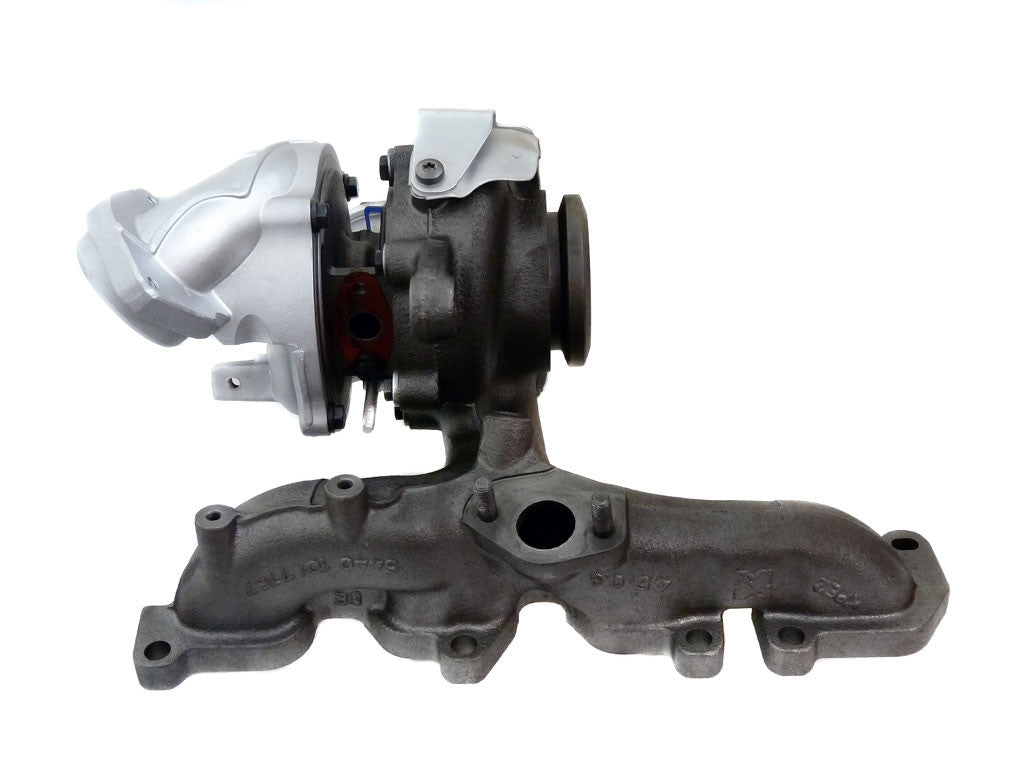

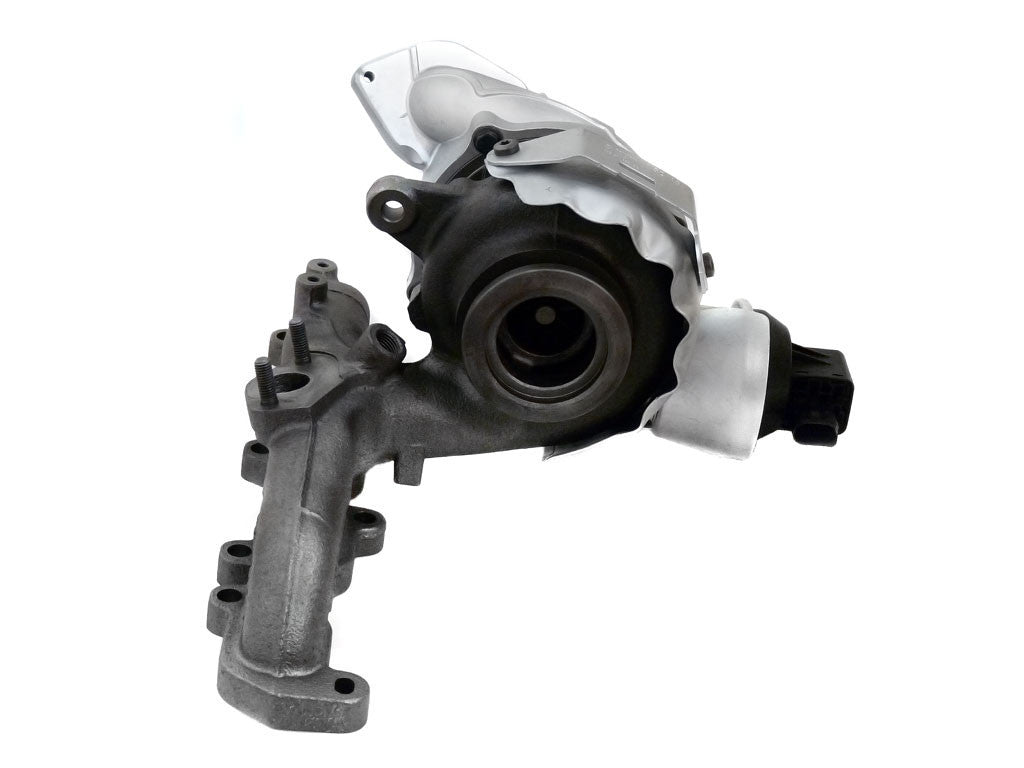

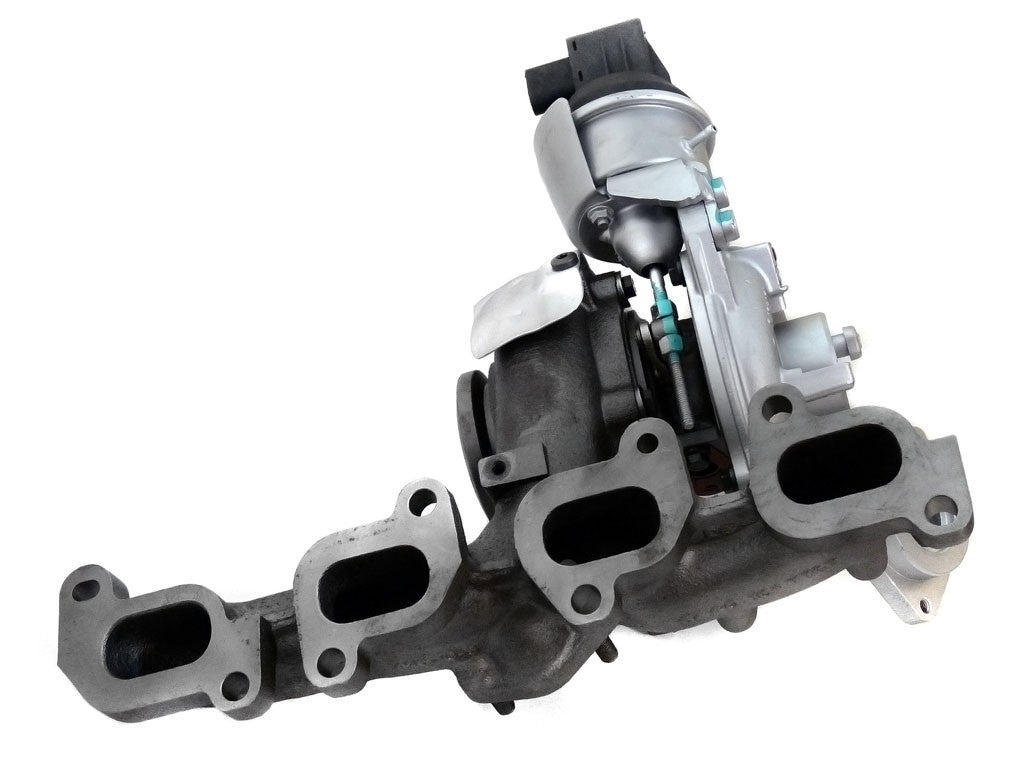

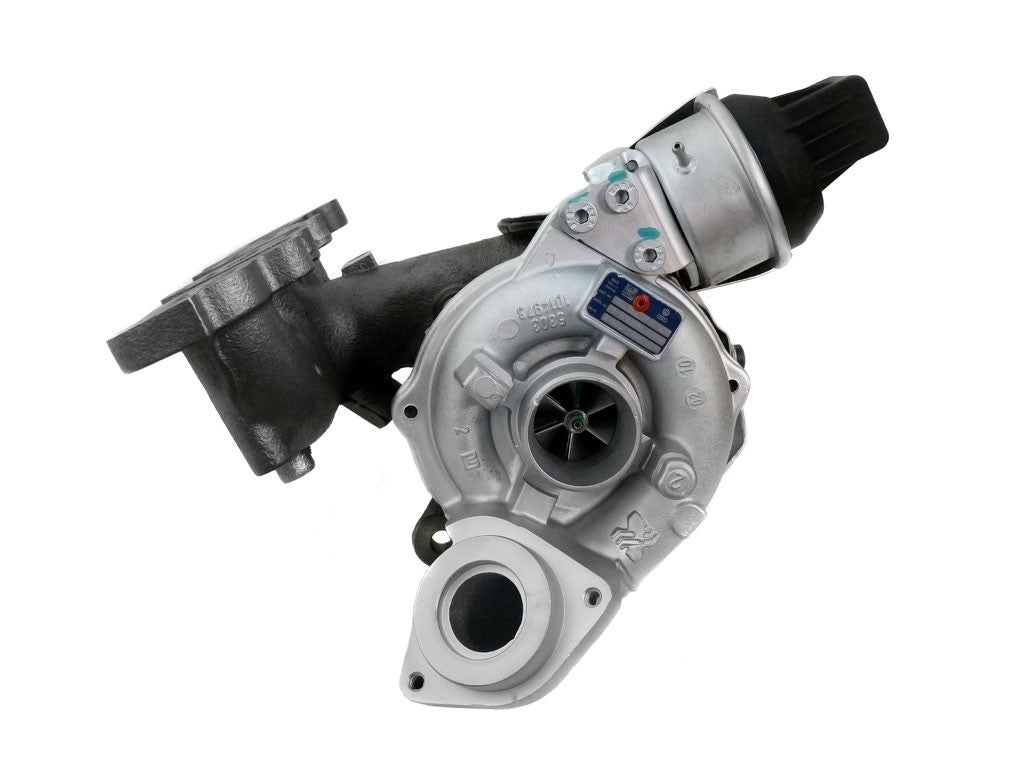

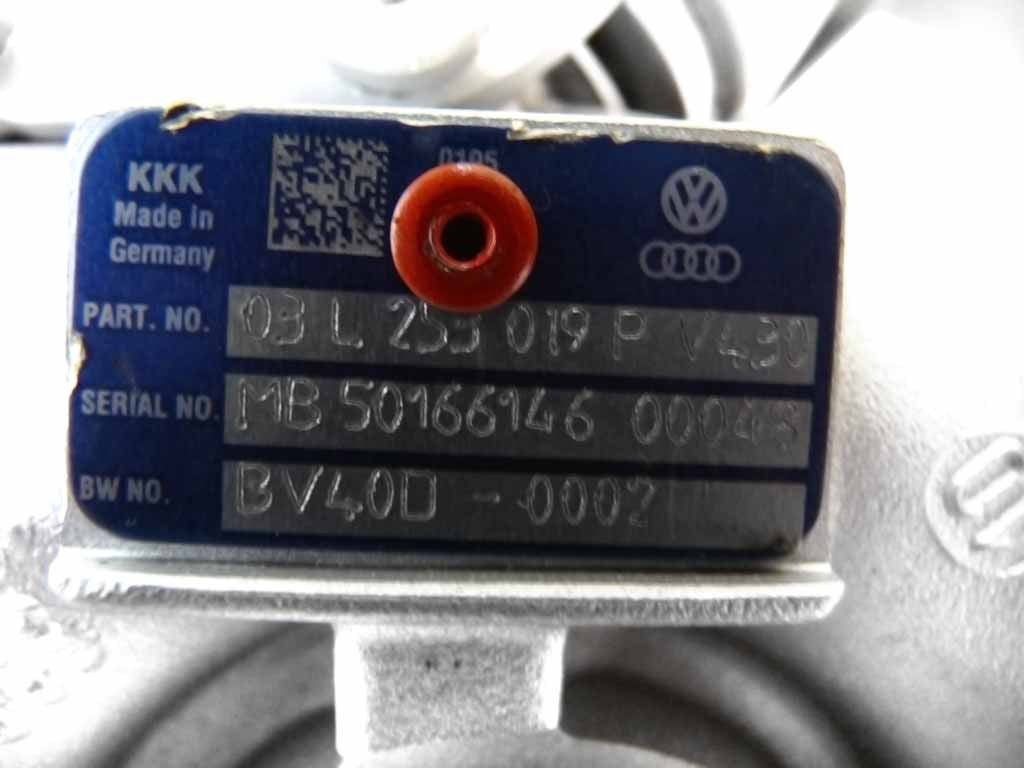

54409700002 (03L253019P) - Turbocharger BV40-1874KCB340.18AVAXC
Brand: BorgWarner
Model: BV40 - BV40-1874KCB340.18AVAXC
BorgWarner Reference: 54409700002
OEM Numbers: 03L253019P
54409700002 - Alternative numbers
BWT (BorgWarner turbo number): 5440 970 0002
BWT (BorgWarner turbo number): 5440 988 0002
54409700002 - Turbo interchangeability
Interchangeable with: BMTS BM 40007032
Interchangeable with: BorgWarner BV40-1874KCB340.18AVAXC 54409700007
Interchangeable with: BorgWarner BV40-1874KCB340.18AVAXC 54409700007-R
Interchangeable with: BorgWarner BV40-1874KCB340.18AVAXC 54409700021
Interchangeable with: BorgWarner BV40-1874KCB340.18AVAXC 54409700021-R
Interchangeable with: BorgWarner BV40 54409700028
Interchangeable with: BorgWarner BV40-1874KCB340.18AVAXC 54409700036
Interchangeable with: BorgWarner BV40-1874KCB340.18AVAXC 54409880007
Interchangeable with: BorgWarner BV40-1874KCB340.18AVAXC 54409880021
Interchangeable with: BorgWarner BV40-1874KCB340.18AVAXC 54409880036
| PART BRAND | PART NAME | PART REFERENCE | QTY | PART OE NUMBER | BORGWARNER PART NUMBER |
|---|---|---|---|---|---|
| BorgWarner | Actuator kit | 58307117015 | 1 | -- | -- |
| TurboCentras | Bolt | BO-98-0001 | 2 | -- | -- |
| EE Turbo | Cartridge | BV40-000B | 1 | -- | -- |
| TurboCentras | Cartridge | BW-00-0002 | 1 | -- | -- |
| TurboCentras | Bearing housing | BW-01-0003 | 1 | -- | -- |
| TurboCentras | Shaft and wheel | BW-02-0003 | 1 | 1640-120-5001, 1640-120-5009, 5440-120-5000, 5440-120-8501 | -- |
| TurboCentras | Compressor wheel | BW-03-0003 | 1 | 5443-123-2043 | -- |
| TurboCentras | Repair kit | BW-04-0002 | 1 | -- | -- |
| TurboCentras | Nozzle ring assy. | BW-06-0007 | 1 | -- | -- |
| TurboCentras | Back plate | BW-08-0010 | 1 | -- | -- |
| TurboCentras | Turbine housing | BW-09-0025 | 1 | -- | -- |
| TurboCentras | Shaft nut | BW-21-0001 | 1 | -- | -- |
| TurboCentras | Heat shield | BW-51-0001 | 1 | 1940-159-0804, 1940-159-0903 | -- |
| TurboCentras | Heat shield | BW-52-0001 | 1 | -- | -- |
| TurboCentras | Thrust bearing | KP35-120 | 1 | -- | -- |
| TurboCentras | Thrust flinger | KP35-133 | 1 | -- | -- |
| TurboCentras | Bearing spacer | KP35-149 | 1 | -- | -- |
| TurboCentras | Thrust washer | KP35-155 | 1 | -- | -- |
| TurboCentras | O-ring | KP35-163 | 4 | -- | -- |
| TurboCentras | Gasket oil outlet | T-1 | 1 | -- | -- |
54409880002, 54409700002, 03L253019P, 5440 970 0002, 5440 988 0002
Data updated: 2024-06-14 13:31:49
