Garrett
Turbo 761650-5001S
Turbo 761650-5001S
Couldn't load pickup availability

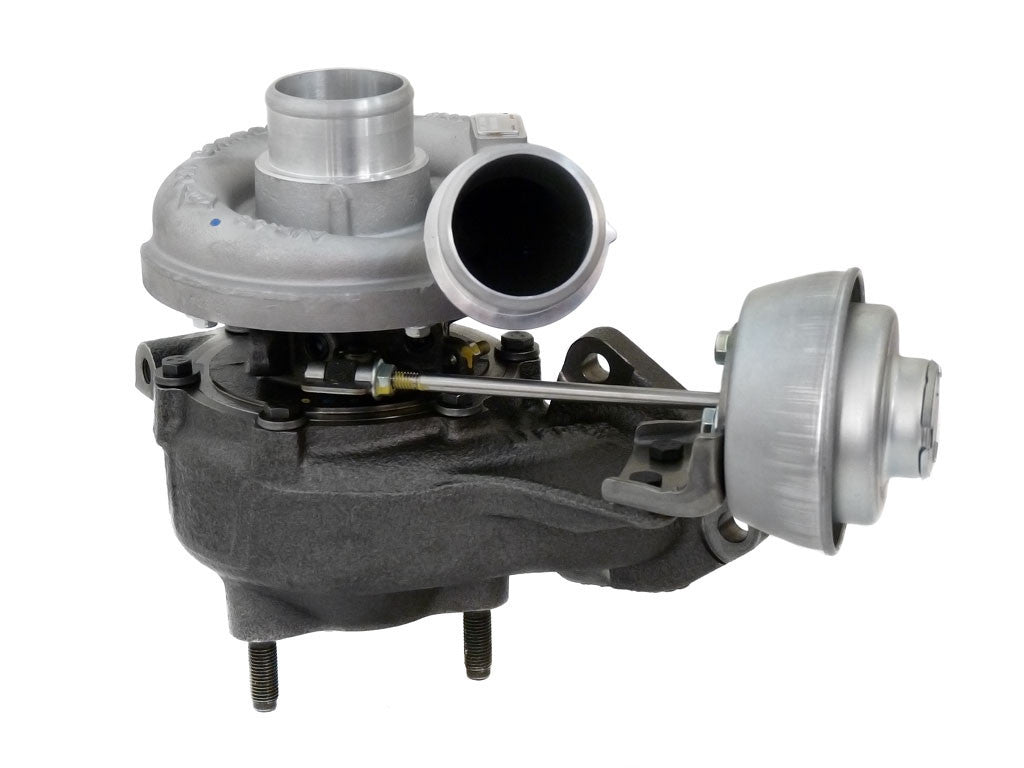

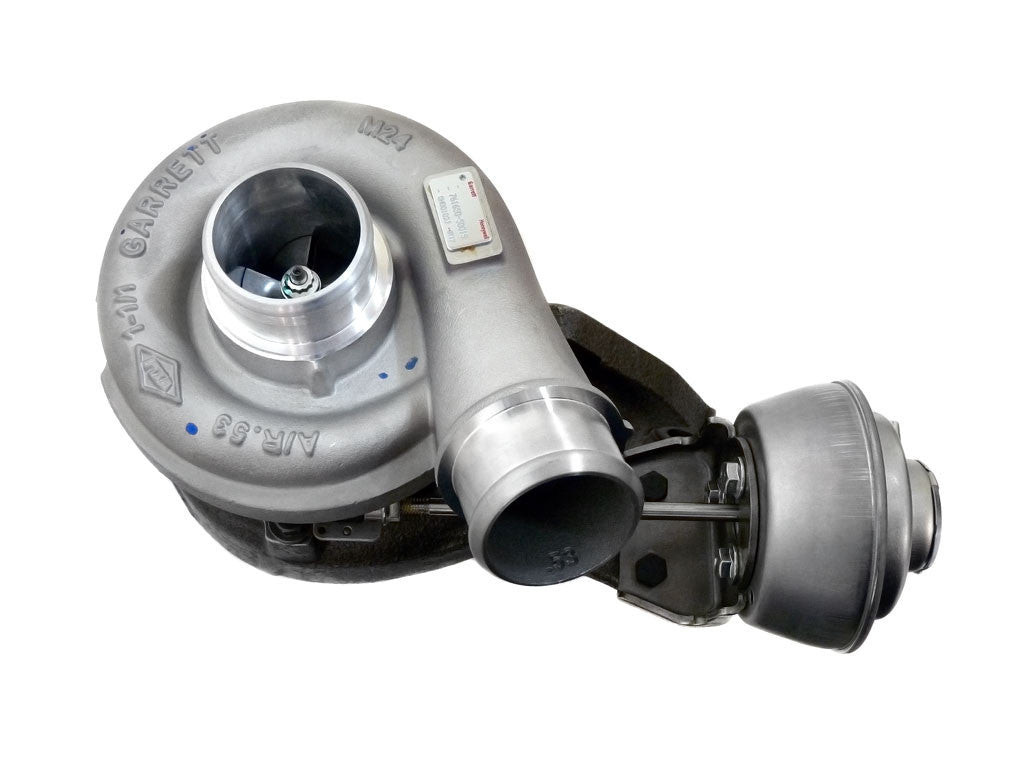

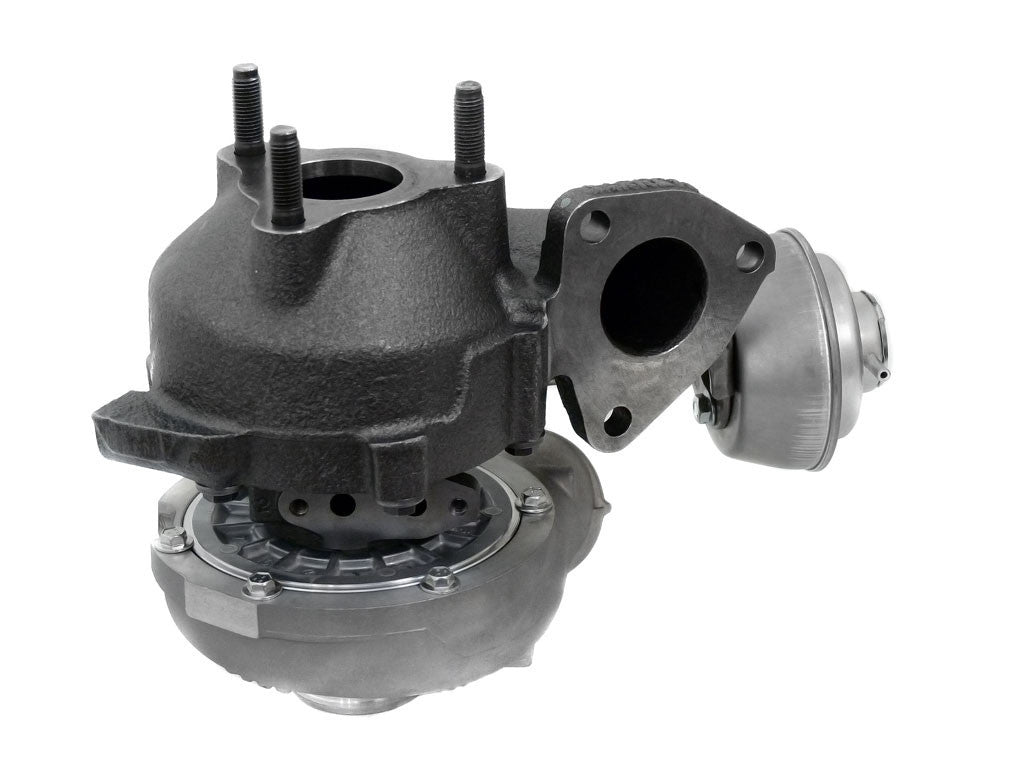

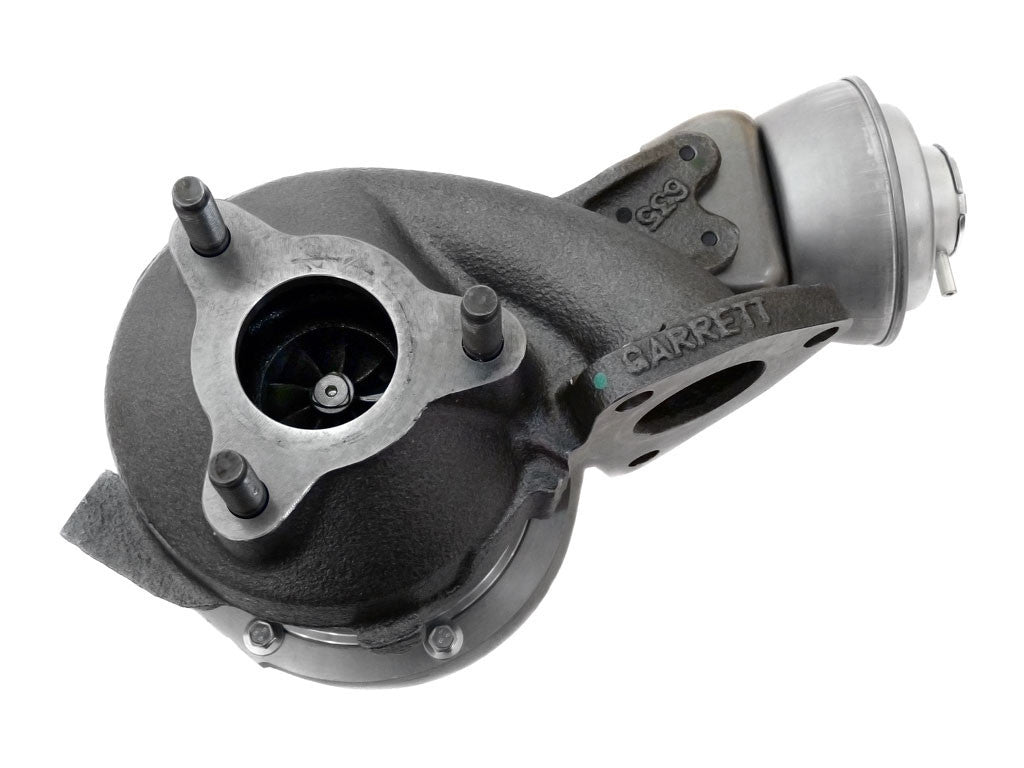

761650-5001S (18900-RBD-E03, 18900RBDE03) - Turbocharger GTA1752LV
Brand: Garrett
Model: GT17 - GTA1752LV

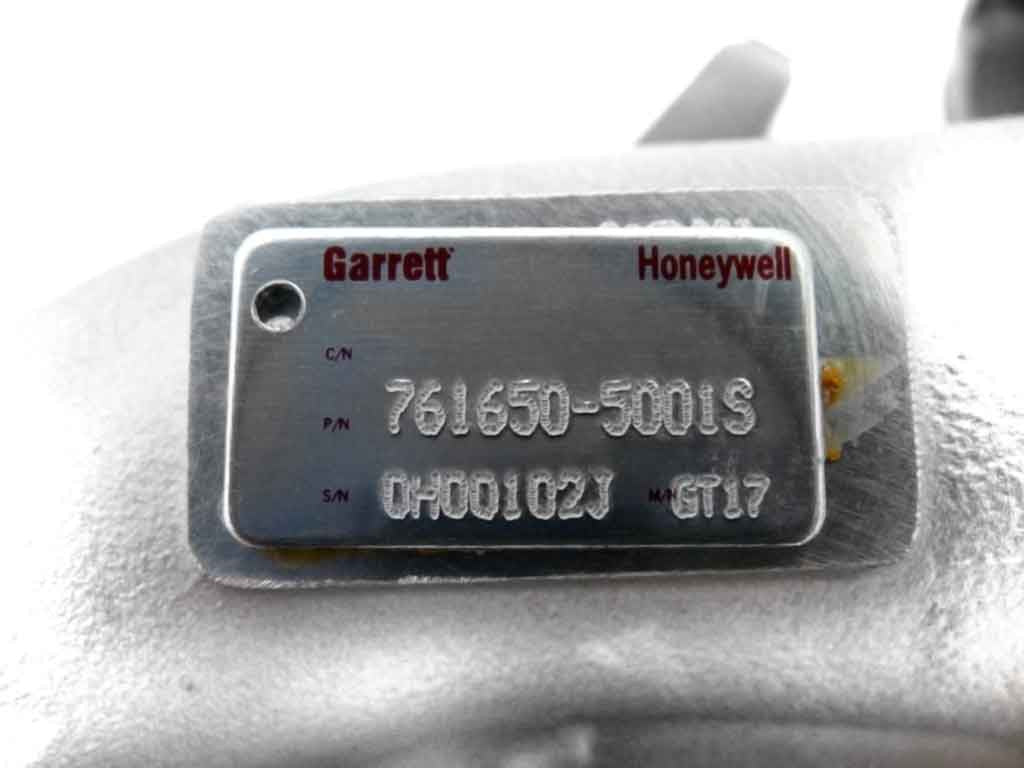

Garrett Reference: 761650-5001S
OEM Numbers: 18900-RBD-E03, 18900RBDE03
761650-5001S - Alternative numbers
GHT (Garrett turbo number): 761650-0001
GHT (Garrett turbo number): 761650-5001S
761650-5001S - Technologies and actuation
Actuation type: Pneumatic (Pneumatic actuator)
Turbocharger technology: VGT (Variable Geometry (VFT, VG, VGS, VGT, VNT, VTG) Turbocharger)
761650-5001S - Turbo replacements
Replacement for: Garrett GTA1752LV 729125-0008
Replacement for: Garrett GTA1752LV 729125-0009
Replacement for: Garrett GTA1752LV 729125-0012
761650-5001S - Turbo interchangeability
Interchangeable with: Garrett GTA1752LV 729125-0008
Interchangeable with: Garrett GTA1752LV 729125-0009
Interchangeable with: Garrett GTA1752LV 729125-0012
Interchangeable with: Garrett GTA1752LV 761650-0001
Interchangeable with: Garrett GTA1752LV 761650-5001S-R
| PART BRAND | PART NAME | PART REFERENCE | QTY | PART OE NUMBER | GARRETT PART NUMBER |
|---|---|---|---|---|---|
| TurboCentras | Bolt | BO-98-0004 | 6 | -- | -- |
| TurboCentras | Bolt | BO-98-0005 | 6 | -- | -- |
| TurboCentras | Cartridge | GA-00-0103 | 1 | -- | -- |
| TurboCentras | Bearing housing | GA-01-0010 | 1 | -- | -- |
| TurboCentras | Shaft and wheel | GA-02-0007 | 1 | -- | -- |
| TurboCentras | Compressor wheel | GA-03-0060 | 1 | 717697-0004 | -- |
| TurboCentras | Repair kit | GA-04-0015 | 1 | -- | -- |
| TurboCentras | Heat shield | GA-05-0013 | 1 | -- | -- |
| TurboCentras | Nozzle ring assy. | GA-06-0023 | 1 | -- | -- |
| TurboCentras | Back plate | GA-08-0040 | 1 | -- | -- |
| TurboCentras | Shaft nut | GA-21-0005 | 1 | -- | -- |
| TurboCentras | Actuator clip | GR.5 | 1 | -- | -- |
| TurboCentras | Thrust bearing | GT15-120 | 1 | -- | -- |
| TurboCentras | Thrust flinger | GT15-130 | 1 | -- | -- |
| TurboCentras | Thrust Collar | GT15-135 | 1 | -- | -- |
| TurboCentras | Retaining ring | GT15-143 | 1 | -- | -- |
| TurboCentras | Piston ring | GT15-160 | 1 | -- | -- |
| TurboCentras | Piston ring | GT15-170 | 1 | -- | -- |
| TurboCentras | Anti-rotation pin | GT15-330 | 1 | -- | -- |
| EE Turbo | Cartridge | GT17-053 | 1 | -- | -- |
| TurboCentras | Screw | SC-96-0007 | 4 | -- | -- |
| TurboCentras | Gasket oil outlet | T-1 | 1 | -- | -- |
| TurboCentras | Gasket oil outlet | T-2 | 1 | -- | -- |
| TurboCentras | Gasket oil outlet | T-2-2 | 1 | -- | -- |
| TurboCentras | Washer | WA-95-0001 | 4 | -- | -- |
18900-RBD-E03, 18900RBDE03, 761650-0001, 761650-5001S
Data updated: 2024-05-17 09:21:02
