BorgWarner

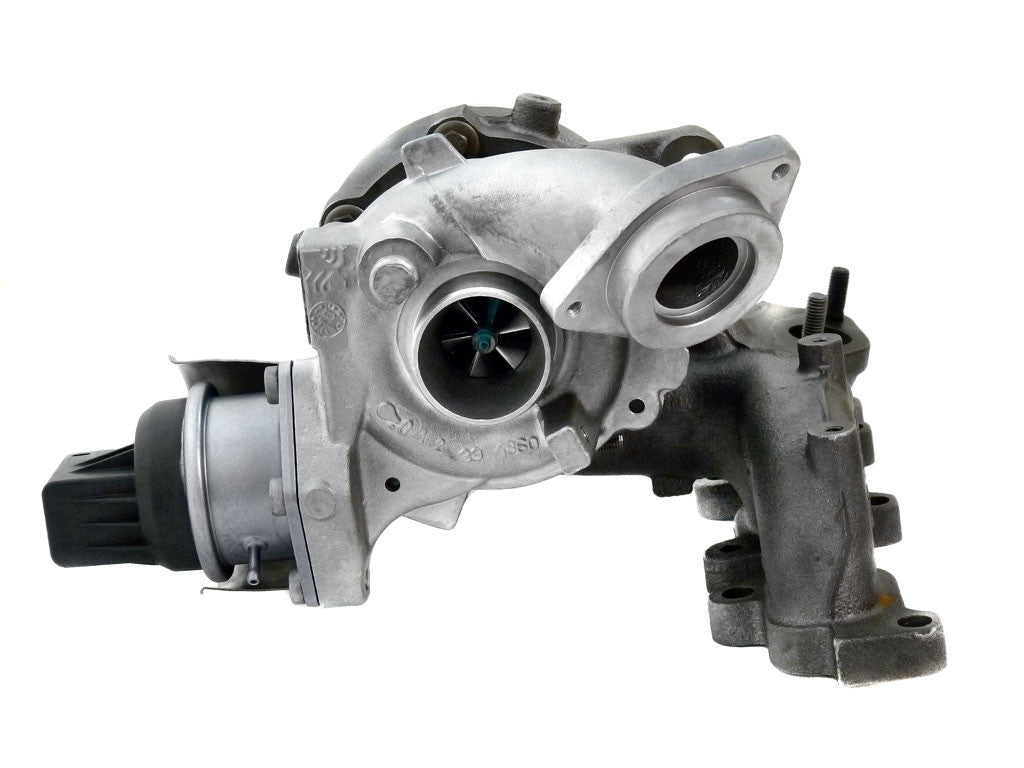

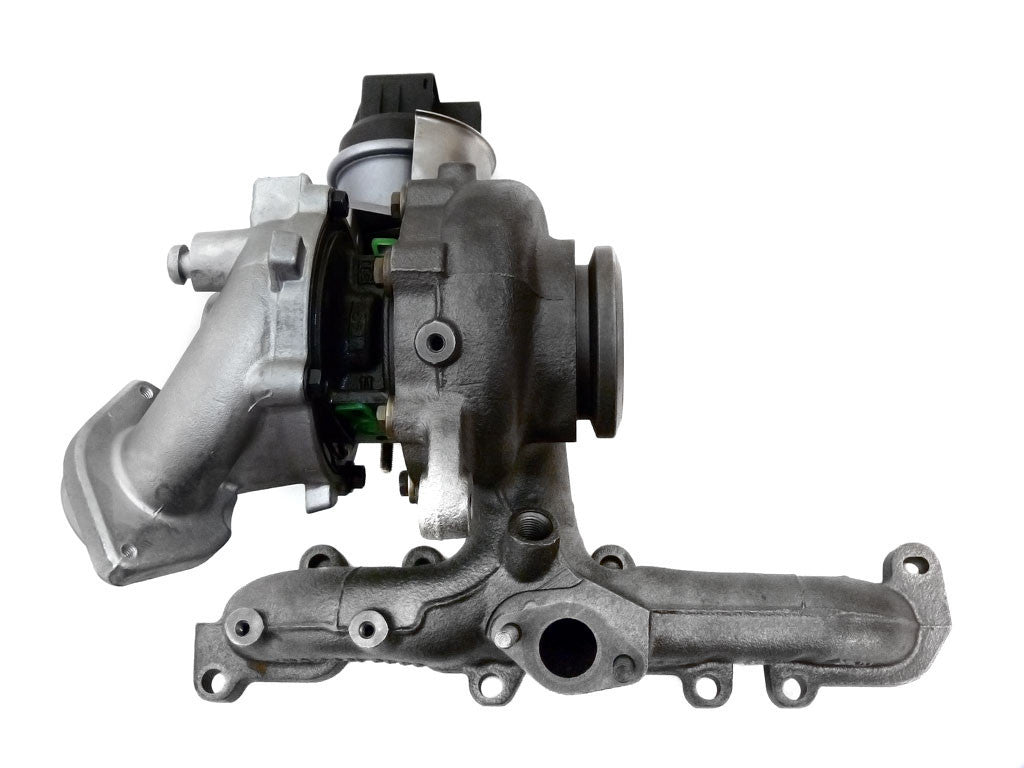

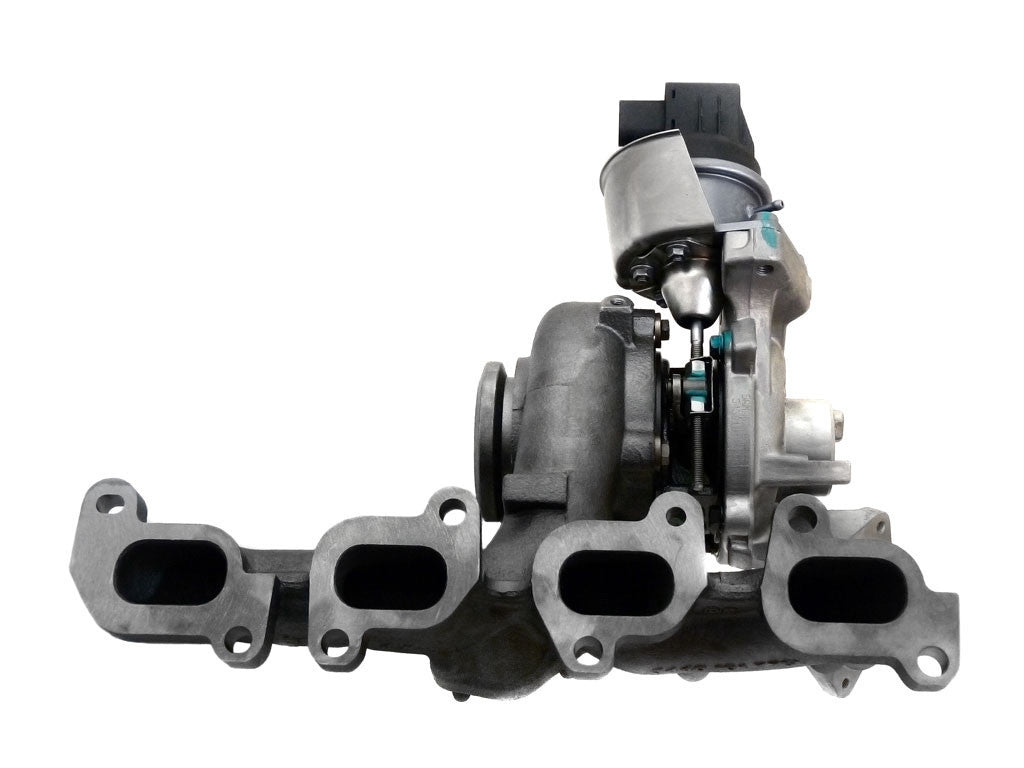

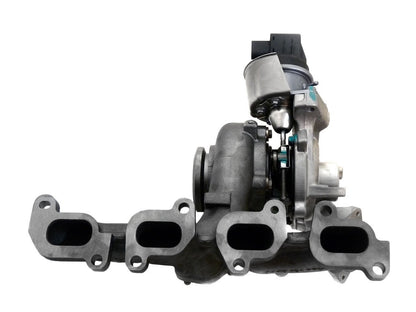

Turbo 54399880098 54399700098 (R)
Turbo 54399880098 54399700098 (R)
Couldn't load pickup availability
54399880098 (03L253016H) - Turbocharger
Brand: BorgWarner
BorgWarner Reference: 54399880098

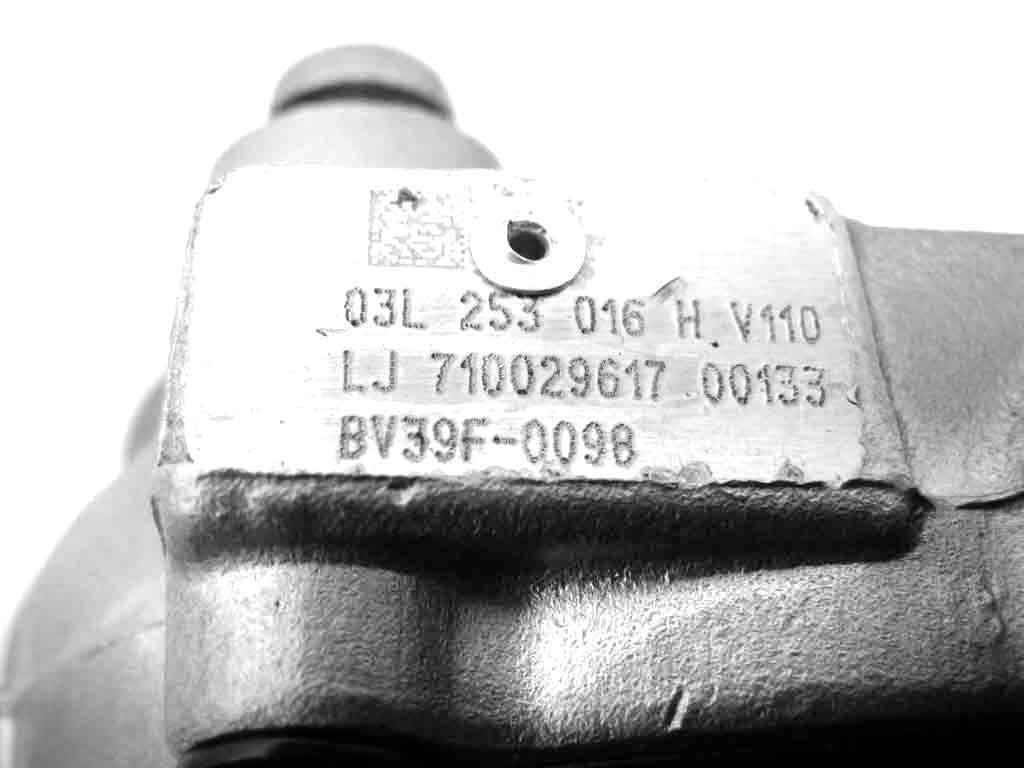

OEM Numbers: 03L253016H
54399880098 - Alternative numbers
BWT (BorgWarner original turbo number): 5439 970 0098
BWS (BorgWarner service turbo number): 5439 988 0098
54399880098 - Technologies and actuation
Actuation type: AIR (Air Actuation), APS (Air actuation with position sensor)
Turbocharger technology: VTG (Variable Turbine Geometry)
54399880098 - Turbo replacements
Replaced by: BorgWarner BV39-1674KCB340.18AVAXC 54399880114
Replacement for: BorgWarner BV39-1674KCB340.18AVAXC 54399700094
54399880098 - Turbo interchangeability
Interchangeable with: BorgWarner BV39-1674KCB340.18AVAXC 54399700086
Interchangeable with: BorgWarner BV39-1674KCB340.18AVAXC 54399700094
Interchangeable with: BorgWarner BV39-1674KCB340.18AVAXC 54399880114
Interchangeable with: BorgWarner BV39-1674KCB340.18AVAXC 54399880136
| Turbo 54399880098 - Compatible parts | |||||
|---|---|---|---|---|---|
| PART BRAND | PART NAME | PART REFERENCE | QTY | PART OE NUMBER | BORGWARNER PART NUMBER |
| BorgWarner | Actuator | 58257117019 | 1 | -- | -- |
| TurboCentras | Actuator | BV39-486 | 1 | -- | 5825 711 7019 |
| TurboCentras | Bearing housing | BV40-300 | 1 | -- | 5440 150 4002 |
| TurboCentras | Heat shield | BV40-321 | 1 | -- | -- |
| TurboCentras | Heat shield primary | BV40-321A | 1 | -- | 1940 159 0804, 1940 159 0903 |
| TurboCentras | Heat shield secondary | BV40-321B | 1 | -- | -- |
| TurboCentras | Compressor wheel | BW-03-0061 | 1 | -- | 5439 123 2021, 5439 123 2065 |
| TurboCentras | Piston ring (compr.) | K03/04-170 | 2 | -- | -- |
| TurboCentras | Journal bearing | KP35-100 | 2 | -- | -- |
| TurboCentras | Thrust bearing | KP35-120 | 1 | -- | -- |
| TurboCentras | Thrust flinger | KP35-130 | 1 | -- | -- |
| TurboCentras | Thrust flinger | KP35-131 | 1 | -- | -- |
| TurboCentras | Thrust flinger | KP35-133 | 1 | -- | -- |
| TurboCentras | Bearing spacer | KP35-149 | 1 | -- | -- |
| TurboCentras | Thrust washer | KP35-155 | 1 | -- | -- |
| TurboCentras | O-ring (backplate) | KP35-163 | 4 | -- | -- |
| TurboCentras | Shaft nut | KP35-180 | 1 | -- | -- |
| TurboCentras | O-ring (backplate) | KP35-200 | 1 | -- | -- |
| TurboCentras | O-ring (compr.) | KP35-201 | 1 | -- | -- |
| TurboCentras | O-ring (compr.) | KP35-202 | 1 | -- | -- |
| TurboCentras | O-ring (compr.) | KP35-203 | 1 | -- | -- |
| TurboCentras | Repair kit | KP35-50 | 1 | -- | -- |
| TurboCentras | Back plate | KP35-65 | 1 | -- | -- |
| TurboCentras | Cartridge | KP39-237 | 1 | -- | 5439 710 0531 |
| TurboCentras | Shaft and wheel | KP39-40 | 1 | -- | -- |
| TurboCentras | Nozzle ring assy. | KP39-93 | 1 | -- | -- |
| TurboCentras | Bolt | M3X12 | 2 | -- | -- |
| TurboCentras | Bolt | M6X10 | 6 | -- | -- |
| TurboCentras | Bolt | M6X12PV | 6 | -- | -- |
| TurboCentras | Gasket oil outlet | T-1 | 1 | -- | -- |
54399880098, 54399700098, 03L253016H, 5439 970 0098, 5439 988 0098
Data updated: 2023-03-24 07:53:04
